Schneider Electric UF7811-2-DV1-24V Service-Ready Spare Part

Schneider Electric UF7811-2-DV1-24V Service-Ready Spare Part for Industrial Maintenance

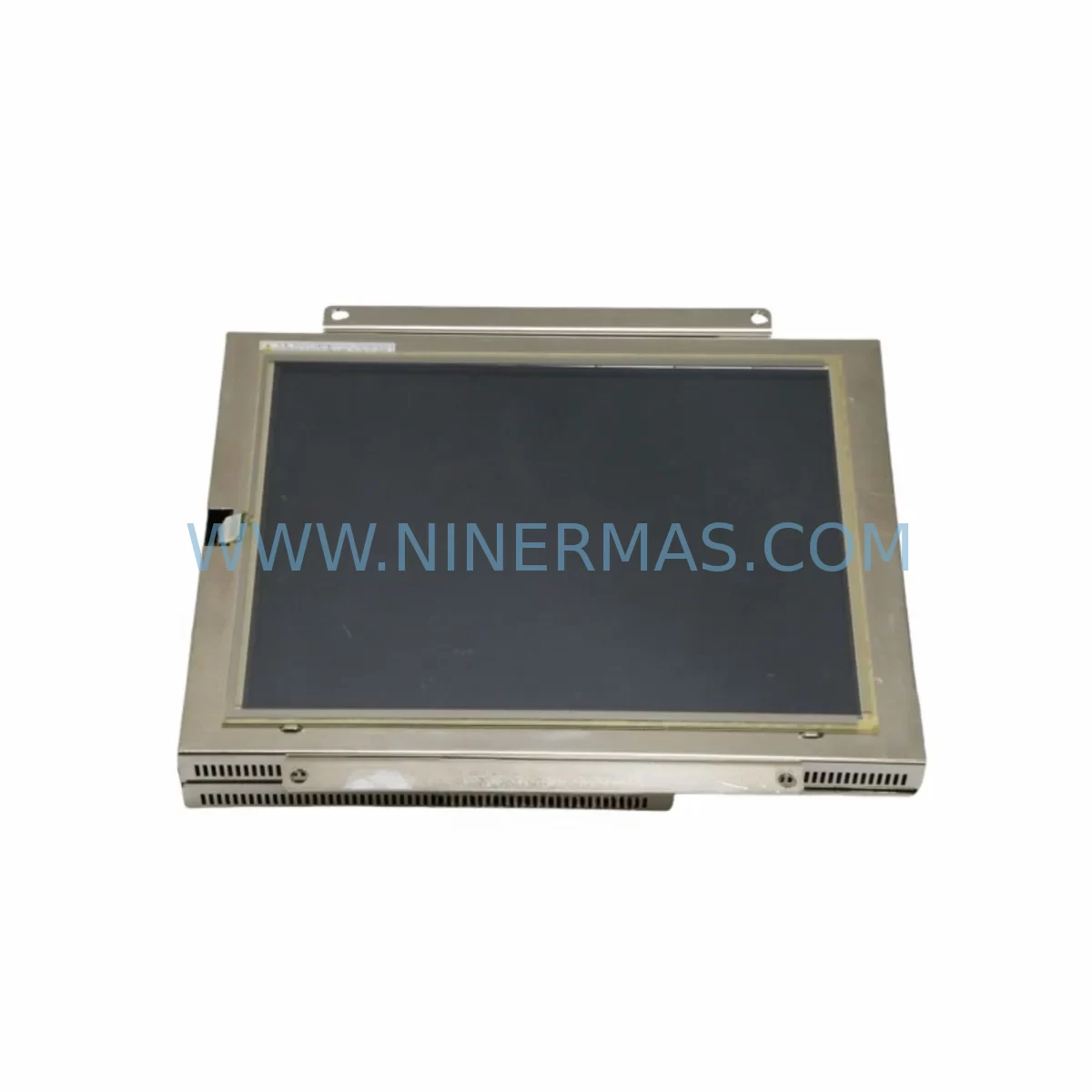

The Schneider Electric UF7811-2-DV1-24V is an original spare part designed for the Magelis Series HMI platform — one of the most widely deployed human-machine interface families in industrial automation environments worldwide. Whether you are managing a scheduled annual overhaul, responding to an unplanned panel failure, or building a proactive spare parts inventory for a legacy control system, the UF7811-2-DV1-24V delivers the compatibility, reliability, and long-term supply assurance that maintenance and procurement engineers demand.

Operating at 24V DC, this unit is engineered to integrate directly into existing Magelis-based control cabinets without requiring firmware reconfiguration or panel redesign. Its form-factor and electrical interface are consistent with the original factory specification, enabling rapid like-for-like replacement that minimises technician intervention time and reduces the risk of commissioning errors during emergency recovery scenarios.

At NINERMAS, every UF7811-2-DV1-24V unit is sourced from authorised supply channels, individually inspected prior to dispatch, and covered by a 12-month warranty. We maintain forward stock to support both single-unit emergency orders and bulk procurement for multi-site maintenance programmes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the UF7811-2-DV1-24V in a Magelis-based control panel is rarely an isolated task. Experienced maintenance engineers understand that an HMI failure is frequently a symptom of broader electrical stress within the control cabinet, and a thorough site inspection should accompany any panel interface replacement.

When servicing a cabinet housing the UF7811-2-DV1-24V, it is best practice to simultaneously inspect the 24V DC power supply module feeding the HMI rail — units such as the Schneider Electric ABL8REM24030 or equivalent Phaseo power supplies are common companions in Magelis installations and should be checked for output voltage stability and capacitor ageing. The communication cable assembly connecting the HMI to the PLC backplane — typically a shielded RS-232, RS-485, or Ethernet patch — should be inspected for insulation damage, connector corrosion, and secure termination.

For panels integrated with a Modicon M340 or M580 PLC, the CPU module, Ethernet communication module (such as the BMX NOE 0100), and I/O expansion modules should be verified for firmware currency and physical integrity. Loose terminal connections on Telefast ABE7 I/O sub-bases are a known source of intermittent signal faults that can manifest as HMI display anomalies, making terminal inspection a critical parallel task.

Relay output modules — including the Zelio Logic smart relay or discrete relay modules within the same cabinet — should be tested for contact resistance and coil response time, particularly in high-cycle applications. Signal isolators and loop-powered transmitters on analogue I/O channels should be verified for calibration drift, as degraded signal quality can produce erroneous process values on the HMI screen and trigger unnecessary operator interventions.

Fuse holders and miniature circuit breakers on the 24V distribution rail should be inspected for thermal discolouration and contact integrity. Where Preventa safety relay modules or emergency-stop circuits are present in the same panel, their self-monitoring function should be tested as part of the same maintenance window. Finally, if the installation includes a ConneXium industrial Ethernet switch or fibre media converter for plant network connectivity, port status and cable integrity should be confirmed before returning the panel to service.

Procuring these associated components alongside the UF7811-2-DV1-24V as part of a consolidated spare parts order reduces procurement lead time, simplifies logistics, and ensures that a single maintenance window can address all at-risk components simultaneously — a strategy that significantly reduces the probability of a repeat callout within the same maintenance cycle.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energise the control cabinet and apply LOTO (Lockout/Tagout) procedure. Confirm 24V DC rail is discharged before handling the HMI module.

Step 2 — Documentation: Photograph the existing wiring, connector positions, and any configuration labels on the outgoing UF7811-2-DV1-24V unit. Record the current firmware version displayed on the HMI if accessible prior to shutdown.

Step 3 — Module Removal: Disconnect the power connector, communication cable, and any I/O signal connectors in sequence. Release the panel-mount retention clips and extract the unit from the cutout.

Step 4 — Inspection of Mating Connectors: Inspect all mating connectors and cable terminations for corrosion, pin damage, or insulation breakdown. Clean contact surfaces with isopropyl alcohol if required.

Step 5 — Installation of Replacement Unit: Insert the new UF7811-2-DV1-24V into the panel cutout and secure retention clips. Reconnect all cables in reverse order of removal, referencing the documentation captured in Step 2.

Step 6 — Power-Up and Verification: Re-energise the 24V rail and confirm HMI boot sequence completes without fault codes. Verify communication link to the PLC is established and all process values are displayed correctly.

Step 7 — Functional Test: Exercise all operator controls, alarm acknowledgement functions, and navigation screens. Confirm touchscreen calibration if applicable. Log the replacement in the site maintenance register with the new unit serial number and warranty start date.

This workflow is applicable to both emergency replacement scenarios and planned maintenance shutdowns. The like-for-like compatibility of the UF7811-2-DV1-24V with the original Magelis platform eliminates the need for software reconfiguration in standard replacement scenarios, reducing total downtime to the duration of the physical swap and functional verification.

Spare Parts Support FAQ

Q1: Is the UF7811-2-DV1-24V an original Schneider Electric part or an aftermarket equivalent?
The UF7811-2-DV1-24V supplied by NINERMAS is an original Schneider Electric spare part sourced through authorised supply channels. We do not supply aftermarket, counterfeit, or reverse-engineered substitutes. Each unit is accompanied by documentation confirming its origin and is covered by our 12-month warranty.

Q2: How do I confirm compatibility with my existing Magelis installation before ordering?
Compatibility can be confirmed by cross-referencing the part number on the nameplate of the installed unit with the UF7811-2-DV1-24V designation. If your installation uses a Magelis HMI panel with a 24V DC supply and you are uncertain of the exact variant, please contact our technical team at sale@ninermas.com with your panel model number and we will confirm compatibility prior to order placement.

Q3: What is included in the pre-shipment inspection and what does the 12-month warranty cover?
Every unit undergoes a visual and electrical inspection prior to dispatch to verify physical integrity and confirm the unit is free from transit damage or storage defects. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed directly through NINERMAS with replacement or refund options available.

Q4: Can NINERMAS support long-term or scheduled bulk procurement for multi-site maintenance programmes?
Yes. NINERMAS maintains forward inventory of the UF7811-2-DV1-24V and can support scheduled bulk orders with agreed delivery windows to align with annual maintenance shutdowns or multi-site rollout programmes. We also offer consolidated spare parts packages that include associated power supply, communication, and I/O components to simplify procurement for complex control system maintenance projects. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your requirements.
