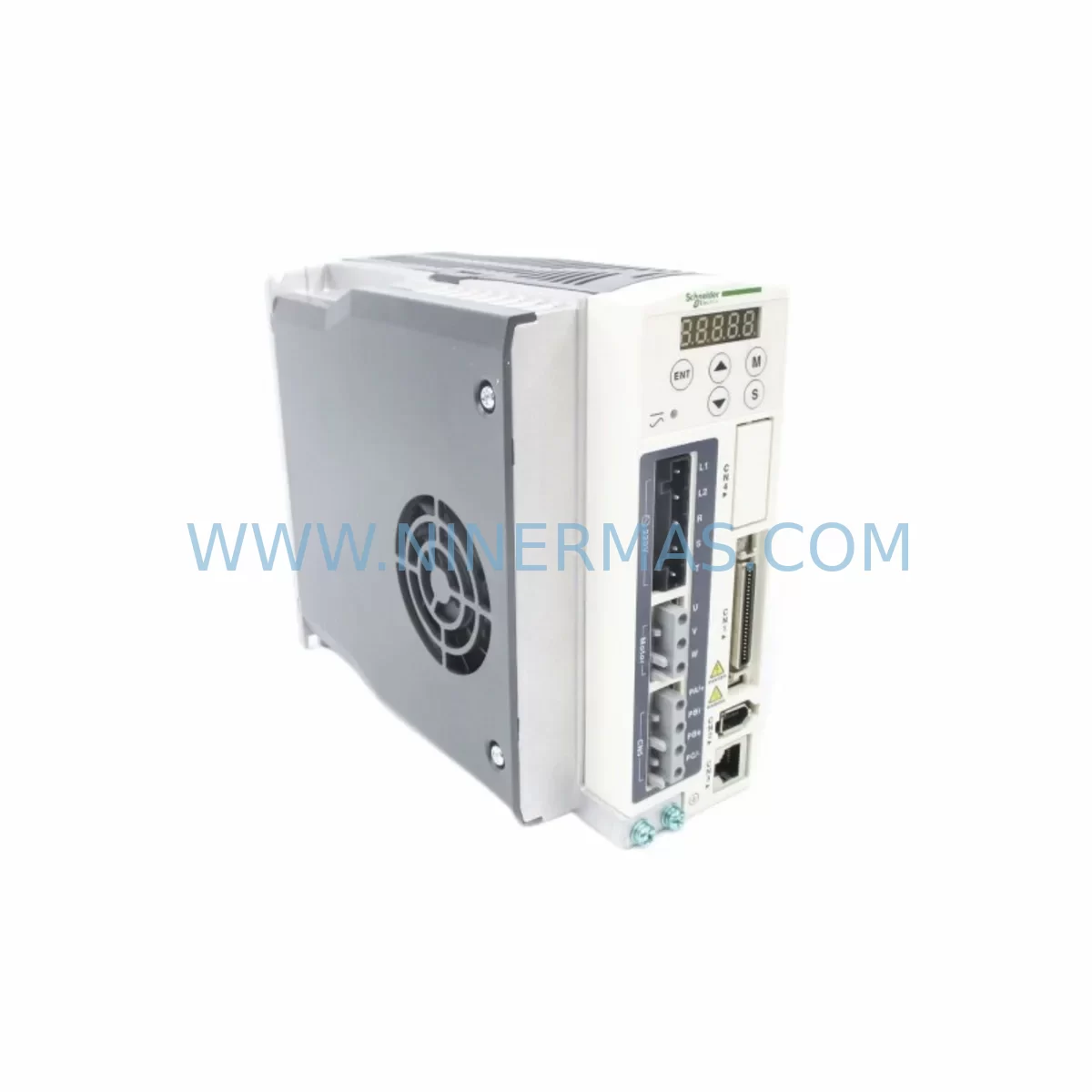

The Schneider Electric LXM23DU10M3X is a single-axis servo drive from the Lexium 23 series, designed for precise motion control in industrial automation environments. As legacy Lexium 05 and Lexium 15 platforms reach end-of-life and spare parts become increasingly difficult to source, the LXM23DU10M3X has emerged as the preferred retrofit-compatible replacement for engineers managing aging production lines, control cabinet upgrades, and multi-axis motion system migrations. NINERMAS maintains verified in-stock inventory of the LXM23DU10M3X with a 12-month warranty and pre-shipment functional testing to support your retrofit timeline.

Rated at 1.0 kVA continuous output power and compatible with 200–240 V single-phase or three-phase supply, the LXM23DU10M3X integrates directly with Schneider Electric’s SoMachine Motion and EcoStruxure Machine Expert programming environments. Its CANopen and Modbus RTU communication interfaces make it a practical drop-in candidate for systems previously running on older fieldbus architectures, provided that protocol mapping and node addressing are verified during commissioning. For sites already using a Modicon M241 or M251 logic controller, the LXM23DU10M3X can be configured via the integrated motion function blocks without requiring a separate motion controller card.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the LXM23DU10M3X begins well before the unit arrives on site. Engineers should start by auditing the existing control cabinet layout to confirm available DIN rail space, cabinet depth clearance, and the routing path for motor power cables and encoder feedback lines. The LXM23DU10M3X uses a CN1 terminal connector for I/O signals, which differs from the screw-terminal arrangement found on older LXM05BD10N4 drives — pre-wiring a breakout adapter or custom terminal block can significantly reduce installation time during the cutover window.

Power supply capacity is a critical checkpoint. The LXM23DU10M3X draws inrush current during initialization, and if the existing ABL8REM24030 or equivalent 24 V DC control power supply is already loaded near capacity by other devices — such as a TM5SDI12D digital input module, a TM5SDO12T digital output module, or a TM5NS31 CANopen network module — the supply must be derated or replaced before commissioning. Failure to account for inrush loading is one of the most common causes of nuisance faults during first power-up after a retrofit.

For multi-axis systems, the LXM23DU10M3X is typically deployed alongside other Lexium 23 variants such as the LXM23DU30M3X (3.0 kVA) or LXM23DU55M3X (5.5 kVA) on a shared CANopen network. Node address assignment must be planned before installation — duplicate node IDs on the CANopen bus will prevent the network from initializing and can cause the Modicon M241 or M251 controller to enter a fault state. Each drive’s node address is set via the front panel keypad or through SoMachine Motion’s device tree prior to first scan.

HMI screen migration is another area that requires early planning. If the existing system uses a HMIGTO2310 or similar Magelis touch panel with motion status screens built in Unity Pro or Vijeo Designer, those screens will need to be updated to reflect the new drive’s variable addresses and alarm codes. The LXM23 alarm structure differs from the LXM05 and LXM15 series, so any HMI alarm page that maps drive fault codes directly will require a full variable re-mapping exercise. Allocating time for this during the engineering phase — rather than discovering it during commissioning — is essential for keeping the retrofit on schedule.

Where the existing system uses a VW3A3616 CANopen communication card or a VW3A3720 Modbus TCP gateway on a legacy drive, the LXM23DU10M3X’s native CANopen port eliminates the need for an external communication card in most single-axis applications, simplifying the cabinet layout and reducing potential points of failure. For sites migrating from Profibus DP, a VW3A3607 Profibus adapter is available for the LXM23 platform, allowing the drive to participate in an existing Profibus network without requiring a full PLC communication upgrade.

Downtime Control During System Migration

Minimizing production downtime during a servo drive retrofit requires a structured cutover plan that separates the preparation phase from the physical installation phase. For the LXM23DU10M3X, the preparation phase should include: completing all SoMachine Motion configuration offline using a laptop with the drive connected to a bench power supply; validating all motion function block parameters against the original machine specification; and performing a dry-run of the I/O mapping using the drive’s built-in I/O monitor before the unit is installed in the cabinet.

During the physical cutover, the recommended sequence is to de-energize the cabinet, remove the legacy drive, install the LXM23DU10M3X, reconnect motor power and encoder cables, restore control power, and then perform a controlled first-motion test at reduced speed before returning the axis to automatic mode. This sequence, when followed with a pre-prepared commissioning checklist, typically allows a single-axis cutover to be completed within a four-hour maintenance window — even on complex machines with multiple interlocks and safety circuits.

Protecting the original program logic is equally important. Before any hardware is removed, a full backup of the PLC program, motion parameters, and HMI project should be saved to at least two separate storage locations. The LXM23DU10M3X’s parameter set should be exported from SoMachine Motion and stored alongside the PLC backup so that the drive can be restored to its commissioned state quickly if a replacement unit is ever needed in the future. NINERMAS recommends retaining a spare LXM23DU10M3X in the plant’s critical spares inventory to eliminate lead time risk for future unplanned failures.

Retrofit Support FAQ

Q: Is the LXM23DU10M3X a direct drop-in replacement for the LXM05BD10N4?
A: Not electrically or mechanically identical, but it is the recommended upgrade path. The LXM23DU10M3X offers equivalent power output with improved communication options. Terminal wiring, encoder connector type, and mounting dimensions differ — a wiring adaptation and mechanical bracket may be required. NINERMAS can provide a retrofit wiring guide upon request.

Q: What commissioning steps are required after installation?
A: After physical installation, the drive must be configured in SoMachine Motion or EcoStruxure Machine Expert: set the motor catalog number, configure the CANopen node address, map I/O assignments, set motion limits (velocity, acceleration, torque), and perform an auto-tuning sequence. A first-motion test at 10% speed is recommended before returning the axis to full automatic operation.

Q: Does NINERMAS test the LXM23DU10M3X before shipment?
A: Yes. All units supplied by NINERMAS undergo a pre-shipment functional test that verifies power-up, communication initialization, and I/O response. Each unit ships with a test report and is covered by a 12-month warranty from the date of shipment. Units found to be defective within the warranty period are replaced or repaired at no charge.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains in-stock inventory of the LXM23DU10M3X to support urgent retrofit and breakdown replacement requirements. Standard orders ship within 1–3 business days. For large-quantity or scheduled project orders, contact our sales team to confirm allocation and delivery schedule.
