Schneider Electric LXM05AD28M2 Spare Part for Lexium 05

Schneider Electric LXM05AD28M2 Spare Part for Lexium 05: Servo Drive Replacement & Downtime Risk Control

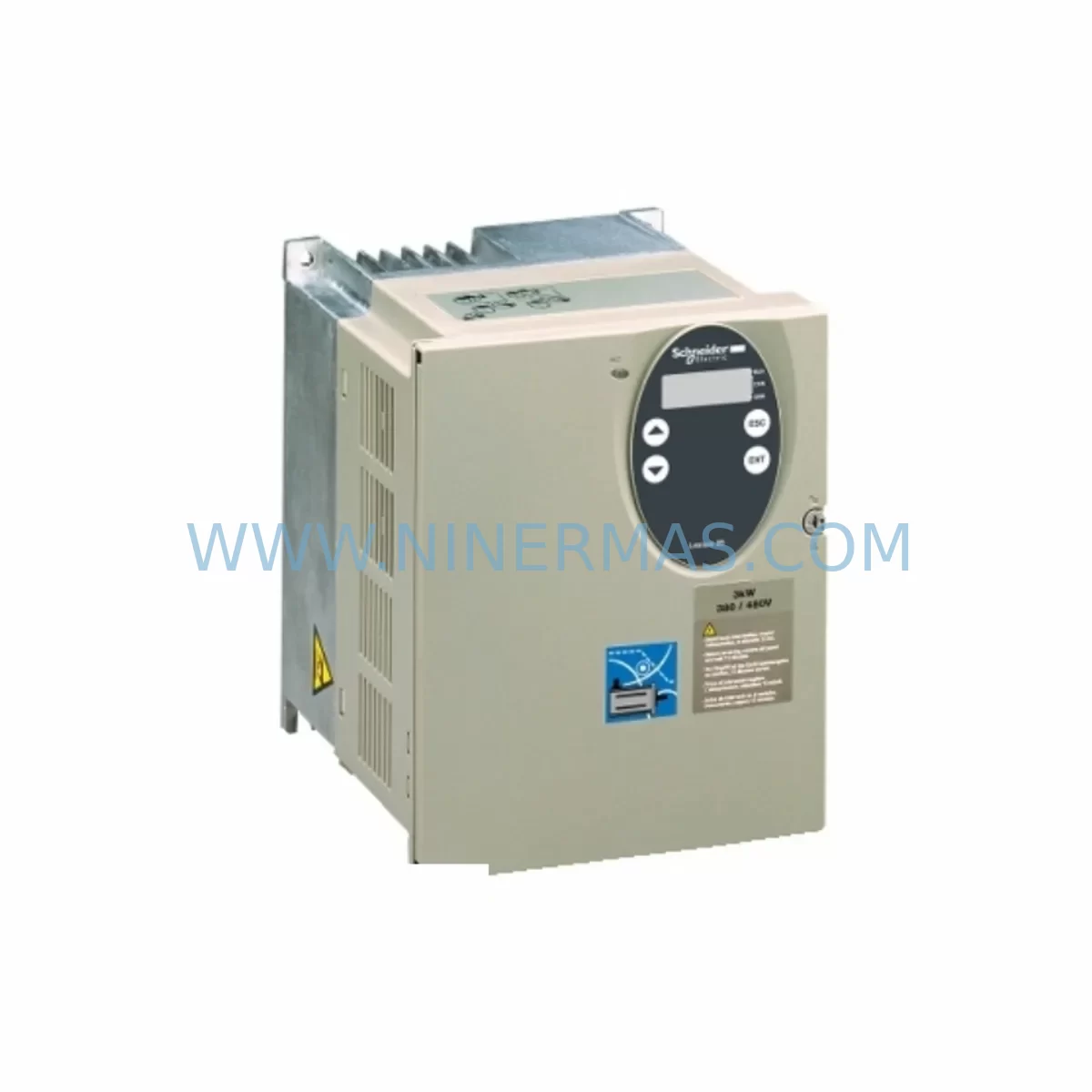

The Schneider Electric LXM05AD28M2 is a high-performance servo drive from the Lexium 05 series, engineered for precision motion control in demanding industrial automation environments. When a servo drive fails on the production line, every minute of unplanned downtime translates directly into lost output, missed delivery windows, and escalating maintenance costs. Sourcing a verified, pre-shipment tested LXM05AD28M2 replacement unit is the fastest path to restoring full system operation without compromising safety or compatibility.

This unit is stocked as a service-ready spare part, fully inspected prior to dispatch and backed by a 12-month warranty. Whether you are managing a scheduled annual overhaul, responding to an emergency fault condition, or building a strategic spare parts inventory for a multi-axis Lexium 05 installation, the LXM05AD28M2 is available for immediate order and rapid international shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A servo drive replacement rarely occurs in isolation. When a LXM05AD28M2 is removed from service, a thorough maintenance engineer will use the opportunity to inspect and validate the surrounding electrical infrastructure to prevent repeat failures and ensure the restored axis performs reliably over the next service interval.

Begin with the 24 V DC control power supply feeding the drive’s logic circuit — voltage ripple or marginal capacity is a common root cause of nuisance faults and parameter loss. Inspect the single-phase AC input fusing and line filter (such as the Schneider Electric VW3A4601 EMC filter recommended for Lexium 05 drives) for signs of thermal stress or degraded filtering performance. Verify the motor power cable and encoder feedback cable — Schneider Electric VW3M5101 and VW3M5301 series cables are the matched accessories — checking for insulation damage, connector pin corrosion, and correct shielding continuity.

At the control cabinet level, inspect the CANopen communication wiring and termination resistors if the drive is networked via fieldbus. For installations using a Modicon M340 or Modicon M580 PLC as the motion controller, confirm that the CANopen master module (such as the BMXNOC0401 or BMXNOC0401.2) firmware is compatible with the replacement drive’s parameter set. Check the I/O wiring at the drive’s CN1 connector — limit switch inputs, drive enable signal, and fault reset lines — for correct voltage levels and cable integrity.

If the installation includes a Magelis HMIGTO or XBTGT series HMI for operator interface, verify that drive status words and fault codes are correctly mapped and that the HMI program does not reference drive-specific parameters that may differ between firmware revisions. For multi-axis systems, inspect the LXM05A axis neighbors on the same DIN rail section — shared DC bus configurations or mechanical coupling can propagate vibration-induced faults across adjacent drives.

Finally, review the braking resistor circuit (VW3A7601 or equivalent external resistor) for correct resistance value and thermal condition, particularly in applications with frequent deceleration cycles or vertical load axes. A degraded braking resistor is a leading cause of overvoltage faults that can damage an otherwise healthy replacement drive within its first operating hours.

Site Replacement Workflow

Replacing a LXM05AD28M2 on-site follows a structured sequence designed to minimize total downtime and eliminate compatibility risk. Before removing the failed unit, photograph the existing wiring layout at CN1, CN2, and CN3 connectors, and record the current parameter set using SoMove configuration software if the drive is still partially functional. Export the .smc parameter file to a laptop or USB drive — this file can be directly loaded into the replacement unit, eliminating manual re-entry of axis tuning, current limits, and motion profile parameters.

Power down the cabinet following your site’s lockout/tagout procedure. Disconnect the motor power cable, encoder cable, and control wiring in sequence. Remove the failed LXM05AD28M2 from its DIN rail or panel mount position. Install the replacement unit, reconnect all cables in reverse order, and verify torque on all terminal screws. Restore 24 V DC control power first and confirm the drive powers up without fault. Load the saved parameter file via SoMove, then restore AC mains power and perform a low-speed jog test before returning the axis to full production speed.

This workflow is compatible with legacy LXM05A installations running older firmware and does not require PLC program modification in most standard configurations, making it a low-risk, high-speed recovery path for maintenance teams operating under production pressure.

Spare Parts Support FAQ

Q1: Is the LXM05AD28M2 still available as a new spare part, or is it end-of-life?
The LXM05AD28M2 is available as new and surplus-new stock. Schneider Electric has transitioned the Lexium 05 series to legacy support status, but service-ready units remain available through specialist industrial spare parts suppliers. We maintain long-term stock to support customers with extended equipment lifecycles and multi-year maintenance contracts.

Q2: How is compatibility with my existing Lexium 05 installation verified before shipment?
Compatibility is confirmed based on the full SKU match (LXM05AD28M2), supply voltage, and control interface type. Each unit undergoes a power-on functional test prior to dispatch. If your installation uses a specific firmware version or a non-standard parameter configuration, please provide your SoMove parameter file or system documentation at the time of order so our technical team can perform additional verification.

Q3: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated specification. Warranty claims are handled directly — contact sale@ninermas.com with your order reference and a description of the fault condition. Replacement or repair is arranged on a case-by-case basis with minimum lead time.

Q4: Can I order multiple units for a strategic spare parts inventory, and what are the lead times?
Yes. We support bulk spare parts orders for maintenance departments building strategic inventory buffers. Standard in-stock units ship within 3–5 business days internationally. For larger quantities or scheduled delivery programs aligned to annual maintenance windows, contact our sales team to discuss allocation and pricing. Long-term supply agreements are available for customers with ongoing Lexium 05 fleet maintenance requirements.

—
