Schneider Electric ATV930C16N4C Service-Ready Spare Part

Schneider Electric ATV930C16N4C Service-Ready Spare Part for Industrial Maintenance

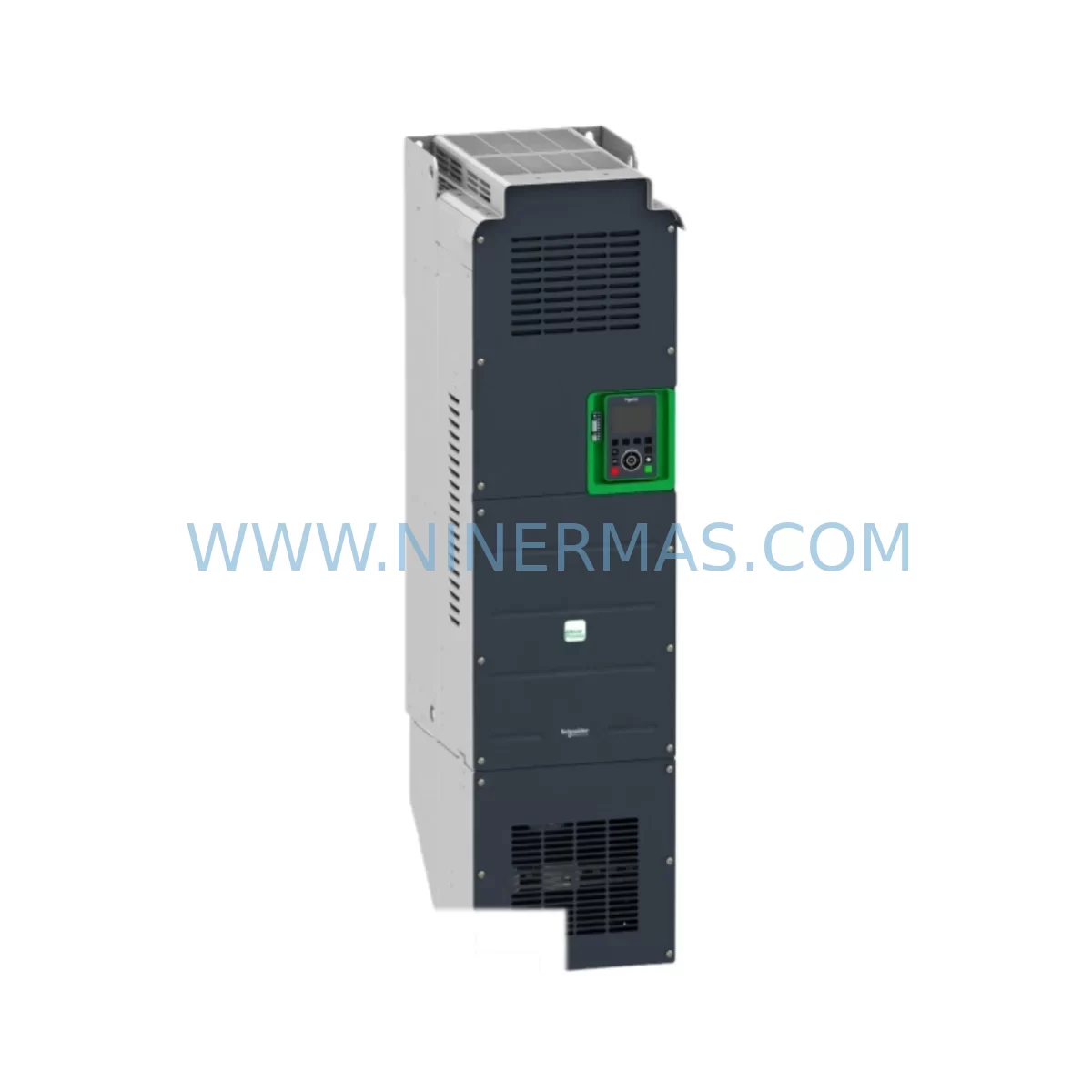

The Schneider Electric ATV930C16N4C is a high-capacity variable frequency drive (VFD) belonging to the Altivar Process 930 series, engineered for demanding industrial process applications including pumps, fans, compressors, and mixers in water treatment, oil & gas, mining, and heavy manufacturing environments. When this drive fails or reaches end-of-life, unplanned downtime can cascade across an entire production line. Sourcing a verified, service-ready replacement unit is the fastest path to restoring normal operation — and that is precisely what NINERMAS delivers.

At NINERMAS, every ATV930C16N4C unit is inspected, function-tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock this part as a critical spare without compromising on quality or traceability. Whether you are responding to an emergency breakdown or building a proactive spare parts inventory for your control cabinet, this unit ships promptly with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing an ATV930C16N4C in the field is rarely an isolated task. Experienced maintenance engineers know that a VFD failure is often symptomatic of broader stress in the electrical circuit. Before commissioning the replacement unit, a thorough inspection of the surrounding components is essential to prevent repeat failures and protect the new drive.

Start with the input power supply: verify that the upstream transformer or MCC (Motor Control Center) is delivering clean, balanced three-phase voltage within the drive’s rated input range. Voltage imbalance exceeding 2% can significantly shorten IGBT lifespan. Check and replace any blown input line fuses or tripped circuit breakers — the ATV930 series typically uses class aR semiconductor fuses on the input side, and these should be replaced as a set whenever a drive fault occurs.

Inspect the input line reactor or dV/dt filter if installed. These components protect the drive from voltage spikes and reduce harmonic distortion; a degraded reactor can allow transient overvoltages to damage the new unit. Similarly, verify the condition of the output motor cable and check for insulation breakdown using a megohmmeter before reconnecting the motor — a shorted cable is a common cause of drive IGBT failure.

On the control side, audit the I/O wiring and terminal blocks. The ATV930 uses a removable control terminal strip, which simplifies swap-out, but corroded or loose terminals on analog inputs (AI1, AI2), digital inputs (DI1–DI6), and relay outputs (R1, R2, R3) can cause erratic behavior after replacement. If the drive was communicating via an Ethernet or fieldbus communication card (such as the VW3A3720 EtherNet/IP card or VW3A3608 Profibus DP card), confirm the card is reseated correctly and that the network address and baud rate parameters are restored from backup.

For sites running Vijeo Designer HMI panels or Magelis GTU terminals connected to the drive, verify that the HMI communication parameters match the restored drive configuration. Parameter backup using SoMove software or the drive’s integrated keypad memory card is strongly recommended before any swap — this eliminates hours of manual re-parameterization on restart.

Also inspect the 24 VDC control power supply feeding the drive’s logic board and any associated Zelio Logic smart relays or Preventa safety relays in the safety circuit. A failing 24 V supply can cause intermittent faults that are easily misdiagnosed as drive failures. If the installation includes a Modicon M340 or M580 PLC communicating with the drive over Modbus TCP, confirm that the PLC program’s drive fault handling and auto-restart logic is functioning correctly after the replacement.

Finally, check the braking resistor and braking chopper module if the application involves regenerative loads. On high-inertia loads such as centrifuges or large fans, a failed braking resistor can cause DC bus overvoltage trips that damage the replacement drive within minutes of startup. Replacing the braking resistor as a precautionary measure alongside the ATV930C16N4C is a low-cost insurance policy against repeat failure.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the drive from the upstream isolator and apply LOTO. Wait a minimum of 15 minutes for the DC bus capacitors to discharge before opening the cabinet. Verify zero voltage on the DC bus terminals with a calibrated multimeter.

Step 2 — Parameter Backup: If the existing drive is still partially functional, use the integrated keypad or SoMove PC software to export the full parameter set. Store the backup file with the equipment maintenance record.

Step 3 — Mechanical Removal: Disconnect the input power cables (L1, L2, L3), output motor cables (U, V, W), PE ground, control terminal strip, and any communication cards. Label all cables before removal. The ATV930C16N4C is a cabinet-mounted unit; confirm mounting rail and fixing bolt compatibility with the replacement unit.

Step 4 — Inspection of Associated Components: Before installing the new unit, perform the inspections described above — fuses, line reactor, motor cable insulation, terminal blocks, and braking resistor.

Step 5 — Installation & Parameter Restore: Mount the replacement ATV930C16N4C, reconnect all cables in reverse order, and restore the parameter backup. Confirm motor nameplate data (rated voltage, current, frequency, power factor) is correctly entered.

Step 6 — Commissioning & Test Run: Perform a no-load test run at low speed before connecting the mechanical load. Monitor output current, DC bus voltage, and heatsink temperature during the first 30 minutes of operation. Confirm all I/O signals, communication links, and safety functions are operating correctly.

This structured workflow minimizes re-work risk and ensures the replacement drive is commissioned to the same standard as the original installation — reducing the probability of a repeat failure and protecting your 12-month warranty coverage.

Spare Parts Support FAQ

Q1: Is the ATV930C16N4C a direct drop-in replacement for my existing Altivar 930 drive?
Yes. The ATV930C16N4C is a factory-standard unit within the Altivar Process 930 series and is a direct mechanical and electrical replacement for any existing ATV930C16N4C installation. If you are upgrading from an older ATV71 or ATV61 series drive, wiring adaptation and parameter re-mapping will be required, but the ATV930 platform is designed to support this migration path with Schneider Electric’s migration guides.

Q2: How do you verify the unit before shipment, and what does the 12-month warranty cover?
Every ATV930C16N4C unit supplied by NINERMAS undergoes a pre-shipment functional test to verify power-up, control logic, and communication interfaces. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the rated specifications.

Q3: Can you support long-term or blanket purchase orders for this part?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation components, including discontinued and hard-to-source Schneider Electric parts. We can support scheduled delivery agreements, consignment stock arrangements, and multi-site procurement programs. Contact our sales team to discuss your annual maintenance budget and volume requirements.

Q4: What information should I provide to confirm compatibility before ordering?
To confirm compatibility, please provide the full nameplate data from your existing drive (part number, serial number, firmware version if visible), the motor nameplate data (kW, voltage, current, RPM), and the application type (pump, fan, compressor, etc.). Our technical team will verify compatibility and advise on any parameter differences between your existing unit and the replacement before shipment.
