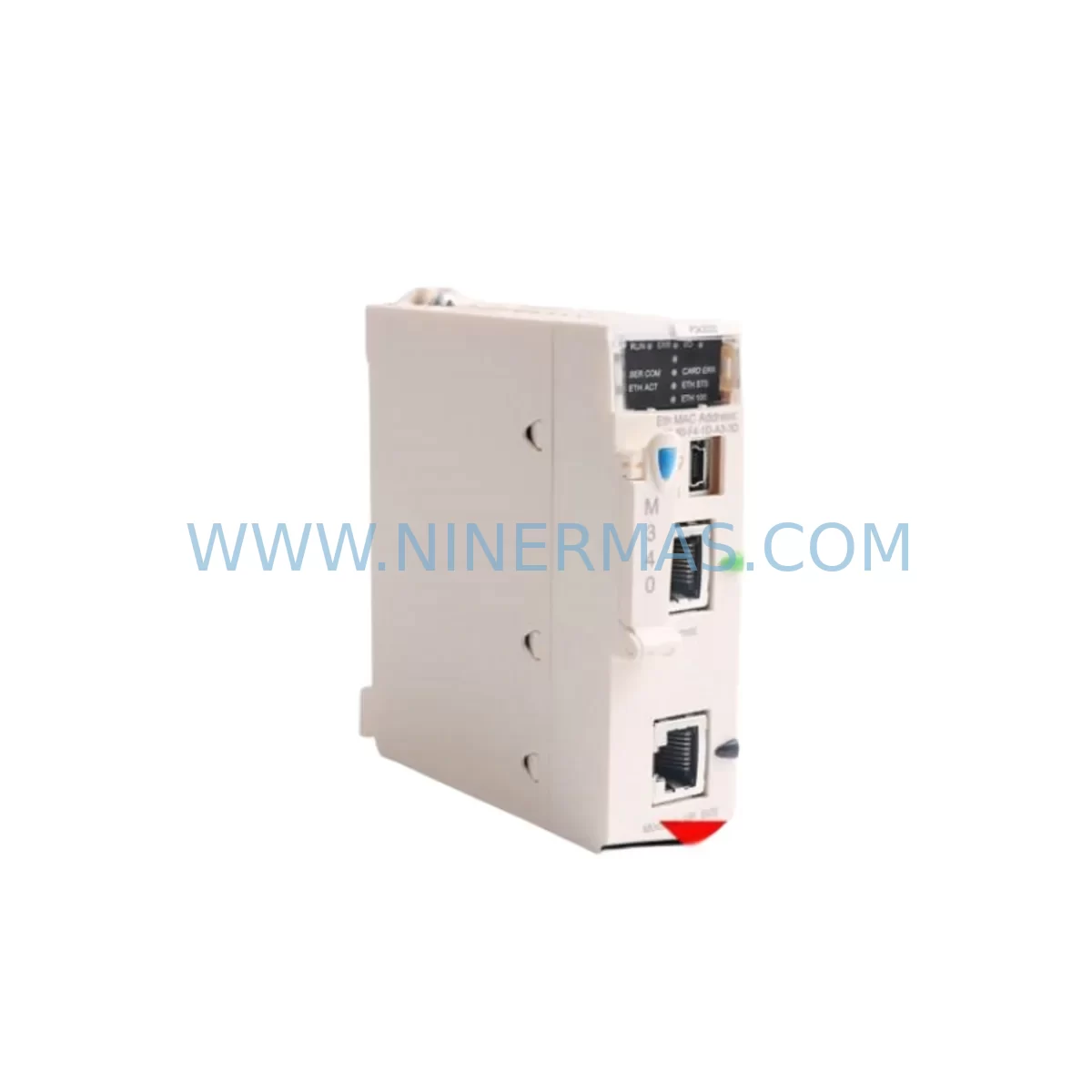

The Schneider Electric BMXP341000 is a high-performance CPU module designed for the Modicon M340 programmable logic controller platform — one of the most widely deployed mid-range PLC architectures in process automation, discrete manufacturing, and infrastructure control. For maintenance engineers managing aging control systems, securing a verified service-ready BMXP341000 spare part is a critical step in reducing unplanned downtime, protecting production continuity, and extending the operational life of existing M340 installations without requiring full system migration.

The BMXP341000 serves as the central processing unit of the M340 rack, executing ladder logic, function block diagrams, and structured text programs stored in non-volatile memory. Its integrated Ethernet port supports Modbus TCP and EtherNet/IP communication, enabling direct connectivity to SCADA systems, HMI panels, and distributed I/O networks. When this module fails or degrades, the entire control loop is interrupted — making rapid, like-for-like replacement with a pre-tested spare the most reliable recovery path available to site engineers.

Each BMXP341000 unit supplied by NINERMAS undergoes pre-shipment functional verification to confirm firmware integrity, communication port operability, and memory module compatibility. Units are shipped with 12-month warranty coverage, providing procurement teams with documented assurance of post-delivery support and defect resolution.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the BMXP341000 CPU module in an active M340 system requires a structured approach that goes beyond swapping the processor card. Maintenance engineers should treat a CPU replacement event as a full control cabinet audit opportunity. Before powering down the rack, verify that the BMXCPS2000 or BMXCPS3500 power supply module is delivering stable 24 VDC output within tolerance — a marginal power supply is a common root cause of CPU soft faults and should be replaced concurrently if it shows signs of ripple or thermal stress.

Inspect the BMX XBP backplane rack for corrosion on the bus connectors and verify that all module seating contacts are clean and undamaged. A degraded backplane can cause intermittent communication errors that mimic CPU failure. Check the BMXDDI1602 and BMXDDO1602 digital I/O modules for blown output channels or input signal drift — these are frequently overlooked during CPU-focused maintenance events but are a leading cause of post-replacement fault recurrence.

For systems using BMXNOE0100 or BMXNOE0110 Ethernet communication modules, confirm that IP addressing and Modbus TCP device tables are backed up before the CPU is removed, as some firmware versions do not retain network configuration across module swaps. If the installation includes BMXNOM0200 serial communication modules for legacy Modbus RTU or ASCII device connectivity, verify that baud rate and parity settings are documented and restored after CPU replacement.

Analog signal integrity should be confirmed on BMXAMI0410 or BMXAMO0410 analog I/O modules — particularly in process control loops where 4–20 mA signals drive PID functions executed by the BMXP341000. Signal isolators and loop-powered transmitters in these circuits should be inspected for drift. Terminal blocks and field wiring connections on BMXTBP0400 terminal bases should be re-torqued to specification during the maintenance window.

If the site uses a Magelis HMIGTO or HMISTO HMI panel connected via Ethernet to the M340 CPU, confirm that the HMI project references the correct CPU IP address and that communication watchdog timers are configured appropriately for the new module. Procurement teams building annual spare parts kits for M340-based control panels should consider stocking the BMXP341000 alongside the power supply module, at least one digital I/O module, and a communication module appropriate to the site’s network architecture — this combination covers the majority of field-replaceable failure modes without requiring full cabinet redesign.

Site Replacement Workflow

Step 1 — Backup & Documentation: Export the full PLC program from the existing BMXP341000 using Unity Pro or EcoStruxure Control Expert. Save the project file, symbol table, and network configuration to a secure offline location. Photograph all wiring connections and module slot assignments before removal.

Step 2 — Safe Isolation: Follow site lockout/tagout (LOTO) procedures. De-energize the M340 rack via the upstream circuit breaker. Confirm zero-energy state on the power supply module before touching any rack components.

Step 3 — Module Removal: Release the BMXP341000 locking tab and slide the module out of slot 0 of the backplane rack. Inspect the backplane connector for damage or contamination before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the service-ready BMXP341000 into slot 0. Confirm the module is fully seated and the locking tab is engaged. Re-energize the rack and verify that the RUN LED illuminates and no ERR or I/O fault LEDs are active.

Step 5 — Program Restore & Commissioning: Download the backed-up project to the new CPU via USB or Ethernet. Verify all I/O module statuses in the Unity Pro / EcoStruxure rack viewer. Confirm Modbus TCP and HMI communication is re-established. Run a full I/O scan and process loop check before returning the system to automatic operation.

This workflow minimizes mean time to repair (MTTR) and ensures system compatibility is maintained without firmware conflicts or configuration loss — a critical requirement for sites operating under continuous production schedules or regulatory compliance frameworks.

Spare Parts Support FAQ

Q1: Is the BMXP341000 a direct drop-in replacement for older Modicon M340 CPU variants?
Yes. The BMXP341000 is compatible with all standard BMX XBP backplane racks and is supported by Unity Pro and EcoStruxure Control Expert software. It replaces earlier M340 CPU revisions without requiring rack or wiring modifications, provided the firmware version is aligned with the existing I/O module set.

Q2: How is the unit tested before shipment?
Each BMXP341000 supplied by NINERMAS undergoes pre-shipment functional verification covering power-on self-test, communication port operability, and memory integrity checks. A test report is available upon request. Units are packaged in anti-static protective materials to prevent ESD damage during transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and communication port faults identified after installation. Warranty claims are supported by NINERMAS technical staff. Units damaged by incorrect installation, overvoltage, or environmental exposure outside the rated specification are not covered under warranty terms.

Q4: Can NINERMAS support long-term or repeat procurement for M340 spare parts?
Yes. NINERMAS maintains stock of Modicon M340 series components including CPU modules, power supplies, I/O modules, and communication modules to support annual maintenance contracts, emergency replacement orders, and multi-site spare parts standardization programs. Contact our team to discuss volume pricing, lead time commitments, and consignment stock arrangements.
