Schneider BMXAMI0800 Retrofit-Compatible Analog Input for Legacy Systems

Schneider BMXAMI0800 Retrofit-Compatible Analog Input for Legacy Systems

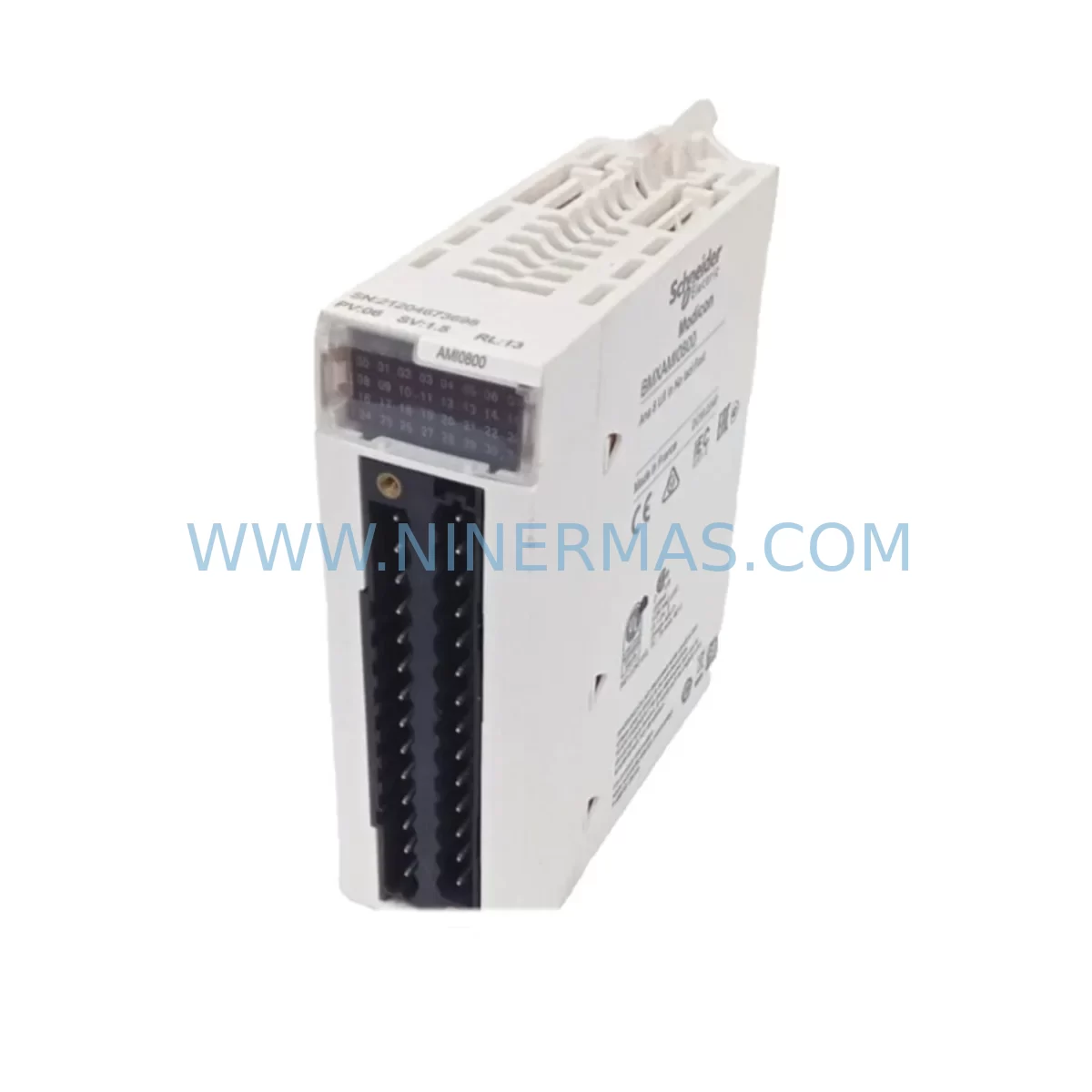

The Schneider Electric BMXAMI0800 is an 8-channel analog input module designed for the Modicon M340 automation platform. As industrial facilities face the challenge of maintaining aging control infrastructure, the BMXAMI0800 has become a critical component in retrofit projects, legacy system upgrades, and discontinued spare part replacement programs. Whether you are migrating from an older Modicon Quantum or TSX Premium platform, or simply extending the operational life of an existing M340 rack, this module provides a reliable, drop-in compatible solution that minimizes engineering rework and reduces total downtime during system transitions.

The BMXAMI0800 accepts 8 analog input channels with configurable signal ranges, making it suitable for a wide variety of field instrumentation including pressure transmitters, temperature sensors, flow meters, and level transducers. Its compatibility with the standard BMX backplane means it can be installed in any M340 rack alongside other modules such as the BMXDDI1602 digital input module, BMXDDO1602 digital output module, and BMXNOM0200 serial communication module without requiring additional hardware adapters or custom wiring harnesses.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the BMXAMI0800 into an existing or upgraded control system begins well before the module arrives on site. Engineers and maintenance teams should start by auditing the current rack configuration. If the existing installation uses a BMXXBP0400 four-slot rack, verify that a free slot is available or plan to expand to a BMXXBP0800 eight-slot rack. In multi-rack systems, the BMXXBE0100 rack extension module is used to link racks, and its addressing must be confirmed before adding new I/O modules to avoid address conflicts in the Unity Pro hardware configuration.

Terminal wiring is one of the most time-sensitive steps in any retrofit. The BMXAMI0800 uses a standard 20-pin removable terminal block. Before disconnecting field wiring from the legacy module, photograph and document every terminal connection. Signal types — whether 4–20mA current loops from pressure transmitters or ±10V voltage signals from position encoders — must be verified against the new module’s channel configuration. Incorrect signal type assignment will not damage the module but will produce erroneous process values that can trigger spurious alarms or unsafe control actions.

For facilities migrating from TSX Premium or Modicon Quantum platforms, the BMXAMI0800 cannot be installed directly into legacy racks. A new M340 rack and BMXP342020 or BMXP342030 CPU must be provisioned. The BMXNOE0110 Ethernet communication module is typically added to maintain SCADA connectivity and support Modbus TCP communication with existing HMI systems. If the legacy system used Fipio or Profibus fieldbus, a protocol gateway or the BMXNOM0200 serial link module may be required to bridge communication between the new M340 platform and any remaining legacy field devices.

HMI screen updates are often underestimated in retrofit projects. Analog input tags mapped to the BMXAMI0800 must be re-addressed in the HMI project — whether running on a Magelis HMIGTO panel or a PC-based SCADA system — to reflect the new module’s rack position and channel address. Failure to update tag addresses will result in stale or zero values displayed on operator screens, which can cause confusion during commissioning and initial production runs.

Signal isolators and loop-powered barriers installed upstream of the legacy analog module should be reviewed for compatibility with the BMXAMI0800’s input impedance. In most cases, existing PHOENIX CONTACT or Weidmüller signal conditioners remain compatible, but loop power supply capacity should be recalculated if the number of active 4–20mA channels increases. A BMXCPS2000 or BMXCPS3500 power supply module should be sized to support the full rack load including the BMXAMI0800 and any co-installed digital or communication modules.

Before final commissioning, a bench test of the BMXAMI0800 is strongly recommended. Apply known reference signals to each channel and verify that Unity Pro reads the expected engineering unit values. This pre-installation test, combined with the module’s built-in channel diagnostics, confirms that the unit is fully functional before it enters service — reducing the risk of extended downtime caused by a faulty module discovered only after installation.

Downtime Control During System Migration

Minimizing production interruption is the primary concern in any live system retrofit. For the BMXAMI0800 replacement, a structured hot-swap or planned-outage approach should be selected based on the criticality of the process being controlled. In non-critical auxiliary systems, a direct swap during a scheduled maintenance window is the most straightforward approach: export the Unity Pro project, update the hardware configuration to include the BMXAMI0800, download the updated program to the BMXP342020 CPU, and restore field wiring to the new terminal block.

For critical process loops — such as reactor temperature control or compressor surge protection — a parallel installation strategy is preferred. The new M340 rack with the BMXAMI0800 is wired and configured in parallel with the existing system. Analog signals are split using passive signal splitters or active signal distributors, allowing both the legacy and new modules to read live process values simultaneously. Once the new system is verified to be reading correctly, the control authority is transferred in a single, coordinated switchover, keeping the process running continuously.

Program logic preservation is essential. Unity Pro’s import and export functions allow the existing ladder or function block program to be transferred to the new CPU with minimal modification. Analog scaling function blocks — particularly those using SCALE or MULDIV instructions — must be reviewed to confirm that the input range parameters match the BMXAMI0800’s configured channel ranges. Any changes to scaling constants should be documented and tested against known process conditions before the system is returned to automatic control.

Communication continuity must also be maintained. If the legacy system communicated with a DCS or SCADA via Modbus RTU over the BMXNOM0200 serial module, the same module can be carried forward into the new rack, preserving the existing Modbus register map and eliminating the need to reconfigure the upstream SCADA system. This approach significantly reduces the scope of the migration and shortens the overall commissioning timeline.

Retrofit Support FAQ

Q1: Is the BMXAMI0800 a direct replacement for analog input modules from the TSX Premium or Modicon Quantum series?
A: The BMXAMI0800 is not a direct plug-in replacement for TSX Premium (TSX AEY•••) or Quantum (140 AII•••) analog input modules due to differences in backplane connectors and rack architecture. However, it is the correct replacement within the Modicon M340 platform. Cross-platform migrations require a new M340 rack, CPU, and power supply, but the BMXAMI0800’s channel configuration and wiring interface are straightforward to adapt from legacy installations.

Q2: What commissioning steps are required after installing the BMXAMI0800?
A: After physical installation and terminal wiring, open the Unity Pro hardware configuration and confirm the module is recognized in the correct rack slot. Configure each channel’s signal type (voltage or current) and range. Download the updated configuration to the CPU, then apply reference signals to each channel and verify the process values in the Unity Pro animation table. Check HMI tag addresses and confirm that all analog values are displayed correctly on operator screens before returning the system to automatic mode.

Q3: Can the BMXAMI0800 be used with existing field wiring from a legacy system?
A: In most cases, yes. The BMXAMI0800 accepts standard 4–20mA and ±10V signals, which are the most common signal types used in legacy Schneider and third-party analog installations. The removable terminal block simplifies wiring transfer. However, always verify the signal type and loop power configuration for each channel before connecting field devices, and confirm that existing cable shielding practices meet the M340 platform’s grounding requirements.

Q4: What warranty and supply assurance does NINERMAS provide for the BMXAMI0800?
A: Every BMXAMI0800 supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units are sourced from authorized distribution channels and undergo pre-shipment functional testing. We maintain stock inventory to support urgent retrofit and breakdown replacement requirements, with fast international shipping available. For volume orders or long-term supply agreements, contact our sales team directly.

—
