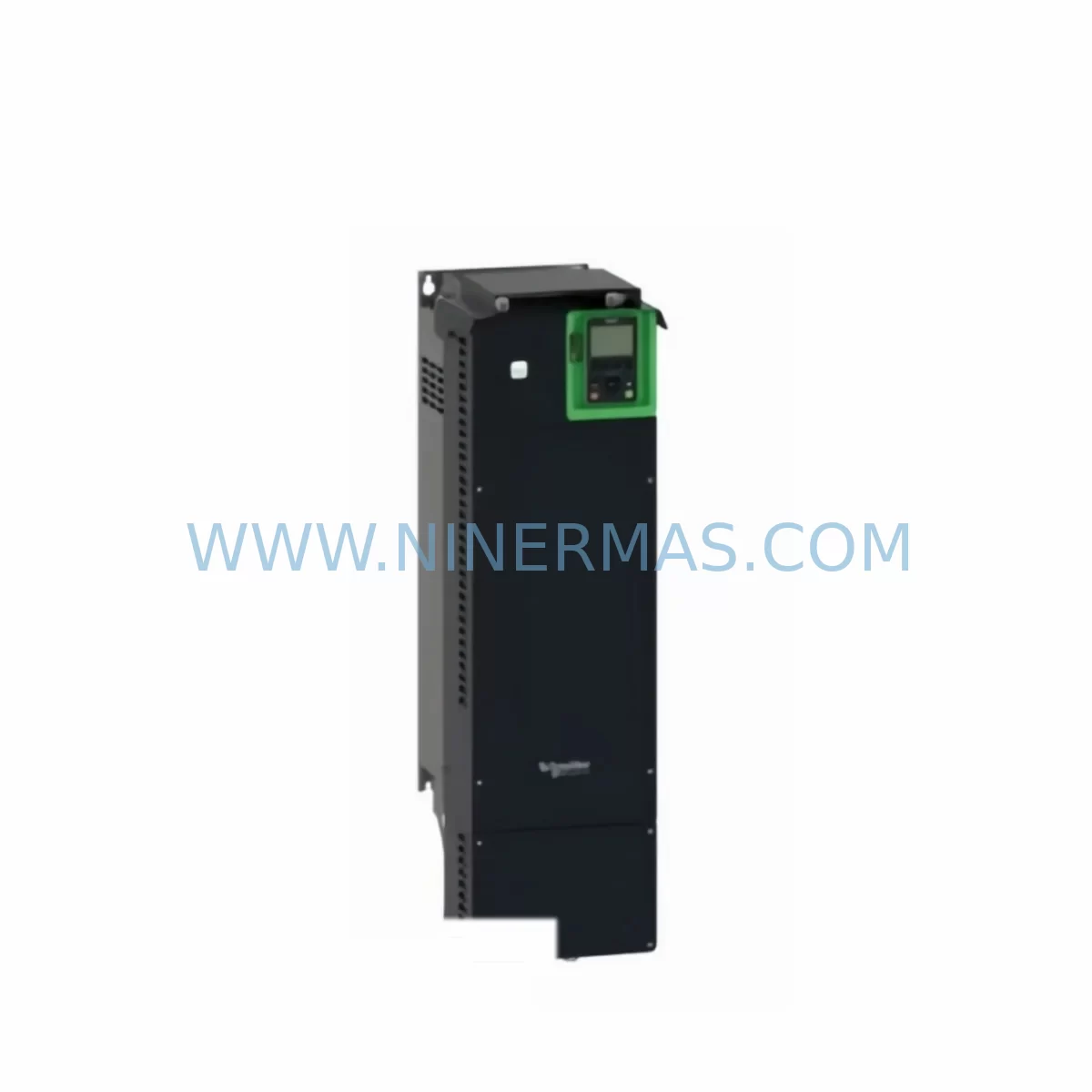

The Schneider Electric ATV630D75N4 is a 75 kW (100 HP), 380–480 V three-phase variable frequency drive from the Altivar 630 series, purpose-built for demanding industrial applications including pumps, fans, compressors, and conveyors. For facilities operating aging automation infrastructure — whether built around earlier Altivar 18, Altivar 28, Altivar 58, or Altivar 61 platforms — the ATV630D75N4 represents a proven, field-validated retrofit path that preserves existing motor wiring, control cabinet footprint, and process logic while delivering modern energy management, embedded Ethernet connectivity, and enhanced diagnostics.

NINERMAS maintains verified stock of the ATV630D75N4 with pre-shipment functional testing, full factory documentation, and a 12-month warranty covering parts and labor. Every unit is inspected against Schneider Electric’s original factory specifications before dispatch, ensuring that replacement projects proceed without the delays associated with counterfeit or refurbished components.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ATV630D75N4 retrofit begins well before the drive arrives on site. Engineering teams should start by auditing the existing control cabinet to confirm available rail space, busbar capacity, and ventilation clearance. The ATV630D75N4 in IP21 enclosure requires adequate front clearance for the removable graphic keypad and sufficient rear depth for cable management — factors that are frequently overlooked when replacing a compact legacy unit like the ATV58 or an earlier ATV312 in a densely populated panel.

Power supply verification is the next critical step. Confirm that the upstream circuit breaker, contactor, and line reactor — if present — are rated for the ATV630D75N4’s input current draw. In many legacy installations, the existing Schneider Electric GV3 motor circuit breaker or a TeSys D-series contactor may already be correctly sized, but this must be validated against the new drive’s input specifications rather than assumed.

On the control wiring side, the ATV630D75N4 uses a 24 V DC logic supply for its digital inputs, which is consistent with most Altivar 61 and Altivar 71 installations. However, if the legacy system used a 2-wire PNP or NPN sensor configuration with an older Altivar 28 or Altivar 18, the input wiring polarity and common reference must be re-confirmed. Analog speed reference signals (0–10 V or 4–20 mA) are fully supported and typically require no rewiring, though shielding continuity should be verified to prevent noise interference in the new drive’s ADC inputs.

For sites running Modicon M340 or Modicon M580 PLCs, the embedded Modbus TCP port on the ATV630D75N4 simplifies network integration considerably. Where the legacy drive communicated via a VW3A3607 Modbus RTU option card or a VW3A3616 Ethernet card, the new drive’s native Ethernet port can connect directly to the existing Unity Pro or EcoStruxure Control Expert program with minimal changes to the communication function blocks. Engineers should export and archive the existing PLC program before any hardware swap, and validate all drive-related function blocks — particularly those managing speed references, fault acknowledgment, and run/stop commands — against the ATV630D75N4’s register map.

HMI screen updates are often underestimated in retrofit projects. If the facility uses a Magelis HMIGTO or HMISCU panel connected to the legacy drive, the drive status words, fault codes, and parameter addresses will need to be remapped in Vijeo Designer to match the ATV630D75N4’s object dictionary. This is typically a half-day task for an experienced controls engineer but can extend significantly if the original HMI project files are unavailable or undocumented.

I/O expansion requirements should also be assessed at the planning stage. The ATV630D75N4 provides two analog inputs, one analog output, six digital inputs, two relay outputs, and one digital output as standard. If the legacy installation relied on an I/O extension module — such as a VW3A3202 I/O extension card fitted to an Altivar 61 — the retrofit plan must account for whether the same I/O card is compatible with the ATV630 platform or whether the logic needs to be redistributed to a Modicon TM3 expansion module connected to the PLC.

Signal isolators and surge protection devices installed upstream of the legacy drive’s analog inputs should be retained and verified for compatibility with the ATV630D75N4’s input impedance. In high-noise industrial environments — steel mills, water treatment plants, mining conveyors — these components are essential for long-term reliability and should not be removed during the retrofit even if they appear redundant.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any drive replacement project, and the ATV630D75N4 retrofit process is designed to support a structured, low-risk cutover. The recommended approach is to complete all pre-commissioning work — parameter programming, communication configuration, and HMI remapping — on the bench before the scheduled maintenance window. Schneider Electric’s SoMove commissioning software allows the ATV630D75N4 to be fully configured offline using the drive’s DTM (Device Type Manager), so the unit arrives on site ready to install.

During the cutover window, the sequence should follow a defined isolation, removal, installation, and verification protocol. Isolate the motor circuit at the upstream breaker and verify absence of voltage before disconnecting the legacy drive. Label all control and power cables before removal — a step that is frequently skipped under time pressure but is essential for accurate reconnection. Install the ATV630D75N4, reconnect power and control wiring according to the pre-verified terminal schedule, and restore the communication link to the PLC or SCADA system.

Initial energization should be performed with the motor decoupled from the load where possible, allowing the drive’s auto-tuning routine to characterize the motor without mechanical risk. Once auto-tuning is complete and the drive responds correctly to speed reference commands from the PLC, the load can be reconnected and a controlled ramp-up performed to verify process behavior. Throughout this sequence, the original PLC program logic remains unchanged — the ATV630D75N4’s parameter set is configured to match the legacy drive’s functional behavior, not the other way around, which is the key principle that keeps cutover times predictable and avoids unplanned process deviations.

For critical continuous-process applications where even a brief stop is unacceptable, NINERMAS can supply a pre-tested, pre-configured ATV630D75N4 unit with all parameters loaded and verified, reducing on-site commissioning to a physical swap and communication link verification. This service is available on request and is particularly valuable for water supply, HVAC, and process cooling applications where the driven equipment cannot be taken offline during normal production hours.

Retrofit Support FAQ

Q: Is the ATV630D75N4 a direct replacement for the ATV61HD75N4 or ATV71HD75N4?
A: Yes, the ATV630D75N4 is the current-generation replacement for the ATV61HD75N4 and ATV71HD75N4 in the 75 kW, 400 V power class. The mounting footprint, power terminal arrangement, and control voltage are compatible, though parameter migration via SoMove is required and terminal-by-terminal wiring verification is strongly recommended before energization.

Q: What communication protocols does the ATV630D75N4 support, and do I need additional option cards?
A: The ATV630D75N4 includes embedded Modbus RTU (via RJ45 serial port) and Modbus TCP / Ethernet/IP (via RJ45 Ethernet port) as standard. For PROFIBUS DP or DeviceNet integration, the VW3A3607 or VW3A3418 option cards are available and slot into the drive’s option bay. In most Modbus-based legacy installations, no additional cards are required.

Q: Does NINERMAS provide pre-shipment testing, and what does the 12-month warranty cover?
A: Every ATV630D75N4 unit shipped by NINERMAS undergoes functional power-on testing and parameter verification before dispatch. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions, with replacement or repair at NINERMAS’s discretion. Warranty claims are processed via sale@ninermas.com with a target response time of one business day.

Q: How long does a typical ATV630D75N4 retrofit take, and what documentation should I prepare?
A: A well-prepared retrofit — with pre-configured drive, verified terminal schedule, and archived PLC program — typically requires 4 to 8 hours of on-site work including isolation, installation, wiring, communication verification, and motor auto-tuning. Customers should prepare the existing drive’s parameter printout or SoMove backup file, the motor nameplate data, the PLC communication configuration, and the HMI project file before the maintenance window begins.
