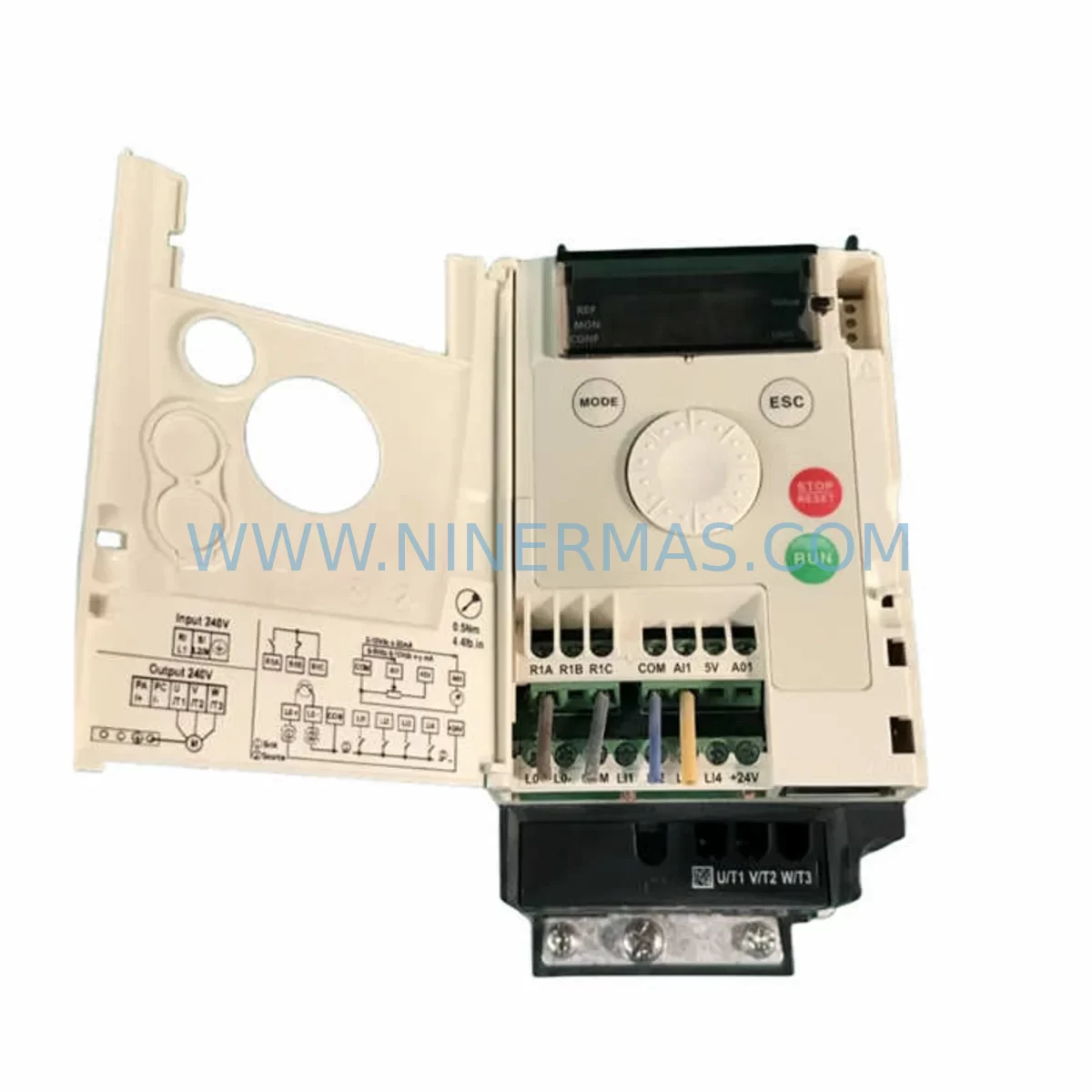

The Schneider Electric ATV12H037M2 is a compact variable speed drive (VSD) from the Altivar ATV12 series, rated at 0.37 kW (0.5 HP) for single-phase 200–240 V input with three-phase motor output. Designed for simple machine applications including conveyors, pumps, fans, and compressors, this drive is a critical component in countless industrial control cabinets across manufacturing, water treatment, HVAC, and packaging lines. When an ATV12H037M2 fails in service, unplanned downtime can cascade rapidly — having a verified, service-ready spare on the shelf is the single most effective strategy for rapid line recovery.

At NINERMAS, every ATV12H037M2 unit is sourced from authorized supply chains, individually inspected, and shipped with a 12-month warranty. Our stock is maintained specifically to support maintenance engineers and procurement teams who cannot afford extended lead times on legacy automation components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing an ATV12H037M2 in a live production environment is rarely an isolated task. Experienced maintenance engineers know that a drive failure is often symptomatic of broader stress in the electrical circuit. Before commissioning the replacement unit, a thorough inspection of the surrounding control cabinet components is strongly recommended to prevent repeat failures and ensure system stability.

Begin with the input power supply: verify that the upstream single-phase supply voltage is stable within the 200–240 V tolerance. Fluctuations or voltage sags are a leading cause of premature drive failure. If a Schneider Electric Phaseo ABL8REM24030LG 24 V DC power supply feeds the I/O and control logic, inspect it for output ripple and thermal stress. A degraded control power supply can corrupt drive parameters and trigger nuisance faults.

Check all input and output wiring terminals. Loose or corroded connections at the R/S/T input terminals or U/V/W motor output terminals generate resistive heating that accelerates insulation breakdown. Inspect the terminal block assemblies — such as Schneider Linergy TR or Phoenix Contact PTFIX series — for discoloration, tracking marks, or mechanical damage. Replace any suspect terminals before energizing the new drive.

Evaluate the motor circuit: use a megohmmeter to verify motor winding insulation resistance (minimum 1 MΩ at 500 V DC) before connecting the ATV12H037M2. A shorted or degraded motor winding will immediately stress the new drive’s output IGBTs. If the motor has been in service for more than five years without testing, consider scheduling a motor rewind assessment in parallel with the drive replacement.

Inspect the upstream protection devices: the circuit breaker or fuse protecting the drive input should be rated per Schneider’s coordination tables. A GV2ME06 or GV2ME10 motor circuit breaker or a dedicated DF6CN110 fuse-disconnector is typically specified. Verify that the protection device has not been thermally stressed or nuisance-tripped repeatedly, which can weaken its trip characteristics over time.

For systems using Modbus RTU communication via the optional VW3A1104 communication card, verify the RS-485 network termination resistors and cable shielding integrity. A degraded communication link can cause the PLC or SCADA system to lose drive control, triggering an uncontrolled stop. If the site uses a Schneider Modicon TM221CE24R or TM241CE24U PLC as the master controller, confirm that the drive address and baud rate parameters are correctly restored after replacement.

Review the digital and analog I/O connections: the ATV12H037M2 provides two digital inputs (LI1, LI2), one analog input (AI1), and one relay output (R1). Confirm that the PLC output cards driving these signals are functioning correctly and that signal cable shielding is intact. If a Phoenix Contact MCR-SL-UI-UI signal isolator or Weidmuller WAS4 signal conditioner is used in the analog reference circuit, test its output accuracy before commissioning.

Finally, check the control cabinet thermal management: the ATV12H037M2 dissipates heat through its rear heatsink. Ensure that cabinet ventilation, fan units, and any Schneider ClimaSys NSYCVF85M230PF cooling fan accessories are operational. Blocked airflow is a primary cause of drive overtemperature faults. If the cabinet uses a door-mounted filter mat, replace it as part of the scheduled maintenance cycle.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the circuit using the upstream disconnector or circuit breaker. Apply LOTO (Lockout/Tagout) per site safety procedures. Wait a minimum of 5 minutes after power-off before opening the drive enclosure to allow DC bus capacitors to discharge.

Step 2 — Parameter backup: If the existing ATV12H037M2 is still partially functional, use the SoMove software (Schneider’s drive configuration tool) or the integrated keypad to export the parameter set. Record all custom settings including acceleration/deceleration ramps, frequency references, motor nameplate data, and I/O assignments. This eliminates the risk of losing application-specific tuning during replacement.

Step 3 — Mechanical removal and installation: Disconnect all power and control wiring, labeling each conductor before removal. Remove the drive from its DIN rail or panel mount. Install the new ATV12H037M2 in the same position, ensuring the heatsink has adequate clearance from adjacent components per the installation guide (minimum 50 mm above and below for vertical airflow).

Step 4 — Parameter restore and commissioning: Restore the saved parameter set via SoMove or manual keypad entry. Perform a no-load motor test at low speed (5–10 Hz) to verify correct rotation direction and I/O response before returning to full production speed. Check for any active fault codes and clear them after confirming root cause resolution.

Step 5 — Documentation and stock replenishment: Log the replacement in the site maintenance management system (CMMS) with the date, technician, and new unit serial number. Immediately initiate a purchase order to replenish the spare parts inventory — a single ATV12H037M2 on the shelf is the minimum recommended stock level for any site running this drive model in critical applications.

Spare Parts Support FAQ

Q1: Is the ATV12H037M2 still in production, and how long can I source it?
The ATV12 series has transitioned to the newer ATV320 platform for new machine designs, but the ATV12H037M2 remains available as a spare part through specialist distributors including NINERMAS. We maintain dedicated stock to support long-term maintenance programs for installed bases. Customers with critical fleet dependencies are encouraged to discuss long-term supply agreements to lock in availability and pricing.

Q2: How is each unit tested before shipment?
Every ATV12H037M2 dispatched by NINERMAS undergoes a pre-shipment functional check covering power-on self-test, DC bus voltage verification, and output phase integrity. Units are packed in anti-static, shock-protected packaging with a test record included. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: Can the ATV12H037M2 directly replace an older ATV11 or ATV312 drive in the same panel?
The ATV12H037M2 is not a direct pin-for-pin replacement for ATV11 or ATV312 drives due to differences in terminal layout, parameter structure, and physical dimensions. However, it can replace these drives functionally with appropriate wiring adaptation and parameter re-commissioning. NINERMAS technical support can advise on compatibility and adaptation requirements for specific installation scenarios.

Q4: What is the recommended spare parts inventory strategy for sites running multiple ATV12 drives?
For sites operating five or more ATV12 drives, a minimum of one spare unit per power rating variant is recommended. For critical 24/7 production lines, a two-unit buffer per variant eliminates the risk of extended downtime during the procurement cycle. NINERMAS offers volume pricing and reserved stock programs for maintenance teams managing large ATV12 installed bases across multiple facilities.
