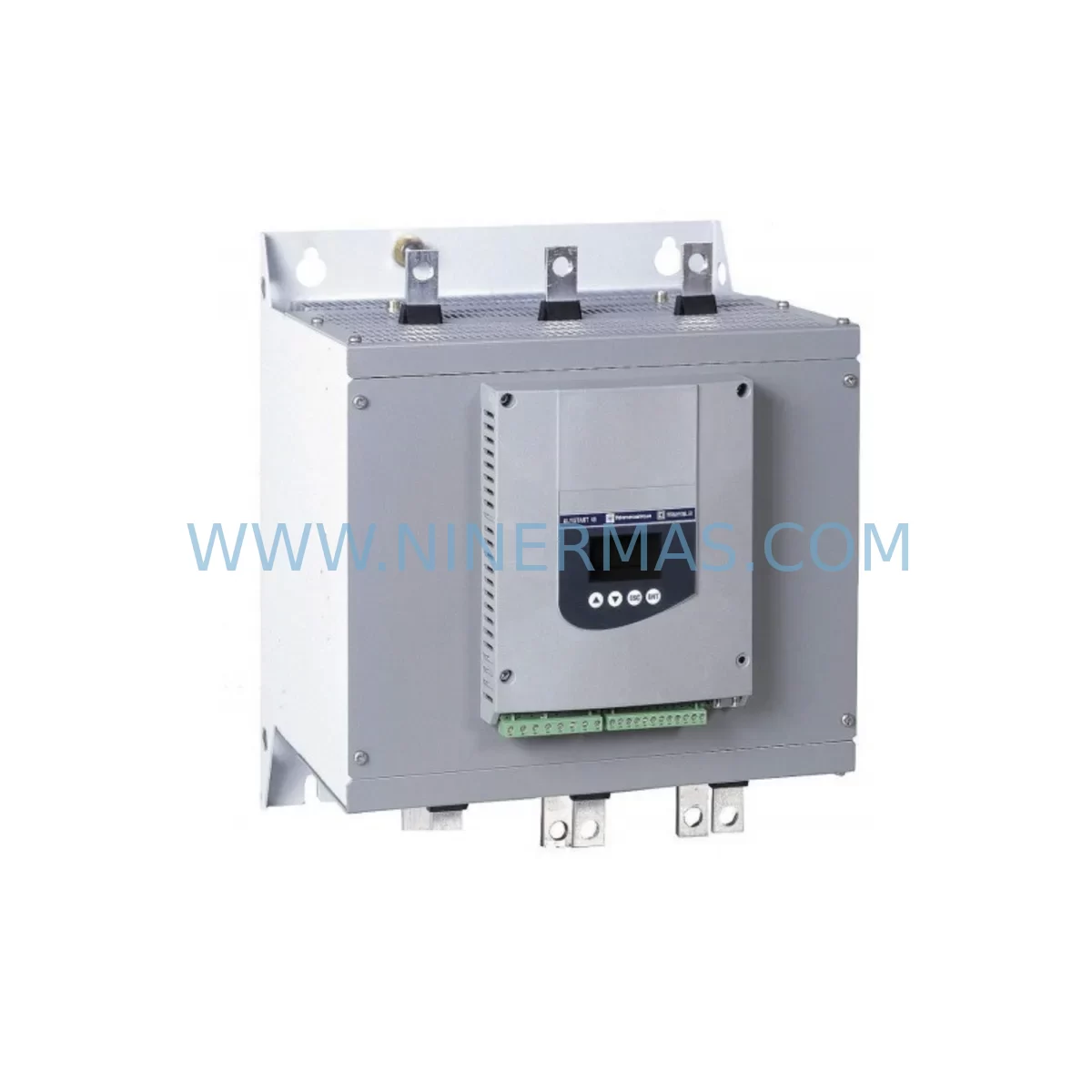

The Schneider Electric ATS48C32Y is a high-capacity soft starter from the Altistart 48 series, rated at 320A (In) and designed for three-phase asynchronous motors in the 160–200 kW range at 400 V. As a service-ready original spare part, the ATS48C32Y is a critical component for maintenance engineers managing continuous production lines, pump stations, compressor banks, conveyor systems, and heavy-duty fan arrays where controlled motor starting and stopping directly impacts equipment longevity and process uptime.

Sourced from verified supply channels and shipped with full functional testing, this unit is stocked to support emergency replacement, planned annual overhaul, and long-term spare parts inventory programs. Every ATS48C32Y dispatched by NINERMAS carries a 12-month warranty covering manufacturing defects and functional performance under rated operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a soft starter such as the ATS48C32Y reaches end-of-life or exhibits thermal trip faults, nuisance starts, or SCR degradation, the replacement window is narrow — particularly in 24/7 process environments. Maintenance engineers should treat this unit as part of a broader control cabinet audit rather than an isolated swap.

During the same maintenance window, inspect the upstream line contactor (e.g., LC1D series or TeSys D contactors) for contact wear and coil resistance. Verify the motor circuit breaker (GV2 or GV3 series) trip settings remain calibrated to the motor’s FLA. Check the 24 V DC auxiliary power supply feeding the ATS48 control board — a degraded PHASEO ABL7 or ABL8 power supply can cause erratic soft starter behavior that mimics internal faults.

For installations using fieldbus integration, inspect the Modbus RTU communication module VW3A48310 and its wiring termination. Loose RS-485 shielding or incorrect termination resistors frequently cause communication timeouts that are misdiagnosed as soft starter failures. If the cabinet includes a Magelis HMIGTO or XBTGT HMI panel, verify that the soft starter’s parameter set is backed up before replacement, as some HMI-linked configurations store motor tuning data locally.

Examine the input and output terminal blocks (Linergy or equivalent) for signs of thermal discoloration, loose torque, or oxidation — high-current terminals adjacent to a failing soft starter often absorb heat stress. Replace any NH or gG class fuses in the motor feeder circuit as a precaution; fuses that have experienced repeated inrush events may have reduced breaking capacity without visible signs of failure.

If the ATS48C32Y is installed in a pump or compressor application, also assess the pressure transducer signal wiring and any 4–20 mA signal isolators in the feedback loop. Soft starter faults in these applications are sometimes triggered by signal noise rather than power-side issues. A ZENER or PHOENIX CONTACT signal conditioner in the analog input chain can prevent recurrence after the spare part is installed.

For multi-motor panels, cross-check the PLC I/O module (Modicon M340 or Modicon M580 series) run/fault output wiring to the ATS48 control terminals. Confirm that the 24 V interlock relay and any Zelio Logic smart relay in the sequencing circuit are functioning correctly before energizing the replacement unit.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the motor feeder at the MCCB or motor circuit breaker. Apply LOTO (Lockout/Tagout) per site procedure. Verify absence of voltage on L1/L2/L3 input terminals and T1/T2/T3 output terminals using a calibrated multimeter.

Step 2 — Parameter Backup: If the existing ATS48C32Y is still partially functional, use the SoMove configuration software or the front keypad to export motor tuning parameters (acceleration time, deceleration time, current limit, torque boost) before disconnection. Store the parameter file for upload to the replacement unit.

Step 3 — Mechanical Removal: Disconnect power cables (L1/L2/L3, T1/T2/T3) and control wiring (A1/A2, R1/R2/R3 relay outputs, LI1–LI5 logic inputs). Label all wires before removal. Unbolt the unit from the panel backplate or DIN rail.

Step 4 — Inspection & Cleaning: Inspect the cabinet interior for carbon deposits, moisture ingress, or rodent damage. Clean ventilation slots. Verify that the cooling airflow path for the replacement unit meets the minimum clearance specified in the ATS48 installation guide (typically 50 mm top and bottom).

Step 5 — Installation & Parameter Restore: Mount the new ATS48C32Y. Reconnect power and control wiring per the original schematic. Restore saved parameters via SoMove or keypad. Set motor nameplate FLA, voltage, and frequency before first start.

Step 6 — Commissioning Test: Perform a no-load test start. Verify ramp-up profile, current limiting, and bypass contactor engagement. Confirm fault relay outputs are correctly mapped to the PLC or DCS input card. Log the commissioning date for warranty tracking.

This workflow minimizes downtime to under 4 hours for a prepared maintenance team and ensures full system compatibility without requiring firmware updates or hardware modifications to adjacent components.

Spare Parts Support FAQ

Q1: Is the ATS48C32Y a direct drop-in replacement for an existing Altistart 48 unit?
Yes. The ATS48C32Y is a direct replacement within the Altistart 48 product family. Control wiring pinout, power terminal layout, and parameter structure are consistent across the ATS48 series. No hardware adaptation is required provided the replacement unit matches the original current rating and supply voltage range.

Q2: How is the unit tested before shipment?
Every ATS48C32Y dispatched by NINERMAS undergoes a pre-shipment functional test covering power-on self-diagnostics, control input response, and relay output verification. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under rated operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated tolerance, or unauthorized modification. Warranty claims are processed with return shipment coordination and replacement dispatch within 5 business days of fault confirmation.

Q4: Can NINERMAS support long-term or repeat supply of ATS48C32Y units for multi-site maintenance programs?
Yes. NINERMAS maintains a dedicated stock allocation program for industrial clients managing multi-site or multi-unit spare parts inventories. Blanket purchase orders, scheduled release agreements, and consignment stock arrangements are available. Contact our technical sales team to discuss volume pricing, lead time guarantees, and documentation packages for your procurement department.
