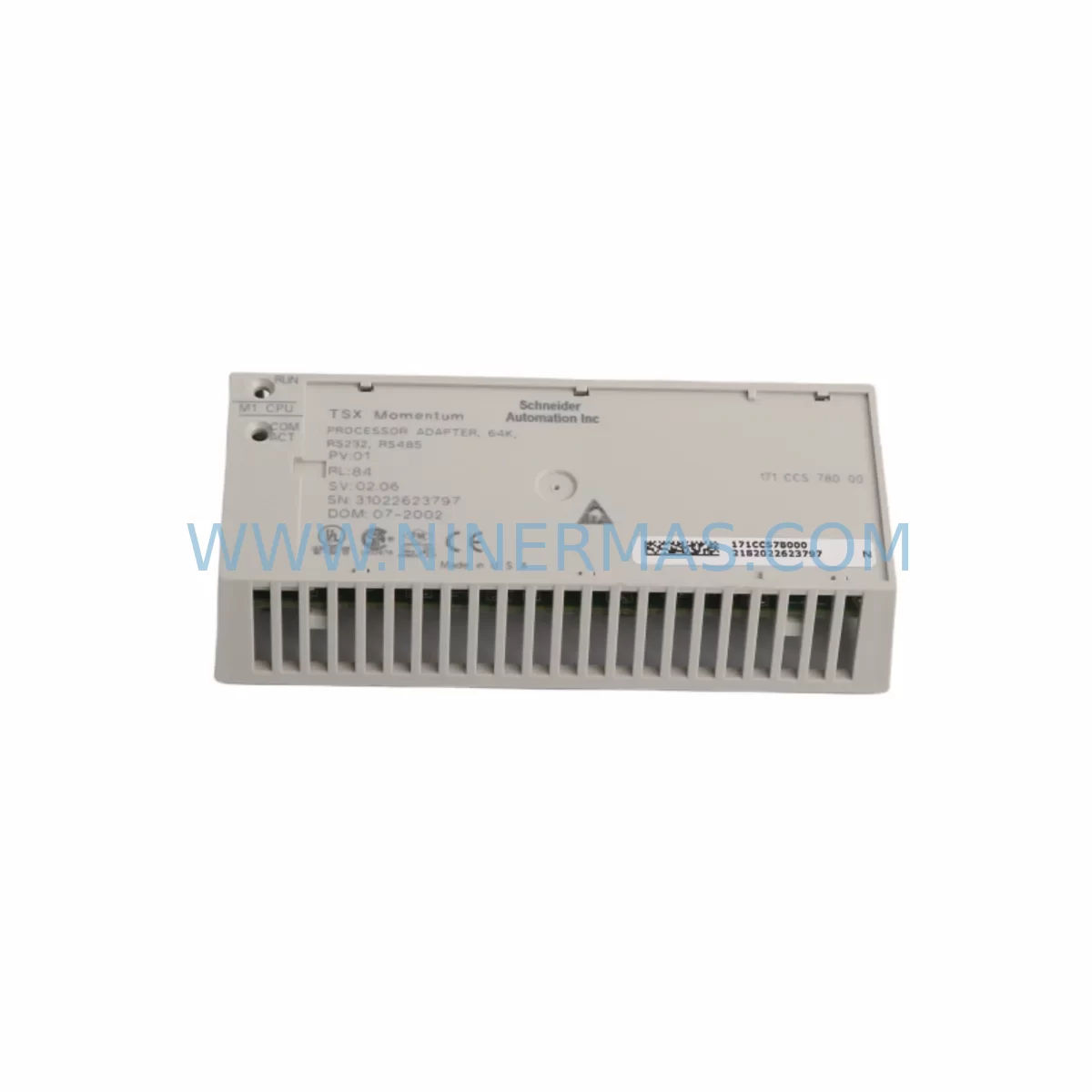

Schneider 171CCS78000 Retrofit-Compatible Processor Adaptor

Schneider 171CCS78000 Retrofit-Compatible Processor Adaptor for Legacy Systems

The Schneider Electric 171CCS78000 is a Modicon Quantum series Processor Adaptor engineered to serve as a retrofit-compatible replacement module for aging distributed control systems and legacy PLC architectures. As industrial facilities face increasing pressure to extend the operational life of existing automation infrastructure while managing the risks associated with discontinued spare parts, the 171CCS78000 provides a reliable, field-proven solution for system integrators, maintenance engineers, and procurement teams responsible for keeping critical production lines operational.

Originally designed for use within the Modicon Quantum platform — one of Schneider Electric’s most widely deployed process automation architectures — the 171CCS78000 Processor Adaptor functions as the communication and processing bridge between the CPU module and the backplane bus. In retrofit scenarios, this component is frequently required when upgrading or replacing a failed or end-of-life processor assembly without performing a full rack replacement. Its compatibility with the standard Quantum backplane form factor means that installation can proceed without modifying existing cabinet layouts, terminal wiring, or I/O channel assignments.

For facilities currently operating Modicon Quantum racks with legacy CPU modules such as the 140CPU65150 or 140CPU67160, the 171CCS78000 is a critical interface component. When planning a processor upgrade or a partial system migration, engineers must verify that the adaptor’s slot addressing aligns with the existing rack configuration. The Quantum backplane — typically a 140XBP01600 or 140XBP00600 series chassis — supports hot-standby and redundancy configurations, and the processor adaptor must be confirmed compatible with the redundancy module (140CRP93200 or equivalent) if a hot-standby architecture is in place.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 171CCS78000 into an existing Modicon Quantum system requires a structured pre-installation assessment. Before removing the failed or end-of-life adaptor, the maintenance team should document the current rack configuration using Unity Pro’s hardware configuration export function or a manual slot-by-slot inventory. This documentation should capture the installed CPU module (e.g., 140CPU65150), all I/O modules by slot position, the communication modules (such as the 140NOE77101 Ethernet module or 140NOM21200 Modbus Plus module), and the power supply module type and load rating.

Terminal wiring on the I/O modules — including 140DAI74000 discrete input modules and 140DAO84000 discrete output modules — does not need to be disturbed during a processor adaptor replacement, as the adaptor interfaces exclusively with the backplane bus and the CPU module. However, engineers should confirm that the backplane itself (140XBP01600 or similar) shows no signs of connector wear or corrosion, as a degraded backplane can cause intermittent communication faults even after a successful module replacement.

For systems that include analog I/O — such as the 140ACI04000 analog input module or 140ACO13000 analog output module — the process variable scaling and channel configuration stored in the CPU program must be verified post-replacement to ensure that engineering unit conversions and alarm setpoints remain intact. If the replacement involves a CPU firmware upgrade alongside the adaptor swap, a full I/O channel scan and loop check is recommended before returning the system to automatic control.

Communication link continuity is another critical checkpoint. If the Quantum rack communicates with an HMI platform — such as a Vijeo Citect SCADA system or a Magelis XBTGT series HMI panel — the Modbus TCP/IP or Modbus Plus node address must be preserved exactly. Any change in the processor adaptor’s configuration that alters the station address will cause the HMI to lose its data acquisition link, requiring a manual address reassignment and tag remapping exercise that can significantly extend commissioning time.

Where the Quantum system interfaces with a remote I/O network via a 140CRA93200 RIO head adapter or a 140CRP93200 hot-standby module, the adaptor replacement must be coordinated with a review of the RIO drop configuration. The RIO drop addresses, I/O map, and health status bits referenced in the application program must be confirmed unchanged after the adaptor is seated and the CPU is restarted.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a processor adaptor in a live production environment. The recommended approach is to perform the replacement during a scheduled maintenance window, with a pre-staged and pre-tested 171CCS78000 unit ready for immediate installation. NINERMAS ships all modules after a 100% powered functional test, which means the replacement unit arrives verified and ready to install without requiring bench testing on-site.

Before initiating the swap, the application program should be backed up from the existing CPU using Unity Pro’s project upload function or, if the CPU is non-responsive, retrieved from the most recent version stored in the project archive. The backup should include the hardware configuration file, the application logic, and the symbol table, as these three components together define the complete system state. If the CPU is still partially functional, a memory card backup using the Quantum CPU’s PCMCIA slot (where supported) provides an additional recovery path.

During the physical replacement, the rack power supply — typically a 140CPS11420 or 140CPS21400 — should be de-energized before removing the adaptor module. After seating the 171CCS78000, the rack should be powered up with the CPU in STOP mode, and the application program downloaded before switching to RUN mode. This sequence protects the field devices connected to the I/O modules from receiving unintended output signals during the initialization phase.

For systems with hot-standby redundancy, the switchover to the standby CPU should be tested before and after the adaptor replacement to confirm that the redundancy link — managed through the 140CRP93200 module — remains fully operational. A failed redundancy link that goes undetected after a maintenance intervention leaves the system exposed to a single point of failure, which is precisely the risk that the hot-standby architecture was designed to eliminate.

Post-replacement commissioning should include a structured loop check covering all critical I/O channels, a communication link test to all connected HMI and SCADA nodes, and a review of the CPU diagnostic buffer for any fault codes generated during startup. With proper preparation, a 171CCS78000 replacement can typically be completed within a two-to-four-hour maintenance window, keeping production impact to a minimum.

Retrofit Support FAQ

Q1: Is the 171CCS78000 a direct drop-in replacement for the original Modicon Quantum processor adaptor?
A: Yes. The 171CCS78000 is designed to the same mechanical and electrical specification as the original Quantum processor adaptor and installs in the same dedicated slot without requiring any modification to the rack, backplane, or field wiring. Firmware compatibility with the installed CPU module should be confirmed prior to installation using the Schneider Electric hardware compatibility matrix.

Q2: What pre-shipment testing does NINERMAS perform on the 171CCS78000?
A: Every unit is subjected to a 100% powered functional test before dispatch. This test verifies backplane interface integrity, communication bus response, and module identification. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the 171CCS78000 be used in a hot-standby redundancy configuration?
A: The processor adaptor supports use in Quantum hot-standby configurations when paired with a compatible CPU module and the 140CRP93200 redundancy module. The specific redundancy compatibility depends on the CPU firmware version and the Unity Pro hardware configuration. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q4: What is the typical lead time and inventory availability for the 171CCS78000?
A: NINERMAS maintains stock of the 171CCS78000 to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity orders or long-term supply commitments supporting lifecycle extension programs, please contact our sales team to discuss dedicated stock reservation and fixed lead-time agreements.
