Schneider 140CHS32000 Retrofit-Compatible Standby Splitter

Schneider 140CHS32000 Retrofit-Compatible Standby Splitter for Legacy Modicon Quantum Systems

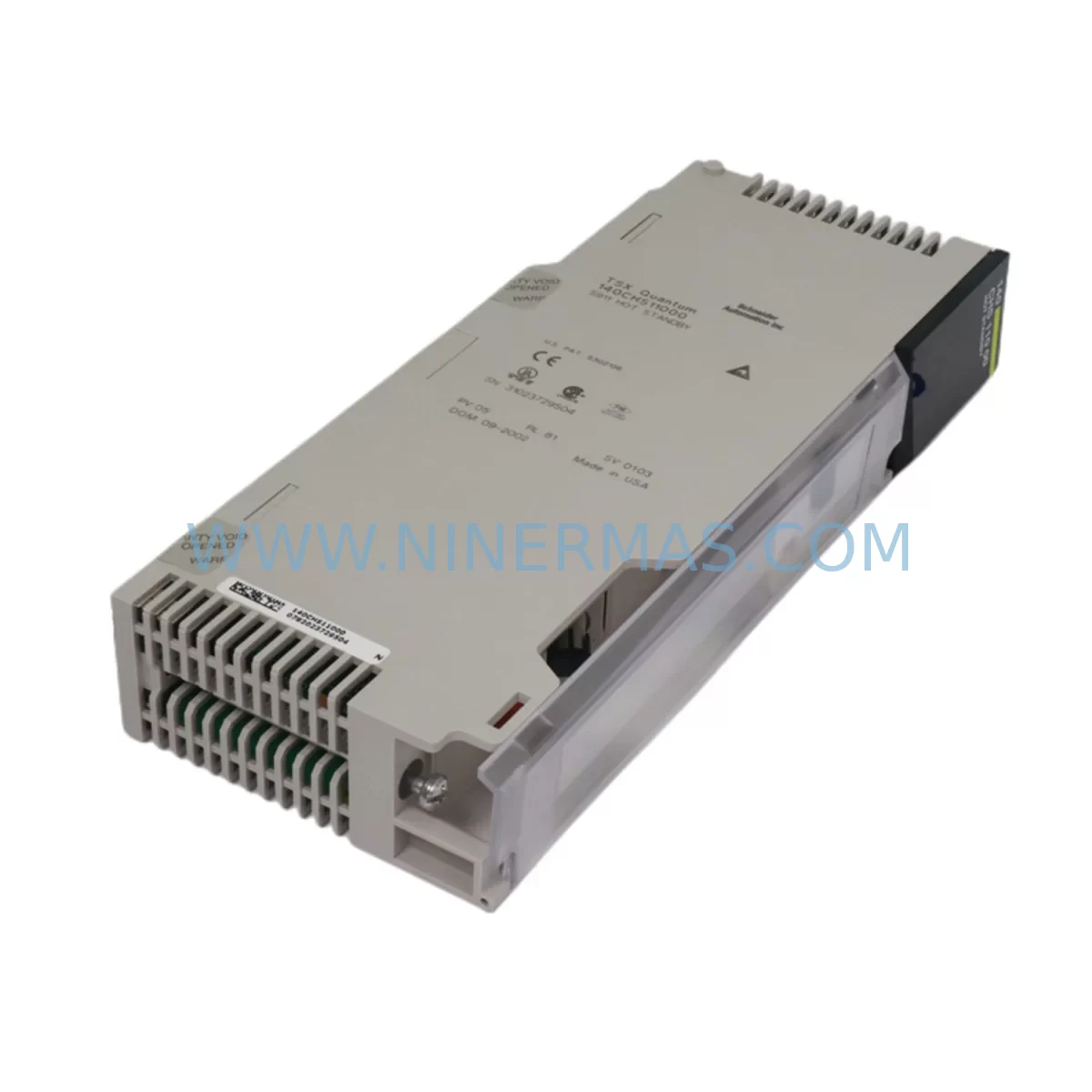

The Schneider Electric 140CHS32000 is a Hot Standby Splitter Module engineered for the Modicon Quantum PLC platform — one of the most widely deployed process automation architectures in oil & gas, water treatment, power generation, and heavy manufacturing. As legacy Quantum installations age and OEM support windows close, the 140CHS32000 has become a critical spare for engineers tasked with maintaining system redundancy without triggering a full control system overhaul.

NINERMAS maintains verified stock of the 140CHS32000 with full functional testing prior to shipment and a 12-month warranty on every unit. Whether you are executing a planned maintenance cycle, responding to an unplanned failure, or building a long-term spare parts buffer for a multi-site Quantum installation, this module ships ready for immediate rack installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 140CHS32000 retrofit begins well before the module arrives on site. Engineers working within a live Modicon Quantum Hot Standby architecture must account for the interdependencies between the splitter module and the broader control system topology. The 140CHS32000 operates in conjunction with a primary and standby CPU — typically a 140CPU67160 or 140CPU65150 — and its correct function depends on the integrity of the backplane communication path across the 140XBP series rack.

Before scheduling the replacement window, confirm that the installed 140CPS11420 or 140CPS21100 power supply module can sustain the full load of the redundancy architecture, including any recently added 140ACI03000 analog input modules or 140DDI35300 discrete input modules that may have increased the rack’s power draw since the original system design. Undersized power supply capacity is one of the most common causes of intermittent Hot Standby faults in aging Quantum installations.

Terminal wiring on the associated I/O modules should be photographed and documented before any rack disturbance. If the system includes 140NOE77101 Ethernet communication modules or 140NOM21200 Modbus Plus network option modules, verify that the network topology diagram is current and that IP address assignments and node addresses are recorded. Communication link integrity must be re-validated after the splitter swap, particularly if the system uses a dual-ring Ethernet architecture for SCADA connectivity.

For installations where the Quantum rack also hosts 140AVO02000 analog output modules driving field actuators, coordinate the retrofit window with the process team to ensure that analog outputs can be held at safe values or placed in manual mode during the switchover test. Similarly, if the control cabinet includes a XBTGT series Magelis HMI panel linked to the Quantum CPU via Modbus serial or Ethernet, confirm that the HMI project file references the correct CPU node address and that screen navigation remains functional after the module replacement.

Where the existing installation uses a 140CRP93200 RIO drop adapter or remote I/O head-end modules, map the remote drop addresses before the retrofit and verify that the Hot Standby switchover does not interrupt the RIO polling cycle. Document the module address configuration in Unity Pro / Control Expert and retain a backup copy of the project file with a revision timestamp before proceeding.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live Quantum Hot Standby retrofit. The 140CHS32000 supports bumpless transfer between primary and standby CPUs, which means a correctly executed swap — with the standby CPU active and synchronized — can be completed without interrupting the process. However, this requires that the standby CPU is confirmed healthy and that the Hot Standby link is in a fully synchronized state before the primary is taken offline.

The recommended sequence is: (1) force a manual switchover to confirm the standby CPU assumes control cleanly; (2) power down the primary rack slot containing the 140CHS32000; (3) replace the module; (4) restore power and allow the new module to synchronize; (5) perform a second manual switchover to return the original primary CPU to the primary role; (6) verify I/O status, analog output values, and communication link health in Unity Pro / Control Expert before releasing the system to automatic Hot Standby mode.

Throughout this sequence, the original ladder logic and function block program resident in the CPU memory is preserved — no re-programming is required for a like-for-like 140CHS32000 replacement. If the replacement is being performed as part of a broader firmware upgrade or CPU migration (for example, transitioning from a 140CPU65150 to a 140CPU67160), a full program download and I/O force-check should be scheduled as a separate commissioning step with adequate time allocated for HMI screen validation and SCADA point verification.

NINERMAS ships each 140CHS32000 with a pre-shipment functional test report. Units are verified for backplane connector integrity, Hot Standby link port function, and module identification response before dispatch, reducing the risk of DOA failures that could extend the maintenance window.

Retrofit Support FAQ

Q1: Is the 140CHS32000 a direct drop-in replacement for the 140CHS21000?
The 140CHS32000 is the current-revision Hot Standby Splitter for the Modicon Quantum platform and is the recommended replacement for the earlier 140CHS21000. In most installations the swap is direct; however, you should verify the firmware revision of your primary and standby CPUs in Unity Pro / Control Expert to confirm compatibility before installation. NINERMAS can provide the module datasheet and revision history on request.

Q2: What commissioning steps are required after installing the 140CHS32000?
After physical installation, reconnect backplane power and allow the module to initialize. In Unity Pro / Control Expert, navigate to the Hot Standby diagnostics screen and confirm that the primary and standby CPUs are synchronized and that the splitter link status is healthy. Perform a manual switchover test and verify bumpless transfer. Check all I/O module status LEDs and confirm that analog output values match the pre-maintenance baseline. No program download is required for a like-for-like replacement.

Q3: Does NINERMAS provide pre-shipment testing and a warranty?
Yes. Every 140CHS32000 unit shipped by NINERMAS undergoes functional testing including backplane connector verification, Hot Standby link port check, and module ID response confirmation. A 12-month warranty is included with every unit. Warranty claims are handled directly by NINERMAS — contact sale@ninermas.com or +0086 187 5021 5667 for support.

Q4: Can NINERMAS supply other Modicon Quantum spare parts for the same retrofit project?
Yes. NINERMAS maintains stock of a broad range of Modicon Quantum components including CPU modules, power supplies, I/O modules, communication modules, and rack assemblies. If your retrofit project requires multiple line items — for example, a 140CPU67160 CPU, 140CPS11420 power supply, and 140NOE77101 Ethernet module alongside the 140CHS32000 — contact our team for a consolidated quotation and coordinated shipment to minimize logistics complexity and reduce total project lead time.
