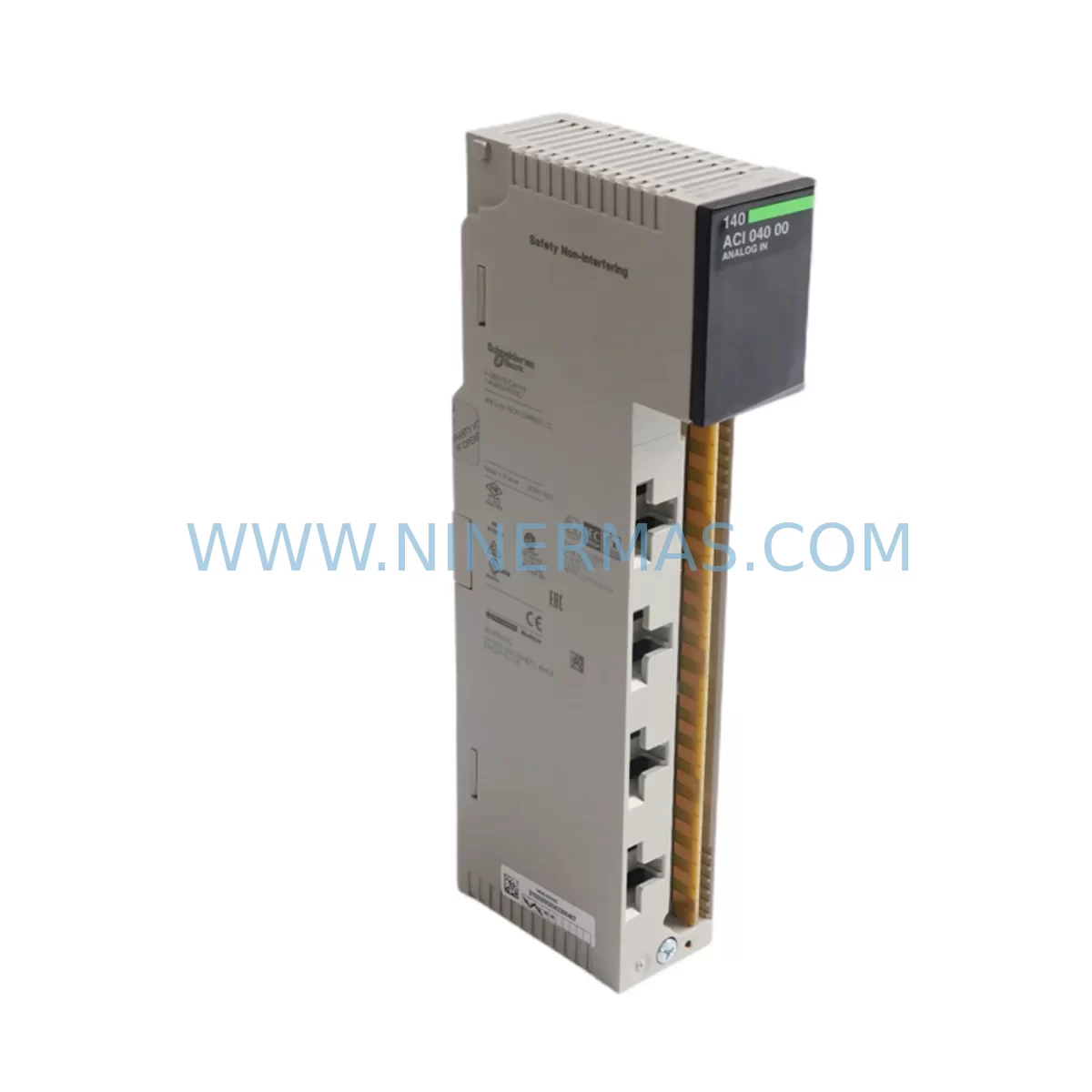

The Schneider Electric 140ACI04000 is a high-density analog input module designed for the Modicon Quantum PLC platform — one of the most widely deployed distributed control architectures in process manufacturing, oil & gas, water treatment, and heavy industry. As production lines age and OEM support windows narrow, maintaining a verified stock of service-ready spare parts like the 140ACI04000 becomes a critical pillar of any plant’s uptime strategy. Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or building a resilient spare parts inventory, this module delivers the original electrical performance and firmware compatibility your Quantum rack demands.

At NINERMAS, every 140ACI04000 unit is sourced, inspected, and test-shipped to ensure it meets original Schneider Electric specifications before leaving our facility. We support maintenance engineers and procurement teams across Asia, Europe, and the Americas with long-term supply continuity, competitive lead times, and a 12-month warranty on all spare parts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 140ACI04000 analog input module fails or degrades in a Modicon Quantum system, the fault rarely exists in isolation. Experienced maintenance engineers know that a single module replacement is only the first step — a thorough site inspection of the surrounding electrical environment is essential to prevent repeat failures and protect the integrity of the control loop.

Begin by verifying the 140CPS11420 or 140CPS21400 power supply module that feeds the Quantum rack. Voltage sag or ripple on the backplane bus is a leading cause of premature analog module failure and erratic signal readings. Confirm that the power supply output is within specification under full rack load before inserting the replacement 140ACI04000.

Next, inspect the 140XBP01600 or 140XBP00600 backplane for signs of oxidation on the slot connectors. A corroded backplane contact can introduce resistance that distorts the 4–20 mA or ±10 V signals the 140ACI04000 is designed to process. Clean contacts with approved contact cleaner and verify seating torque on adjacent modules such as the 140DAO84000 digital output module or the 140AVO02000 analog output module sharing the same rack.

For field wiring, check the terminal blocks and shielded signal cables connected to the 140ACI04000’s I/O connector. In high-noise industrial environments — particularly near variable frequency drives, large motor starters, or welding equipment — inadequate cable shielding is a chronic source of analog signal noise. Ensure that cable shields are grounded at a single point and that the wiring is routed away from high-voltage power conductors.

If the Quantum system includes a 140NOE77101 Ethernet communication module or a 140NOM21200 Modbus Plus network module, verify that the network configuration still correctly maps the I/O addresses after the module replacement. A slot change or firmware mismatch can silently remap analog channel addresses, causing the SCADA or DCS to read incorrect process values without triggering a hard fault.

For systems using signal conditioning upstream of the 140ACI04000 — such as loop-powered transmitters, signal isolators, or 4–20 mA repeaters — confirm that the field instruments are still within calibration and that the isolator output impedance is compatible with the module’s input impedance. This is particularly important when replacing a module that may have had a slightly different input impedance due to firmware revision differences.

Procurement engineers building a Quantum spare parts kit should also consider stocking the 140DDI35300 digital input module and the 140ACI03000 (the 8-channel predecessor to the 140ACI04000) as cross-compatible fallback options for legacy rack configurations. Pairing these with a spare 140CPU65160 or 140CPU67160 processor module and a set of pre-configured EEPROM backups ensures that your team can restore a Quantum system to full operation within a single maintenance shift, even in the event of a multi-module failure.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the failed 140ACI04000, document the current slot position, I/O address mapping, and any active alarms in Unity Pro or Concept software. Export the current project file and save a rack configuration snapshot. This ensures that the replacement module can be configured identically without requiring a full engineering review.

Step 2 — Safe isolation: Place the Quantum CPU in STOP mode and confirm that the process is in a safe state. For critical loops (e.g., pressure, temperature, or flow control), coordinate with the process operator before isolating the analog inputs. Do not rely solely on the module’s channel-level isolation — isolate field instruments at the source where possible.

Step 3 — Module removal and inspection: Remove the 140ACI04000 by releasing the module latch and sliding it out of the backplane slot. Inspect the backplane connector pins for damage or contamination. If the failed module shows signs of overheating (discoloration, burnt smell), inspect adjacent modules and the power supply before proceeding.

Step 4 — Replacement and configuration: Insert the new 140ACI04000 into the same slot. Power up the rack and verify that the CPU recognizes the module without generating a configuration mismatch fault. In Unity Pro, perform an online comparison to confirm that the I/O map is intact. Re-enable the process loops one at a time and verify analog readings against known reference values or field instrument displays.

Step 5 — Post-replacement documentation: Update the maintenance log with the replacement date, module serial number, and any observations from the inspection. Schedule a follow-up check at 30 days to confirm stable operation. Archive the failed module for root cause analysis if the failure was unexpected.

This workflow minimizes downtime, preserves system compatibility, and creates an auditable maintenance record — all critical requirements for ISO 55001-aligned asset management programs.

Spare Parts Support FAQ

Q1: Is the 140ACI04000 still available as a new original part, or only as a refurbished unit?
NINERMAS maintains stock of both new original and refurbished-to-OEM-specification 140ACI04000 modules. Each unit is clearly labeled with its condition. Refurbished units undergo full electrical testing against Schneider Electric’s original acceptance criteria and are covered by the same 12-month warranty as new stock. We recommend confirming your requirement (new vs. refurbished) at the time of inquiry so we can provide the most accurate lead time and pricing.

Q2: How do I verify compatibility between the 140ACI04000 and my existing Modicon Quantum rack configuration?
The 140ACI04000 is compatible with all standard Modicon Quantum 140 Series backplanes and is supported by Unity Pro, Concept, and ProWORX programming environments. Compatibility is determined by the backplane model, CPU firmware version, and I/O address mapping in your project file. Our technical team can assist with compatibility verification if you provide your CPU part number and current rack layout. We also recommend cross-referencing Schneider Electric’s Quantum I/O compatibility matrix before installation.

Q3: What pre-shipment testing does NINERMAS perform on the 140ACI04000?
Every 140ACI04000 unit shipped by NINERMAS undergoes a multi-point electrical test that includes power-on self-test verification, analog channel accuracy check across all input ranges (±10 V, 0–10 V, 0–20 mA, 4–20 mA), backplane connector integrity inspection, and firmware version confirmation. Test records are available upon request. Units that do not pass all test criteria are quarantined and not shipped. This process ensures that the module you receive is ready for immediate installation without requiring bench testing on your end.

Q4: Can NINERMAS support long-term supply of the 140ACI04000 for multi-year maintenance contracts?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including legacy Modicon Quantum components that are no longer in active production by Schneider Electric. We maintain strategic stock positions and can support blanket purchase orders, annual supply agreements, and just-in-time delivery programs. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements tailored to your plant’s maintenance schedule.
