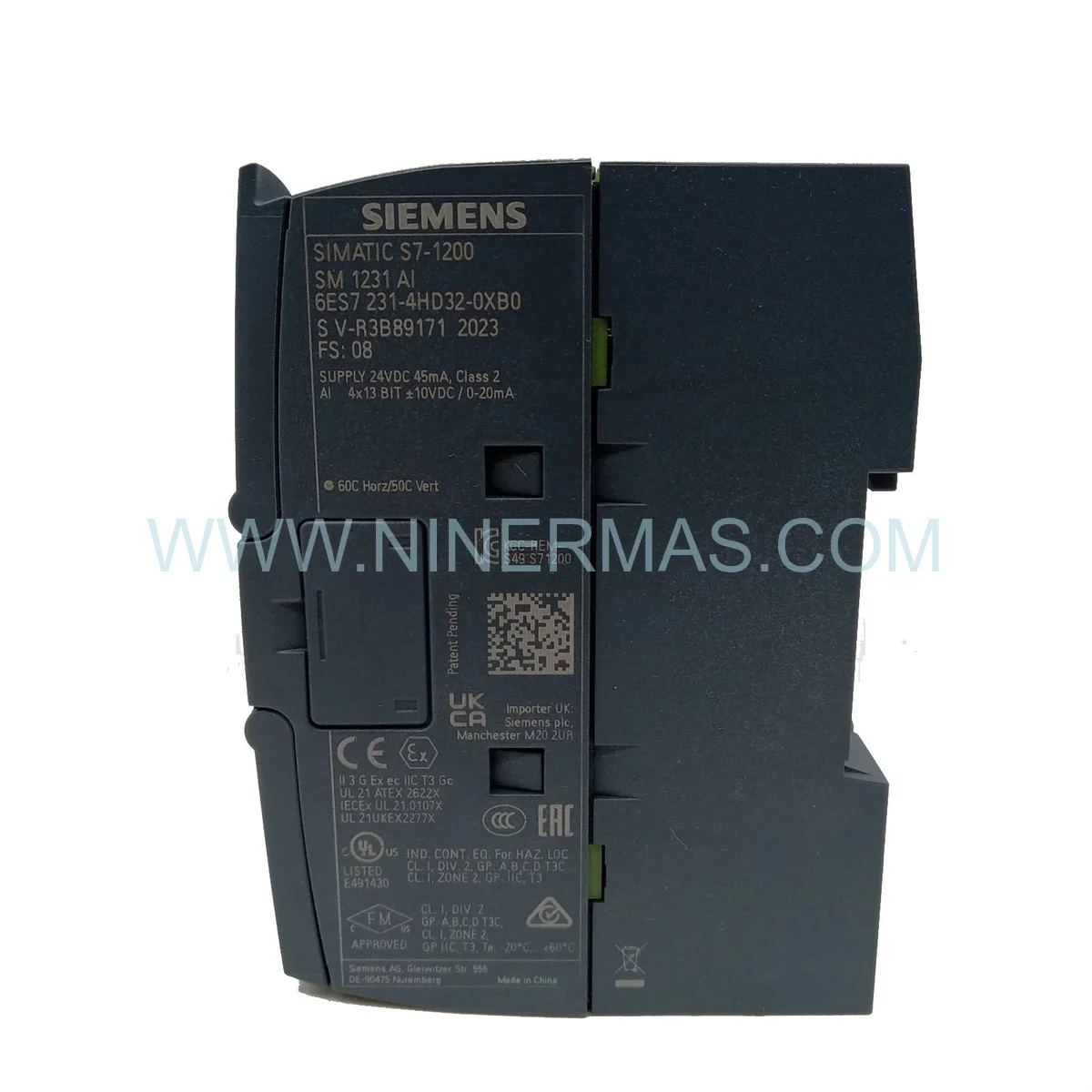

Siemens SM 1231 6ES7231-4HD32-0XB0 Analog Input Module — New & Original

Siemens SM 1231 6ES7231-4HD32-0XB0 | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the 6ES7231-4HD32-0XB0 stands as a cornerstone I/O module for sustaining system availability in mission-critical automation environments. Deployed within the SIMATIC S7-1200 architecture, this analog input module delivers four high-resolution measurement channels that feed real-time process data directly into the PLC scan cycle — eliminating signal latency that could compromise process optimization and loop stability. Its 13-bit ADC resolution (±0.3% full-scale accuracy) ensures that even marginal deviations in pressure, temperature, or flow are captured with engineering-grade fidelity.

Engineered for operational excellence in demanding industrial settings, the 6ES7231-4HD32-0XB0 operates reliably across a -20°C to +60°C ambient range with 500 V AC input-to-logic isolation — a specification that directly addresses the electromagnetic interference challenges common in heavy manufacturing, energy distribution, and process industries. Installation requires snap-on DIN rail mounting to the S7-1200 right-side expansion rail; shielded twisted-pair cabling up to 1,000 m is recommended to maintain signal integrity in high-noise environments. Proper channel-by-channel configuration via TIA Portal ensures seamless integration without firmware conflicts.

As production lines age and OEM support windows close, maintaining a verified stock of original automation components becomes a non-negotiable reliability strategy. Sourcing a genuine 6ES7231-4HD32-0XB0 as a certified spare eliminates unplanned downtime risk — a single production stoppage can far exceed the module’s acquisition cost. Proactive inventory of this module is standard practice for any SRE managing S7-1200-based control systems at scale.

Key Operational Features

4-Channel Analog Input — Simultaneous voltage (±10 V / ±5 V / ±2.5 V) and current (0-20 mA / 4-20 mA) acquisition, selectable per channel for maximum system integration flexibility.
13-Bit ADC Resolution — High-precision signal conversion supporting mission-critical process control loops where measurement accuracy directly impacts product quality.
500 V AC Galvanic Isolation — Protects PLC logic from field-side transients, ensuring high availability in electrically noisy industrial networks.
Seamless TIA Portal Integration — Plug-and-play configuration within Siemens’ engineering framework; no additional drivers or middleware required.
Extended Cable Reach — Supports shielded twisted-pair runs up to 1,000 m, enabling distributed sensor connectivity across large plant footprints.
Compact DIN Rail Form Factor — 100 — 45 — 75 mm profile minimizes cabinet space while maintaining full redundancy-ready expansion capability.

Maintenance & Performance Benchmarks

The 6ES7231-4HD32-0XB0 is designed to integrate into both small-scale machine control panels and large distributed automation networks without architectural compromise. In single-CPU configurations, the module synchronizes its update rate directly with the S7-1200 CPU scan cycle, ensuring deterministic data acquisition. In multi-drop or distributed I/O architectures, it operates as a local expansion module — maintaining sub-millisecond response characteristics that are essential for closed-loop PID control and safety interlock systems.

Firmware compatibility is managed through TIA Portal V13 SP1 and above. Maintenance teams should verify CPU firmware version alignment prior to module swap-out; mismatched firmware revisions can trigger diagnostic faults that mask the underlying hardware status. Scheduled preventive maintenance should include periodic insulation resistance checks on field wiring and verification of channel calibration offsets — particularly in high-temperature or high-humidity environments where sensor drift is accelerated.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6ES7231-4HD32-0XB0 dispatched from our facility is shipped in original factory packaging with full manufacturer labeling and traceability documentation — ensuring authenticity verification upon receipt. For time-sensitive plant recovery scenarios, same-day dispatch is available for in-stock units when orders are confirmed before the daily logistics cutoff. Our global supply network specifically addresses the growing challenge of EOL (End-of-Life) and legacy module procurement: as Siemens transitions product generations, we maintain strategic buffer stock of discontinued automation components to protect long-lifecycle industrial installations from forced system redesigns.

All shipments are covered by a 1-Year Warranty against manufacturing defects, with worldwide express logistics options including DHL Express, FedEx International Priority, and UPS Worldwide Expedited — delivering to over 180 countries with full customs documentation support.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 6ES7231-4HD32-0XB0 on an S7-1200 CPU?
A: Power down the S7-1200 CPU before module installation. Align the module connector with the CPU’s right-side expansion port and press firmly until the latch clicks. Restore power and open TIA Portal — the module should auto-detect. Configure channel input types (voltage/current) via the device configuration properties panel before downloading to the CPU.

Q2: Which TIA Portal firmware versions are compatible with this module?
A: The 6ES7231-4HD32-0XB0 requires TIA Portal V13 SP1 or higher. CPU firmware V2.0 and above is recommended for full feature support including diagnostic buffer access. Always cross-reference the Siemens compatibility matrix (SIOS) before performing firmware upgrades on live systems.

Q3: Can this module be used in a redundant or high-availability S7-1200 configuration?
A: The SM 1231 series supports hot-swap capability in select S7-1200 configurations with firmware V4.1+. For mission-critical applications requiring redundancy, pair with a redundant CPU setup and configure diagnostic alarms in TIA Portal to enable automatic fault detection and operator notification.

Q4: How do I initiate a warranty claim for a defective unit?
A: Contact our technical support team at sale@ninermas.com with your order number, module serial number, and a description of the observed fault. Our engineering team will issue an RMA authorization within 24 business hours. Defective units are replaced or repaired at no charge within the 1-year warranty period.

Q5: What wiring precautions are required for 4-20 mA current loop inputs?
A: Use shielded twisted-pair cable with the shield grounded at one end only (typically the panel end) to prevent ground loop interference. Maintain physical separation from high-voltage power cables. For transmitters located more than 500 m from the panel, verify loop resistance budget to ensure adequate signal drive capability.

Q6: Is this module available for legacy systems where the original part is discontinued?
A: Yes. We maintain dedicated stock of the 6ES7231-4HD32-0XB0 specifically to support legacy S7-1200 installations. Our sourcing team actively monitors global supply channels to ensure continued availability for EOL module replacement programs.

—
