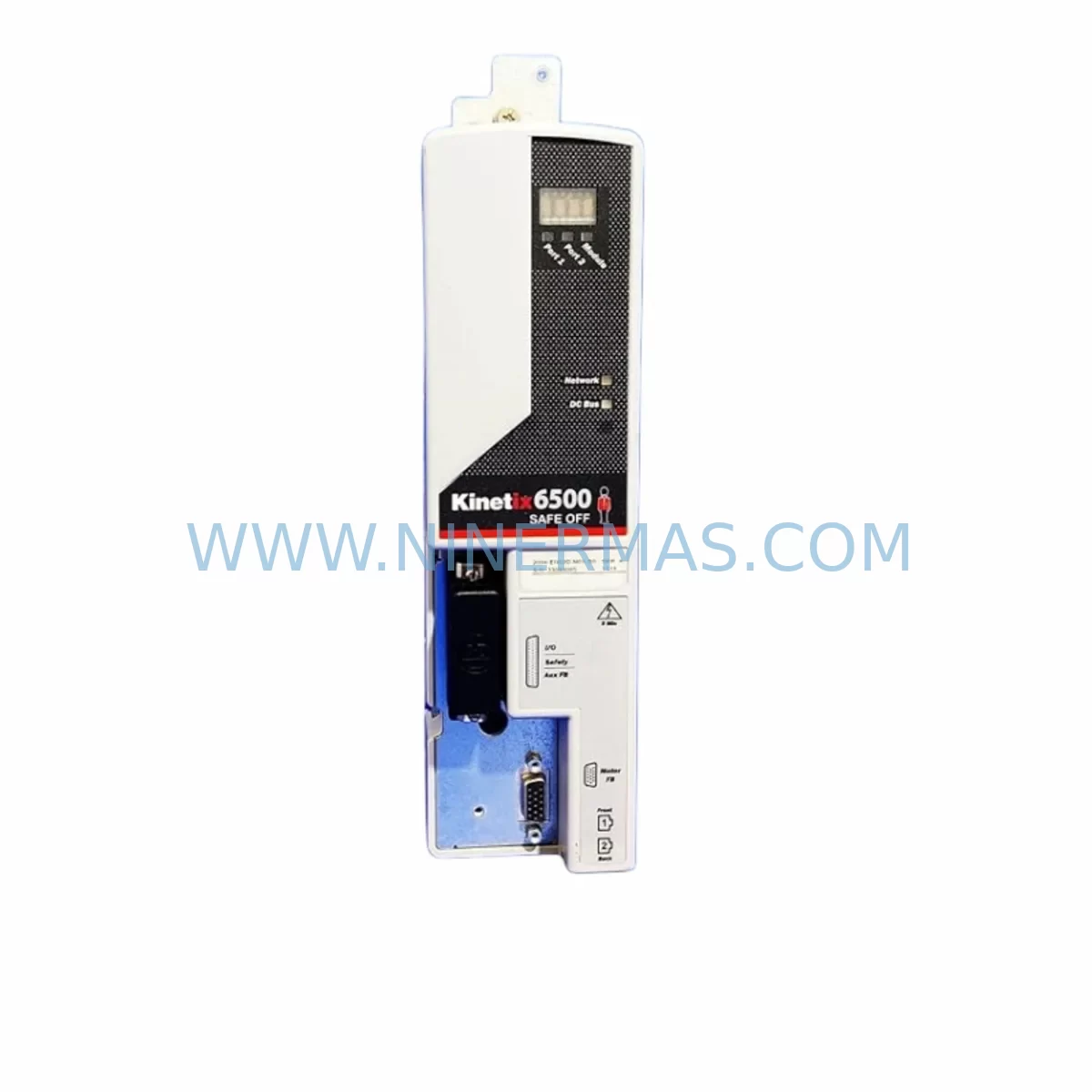

The Rockwell Automation 2094-EN02D-M01-S0 is a ruggedized dual-axis servo drive module from the Kinetix 6500 series, engineered for demanding industrial environments where vibration, temperature extremes, and continuous duty cycles place exceptional stress on motion control hardware. For maintenance engineers managing aging servo systems, the 2094-EN02D-M01-S0 represents a critical line item in any spare parts inventory strategy — its failure in a production environment can halt an entire servo axis, triggering unplanned downtime that cascades across interconnected process lines.

At NINERMAS, every 2094-EN02D-M01-S0 unit is sourced as an original Rockwell Automation component, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty covering defects in materials and workmanship. Our long-term supply program ensures that procurement engineers can secure committed stock for multi-year maintenance contracts, reducing the risk of obsolescence-driven line stoppages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 2094-EN02D-M01-S0 servo drive module is flagged for replacement during a scheduled shutdown or emergency callout, experienced maintenance engineers know that the drive itself is rarely the only component requiring attention. The Kinetix 6500 architecture integrates tightly with its surrounding electrical infrastructure, and a thorough site inspection should extend well beyond the failed axis module.

Begin with the 2094-BC01-M or 2094-BC02-M Kinetix 6500 power rail (backplane), verifying that the bus connector fingers are clean, undamaged, and free of oxidation — a corroded backplane contact is a common root cause of intermittent drive faults that are misdiagnosed as drive failures. Next, inspect the 2094-PRS7 or equivalent Kinetix 6500 AC line filter and the shared DC bus capacitor bank; degraded bus capacitance manifests as DC bus overvoltage faults under regenerative braking loads, which can prematurely stress a newly installed 2094-EN02D-M01-S0.

On the feedback side, verify the integrity of the 2090-XXNFMF-Sxx series motor feedback cables connecting to the servo motors on both axes. Damaged or improperly shielded feedback cables introduce encoder noise that triggers following-error faults, often blamed on the drive module rather than the cable. Similarly, inspect the 2090-XXNPMF-16Sxx motor power cables for insulation breakdown, particularly at cable entry points where repeated flexing causes micro-fractures.

For the EtherNet/IP communication path, confirm that the managed switch port connected to the 2094-EN02D-M01-S0 is configured for the correct VLAN and that the 1783-US5T or equivalent Stratix switch is operating without port errors. A misconfigured or failing network switch can cause motion task communication timeouts that appear as drive faults in the Studio 5000 fault log. If the control cabinet houses a 1756-EN2T or 1756-EN2TR EtherNet/IP bridge module in the ControlLogix chassis, verify its firmware revision is compatible with the Kinetix 6500 axis configuration in the current project file.

Procurement engineers building annual spare parts kits for Kinetix 6500 installations should also consider stocking the 2094-EN02D-M01 (non-ruggedized variant) as a cross-reference option for controlled-environment cabinets, alongside 2094-AM01 single-axis modules for mixed-axis configurations. Including a spare 1606-XLP95E or equivalent 24 VDC control power supply in the kit ensures that a control power failure — which can mimic a drive fault — does not extend downtime while awaiting a separate power supply delivery.

Site Replacement Workflow

Replacing the 2094-EN02D-M01-S0 in a live production environment requires a structured approach to minimize axis downtime and avoid configuration errors that could damage the new module or connected servo motors.

Step 1 — Safe State Verification: Confirm that the machine is in a safe state per your site’s lockout/tagout (LOTO) procedure. De-energize the Kinetix 6500 power rail by removing AC input power and waiting for the DC bus voltage to discharge below 50 VDC (verify with a calibrated meter at the bus terminals).

Step 2 — Configuration Backup: Before removing the failed module, export the Studio 5000 / RSLogix 5000 project file and record the axis configuration parameters for both axes served by the 2094-EN02D-M01-S0, including motor catalog numbers, feedback device types, and tuning gains. This data is essential if the replacement module requires re-commissioning.

Step 3 — Module Removal and Inspection: Slide the failed 2094-EN02D-M01-S0 from the power rail slot. Inspect the backplane connector on both the module and the rail for bent pins or contamination. Clean with appropriate contact cleaner if required before installing the replacement.

Step 4 — Replacement Installation: Seat the new 2094-EN02D-M01-S0 firmly into the power rail slot until the locking mechanism engages. Reconnect all motor power and feedback cables, ensuring correct axis assignment (Axis A and Axis B connectors must match the original wiring). Restore control power and verify that the module’s status LEDs indicate normal operation before restoring AC bus power.

Step 5 — Recommissioning and Test: Download the verified Studio 5000 project to the controller. Run the Hookup Diagnostics test for each axis to confirm motor feedback polarity and phasing. Perform a low-speed jog test before returning the machine to automatic mode. Document the replacement in the site maintenance log, including the new module’s serial number and the date of installation.

This structured workflow reduces the risk of repeat failures caused by installation errors and ensures that the system compatibility between the 2094-EN02D-M01-S0 and the existing Kinetix 6500 infrastructure is fully validated before production resumes.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 2094-EN02D-M01-S0 supplied by NINERMAS?
Every 2094-EN02D-M01-S0 unit ships with a 12-month warranty from the date of shipment. The warranty covers defects in materials and workmanship under normal operating conditions. Units that fail within the warranty period are eligible for replacement or repair at no additional cost, subject to inspection confirming the failure is not attributable to installation error, overvoltage, or physical damage.

Q2: How do I verify compatibility between the 2094-EN02D-M01-S0 and my existing Kinetix 6500 system?
Compatibility is determined by the Kinetix 6500 power rail bulletin (2094-BCxx-M), the firmware revision of the connected ControlLogix or CompactLogix controller, and the Studio 5000 / RSLogix 5000 project revision. The -S0 suffix denotes the ruggedized conformal-coated variant; confirm that your installation environment and power rail revision support this variant. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q3: Can NINERMAS support long-term or blanket purchase orders for the 2094-EN02D-M01-S0?
Yes. NINERMAS operates a long-term supply program designed for maintenance engineers and procurement teams managing multi-year spare parts commitments. Blanket orders with scheduled release dates are supported, allowing you to lock in pricing and stock allocation for planned annual overhauls or rolling maintenance windows without carrying excess inventory on-site.

Q4: What pre-shipment testing is performed on the 2094-EN02D-M01-S0 before dispatch?
Each unit undergoes functional power-on testing to verify that the module initializes correctly, that both axis drive channels respond to command inputs, and that the EtherNet/IP communication interface is operational. Test results are documented and available upon request. Units that do not pass functional testing are not dispatched, ensuring that every 2094-EN02D-M01-S0 delivered to site is ready for immediate installation.
