PROVIBTECH TM0181-A40-B00 Safe Extension Cable for Critical Sites

PROVIBTECH TM0181-A40-B00 Safety-Reliable Extension Cable for Critical Control Sites

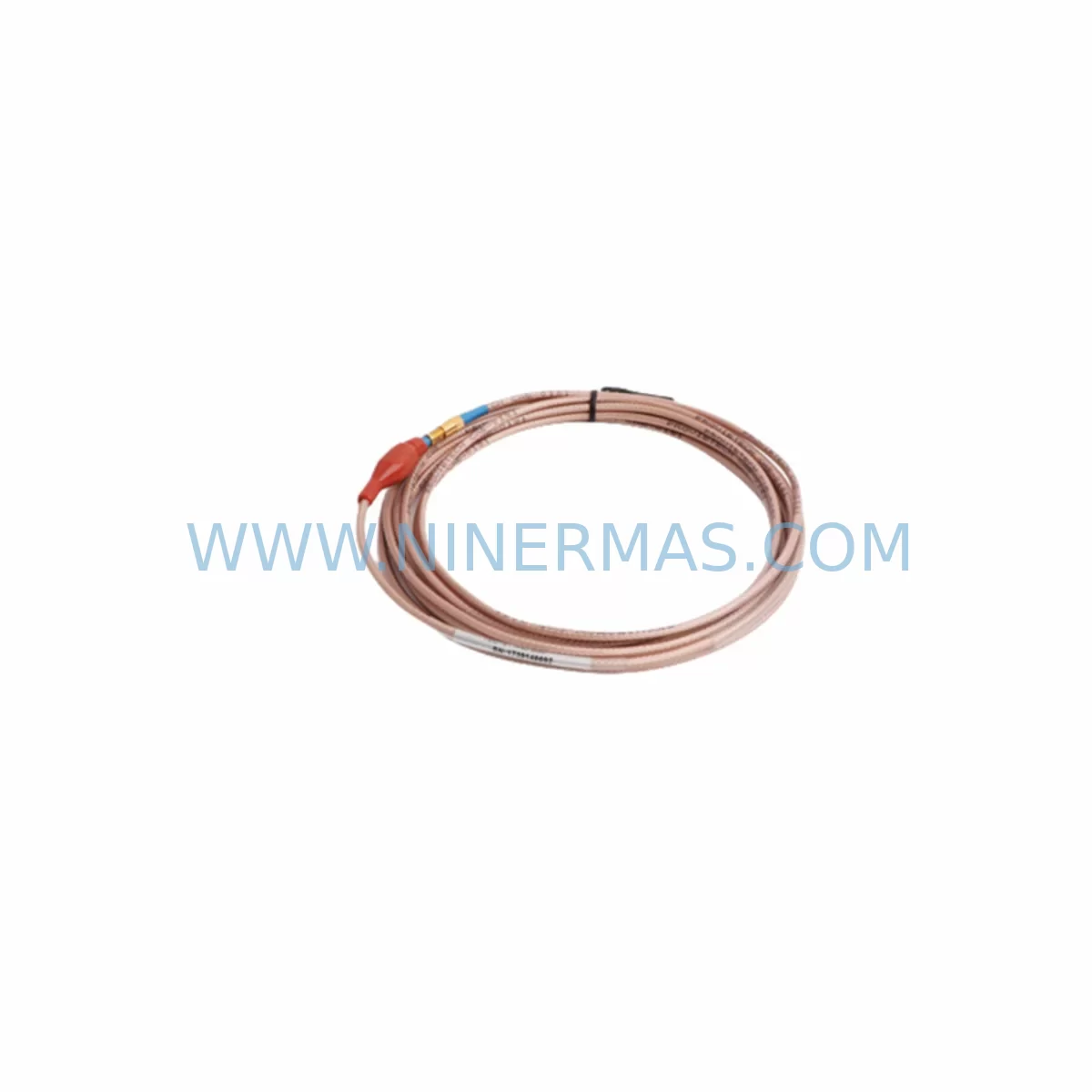

The PROVIBTECH TM0181-A40-B00 is a ruggedized extension cable module engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed for use within proximity probe measurement chains on rotating machinery — including turbines, compressors, pumps, fans, and gearboxes — this extension cable serves as the critical signal link between the proximity probe and the Eddy-current driver or signal conditioner. In high-stakes facilities where vibration monitoring is a core safety function, the integrity of this cable directly determines the reliability of shaft displacement, radial vibration, and axial position measurements that protect rotating assets from catastrophic failure.

At NINERMAS, we supply the TM0181-A40-B00 from verified inventory with full pre-shipment electrical testing, ensuring signal continuity, impedance consistency, and connector integrity before dispatch. Every unit ships with a 12-month warranty, supporting your maintenance planning and spare parts lifecycle management.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical rotating machinery protection systems, signal chain integrity is non-negotiable. The TM0181-A40-B00 extension cable connects the proximity probe tip — mounted directly on the shaft journal or thrust collar — to the signal conditioner or driver module housed in the control cabinet or junction box. Any degradation in this cable, whether from insulation breakdown, connector corrosion, mechanical pinching, or EMI ingress, directly compromises the accuracy of shaft vibration and position data fed into the protection system.

When planning a cable replacement or system audit, engineers typically review the entire measurement chain simultaneously. The PROVIBTECH TM0181 proximity probe at the machine end must be verified for gap voltage and sensitivity before a new extension cable is installed. The PROVIBTECH TM0182 driver/signal conditioner at the panel end should be checked for input impedance compatibility with the replacement cable length. In systems using a PROVIBTECH VM600 or VM6000 vibration monitoring rack, the I/O module input cards — such as the PROVIBTECH MPC4 or IOC4T — must be confirmed to accept the signal levels produced by the updated probe-cable-driver chain.

For facilities running Bently Nevada 3500 series machinery protection racks, the TM0181-A40-B00 is frequently used as a compatible extension cable within mixed-brand measurement chains, particularly during phased upgrades where original Bently Nevada extension cables such as the 330130 series are being replaced with cost-effective alternatives. In these scenarios, the Bently Nevada 3500/42M or 3500/45 position monitor cards must be recalibrated after cable substitution to confirm gap voltage and scale factor alignment.

Control cabinet risk reduction also involves reviewing the junction box terminal blocks and cable gland sealing at the machine end. In high-humidity or washdown environments — common in water treatment, food processing, and offshore platforms — the coaxial connector at the probe-to-extension-cable junction is a primary ingress point for moisture-induced signal drift. Replacing the TM0181-A40-B00 cable as part of a scheduled maintenance window, alongside inspection of the proximity probe mounting bracket and cable conduit sealing, eliminates multiple failure modes in a single planned outage.

For facilities using Emerson Ovation or ABB System 800xA distributed control systems with integrated vibration monitoring, the TM0181-A40-B00 feeds signal data upstream to DCS analog input modules. Ensuring the extension cable’s shielding is properly grounded at a single point — typically at the control cabinet end — prevents ground loop interference that can cause false high-vibration alarms and unnecessary trips in continuous process plants.

Critical Industrial Safety Applications

The PROVIBTECH TM0181-A40-B00 extension cable module is deployed across a wide range of critical industrial sectors where rotating machinery protection is a safety-of-life and asset-protection priority.

In petrochemical and refinery facilities, this cable supports continuous shaft vibration monitoring on process compressors, charge pumps, and reactor circulation fans operating under API 670 machinery protection standards. Any undetected vibration exceedance in these machines can trigger catastrophic mechanical failure, process release, or fire — making the integrity of the proximity probe signal chain a direct safety function.

In power generation plants — including coal-fired, gas turbine, and hydroelectric stations — the TM0181-A40-B00 is used in turbine shaft monitoring systems where radial vibration and axial thrust position data feed directly into the turbine protection relay. A degraded extension cable that introduces signal noise or offset can cause nuisance trips during load transients or, worse, mask genuine vibration growth during bearing deterioration.

In mining and mineral processing operations, large ball mills, SAG mills, and crusher drives rely on proximity probe systems to detect shaft imbalance and bearing wear before catastrophic failure. The ruggedized jacket of the TM0181-A40-B00 withstands the high-vibration, dust-laden, and chemically aggressive environments typical of grinding and flotation circuits.

In water and wastewater treatment plants, high-speed pump and blower monitoring systems use proximity probes to detect impeller imbalance and bearing degradation. The moisture-resistant construction of the TM0181-A40-B00 makes it suitable for wet pump rooms and outdoor installations subject to condensation and washdown.

In metallurgical and steel plants, rolling mill drive motors and continuous caster pinch roll drives operate in extreme thermal and vibration environments. The TM0181-A40-B00’s high-temperature cable jacket and robust connector design maintain signal integrity even when routed through areas with radiant heat from furnaces and molten metal handling equipment.

Safety and Quality FAQ

Q1: What warranty does the TM0181-A40-B00 carry, and what does it cover?
Every TM0181-A40-B00 supplied by NINERMAS carries a 12-month warranty covering manufacturing defects, connector failure, and signal integrity degradation under normal operating conditions. Each unit undergoes pre-shipment electrical testing — including continuity, impedance verification, and connector inspection — before dispatch. If a unit fails within the warranty period under normal use, we provide replacement support with priority dispatch.

Q2: Is the TM0181-A40-B00 compatible with Bently Nevada 3300 and 3500 series proximity probe systems?
Yes. The TM0181-A40-B00 uses a standard coaxial connector configuration and cable impedance profile compatible with Bently Nevada 3300 and 3500 series measurement chains. However, after substituting any extension cable in an existing probe chain, we strongly recommend performing a gap voltage calibration check at the driver/conditioner output to confirm the system is operating within the specified linear range before returning the machine to service.

Q3: How do I confirm the correct cable length and connector type for my application?
The TM0181-A40-B00 part number encodes the key parameters: A40 indicates a 40-foot (approximately 12.2 m) cable length, and B00 indicates the standard coaxial connector configuration. Total probe system cable length — the sum of the probe integral cable, extension cable, and any armored conduit — must fall within the driver’s specified range to maintain calibration accuracy. Contact our technical team at sale@ninermas.com with your existing probe and driver model numbers for confirmation before ordering.

Q4: What is your typical lead time and do you maintain stock of the TM0181-A40-B00?
We maintain inventory of the TM0181-A40-B00 for immediate dispatch. Standard orders ship within 3–5 business days after order confirmation. For urgent maintenance requirements or planned outage windows, contact us directly at +0086 187 5021 5667 or sale@ninermas.com to confirm current stock levels and arrange expedited shipping. Long-term spare parts supply agreements are available for facilities requiring guaranteed stock reservation across multi-year maintenance programs.
