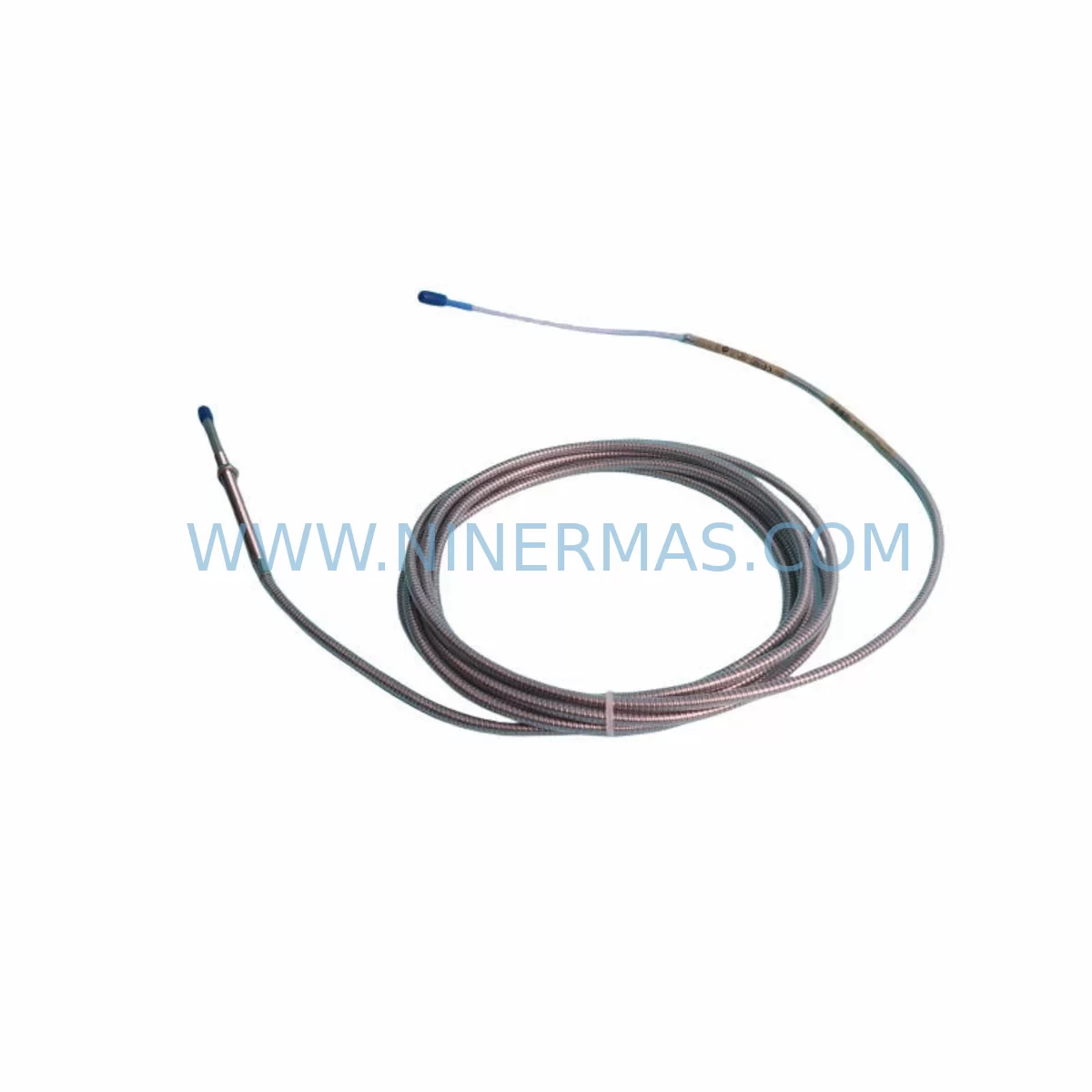

The Bently Nevada 330104-00-05-20-02-CN is a high-performance proximity transducer engineered for the 3300 XL Series vibration monitoring system — one of the most trusted condition monitoring platforms in continuous industrial production environments. Designed to deliver uninterrupted, safety-reliable signal output in the most demanding field conditions, this transducer is a cornerstone component for critical control cabinets, safety interlock loops, and rotating machinery protection systems across heavy industry.

In facilities where unplanned downtime carries catastrophic operational and financial consequences — including petrochemical plants, power generation stations, metallurgical complexes, mining operations, and continuous process manufacturing — the 330104-00-05-20-02-CN provides the measurement integrity required to sustain safe, stable control. Its eddy-current sensing principle ensures non-contact, wear-free operation, eliminating mechanical degradation as a failure mode and dramatically reducing the risk of signal drift, false trips, and missed fault detection in rotating shaft monitoring applications.

NINERMAS maintains verified inventory of the Bently Nevada 330104-00-05-20-02-CN, fully tested prior to shipment and backed by a 12-month warranty, ensuring your procurement and maintenance teams can source this critical spare with confidence.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered rotating machinery protection architecture, the Bently Nevada 330104-00-05-20-02-CN proximity transducer does not operate in isolation — it functions as part of a tightly integrated measurement chain that must maintain signal integrity from the machine shaft to the control room under all operating conditions.

The transducer pairs directly with Bently Nevada 330130-045-00-CN extension cables, which are specifically designed to maintain the calibrated system sensitivity across the full cable run without introducing impedance mismatches or signal attenuation that could cause false alarms or missed fault detection. These cables are routed through the control cabinet alongside the Bently Nevada 3300 XL proximitor / signal conditioner, which converts the raw transducer signal into a calibrated DC voltage output suitable for the monitoring system’s analog input cards.

Within the Bently Nevada 3500 Series rack-based monitoring system — commonly deployed in turbine, compressor, and pump protection panels — the proximity transducer signal feeds into dedicated 3500/42M Proximitor / Seismic Monitor modules, which provide real-time vibration, position, and eccentricity measurements with configurable alarm and danger setpoints. These setpoints drive relay outputs that interface with the plant’s Safety Instrumented System (SIS) or emergency shutdown (ESD) logic, ensuring that a confirmed high-vibration event triggers a controlled, safe machine trip before catastrophic mechanical failure occurs.

To protect the entire monitoring loop from power-related disturbances — including voltage sags, surges, and conducted EMI from variable frequency drives (VFDs) and large motor starters — the control cabinet should incorporate Bently Nevada system power supplies with adequate surge suppression, supplemented by Phoenix Contact or Weidmuller DIN-rail surge protection devices on signal and power lines. In high-EMI environments such as steel mills, arc furnace facilities, or large compressor stations, additional signal isolators and galvanic separators on the transducer output lines prevent ground loops and common-mode noise from corrupting the vibration measurement.

For facilities managing multiple rotating assets, the Bently Nevada System 1 condition monitoring software aggregates data from all proximity transducer channels, enabling trend analysis, alarm management, and predictive maintenance scheduling — transforming raw vibration data into actionable safety intelligence that reduces unplanned shutdowns and extends mean time between failures (MTBF).

Critical Industrial Safety Applications

The Bently Nevada 330104-00-05-20-02-CN proximity transducer is deployed across the full spectrum of heavy industrial sectors where rotating machinery reliability is directly linked to process safety and production continuity.

Petrochemical & Refining: In crude distillation units, catalytic crackers, and compressor trains, continuous shaft position and vibration monitoring is mandatory under API 670 machinery protection standards. The 330104-00-05-20-02-CN provides the measurement foundation for detecting rotor instability, bearing wear, and shaft misalignment before they escalate to seal failures, process leaks, or fire and explosion hazards.

Power Generation: Steam turbines, gas turbines, and large generator sets in thermal and combined-cycle power plants rely on proximity transducer arrays to monitor shaft eccentricity, differential expansion, and radial vibration. A single transducer failure in this environment can blind the protection system to a developing fault, making verified spare availability — such as the in-stock 330104-00-05-20-02-CN at NINERMAS — a critical element of plant reliability strategy.

Mining & Mineral Processing: Ball mills, SAG mills, slurry pumps, and conveyor drive systems in open-pit and underground mining operations are subjected to extreme dust loading, moisture ingress, and mechanical shock. The robust construction of the 3300 XL proximity transducer system ensures reliable signal output even in these harsh conditions, supporting safe operation of equipment that, if it fails unexpectedly, can halt entire production circuits.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in municipal and industrial water treatment facilities require continuous vibration monitoring to prevent bearing failures that could interrupt water supply or effluent treatment — with direct public health and regulatory compliance implications.

Metallurgy & Steel Production: Rolling mills, continuous casting machines, and blast furnace blowers operate in environments with extreme heat, vibration, and electromagnetic interference from induction furnaces and large DC drives. The EMI-resistant design of the 330104-00-05-20-02-CN ensures measurement integrity in these electrically hostile environments.

Port & Marine Applications: Ship propulsion systems, crane drives, and port terminal conveyor systems benefit from the non-contact, maintenance-free operation of eddy-current proximity transducers, reducing the need for intrusive inspections in difficult-to-access machinery spaces.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Bently Nevada 330104-00-05-20-02-CN?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. If the unit fails under normal operating conditions within the warranty period, NINERMAS will provide a replacement or full technical support to resolve the issue at no additional cost.

Q2: How is the 330104-00-05-20-02-CN tested before shipment?
Every unit undergoes a full pre-shipment functional verification, including signal output testing and physical inspection, to confirm it meets Bently Nevada 3300 XL system specifications before dispatch. This ensures that the transducer performs correctly upon installation without requiring additional on-site commissioning effort.

Q3: Is the 330104-00-05-20-02-CN compatible with existing 3300 XL system components?
Yes. The 330104-00-05-20-02-CN is a direct replacement for the standard 3300 XL proximity transducer configuration with a 5 m cable and is fully compatible with Bently Nevada 3300 XL extension cables, proximitor signal conditioners, and 3500 Series monitoring rack modules without requiring system recalibration when replacing a like-for-like unit.

Q4: Can NINERMAS support long-term and emergency spare parts supply for this transducer?
Yes. NINERMAS maintains ongoing inventory of the 330104-00-05-20-02-CN and related 3300 XL system components to support both planned maintenance programs and emergency breakdown situations. Our team can be reached at sale@ninermas.com or +0086 187 5021 5667 for urgent procurement inquiries, with rapid response and expedited shipping available for critical plant situations.
