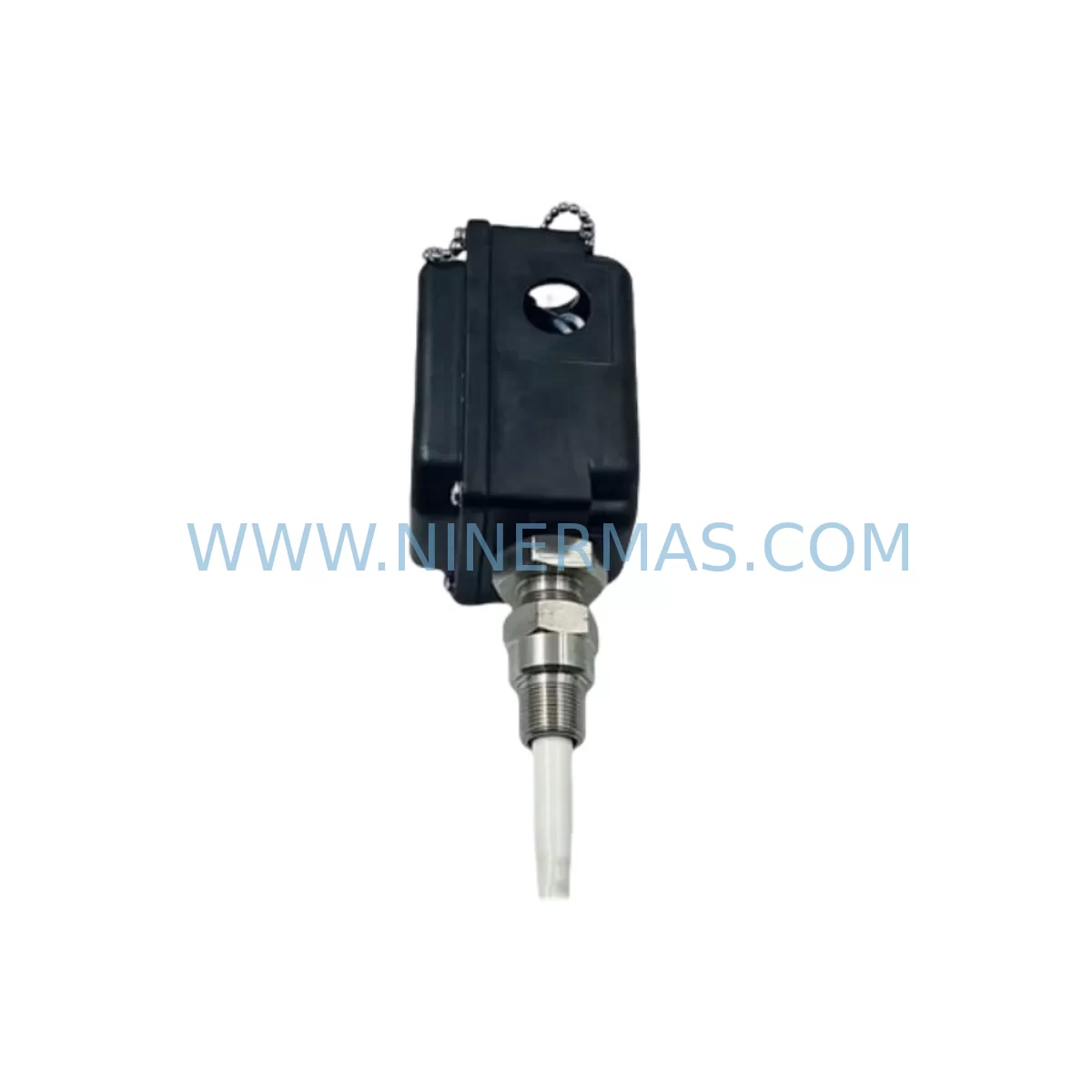

Bently Nevada 330881-28-00-110-03-02 Service-Ready Spare Part

Bently Nevada 330881-28-00-110-03-02 Service-Ready Spare Part for Industrial Maintenance

The Bently Nevada 330881-28-00-110-03-02 is a precision-engineered module within the PROXPAC XL Series proximity transducer system, designed for continuous vibration monitoring and machinery protection in demanding industrial environments. For maintenance engineers managing rotating equipment — turbines, compressors, pumps, and motors — this spare part represents a critical line of defense against unplanned downtime. At NINERMAS, we supply this module as a service-ready, tested spare with a 12-month warranty, ensuring your facility can execute fast, confident replacements without compromising system integrity.

Industrial facilities operating Bently Nevada machinery protection systems understand the operational risk of carrying insufficient spare inventory. The 330881-28-00-110-03-02 is a high-demand replacement component in PROXPAC XL installations across oil & gas, power generation, petrochemical, and heavy manufacturing sectors. When this module degrades or fails, the entire vibration monitoring loop for the associated machine train is compromised — creating a blind spot in your condition monitoring strategy and a direct risk of catastrophic equipment failure going undetected.

Procurement engineers sourcing this part should verify compatibility with the installed PROXPAC XL rack configuration, confirm the correct extension cable length and driver type, and ensure the replacement unit has been factory-tested or third-party verified prior to shipment. NINERMAS performs pre-shipment functional testing on all Bently Nevada modules, with full documentation available upon request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330881-28-00-110-03-02 in a live PROXPAC XL system is rarely an isolated task. Experienced maintenance engineers treat this replacement as an opportunity to audit the entire vibration monitoring loop and associated control cabinet components. A structured inspection during the replacement window significantly reduces the risk of repeat failures and secondary faults.

Begin by inspecting the Bently Nevada 330130 series extension cables that connect the proximity probe to the transducer module. Cable insulation degradation, connector corrosion, or shield continuity loss are common root causes of module-level faults that are misdiagnosed as module failures. Simultaneously, verify the 330500 series proximity probes for tip damage, thread integrity, and gap voltage readings — a worn probe will stress the replacement module from day one.

Within the PROXPAC XL rack, inspect adjacent 3500/42M Proximitor I/O modules and confirm that the rack’s 3500/05 power supply module is delivering stable, within-spec DC voltage. An aging or undersized power supply is a silent contributor to transducer system instability. If the rack shares a backplane with communication modules such as the 3500/92 communication gateway, verify that the gateway firmware is current and that the Modbus or Ethernet/IP data path to the DCS or SCADA system is intact after the replacement.

For facilities running integrated machinery protection with a Bently Nevada System 1 software platform, confirm that the replacement module is recognized and that alarm setpoints, danger limits, and OK relay outputs are correctly re-commissioned after installation. The 3500/32 4-Channel Relay Module downstream of the transducer system should be tested to confirm that trip and alert relay logic responds correctly to simulated vibration inputs.

Procurement teams building annual maintenance kits for PROXPAC XL installations should also consider stocking 3500/15 power supply input modules, terminal strip assemblies for field wiring termination, and signal isolators for any 4–20 mA loops that interface with third-party DCS I/O cards. Fuse holders and replacement fuses rated for the rack’s input voltage should be included in every spare parts cabinet. These low-cost consumables are frequently overlooked until they cause a system-wide outage during a critical production run.

For older installations where the PROXPAC XL system is approaching end-of-life, NINERMAS can support long-term supply agreements to ensure continued availability of the 330881-28-00-110-03-02 and associated modules, extending the operational life of legacy machinery protection systems without requiring a full platform migration.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the 330881-28-00-110-03-02, document the current gap voltage, vibration amplitude, and OK status for all channels associated with the module. Capture a screenshot or printout from System 1 or your DCS historian as a baseline reference.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the associated machine train. If the system supports hot-swap replacement within the PROXPAC XL rack architecture, confirm this with your Bently Nevada system documentation before proceeding without a full rack power-down.

Step 3 — Module Removal and Inspection: Remove the faulty module and inspect the rack slot connector for bent pins, contamination, or heat discoloration. Clean the connector with approved contact cleaner before installing the replacement unit.

Step 4 — Replacement Installation: Install the new 330881-28-00-110-03-02, ensuring full seating in the rack connector. Reconnect all field wiring per the original termination schedule. Verify that cable shields are grounded at one end only, per Bently Nevada installation guidelines.

Step 5 — Commissioning and Verification: Power up the module and verify OK LED status. Confirm gap voltage is within the specified range for the installed probe and extension cable combination. Re-enter alarm and danger setpoints if required. Perform a functional test by simulating vibration input or verifying live machine data against historical baseline.

Step 6 — Documentation: Update your CMMS (Computerized Maintenance Management System) with the replacement date, new module serial number, and post-installation readings. Replenish your spare parts inventory immediately to maintain minimum stock levels for this critical component.

Spare Parts Support FAQ

Q1: Is the 330881-28-00-110-03-02 a direct drop-in replacement for older PROXPAC XL modules?
A: In most PROXPAC XL rack configurations, the 330881-28-00-110-03-02 is a direct replacement. However, compatibility should be confirmed against your specific rack revision and firmware version. NINERMAS technical support can assist with cross-referencing your installed system configuration before shipment.

Q2: What warranty does NINERMAS provide on this spare part?
A: All Bently Nevada modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing, and test documentation is available upon request.

Q3: Can NINERMAS support long-term or blanket purchase orders for this part?
A: Yes. NINERMAS offers long-term supply agreements and blanket PO arrangements for critical spare parts including the 330881-28-00-110-03-02. This is particularly valuable for facilities managing aging PROXPAC XL installations where OEM availability may be limited or lead times are unpredictable.

Q4: How do I verify the module is functioning correctly after installation?
A: Post-installation verification should include confirming the OK LED status, measuring gap voltage at the probe tip (typically –10 VDC ±0.5 V for standard Bently Nevada probes), and validating live vibration data against your pre-replacement baseline in System 1 or your DCS. NINERMAS can provide a commissioning checklist specific to the PROXPAC XL system upon request.
