Bently Nevada 330910-00-21-50-02-00 Safety-Reliable Proximity Transducer

Bently Nevada 330910-00-21-50-02-00 Safety-Reliable Proximity Transducer for Critical Control Sites

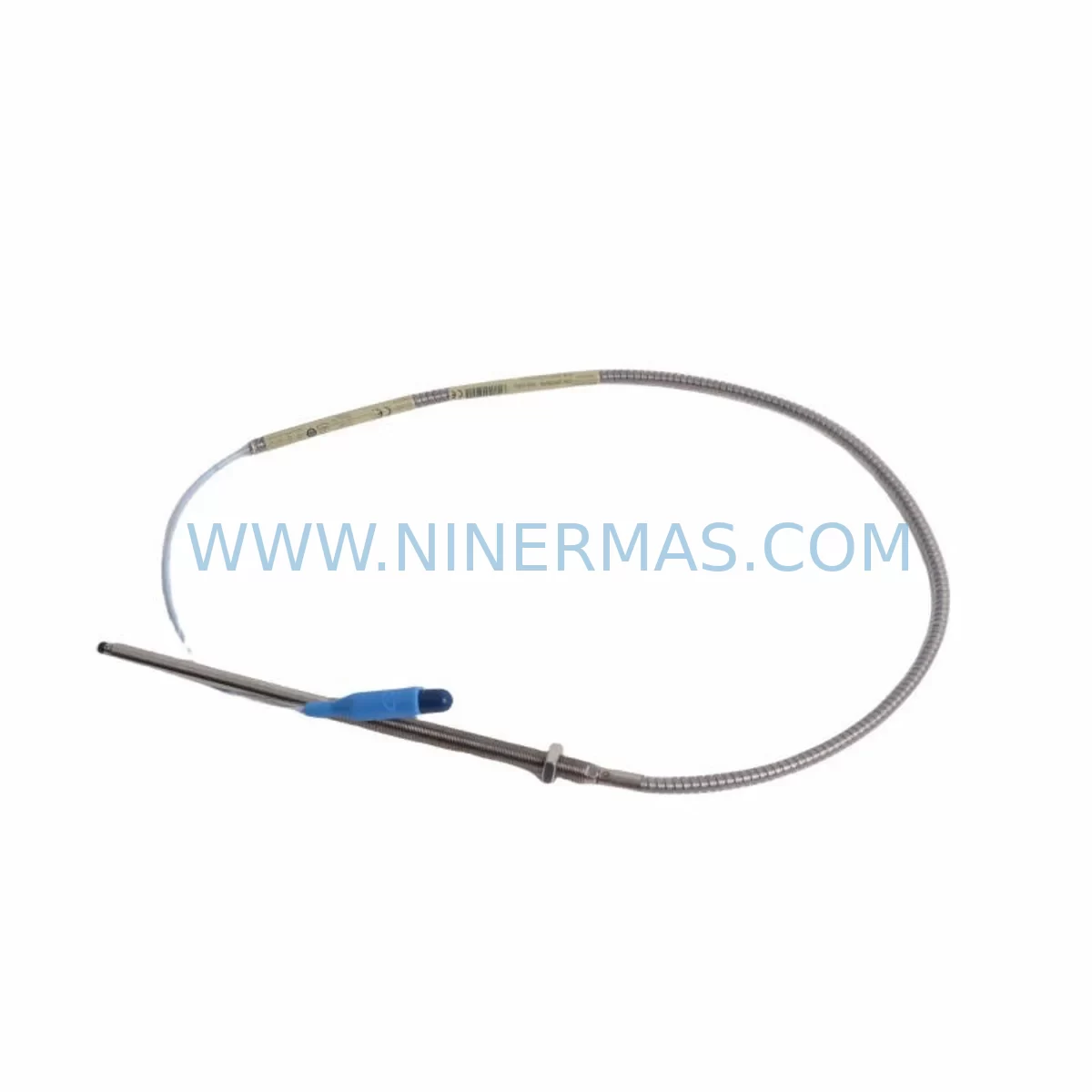

The Bently Nevada 330910-00-21-50-02-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL Series vibration monitoring system. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port machinery, and continuous manufacturing lines — this transducer delivers consistent, safety-grade shaft displacement and vibration measurements that protect rotating machinery and critical control loops from unplanned downtime.

In continuous production environments where even a brief control interruption can cascade into catastrophic equipment failure or process shutdown, the 330910-00-21-50-02-00 provides the measurement stability and signal integrity that safety engineers and reliability teams depend on. Its eddy-current sensing technology is inherently immune to contamination from oil mist, dust, moisture, and non-conductive process fluids, making it the preferred choice for critical interlock circuits and machinery protection systems in harsh field conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered machinery protection cabinet, the 330910-00-21-50-02-00 proximity transducer is never deployed in isolation. It forms the sensing front-end of a complete vibration monitoring chain that begins at the shaft surface and terminates at the safety logic solver or DCS. The transducer pairs directly with the Bently Nevada 3300 XL 8mm Extension Cable to bridge the distance between the probe tip and the signal conditioning driver, maintaining signal fidelity across long cable runs in high-EMI environments typical of motor control centers and variable frequency drive (VFD) cabinets.

The conditioned output feeds into the Bently Nevada 3500/42M Proximitor / Seismic Monitor module, which performs real-time signal processing, alarm threshold comparison, and relay output for trip logic. In safety-instrumented systems (SIS) rated to IEC 61511, this monitor module integrates with the safety PLC — such as a Triconex Tricon CX or Rockwell Automation GuardLogix controller — via hardwired relay contacts or HART communication, ensuring that a shaft displacement exceedance triggers an immediate, deterministic protective action without relying on software polling cycles.

Power supply stability is equally critical. The 3300 XL system requires a clean, regulated -24 VDC supply. Deploying a Phoenix Contact QUINT-PS/1AC/24DC/10 or equivalent DIN-rail power supply with active buffer module prevents transient voltage dips — caused by motor starts, contactor switching, or utility grid fluctuations — from momentarily interrupting the transducer bias voltage and generating false vibration spikes or spurious trip signals. Surge protection devices such as the Phoenix Contact TRABTECH PT 2X2-24DC-ST should be installed at the cabinet entry point to absorb lightning-induced surges and switching transients before they reach the sensitive analog input circuitry.

For communication integrity in distributed monitoring architectures, the Bently Nevada System 1 software platform aggregates data from multiple 3500-series rack modules over Ethernet, providing plant-wide vibration trending, alarm management, and predictive maintenance analytics. Fiber-optic Ethernet converters are recommended in environments with long cable runs between the local control room and the central server to eliminate ground loop interference and ensure data integrity. Complementing the vibration monitoring loop, Bently Nevada 330180-X0-05 temperature sensors installed on bearing housings provide correlated thermal data that, when analyzed alongside proximity transducer readings, enables early detection of lubrication failure, misalignment, and rotor rub conditions before they escalate to catastrophic bearing seizure.

In high-dust or high-humidity environments — such as coal handling facilities, cement plants, or coastal marine installations — the transducer cable conduit should be sealed with appropriate cable glands rated to IP68, and the junction box housing the extension cable connector should be purged or pressurized in accordance with ATEX or IECEx Zone 1 requirements where explosive atmospheres may be present. Periodic calibration verification using a Bently Nevada TK-3 calibration kit ensures that the transducer gap-to-voltage transfer function remains within specification over the equipment lifecycle, supporting both predictive maintenance programs and functional safety proof-test requirements.

Critical Industrial Safety Applications

The 330910-00-21-50-02-00 is deployed across a broad spectrum of critical industrial applications where rotating machinery protection is non-negotiable. In petrochemical and refinery operations, it monitors shaft radial vibration on centrifugal compressors, boiler feed pumps, and reactor agitators — equipment whose unplanned failure can trigger process upsets, hydrocarbon releases, and fire or explosion hazards. The transducer’s ability to operate continuously at temperatures up to 120°C and in the presence of hydrocarbon vapors makes it suitable for installation in classified hazardous areas.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 330910-00-21-50-02-00 provides the shaft eccentricity and vibration data required by turbine protection systems to execute automatic runback or trip sequences before blade tip clearance violations or bearing failures cause secondary damage to the generator. Grid operators and plant reliability engineers rely on this data to comply with OEM vibration limits and insurance requirements.

In mining and mineral processing environments, where ball mills, SAG mills, slurry pumps, and conveyor drive gearboxes operate under extreme load cycling and shock vibration, the transducer’s robust IP67 construction and wide frequency response ensure reliable measurement even when the machine structure itself is vibrating at amplitudes that would saturate lesser sensors. Water and wastewater treatment facilities use the 330910-00-21-50-02-00 on high-speed centrifugal blowers and vertical turbine pumps, where early detection of impeller imbalance or cavitation-induced vibration prevents seal failures and unplanned service interruptions that would compromise regulatory compliance for effluent discharge.

In metallurgical and steel mill applications, the transducer monitors rolling mill drive spindles and continuous caster pinch roll drives operating in environments with intense electromagnetic interference from large DC drive systems and induction furnaces. Its shielded coaxial cable construction and differential output signal architecture provide the common-mode rejection necessary to maintain measurement accuracy in these electrically hostile conditions. Port and marine applications — including ship-to-shore crane drives, bulk material handling conveyors, and vessel propulsion shaft monitoring — benefit from the transducer’s corrosion-resistant construction and wide operating temperature range, ensuring reliable operation in salt-laden, high-humidity coastal environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330910-00-21-50-02-00?
The 12-month warranty covers all manufacturing defects, component failures, and functional performance deviations from the published Bently Nevada 3300 XL Series specification. If the transducer fails to meet its sensitivity, linearity, or frequency response specification within 12 months of shipment under normal operating conditions, NINERMAS will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What outgoing inspection and testing is performed before shipment?
Every 330910-00-21-50-02-00 unit undergoes a 100% functional test prior to shipment. Testing includes verification of the gap-to-voltage transfer function at multiple gap settings, insulation resistance check on the cable assembly, connector continuity verification, and visual inspection for physical damage. A test report is available upon request for customers with quality management system documentation requirements.

Q3: Is the 330910-00-21-50-02-00 compatible with existing Bently Nevada 3300 XL Series installations?
Yes. The 330910-00-21-50-02-00 is a direct form-fit-function replacement for the standard Bently Nevada 3300 XL 8mm proximity transducer system. It is compatible with all 3300 XL Series extension cables, drivers, and 3500-series monitor rack modules without requiring recalibration of the monitoring system, provided the existing system is configured for the standard 7.87 V/mm sensitivity and -24 VDC supply voltage. Always verify the existing system configuration against the transducer datasheet before installation.

Q4: Can long-term supply and spare parts availability be guaranteed?
NINERMAS maintains dedicated inventory of the 330910-00-21-50-02-00 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs. We supply to customers operating under multi-year maintenance contracts and can provide scheduled delivery commitments aligned with your plant turnaround calendar. Contact our technical sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss volume pricing, consignment stock arrangements, or expedited emergency supply.
