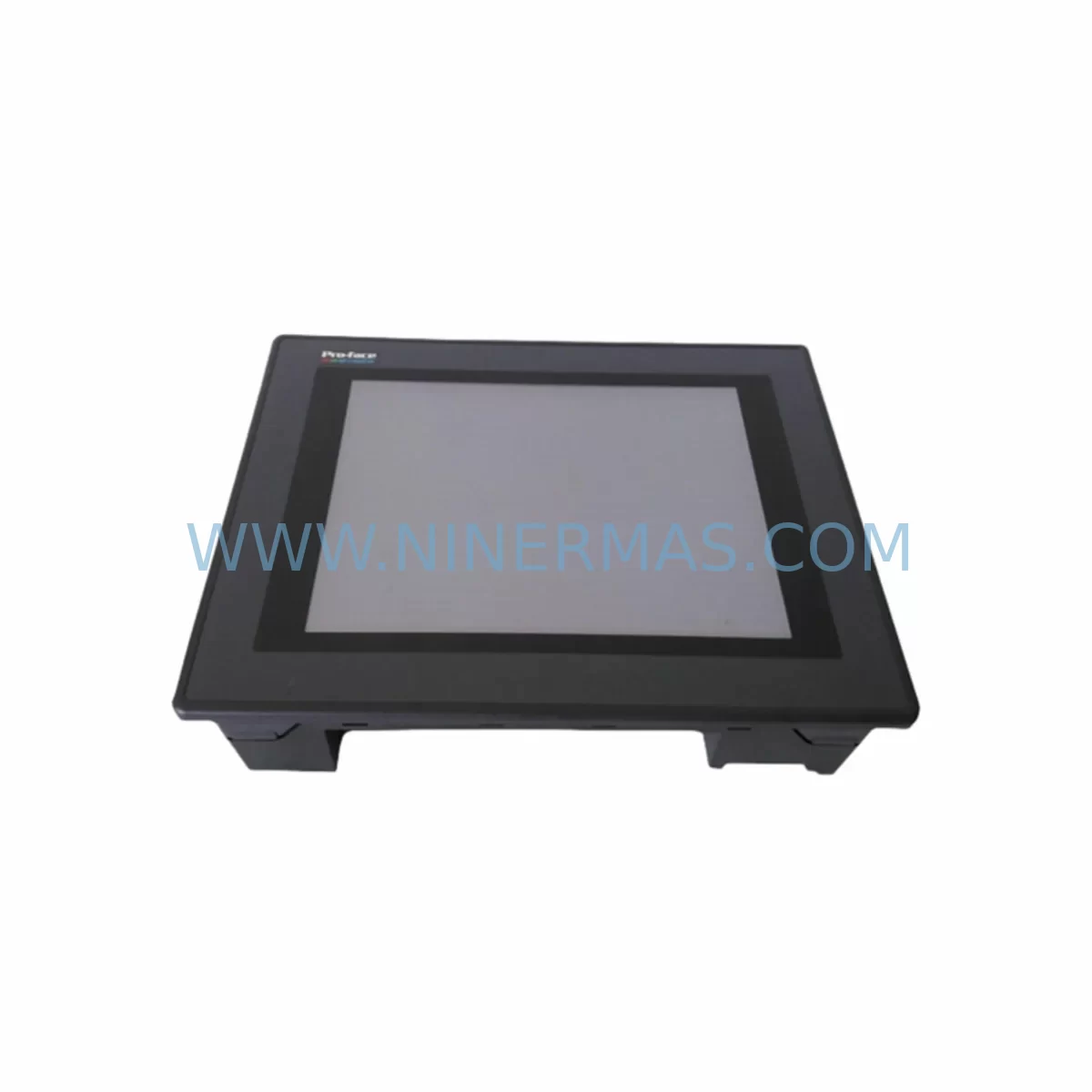

The Pro-face GP570-TC11 is a ruggedized touchscreen HMI panel designed for demanding industrial environments. As a retrofit-compatible replacement for aging operator interface terminals, the GP570-TC11 enables control engineers and maintenance teams to modernize legacy automation systems without requiring full panel redesigns or PLC program rewrites. Whether you are replacing a failed unit on a continuous process line, upgrading an obsolete operator terminal in a chemical plant, or extending the service life of a legacy SCADA-connected control cabinet, the GP570-TC11 delivers a reliable, field-proven upgrade path with minimal downtime exposure.

Originally engineered for harsh-environment applications, the GP570-TC11 features a resistive touchscreen interface, wide operating temperature tolerance, and a compact panel-cut footprint that aligns with many legacy HMI mounting standards. Its compatibility with Pro-face GP-PRO/PBIII and GP-Pro EX programming environments means that existing screen projects can often be migrated or adapted with limited rework, preserving operator familiarity and reducing commissioning time on the plant floor.

For facilities running aging Mitsubishi MELSEC, Omron SYSMAC, Siemens S5/S7, or Allen-Bradley SLC/MicroLogix control platforms, the GP570-TC11 supports a broad range of serial and Ethernet communication drivers, making it a versatile front-end terminal across multi-vendor automation environments. Engineers replacing older Pro-face GP470, GP577R, or GP2301 units will find the GP570-TC11 a practical upgrade candidate, particularly where panel cutout dimensions and communication port configurations are constrained by existing cabinet layouts.

NINERMAS maintains verified stock of the GP570-TC11 with pre-shipment functional testing, 12-month warranty coverage, and fast international logistics to support planned maintenance windows and emergency breakdown scenarios alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful GP570-TC11 retrofit begins well before the unit arrives on site. The first step is a thorough audit of the existing control cabinet: confirm the 24 VDC power supply rail has sufficient current headroom to support the replacement HMI, and inspect the terminal block wiring for the communication cable connecting the HMI to the PLC. On older installations using RS-422 multi-drop configurations — common in legacy Mitsubishi FX or Q-series PLC networks — the cable pinout and termination resistor settings must be verified against the GP570-TC11 port specification before powering up.

Where the existing installation uses a Pro-face GP470 or GP577R as the operator terminal, the panel cutout dimensions are typically compatible with the GP570-TC11, allowing the new unit to be mounted without sheet metal modification. However, engineers should confirm the depth clearance behind the panel door, particularly in compact control cabinets where DIN rail-mounted components such as Omron CJ1W I/O modules, Siemens ET 200S distributed I/O, or Phoenix Contact signal isolators occupy space close to the HMI mounting position.

Communication protocol migration is a critical checkpoint. If the legacy HMI was communicating with the PLC via a proprietary serial protocol — for example, Mitsubishi MC Protocol or Omron FINS — the GP570-TC11 must be configured with the matching driver in GP-Pro EX, and the PLC communication parameters (baud rate, station number, data format) must be set identically to the original configuration. For sites migrating from serial to Ethernet-based communication, additional hardware such as a Moxa NPort serial device server or a Siemens CP 343-1 Ethernet module may be required to bridge the protocol gap.

I/O tag mapping deserves careful attention during screen project migration. When importing an existing GP-PRO/PBIII project into GP-Pro EX for adaptation to the GP570-TC11, engineers should audit every screen object’s tag address against the current PLC program to confirm that memory addresses have not shifted due to program revisions. Particular care is needed for alarm summary screens, trend displays, and recipe data blocks, which are often linked to specific PLC data registers that may have been reorganized during prior maintenance cycles.

For multi-HMI installations — such as a main control room panel paired with a remote operator station using a Pro-face GP2501 or GP2401 — the GP570-TC11 retrofit should be coordinated with the broader network topology review to ensure that the replacement unit integrates cleanly into the existing HMI-to-PLC communication chain without disrupting adjacent operator stations.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a failed or end-of-life HMI on a running production line. NINERMAS recommends a structured pre-swap preparation protocol: back up the existing HMI screen project to a CF card or USB memory before removing the old unit, and retain a printed copy of the PLC communication settings and tag address list as a fallback reference during commissioning.

Where the production schedule permits a planned maintenance window, a bench test of the GP570-TC11 against a spare PLC or simulator is strongly recommended before the unit is installed in the live cabinet. This allows the communication driver, screen navigation, and alarm logic to be validated in a controlled environment, reducing the risk of extended downtime caused by configuration errors discovered during live commissioning.

For emergency breakdown replacements where no maintenance window is available, the GP570-TC11’s compatibility with existing GP570-series panel cutouts and standard 24 VDC power wiring means that a trained technician can typically complete the physical swap within 30 to 60 minutes. The primary time variable is the communication configuration and screen project upload, which can be accelerated by pre-loading the adapted project file onto a CF card before dispatch.

Protecting the original PLC program logic is non-negotiable during any HMI replacement. The PLC — whether a Mitsubishi Q-series, Omron CJ2M, or Siemens S7-300 — should remain in RUN mode throughout the HMI swap wherever process safety permits, ensuring that field control continuity is maintained and that the replacement HMI connects to a live, running system for immediate post-commissioning verification. Where a PLC stop is unavoidable, coordinate with the process control team to implement a safe hold state before disconnecting the communication cable.

Retrofit Support FAQ

Q1: Is the GP570-TC11 a direct drop-in replacement for the GP470 or GP577R?
The GP570-TC11 shares compatible panel cutout dimensions with many GP470 and GP577R installations, making it a practical physical replacement in most cases. However, the screen project must be migrated and adapted in GP-Pro EX, and the communication driver settings must be reconfigured to match the target PLC. NINERMAS recommends confirming the exact cutout size and communication port type of your existing installation before ordering.

Q2: What pre-shipment testing does NINERMAS perform on the GP570-TC11?
Each GP570-TC11 unit supplied by NINERMAS undergoes functional power-on testing and display verification prior to dispatch. Units are inspected for touchscreen responsiveness, backlight condition, and communication port integrity. A 12-month warranty is provided from the date of shipment, covering manufacturing defects under normal operating conditions.

Q3: Can the GP570-TC11 communicate with non-Pro-face PLCs?
Yes. The GP570-TC11 supports a wide range of third-party PLC communication drivers through GP-Pro EX, including Mitsubishi MELSEC, Omron SYSMAC, Siemens S7, Allen-Bradley SLC/MicroLogix, and Modbus RTU/TCP. The specific driver availability depends on the GP-Pro EX version in use; NINERMAS recommends confirming driver compatibility with your target PLC model before finalizing the retrofit plan.

Q4: What is the typical lead time and stock availability for the GP570-TC11?
NINERMAS maintains stock of the GP570-TC11 to support both planned maintenance programs and emergency breakdown requirements. Standard international shipping lead times apply, with expedited dispatch available for urgent breakdown situations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and delivery timelines for your location.
