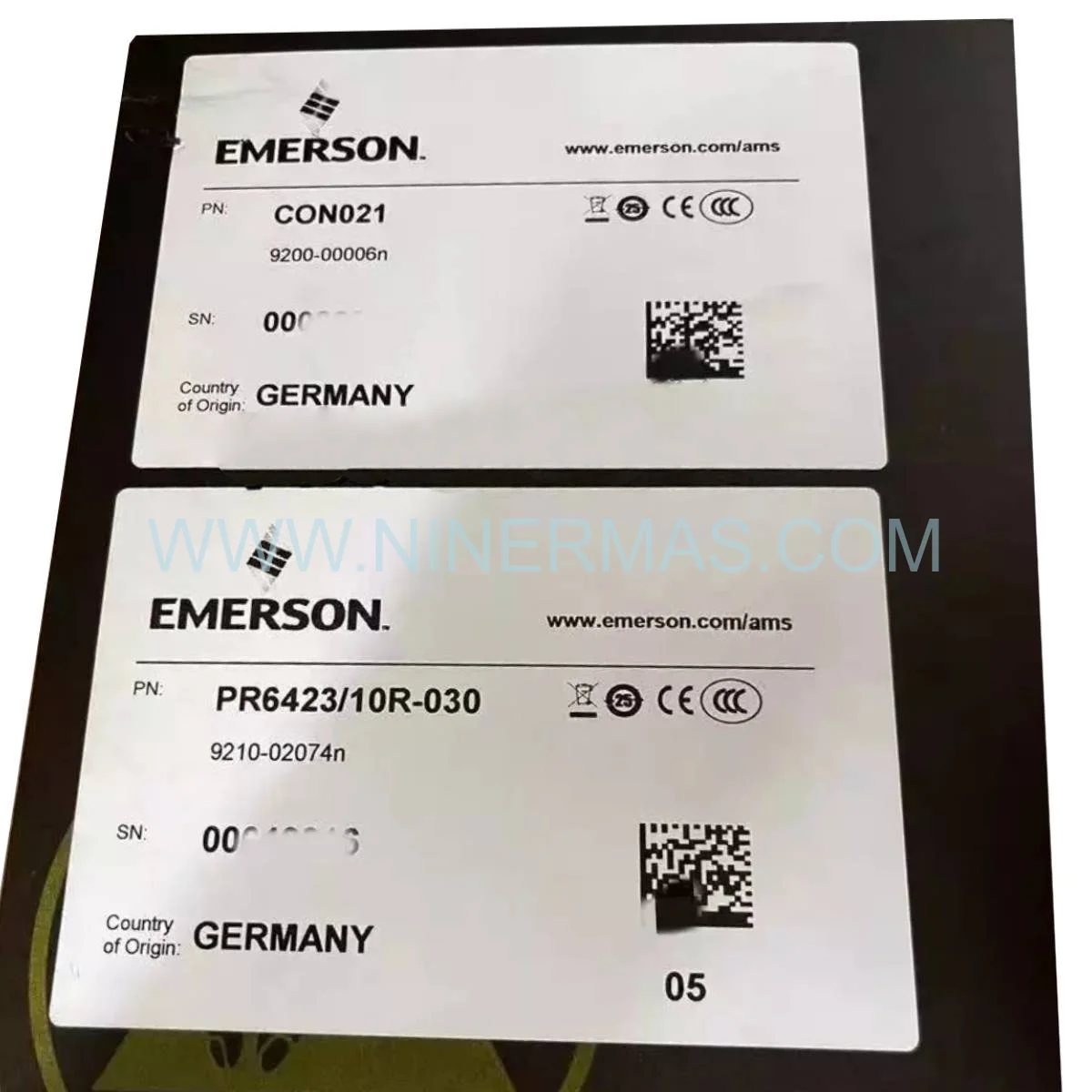

PR6423/10R-030+CON021 — Emerson EPRO 8mm Eddy Current Measurement System (Industrial-Grade, Original New)

Sourced directly from Emerson EPRO’s certified supply chain, the PR6423/10R-030+CON021 is a factory-matched, turnkey eddy current displacement measurement system engineered for mission-critical Industrial Automation environments. This complete assembly pairs the PR6423/10R-030 — an 8mm proximity probe with 3/8″-24 UNF reverse-mount threading and 8-meter Lemo-terminated cable — with the CON021 high-bandwidth signal converter, delivering a calibrated 8 V/mm scale factor across a 2mm linear range. Every unit shipped is 100% Brand New and Factory Sealed, accompanied by a NIST-traceable calibration certificate, ensuring full compliance with API 670 machinery protection standards. As a critical Original Spare Parts solution for turbomachinery and rotating equipment, the PR6423/10R-030+CON021 eliminates measurement uncertainty from the moment of installation.

Procurement managers and reliability engineers operating in Oil & Gas, Power Generation, and Petrochemical sectors consistently face the challenge of sourcing authentic Control Module components for legacy and current PLC System architectures. The PR6423/10R-030+CON021 addresses this directly: its 3/8″-24 UNF threading provides drop-in compatibility with North American mounting hardware and legacy Bently Nevada 3300-series brackets, while the CON021 converter’s DC-to-20 kHz frequency response supports both static shaft position and high-frequency vibration analysis. Whether protecting a steam turbine, centrifugal compressor, or generator rotor, this system delivers the measurement precision that modern DCS and SIS platforms demand.

With same-week dispatch, 1-year warranty, and dedicated application engineering support, Industrial Control Hub is your trusted source for Original New Emerson EPRO instrumentation. Contact us today for a project quotation or technical datasheet.

Technical Specifications & Selection Guide

Use the table below to confirm system compatibility before ordering. The complete model number must be specified on all purchase orders to ensure correct configuration.

Selection Note: The “R” suffix denotes reverse mount — confirm your bracket accommodates rear-entry installation. For standard forward-mount applications, specify PR6423/10S-030+CON021. For non-ferromagnetic target materials (stainless steel, aluminum), request custom calibration at time of order.

Core Features & Technical Advantages

• 100% Original and Brand New — Factory sealed with NIST-traceable calibration certificate; full Emerson EPRO manufacturer warranty included
• Precision Eddy Current Technology — Non-contact measurement eliminates mechanical wear; ±0.025 mm linearity deviation across full operating temperature range
• Robust Reverse-Mount Design — 3/8″-24 UNF threading enables installation in confined bearing housings where forward-mount probes cannot be fitted
• Heavy-Duty Environmental Protection — IP66-rated sensor withstands high-pressure washdowns, dust ingress, and continuous exposure to process fluids
• Wide Bandwidth Signal Conditioning — CON021 converter delivers DC-to-20 kHz response, capturing both quasi-static shaft position and high-frequency vibration harmonics
• Universal DCS / PLC System Integration — Standard 4V to 20V analog output interfaces directly with Emerson DeltaV, Honeywell Experion, ABB 800xA, Siemens PCS 7, and all major SIS platforms
• EOL Legacy System Support — Drop-in replacement for Bently Nevada 3300 XL 8mm proximity probe assemblies; no re-wiring or recalibration required
• Factory-Matched System Pair — Sensor and converter are calibrated together at the factory, eliminating field matching errors and reducing commissioning time

Typical Application Scenarios

✅ Oil & Gas — Centrifugal Compressor Protection
Thrust bearing wear and rotor instability are leading causes of unplanned shutdowns in gas processing facilities. The PR6423/10R-030+CON021 monitors axial shaft position with sub-millimeter resolution, enabling SIS trip logic to activate before catastrophic bearing failure. The reverse-mount configuration solves the chronic problem of insufficient clearance around compressor bearing housings on offshore platforms.

Power Plants — Steam & Gas Turbine Vibration Monitoring
API 670-compliant XY proximity probe pairs installed at each bearing location feed shaft orbit data to the plant DCS. The CON021’s 20 kHz bandwidth captures blade-pass frequencies and sub-synchronous instabilities that narrower-band systems miss, enabling early detection of rotor dynamic problems during startup and load transients.

✅ Petrochemical — Reactor Agitator Shaft Monitoring
High-viscosity process fluids impose unpredictable radial loads on agitator shafts. Continuous eddy current monitoring detects progressive bearing degradation and shaft deflection before seal failure introduces process contamination. The IP66 sensor rating ensures reliable operation in wash-down environments with aggressive cleaning chemicals.

✅ Heavy Industry — Large Generator Rotor Eccentricity
Foundation settlement and magnetic center shifts in large generators manifest as slowly increasing rotor eccentricity. The DC response of the CON021 converter tracks these quasi-static position changes over hours and days, providing early warning that allows planned maintenance outages rather than emergency repairs.

✅ Marine & Offshore — Propulsion Shaft Monitoring
The 316 stainless steel housing and IP66 rating make this system suitable for the corrosive, high-humidity environment of marine engine rooms. The 8-meter cable accommodates routing from shaft tunnel sensor locations to remote signal conditioning panels.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available — Priority air freight to major global hubs; standard sea freight for volume orders. All units shipped in anti-static, shock-absorbing packaging with humidity indicators.
• ✅ 1-Year Manufacturer Warranty — Full coverage against manufacturing defects. Warranty claims processed directly with Emerson EPRO authorized service centers.
• ✅ Complete Documentation Package — NIST-traceable calibration certificate, factory test report, installation manual, and AutoCAD mounting drawings provided with every shipment.
• ✅ EOL & Legacy System Support — Stocking program for discontinued Emerson EPRO and Bently Nevada proximity probe assemblies. Long-term supply agreements available for maintenance, repair, and operations (MRO) programs.
• ?? Application Engineering Consultation — Our vibration monitoring specialists provide sensor selection guidance, mounting design review, and commissioning support at no additional charge.
• ✅ Fast Global Shipping — Export documentation, country-of-origin certificates, and ECCN classification provided for international shipments. Customs clearance support available.

FAQ — Frequently Asked Questions

Q1: Is the PR6423/10R-030+CON021 genuinely 100% Original and Brand New, or is it refurbished?
A: Every PR6423/10R-030+CON021 unit we supply is 100% Original and Brand New, sourced directly from Emerson EPRO’s authorized distribution network. Units are factory sealed and include the original calibration certificate. We do not supply refurbished, repaired, or third-party remanufactured components. Upon request, we can provide a Certificate of Conformance and traceability documentation to the original manufacturer’s batch records.

Q2: What is the lead time for the PR6423/10R-030+CON021?
A: In-stock units ship within 1-2 business days via express courier. For volume orders or project requirements, lead times vary by quantity — typically 2-4 weeks for factory-direct procurement. Contact our sales team with your project timeline and we will confirm availability and expedite options. We maintain safety stock of high-demand Emerson EPRO eddy current systems specifically to support urgent MRO requirements.

Q3: Can I obtain the official Emerson EPRO datasheet and installation manual for the PR6423/10R-030+CON021?
A: Yes. The complete Emerson EPRO technical datasheet (document number TN-PR6423), installation and operating manual (IOM-CON021), and AutoCAD mounting drawings are included with every shipment. Pre-sale copies are available upon request — contact sale@ninermas.com with your inquiry and we will provide the documentation package within 24 hours.

Q4: Is the PR6423/10R-030+CON021 compatible with Bently Nevada 3500 series monitors?
A: Yes. The CON021 converter output ( 4V to 20V DC) is fully compatible with Bently Nevada 3500/42M proximitor monitors, 3500/45 position monitors, and the ADAPT.wind condition monitoring platform. The 3/8″-24 UNF threading also provides mechanical interchangeability with legacy Bently Nevada 3300 XL 8mm proximity probe mounting hardware, making this an ideal drop-in replacement for aging installed base systems.

Q5: What target materials are compatible with the PR6423/10R-030 sensor?
A: The standard factory calibration is optimized for ferromagnetic steel targets (42CrMo4 / AISI 4140). For non-ferromagnetic materials — including 316 stainless steel, Inconel, titanium, or aluminum — a custom calibration is required and must be specified at time of order. Minimum shaft diameter is 25 mm to avoid curvature-induced linearity errors. Surface roughness should be Ra < 3.2 μm for optimal measurement performance.

Q6: Does the PR6423/10R-030+CON021 meet ATEX / IECEx requirements for hazardous area installation?
A: The standard PR6423/10R-030+CON021 is not intrinsically safe rated for Zone 0/1 hazardous areas. For ATEX/IECEx Zone 1 or Zone 2 installations, the system must be used in conjunction with a certified Zener barrier or galvanic isolator (e.g., MTL or Pepperl+Fuchs IS barriers). Contact our application engineering team for hazardous area system design guidance and barrier selection support.
