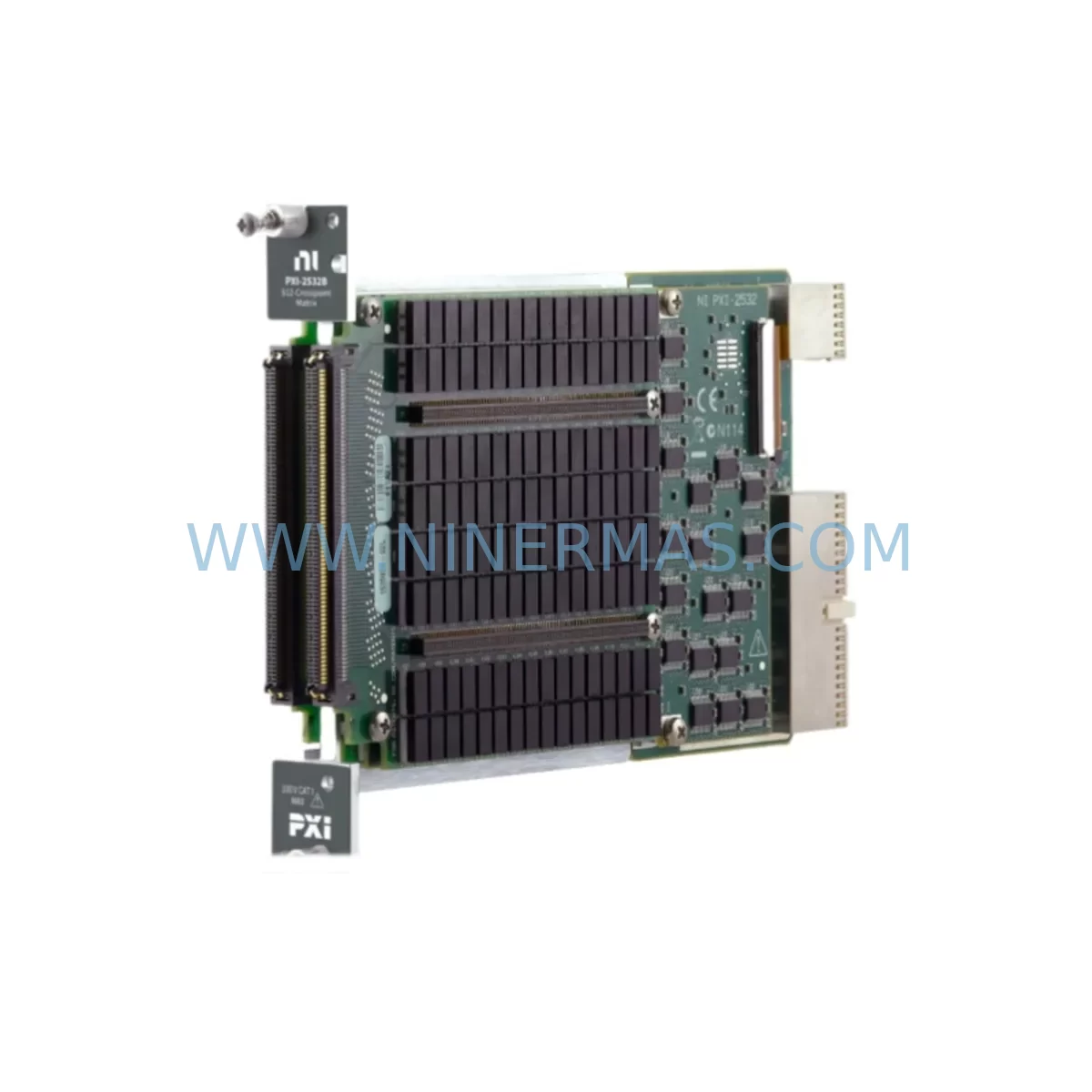

NI PXIe-2532B Retrofit-Compatible Matrix Switch for Legacy Systems

NI PXIe-2532B Retrofit-Compatible Matrix Switch for Legacy Systems

The NI PXIe-2532B is a high-density, ruggedized matrix switch module engineered for demanding test and measurement environments. As legacy PXI and PXIe chassis reach end-of-life or face discontinued spare parts availability, the PXIe-2532B has become a critical retrofit component for engineers modernizing aging automated test systems (ATE), signal routing infrastructures, and multi-channel switching networks. Whether you are replacing a discontinued NI PXI-2532 in an existing rack or upgrading a full switching matrix within a PXIe-1082 or PXIe-1085 chassis, this module delivers the signal integrity, channel density, and software compatibility required for a smooth, low-risk migration.

Designed around a 4×128 or 8×64 matrix topology (software-selectable), the PXIe-2532B supports up to 512 crosspoints, making it suitable for high-channel-count applications including semiconductor wafer probing, avionics signal simulation, RF path switching, and industrial sensor multiplexing. Its ruggedized construction addresses the mechanical and thermal stresses common in factory-floor and field-deployed test cabinets, where vibration, humidity, and temperature cycling can degrade standard commercial-grade modules over time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the PXIe-2532B into an existing automated test environment, the retrofit scope typically extends well beyond the switch module itself. Engineers replacing a legacy NI PXI-2532 must first audit the host chassis — commonly a PXIe-1082 or PXIe-1085 — to confirm that a hybrid peripheral slot is available, since the PXIe-2532B requires a PXIe-compatible slot and will not seat correctly in a pure PXI peripheral slot without a hybrid adapter.

Power budget verification is the next critical step. The PXIe-2532B draws power from the chassis backplane via the PXIe connector; confirm that the chassis power supply — often a PXIe-1082 embedded controller paired with an NI PXIe-8840 or NI PXIe-8861 embedded controller — has sufficient headroom when the new module is added alongside existing I/O modules such as the NI PXIe-6363 multifunction DAQ or NI PXIe-4065 digital multimeter. Overloading the chassis power rail is a common cause of intermittent faults during initial commissioning.

Terminal block and cabling adaptation is another area requiring careful planning. The legacy PXI-2532 may have been wired through a TB-2630 or custom mass-termination cable assembly. The PXIe-2532B is compatible with the TB-2640 terminal block, which provides screw-terminal access to all switch channels. If the existing wiring harness uses a different connector pitch or pinout, a custom breakout cable or adapter panel will be required before the module can be connected to the device under test (DUT) interface.

On the software side, the PXIe-2532B is fully supported under the NI-SWITCH driver (version 19.0 and later). If the legacy system was running an older NI-SWITCH version tied to LabVIEW 2015 or earlier, a driver upgrade path must be validated. Channel string syntax in existing VIs — for example, SC1Mod3/r0c0:r3c127 — may need to be updated to reflect the new module’s slot assignment as detected in NI Measurement & Automation Explorer (NI MAX). Where the system also includes a NI PXIe-5663 RF signal analyzer or a NI PXIe-5673 RF signal generator sharing the same switching fabric, the routing topology must be re-verified to ensure signal path integrity after the module swap.

For systems that include SCXI signal conditioning — such as an SCXI-1000 chassis with SCXI-1102 thermocouple input modules — the migration to a PXIe-based switching architecture may also require updating the SCXI-to-PXI interface cable and reconfiguring the SCXI chassis address in NI MAX. This is particularly relevant in legacy process control and environmental test systems where SCXI hardware has been in continuous service for over a decade.

Downtime Control During System Migration

Minimizing production downtime during a PXI-to-PXIe switch module migration requires a structured, stage-gated approach. The recommended practice is to perform the hardware swap during a scheduled maintenance window, with the replacement PXIe-2532B pre-configured and bench-tested before it enters the production environment. Pre-shipment functional testing — which is standard for every unit supplied by NINERMAS — confirms relay continuity, isolation resistance, and matrix topology integrity before the module leaves the warehouse, reducing the risk of a DOA failure on the production floor.

To protect existing program logic, export a full backup of the NI MAX system configuration (including device aliases and channel mappings) before removing the legacy module. This backup allows rapid restoration if the new module requires a slot reassignment that conflicts with existing device numbering. In LabVIEW-based systems, use the DAQmx Name Migration Utility or the NI-SWITCH soft front panel to verify that all channel references resolve correctly after the hardware change.

Where continuous control is required — for example, in a 24/7 production test cell — consider a parallel commissioning strategy: install the PXIe-2532B in a spare chassis slot (if available) and run shadow routing tests alongside the live system before cutting over. This approach allows the engineering team to validate signal paths, verify HMI screen updates in NI TestStand or a custom LabVIEW operator interface, and confirm communication link integrity with upstream MES or SCADA systems without interrupting production throughput. Once validation is complete, the cutover can be executed in a single maintenance shift, with the legacy module retained as a cold spare until the new configuration has accumulated sufficient runtime hours.

Retrofit Support FAQ

Q1: Is the NI PXIe-2532B a direct drop-in replacement for the NI PXI-2532?
Functionally, yes — the PXIe-2532B replicates the 4×128 / 8×64 matrix topology and 512-crosspoint capacity of the PXI-2532. However, it requires a PXIe or hybrid peripheral slot in the host chassis. If your existing chassis (e.g., PXI-1042 or PXI-1045) does not have PXIe slots, a chassis upgrade to a PXIe-1082 or PXIe-1085 will be necessary as part of the migration.

Q2: What wiring and terminal block changes are required during installation?
The PXIe-2532B is compatible with the TB-2640 terminal block. If your legacy system used a TB-2630 or a custom mass-termination cable, you will need to adapt or replace the DUT interface wiring. NINERMAS recommends completing a full point-to-point continuity check on all signal paths after rewiring and before powering up the chassis.

Q3: How do I verify compatibility with my existing NI-SWITCH driver and LabVIEW version?
The PXIe-2532B requires NI-SWITCH driver version 19.0 or later. Open NI MAX on your controller and check the installed driver version under Software. If an upgrade is required, validate the new driver against your existing LabVIEW VIs in a non-production environment before deploying to the live system. Channel string syntax and topology configuration calls should be re-tested after any driver update.

Q4: What warranty and supply assurance does NINERMAS provide for the PXIe-2532B?
Every NI PXIe-2532B supplied by NINERMAS carries a 12-month warranty and undergoes pre-shipment functional testing covering relay continuity, isolation resistance, and matrix topology verification. We maintain in-stock inventory to support urgent retrofit and spare parts requirements, with lead times confirmed at order placement. For volume procurement or long-term supply agreements, contact our sales team directly.
