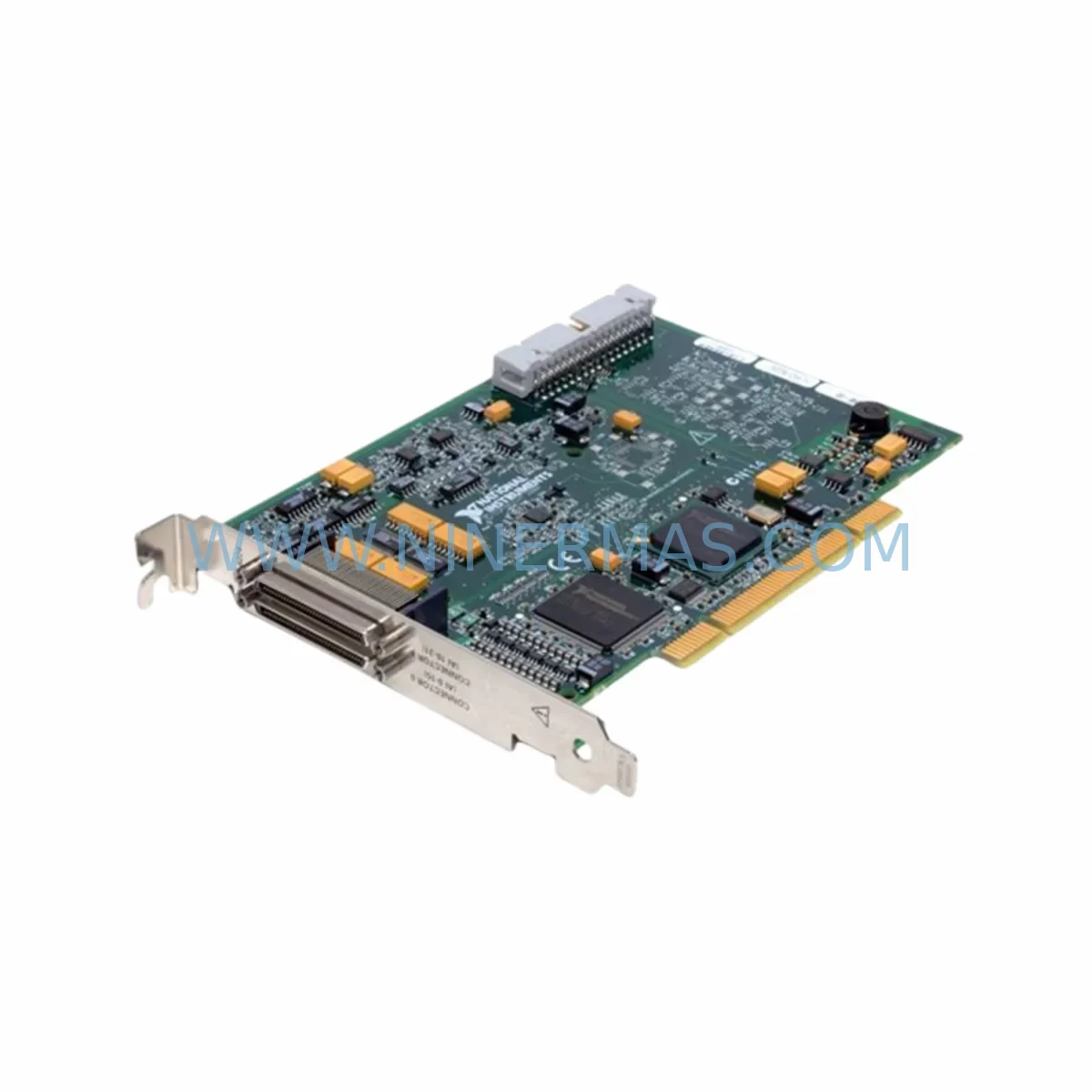

The NI PCI-6224 is a high-performance M Series multifunction data acquisition (DAQ) card manufactured by National Instruments (NI), designed for demanding industrial measurement and control environments. As a PCI-bus DAQ card offering 32 analog input channels at 16-bit resolution and up to 250 kS/s aggregate sampling rate, the PCI-6224 is widely deployed in process monitoring, machine condition monitoring, vibration analysis, and automated test systems across oil & gas, power generation, semiconductor, and discrete manufacturing industries.

When a PCI-6224 fails or reaches end-of-service life, the impact on production continuity can be severe. NINERMAS maintains verified service-ready stock of the NI PCI-6224 to support rapid spare part replacement, minimizing unplanned downtime and protecting critical measurement infrastructure. Every unit is pre-shipment tested, documented, and dispatched with a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a PCI-6224 DAQ card is rarely an isolated event. In most industrial measurement cabinets and automated test enclosures, the PCI-6224 operates as part of a tightly integrated signal chain. Maintenance engineers and procurement teams should treat a PCI-6224 replacement as an opportunity to audit the surrounding infrastructure and pre-position critical spares to prevent secondary failures.

The PCI-6224 connects to field sensors and transducers via the NI SH68-68-EP shielded cable and a 68-pin SCXI terminal block or NI SCB-68A breakout board. These accessories are subject to connector wear, pin corrosion, and cable fatigue in high-vibration or high-humidity environments. Inspecting and stocking a replacement SCB-68A or TB-2715 terminal block alongside the DAQ card is standard practice in proactive maintenance programs.

Signal integrity upstream of the PCI-6224 depends heavily on the quality of signal conditioning modules. In SCXI-based systems, modules such as the SCXI-1100 (32-channel multiplexer/amplifier) or SCXI-1102 (32-channel thermocouple input) are common companions. If the PCI-6224 is being replaced due to measurement drift or noise complaints, the SCXI chassis backplane and individual signal conditioning modules should be inspected for relay wear and capacitor aging before the new card is commissioned.

Power delivery to the host PC or industrial workstation housing the PCI-6224 is another critical checkpoint. An unstable industrial PC power supply or a failing PCI bus slot can cause intermittent DAQ errors that are misdiagnosed as card failure. Verifying PCI bus voltage rails (3.3 V and 5 V) with a multimeter before card replacement prevents repeat failures. Where the PCI-6224 is installed in a NI PXI chassis or a rackmount industrial PC, the chassis power module and cooling fans should be included in the inspection checklist.

For applications involving thermocouple or RTD measurements, cold junction compensation modules and signal isolators in the measurement loop should be verified. Devices such as the NI SCXI-1303 isothermal terminal block or third-party DIN-rail signal isolators (4–20 mA loop isolators, voltage isolators) are frequently found in the same cabinet and share the same maintenance cycle as the DAQ card.

In systems where the PCI-6224 drives or reads from relay output modules or SSR (solid-state relay) banks, the relay contacts and SSR heat sinks should be inspected for wear and thermal degradation. Relay modules such as the NI SCXI-1163R or equivalent third-party 32-channel relay modules are common in the test rack and should be included in the annual inspection scope.

Communication continuity between the measurement system and the plant DCS or SCADA layer is equally important. If the host PC uses a NI GPIB-USB-HS or NI PCIe-GPIB interface card for instrument communication alongside the PCI-6224, these interface cards should be verified for driver compatibility after any OS or NI-DAQmx driver update. Stocking a spare GPIB interface card reduces recovery time in the event of a concurrent failure.

Finally, procurement engineers should note that the PCI-6224 is part of NI’s M Series platform, which also includes the PCI-6221 (16-CH, 16-bit, 250 kS/s) and PCI-6229 (32-CH, 16-bit, 250 kS/s with more DIO). In many measurement applications, these models are functionally interchangeable with the PCI-6224, and maintaining a cross-compatible spare reduces the number of unique SKUs in the spare parts inventory while preserving system uptime capability.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the host PC PCI slot is functional using NI MAX (Measurement & Automation Explorer). Document the current channel configuration, task settings, and calibration date from NI MAX before removing the old card.

Step 2 — Safe shutdown and ESD precautions: Power down the host system and disconnect all field wiring from the SCB-68A or terminal block. Use an ESD wrist strap when handling the PCI-6224. Label all signal cables before disconnection to ensure correct reconnection.

Step 3 — Card installation: Seat the replacement PCI-6224 firmly in the PCI slot. Reconnect the 68-pin VHDCI cable to the SCB-68A or terminal block. Secure the card bracket and restore field wiring per the documented channel map.

Step 4 — Driver and software verification: Power on the system and open NI MAX. Verify the PCI-6224 is detected and listed under Devices and Interfaces. Run the NI-DAQmx self-test and self-calibration routines. Confirm all analog input channels read within expected ranges using a known reference signal.

Step 5 — Functional test and handover: Execute the application’s standard measurement task and compare results against baseline records. Document the replacement date, card serial number, and calibration status in the maintenance log. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain buffer stock.

This workflow applies whether the PCI-6224 is replaced on a like-for-like basis or substituted with a compatible M Series model such as the PCI-6221 or PCI-6229. The NI-DAQmx driver architecture ensures task configurations are portable across M Series cards with minimal reconfiguration.

Spare Parts Support FAQ

Q1: Is the NI PCI-6224 spare part you supply original or compatible?
All PCI-6224 units supplied by NINERMAS are sourced from verified industrial channels. Each unit undergoes pre-shipment functional testing covering analog input accuracy, digital I/O continuity, and counter/timer operation. A 12-month warranty is provided from the shipment date, covering functional defects under normal operating conditions.

Q2: Can the PCI-6224 be replaced with a PCI-6221 or PCI-6229 if the exact model is unavailable?
In many applications, yes. The PCI-6221 (16 analog input channels) and PCI-6229 (32 analog input channels, additional DIO) share the same NI-DAQmx driver framework and PCI bus interface as the PCI-6224. Compatibility depends on the channel count, voltage range, and DIO requirements of the specific application. NINERMAS technical support can assist with compatibility verification before shipment.

Q3: What is your lead time and do you support long-term supply agreements for the PCI-6224?
In-stock units typically ship within 3–5 business days. For customers with planned maintenance schedules or annual inspection programs, NINERMAS offers long-term supply agreements to reserve stock and guarantee availability. This is particularly valuable for facilities operating legacy NI M Series systems where the PCI-6224 is no longer in active production by NI.

Q4: How do I verify the PCI-6224 is functioning correctly after installation?
Use NI MAX to run the built-in self-test and self-calibration routines immediately after installation. For analog input verification, apply a known DC reference voltage from a precision voltage calibrator to a channel and confirm the measured value is within the card’s specified accuracy (±0.5 mV typical at ±10 V range). For digital I/O, use NI MAX’s test panels to toggle and read DIO lines. NINERMAS can provide a pre-shipment test report upon request.
