Mitsubishi QJ71LP21S-25 Safety-Reliable Network Module

Mitsubishi QJ71LP21S-25 Safety-Reliable Network Module for Critical Control Sites

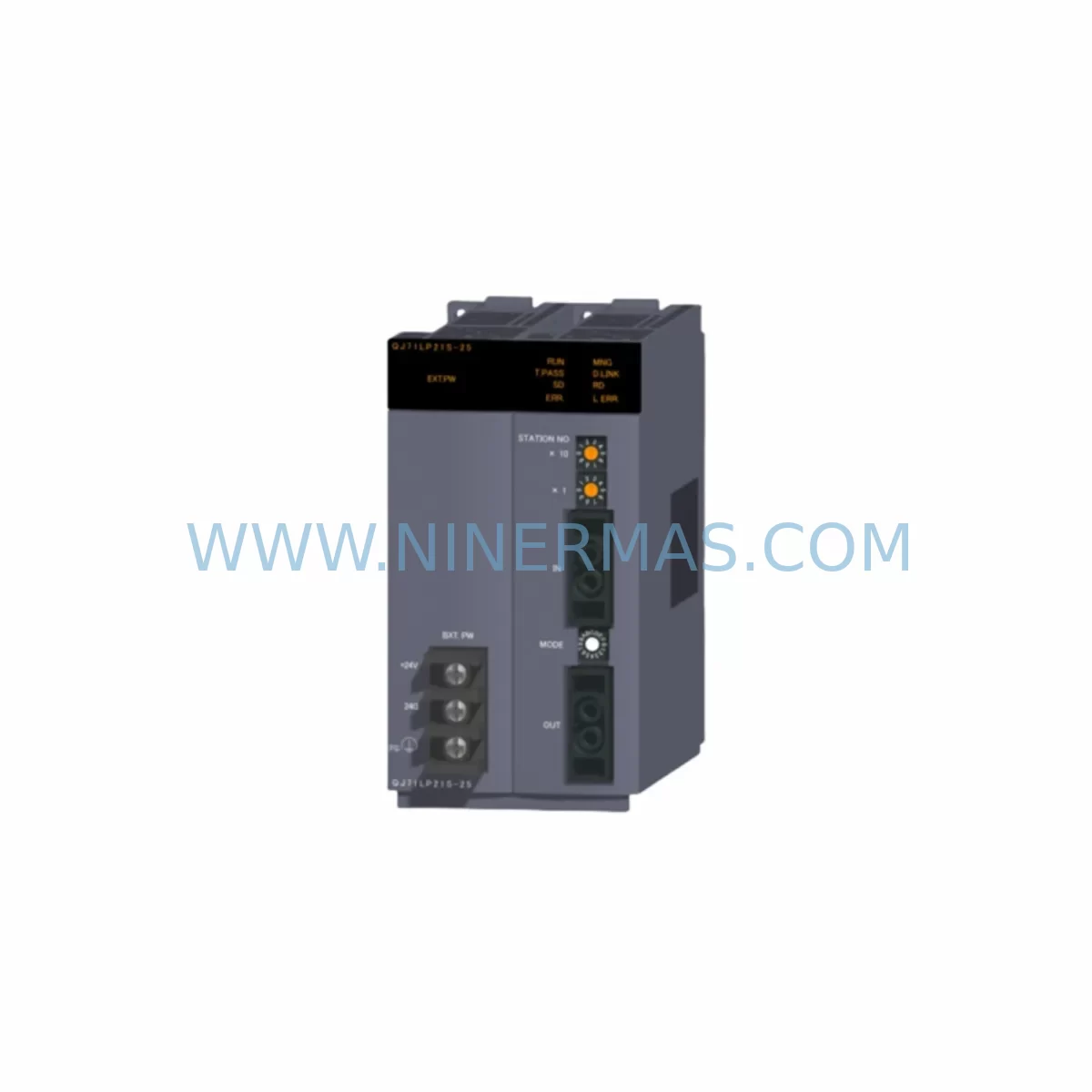

The Mitsubishi Electric QJ71LP21S-25 is a MELSECNET/H optical loop network communication module designed for the MELSEC-Q Series PLC platform. Built to deliver uninterrupted data transmission across demanding industrial environments, this module is a cornerstone component in safety-critical control architectures where communication reliability directly impacts production continuity and personnel safety. Whether deployed in high-EMI substations, dusty mining galleries, humid water treatment facilities, or high-vibration metallurgical plants, the QJ71LP21S-25 provides the optical isolation and loop redundancy that maintenance engineers and control system designers depend on.

The 25 Mbps optical fiber interface eliminates ground loop interference and galvanic coupling risks that plague copper-based networks in heavy industrial settings. In facilities where variable-frequency drives, arc furnaces, high-voltage switchgear, and large motor starters generate intense electromagnetic noise, the QJ71LP21S-25 maintains clean, error-free communication between the Q Series CPU module and remote I/O stations, ensuring that safety interlocks respond within deterministic cycle times and that no spurious trip or missed command occurs due to signal corruption.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

When integrating the QJ71LP21S-25 into a control cabinet upgrade or safety system retrofit, maintenance engineers must evaluate the entire communication and power chain to eliminate single points of failure. The Q Series backplane — whether a Q33B, Q35B, Q38B, or Q312B base unit — must be inspected for slot integrity and backplane bus continuity before the new network module is seated. A damaged backplane connector can introduce intermittent communication faults that are difficult to diagnose under load.

The Q Series power supply module, such as the Q61P or Q62P, must be verified to deliver stable 5 VDC and 24 VDC rails within tolerance. Voltage sag during motor start sequences or capacitor bank switching events can cause the QJ71LP21S-25 to reset, momentarily dropping the MELSECNET/H loop and triggering watchdog alarms in connected remote I/O stations. Installing a Q64PN redundant power supply configuration is strongly recommended in facilities with unstable incoming power.

On the network side, the optical fiber patch cables connecting the QJ71LP21S-25 to downstream QJ71LP21 or QJ71LP21G remote master modules must be inspected for bend radius violations, connector contamination, and optical loss budget compliance. Dirty or cracked SC connectors are a leading cause of intermittent loop faults in optical MELSECNET/H systems. A fiber optic power meter should be used to verify insertion loss before commissioning.

Remote I/O stations using QX40, QX80, QY10, or QY80 I/O modules connected via the MELSECNET/H loop should be audited for correct station number assignment and refresh parameter configuration in GX Works2 or GX Developer. Duplicate station numbers or incorrect link device assignments will cause cyclic transmission errors that can disable entire I/O groups, creating unsafe conditions in interlock circuits.

Signal isolators installed between field instruments and Q Series analog input modules such as the Q64AD or Q68ADV protect the CPU from ground fault currents and overvoltage transients. In chemical plants and refineries where intrinsically safe barriers are required, verifying that the signal isolation chain remains intact after module replacement is a mandatory step in the management of change procedure. Similarly, the GOT2000 series HMI — such as the GT2710-VTBA — connected to the Q Series CPU via Ethernet or RS-232 should be tested to confirm that all alarm displays, trend screens, and interlock status indicators update correctly after the network module is replaced and the system is restarted.

Surge protection devices installed on the 24 VDC field power distribution rail and on analog signal cables should be inspected during the same maintenance window. A failed surge arrester that has absorbed a lightning strike or switching transient may appear intact externally but provide no protection, leaving the QJ71LP21S-25 and connected I/O modules exposed to the next surge event.

Critical Industrial Safety Applications

The QJ71LP21S-25 is deployed across a wide range of safety-critical industrial sectors where communication failure is not an option. In petrochemical complexes, it forms the backbone of distributed control networks linking Q Series PLCs in compressor control panels, fired heater management systems, and emergency shutdown logic solvers. The optical loop topology ensures that a single fiber break does not isolate any station — the loop self-heals by reversing data flow direction, maintaining full network operation while maintenance crews locate and repair the fault.

In electric power generation and transmission facilities, the QJ71LP21S-25 connects protection relay coordination panels, transformer monitoring systems, and bus coupler control cabinets. The deterministic 25 Mbps cycle time ensures that protection commands propagate within the sub-millisecond windows required by grid protection standards. Coal-fired and hydroelectric plants operating legacy Q Series infrastructure rely on the continued availability of the QJ71LP21S-25 to avoid costly platform migrations.

Mining operations present some of the most severe environmental challenges for industrial networking equipment. Continuous vibration from blasting and heavy machinery, coal dust accumulation, and high humidity in underground galleries demand the optical isolation and sealed connector design of the QJ71LP21S-25. Conveyor control systems, ventilation fan management, and winder control applications in underground mines depend on this module for safe, uninterrupted operation across multi-kilometer fiber runs.

Water and wastewater treatment plants operating 24/7 with minimal staffing require control networks that can sustain faults without operator intervention. The self-healing loop architecture of MELSECNET/H, enabled by the QJ71LP21S-25, allows pump station control, chemical dosing, and filtration process management to continue operating even when a fiber segment is damaged by excavation or rodent activity. Port and terminal automation systems, including crane control, conveyor management, and vessel loading systems, similarly benefit from the module’s ability to maintain communication integrity in high-vibration, salt-air environments.

Safety and Quality FAQ

Q1: Does the QJ71LP21S-25 come with a warranty, and what does it cover?
All QJ71LP21S-25 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including optical power output verification, loop communication test, and backplane interface check before dispatch.

Q2: How do I confirm compatibility with my existing Q Series CPU and base unit?
The QJ71LP21S-25 is compatible with all standard Q Series CPU modules including Q00UJCPU, Q02UCPU, Q06UDEHCPU, Q13UDEHCPU, and Q26UDEHCPU, mounted on any Q Series base unit from Q33B to Q312B. Compatibility with the QnA Series or A Series platforms is not supported — those systems require the A1SJ71LP21 or AJ71LP21 network modules respectively. Please provide your CPU model and GX Works2 project version when inquiring so our technical team can confirm parameter compatibility.

Q3: What is the lead time and long-term supply availability for the QJ71LP21S-25?
NINERMAS maintains dedicated inventory of the QJ71LP21S-25 to support customers operating legacy Q Series systems. As Mitsubishi Electric has announced the eventual transition of Q Series products to the iQ-R Series platform, we proactively stock sufficient quantities to support ongoing maintenance requirements. Customers with annual maintenance contracts or multi-site operations are encouraged to discuss blanket order arrangements to secure long-term supply at stable pricing.

Q4: Can NINERMAS support the replacement process if I have never swapped a MELSECNET/H module before?
Yes. Our technical support team can provide guidance on GX Works2 network parameter backup, station number verification, fiber connector cleaning procedures, and post-replacement loop test methods. We recommend performing the replacement during a planned maintenance window with the CPU in STOP mode, backing up the network parameters before removal, and using a fiber optic inspection scope to verify connector cleanliness before inserting the new module. Contact our team at sale@ninermas.com for pre-replacement technical consultation.
