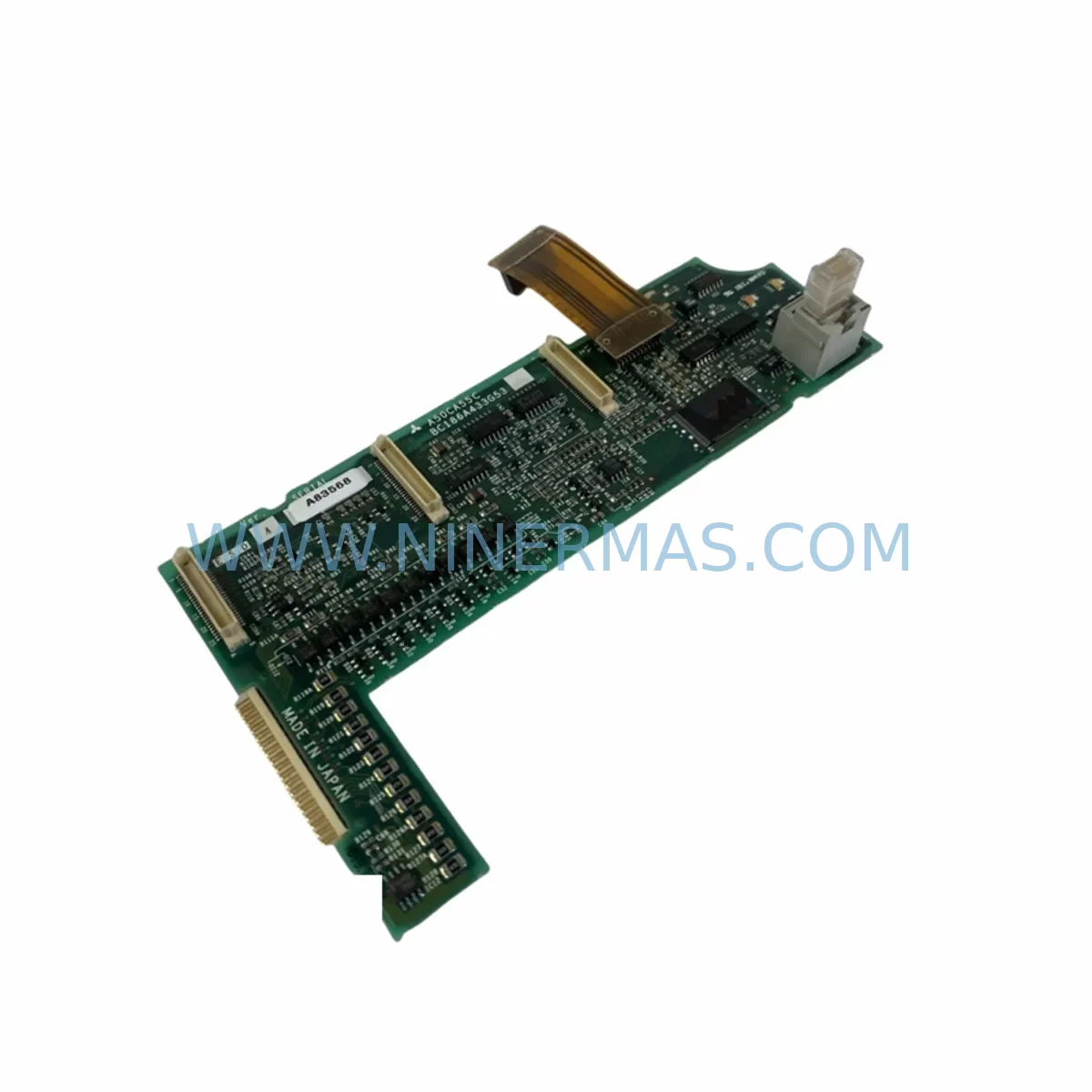

The Mitsubishi Electric A50CA55C BC186A433G53 is an original inverter control board designed for use within the MELSEC A-Series programmable logic controller and drive platform. As a service-ready spare part, this board is sourced directly from the Mitsubishi Electric supply chain and is intended to support rapid field replacement, scheduled maintenance shutdowns, and emergency downtime recovery in industrial automation environments.

Industrial facilities operating legacy MELSEC A-Series control systems face increasing pressure to maintain uptime as original components reach end-of-life status. The A50CA55C BC186A433G53 board is a critical internal assembly within the A50CA55C CPU and controller unit, responsible for signal conditioning, drive interface logic, and internal bus communication. When this board fails — whether due to thermal stress, capacitor degradation, or surge damage — the entire control loop is interrupted, resulting in unplanned production downtime. Stocking this spare part as part of a proactive maintenance inventory strategy is the most effective way to reduce mean time to repair (MTTR) and protect production continuity.

At NINERMAS, every A50CA55C BC186A433G53 unit is inspected, function-tested, and shipped with a 12-month warranty. We support procurement engineers and maintenance teams with long-term supply commitments, ensuring availability even as this series transitions toward obsolescence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault in the A50CA55C BC186A433G53 board, the replacement workflow rarely ends with the board alone. A thorough site inspection should encompass the full electrical environment of the control cabinet to prevent repeat failures and ensure system stability after restoration.

Begin by verifying the A50CA55C power supply module — an unstable or under-rated DC supply is one of the most common root causes of board-level failures in MELSEC A-Series systems. Check input voltage tolerance and ripple levels before installing the replacement board. Alongside the power supply, inspect the A1S61PN or A1S62PN power supply units commonly paired with A-Series racks; degraded capacitors in these units can cause intermittent resets that damage control boards over time.

Next, audit the I/O modules in the same rack — particularly A1SX40 digital input modules and A1SY10 transistor output modules. A shorted output channel or a failed input filter can generate back-EMF or signal noise that stresses the control board. Verify terminal block integrity and check for loose wiring on the A1S-TB series terminal units connected to field devices.

For systems with communication requirements, inspect the A1SJ71UC24-R4 serial communication module or equivalent RS-232C/RS-422 interface cards. A failed communication module can cause the CPU to enter error mode, which is sometimes misdiagnosed as a board failure. Similarly, check the A1SD51S positioning module if the system controls servo or stepper axes — positioning faults can cascade into drive board alarms.

Relay output modules such as the A1SY40P relay output module should be inspected for contact wear, especially in high-cycle applications. Worn relay contacts generate electrical noise that can corrupt internal bus signals on the BC186A433G53 board. If the cabinet includes signal isolators between field sensors and PLC inputs, verify their output accuracy and isolation resistance — degraded isolators are a silent source of signal interference.

Finally, check the A50CA55C backplane bus connector for oxidation or mechanical damage, and confirm that the GOT1000 or A9GT-QBUS HMI panel connected to the system is communicating correctly after board replacement. A corrupted HMI program or broken RS-422 cable can prevent the operator from confirming successful restoration, delaying production restart unnecessarily.

Procurement engineers should consider maintaining a minimum stock of two A50CA55C BC186A433G53 boards per facility operating more than one A-Series line, alongside at least one spare power supply module and a set of I/O module spares matched to the installed base. This inventory posture supports a target MTTR of under four hours for most board-level faults.

Site Replacement Workflow

Step 1 — Fault Confirmation: Before ordering or installing a replacement, confirm the fault is isolated to the BC186A433G53 board. Use the A50CA55C diagnostic LEDs and GX Developer or GX Works2 error log to identify the specific error code. Common indicators include CPU ERROR, DRIVE COMM FAULT, or BUS ERROR alarms.

Step 2 — Safe Isolation: De-energize the control cabinet following your site LOTO (Lockout/Tagout) procedure. Discharge any residual voltage in the drive section before opening the A50CA55C unit. Ground yourself with an ESD wrist strap before handling the board.

Step 3 — Board Removal: Document the existing board orientation and connector positions with photographs. Disconnect all ribbon cables and bus connectors in sequence. Remove the board carefully to avoid bending the PCB or damaging adjacent components.

Step 4 — Compatibility Verification: Confirm the replacement A50CA55C BC186A433G53 board matches the revision level of the original where possible. Check the firmware version label on the board and compare with the system’s existing configuration. Contact NINERMAS if revision matching is required.

Step 5 — Installation and Test: Install the replacement board, reconnect all cables in reverse order, and restore power. Monitor the A50CA55C startup sequence for error-free initialization. Run a full I/O check and communication test before returning the line to production.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), including the date, fault code, replaced part number, and post-replacement test results. Update your spare parts inventory accordingly.

Spare Parts Support FAQ

Q1: Is the A50CA55C BC186A433G53 still available as a new original part?
The MELSEC A-Series has been officially discontinued by Mitsubishi Electric, but original new-surplus and tested-refurbished units remain available through specialist industrial spare parts suppliers such as NINERMAS. All units are inspected and function-tested prior to dispatch. We maintain a long-term supply commitment for this part and can advise on availability for bulk or scheduled procurement.

Q2: How do I verify compatibility before purchasing?
Provide your A50CA55C unit serial number and the existing board revision label when contacting us. Our technical team will confirm compatibility and, where necessary, identify cross-reference alternatives within the MELSEC A-Series platform. We do not ship parts without compatibility confirmation for first-time orders.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of dispatch. It does not cover damage caused by incorrect installation, overvoltage, physical impact, or use outside the specified operating environment. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.

Q4: Can NINERMAS support long-term or blanket purchase orders for this part?
Yes. We support annual supply agreements and blanket purchase orders for maintenance teams managing multiple A-Series installations. Long-term supply contracts include priority stock reservation, fixed pricing for the contract period, and dedicated account support. Contact our sales team to discuss your facility’s annual consumption requirements.
