Kollmorgen 443M-S S403AM-SE Retrofit Servo Drive for Legacy Systems

Kollmorgen 443M-S S403AM-SE Retrofit-Compatible Servo Drive for Legacy Systems

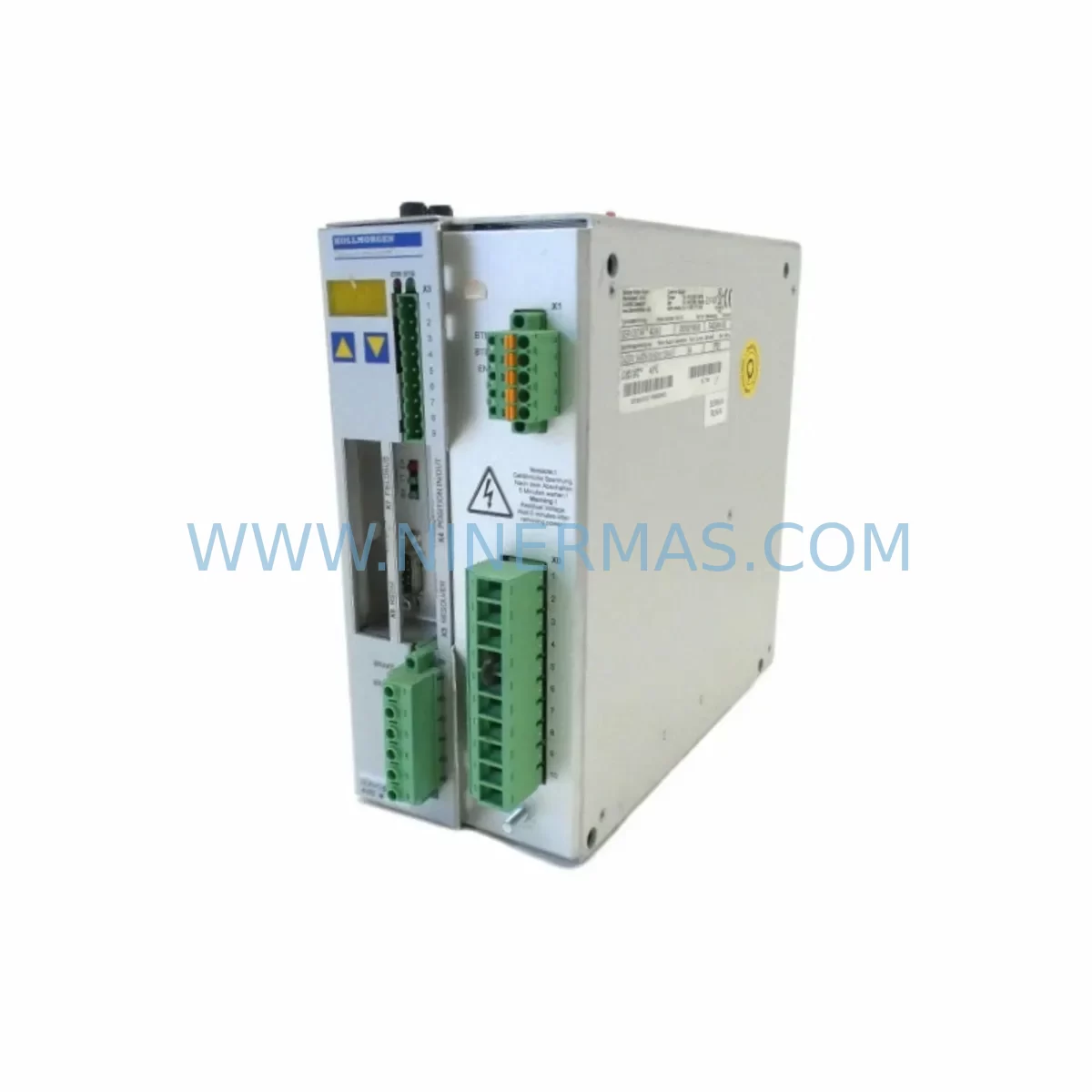

The Kollmorgen 443M-S S403AM-SE is a servo amplifier from the Kollmorgen S403 series, engineered for precision motion control in demanding industrial environments. As legacy automation lines age and OEM support for discontinued servo platforms diminishes, the 443M-S S403AM-SE has become a critical retrofit and replacement component for engineers tasked with maintaining uptime on existing servo-driven machinery. NINERMAS maintains verified stock of this unit, fully pre-shipment tested and backed by a 12-month warranty, ensuring your retrofit project proceeds with confidence.

Whether you are replacing a failed drive in a CNC machining center, a packaging line, a textile machine, or a legacy robotics cell, the 443M-S S403AM-SE delivers the performance characteristics of the original S403 platform without requiring a full system redesign. Its compatibility with Kollmorgen’s established servo motor families and feedback interfaces makes it a preferred choice for maintenance engineers who need a drop-in solution with minimal commissioning overhead.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the Kollmorgen 443M-S S403AM-SE begins well before the unit arrives on-site. Engineers should start by auditing the existing control cabinet to document the full servo axis configuration. In a typical legacy servo system, the 443M-S S403AM-SE operates alongside a Kollmorgen S400-series power supply module that provides the DC bus voltage to the amplifier stage. Confirming that the existing power supply module can sustain the required continuous and peak current draw for your motor load is the first critical checkpoint — undersized bus power is a common cause of nuisance faults during commissioning.

The motor feedback wiring is equally important. The S403 platform supports resolver feedback, and if your existing servo motor — such as a Kollmorgen Goldline series brushless servo motor or a compatible third-party motor — uses a resolver, the feedback cable pinout must be verified against the 443M-S S403AM-SE terminal assignments. Mismatched resolver wiring is a frequent source of commutation errors that can damage both the drive and the motor during initial power-up.

On the control side, the 443M-S S403AM-SE typically receives its velocity or torque command from a CNC controller or a PLC analog output module via a ±10V analog signal. If your existing CNC — for example, a legacy Fanuc Series 0 controller or a Siemens SINUMERIK 810 — outputs a ±10V analog command, the interface is straightforward. However, if the upstream controller has been upgraded to a digital fieldbus platform such as PROFIBUS-DP or EtherCAT, an analog output expansion module or a motion controller with analog command output will be required to bridge the protocol gap.

For systems where the 443M-S S403AM-SE is installed in a multi-axis cabinet, the shared DC bus architecture must be reviewed. Other drives on the same bus — such as additional Kollmorgen S403 or S600 series amplifiers — will be affected by any bus voltage fluctuations during the replacement process. It is advisable to isolate the axis being replaced and perform a single-axis power-up before restoring full multi-axis operation.

If the machine uses a Kollmorgen WorkBench or S-Series Drive Setup Utility for parameter management, the existing parameter file should be backed up from the original drive (if it is still partially functional) before removal. Key parameters including motor rated current, peak current limit, velocity feedforward gain, position loop bandwidth, and fault response configuration must be re-entered or uploaded to the replacement 443M-S S403AM-SE. Where the original parameter file is unavailable, motor nameplate data and the original machine documentation provide the baseline for re-commissioning.

In applications where the servo axis interfaces with a Rexroth Indramat TDM or KDS series drive on an adjacent axis — a common scenario in older European-built machine tools — the enable and fault interlock wiring between axes must be carefully mapped. The 443M-S S403AM-SE’s enable input and drive-ready output signals must be integrated into the existing PLC safety relay or safety I/O module logic to maintain the original machine safety interlock chain.

For applications involving signal isolation between the servo drive and the PLC or CNC, a DIN-rail mounted signal isolator or analog signal conditioner may already be present in the cabinet. These isolators protect the drive’s analog input from ground loop interference and should be retained during the retrofit. Verify that the isolator’s output range (typically ±10V or 0–10V) matches the 443M-S S403AM-SE command input specification.

Downtime Control During System Migration

Minimizing production downtime during a servo drive replacement requires a structured approach. Before removing the failed or end-of-life drive, photograph or document all terminal wiring, DIP switch settings, and potentiometer positions on the original unit. This documentation serves as the primary reference for restoring the replacement 443M-S S403AM-SE to the same operating configuration.

Where possible, perform the physical swap during a planned maintenance window rather than during an emergency breakdown. Pre-stage the replacement 443M-S S403AM-SE with all known motor parameters loaded and verified offline using the Kollmorgen setup software before bringing it to the machine. This reduces on-machine commissioning time to final tuning adjustments and functional verification rather than full parameter entry from scratch.

After installation, follow a structured power-up sequence: enable the drive without a motion command first to verify that the drive-ready signal is asserted and no fault codes are present. Then command a slow jog move to confirm correct motor rotation direction and feedback polarity. Only after confirming stable low-speed operation should full-speed and full-load testing be performed. This staged approach protects the mechanical load and the motor from damage caused by incorrect tuning or wiring errors, and it keeps the overall commissioning window predictable and controlled.

NINERMAS ships all units with a pre-shipment functional test report. This documentation confirms that the 443M-S S403AM-SE has been powered and verified prior to dispatch, reducing the risk of receiving a non-functional unit and the associated downtime cost of a second replacement cycle.

Retrofit Support FAQ

Q1: Is the Kollmorgen 443M-S S403AM-SE a direct drop-in replacement for other S403 series variants?
The 443M-S S403AM-SE shares the S403 platform architecture with other S403 variants, but current rating, feedback type, and option card configuration may differ between part numbers. Always cross-reference the full model number and confirm power and feedback specifications before substituting one S403 variant for another. NINERMAS technical staff can assist with cross-reference verification prior to order.

Q2: What wiring checks are required before powering up the replacement drive?
Verify motor power phase wiring (U, V, W), motor feedback cable pinout (resolver or encoder), analog command signal polarity, enable input wiring, and fault output connections. Confirm that the AC input voltage matches the drive’s rated input. A wiring audit against the original machine schematic is strongly recommended before initial power-up to avoid drive or motor damage.

Q3: Can NINERMAS supply the 443M-S S403AM-SE with a pre-loaded parameter file?
NINERMAS can pre-load a customer-supplied parameter file into the drive prior to shipment upon request. Customers should provide the original parameter file or motor nameplate data when placing the order. This service reduces on-site commissioning time and is included at no additional charge for orders accompanied by complete motor data.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling. In the event of a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference and a description of the fault. NINERMAS will arrange for inspection and replacement or repair within the warranty period.
