KOLLMORGEN MMC-SD-12.0-460-D Retrofit-Compatible Servo Drive

KOLLMORGEN MMC-SD-12.0-460-D Retrofit-Compatible Servo Drive for Legacy Systems

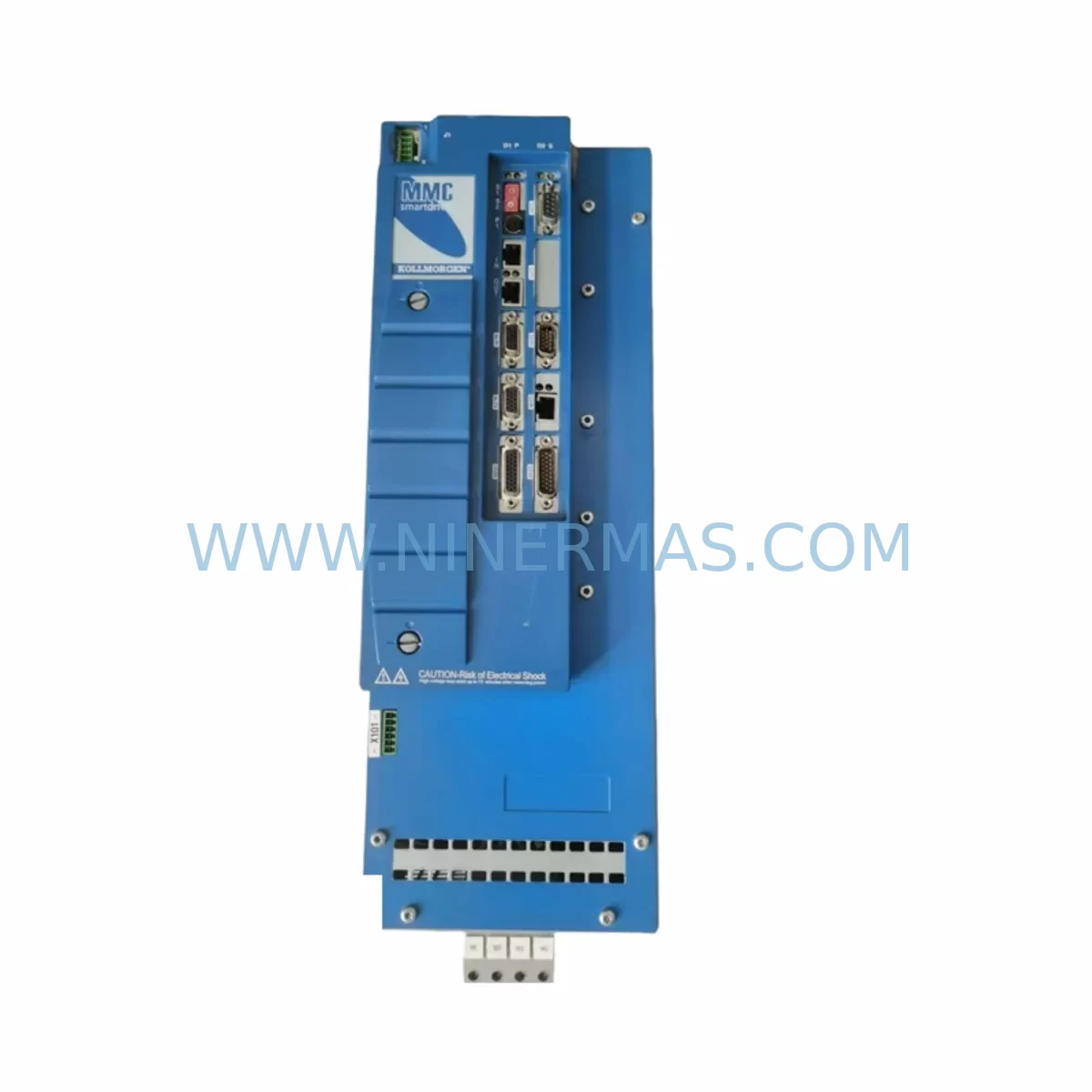

The KOLLMORGEN MMC-SD-12.0-460-D is a high-performance AC servo drive from Kollmorgen’s SmartDrive (MMC-SD) series, designed for precision motion control in demanding industrial automation environments. As legacy servo systems age and original spare parts become increasingly difficult to source, the MMC-SD-12.0-460-D remains a critical retrofit and replacement component for facilities operating older Kollmorgen-based motion platforms. With a 12.0 A continuous output rating and 460 V AC input compatibility, this drive is engineered to deliver reliable torque and velocity control across a wide range of servo motor configurations.

Whether you are replacing a failed drive in an existing production line, upgrading a discontinued motion controller cabinet, or restoring a multi-axis servo system, the MMC-SD-12.0-460-D provides a direct-fit solution that minimizes engineering rework and reduces commissioning time. This unit has been pre-shipment tested and verified for functional integrity before dispatch, and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal use conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the MMC-SD-12.0-460-D into an existing automation system requires a structured approach to ensure continuity of machine operation and protection of existing program logic. In most retrofit scenarios, the drive is installed as a direct replacement for a failed or end-of-life unit within a Kollmorgen SmartDrive-based motion cabinet. Before beginning the swap, engineers should document all existing drive parameters using Kollmorgen’s WorkBench software or the legacy S300 configuration utility, saving the parameter file to a secure backup location.

Power supply capacity is the first checkpoint. The MMC-SD-12.0-460-D draws from a 460 V AC three-phase supply, and the panel’s main circuit breaker and line filter must be rated to support the drive’s peak current demand. In multi-axis cabinets, the shared DC bus or individual power supply modules — such as the Kollmorgen MMC-PS power supply unit — must be verified for total load capacity across all active axes. If the cabinet also houses a Kollmorgen AKD servo drive on adjacent axes, confirm that bus voltage levels remain within tolerance during simultaneous acceleration events.

Terminal wiring is the next critical step. The MMC-SD-12.0-460-D uses a standard terminal block layout for motor power (U, V, W), brake control, and I/O signals. When replacing an older unit, technicians should photograph the existing wiring before disconnection and cross-reference against the drive’s terminal diagram. Signal wiring for analog command inputs, digital enable signals, and fault relay outputs must be reconnected precisely to avoid drive faults or unintended motion on power-up. If the system uses a Kollmorgen MMC-SD regenerative braking resistor, verify that the resistor connection terminals are correctly transferred to the new unit.

Feedback wiring deserves particular attention. The MMC-SD-12.0-460-D supports encoder or resolver feedback depending on the motor type in use. Systems running Kollmorgen Goldline servo motors or AKM series servo motors with resolver feedback must confirm that the feedback cable pinout matches the new drive’s resolver interface. Encoder-based systems should verify differential signal integrity and cable shielding continuity to prevent noise-induced position errors after commissioning.

For systems where the MMC-SD-12.0-460-D communicates with a higher-level motion controller — such as a Kollmorgen MMC motion controller or a third-party PLC using analog velocity command — the command interface type must be confirmed before power-up. Analog ±10 V command systems require the drive’s input scaling parameters to be set correctly to match the controller’s output range. In systems using a Beckhoff EtherCAT master or Siemens PROFIBUS DP controller for coordinated motion, the drive’s fieldbus interface card must be present and configured with the correct node address and baud rate.

HMI screens that display axis status, drive fault codes, or position feedback should be reviewed after the drive swap. If the HMI communicates directly with the drive via serial link, the communication parameters — baud rate, parity, and station address — must be re-entered on the new unit. In systems where a Siemens TP700 HMI or similar operator panel reads drive status via OPC or Modbus, verify that the data block addresses remain consistent with the new drive’s register map.

I/O expansion modules connected to the drive’s digital I/O terminals — such as relay output modules or signal isolators used for safety interlocks — should be tested for correct operation after the drive is powered up. A Phoenix Contact signal isolator or equivalent device used to condition analog feedback signals should be verified for correct scaling and output range before enabling the axis in automatic mode.

Downtime Control During System Migration

Minimizing production downtime during a servo drive replacement is a primary concern for maintenance teams operating continuous or semi-continuous manufacturing lines. The MMC-SD-12.0-460-D is designed for rapid field replacement, and with proper preparation, the physical swap can be completed within a planned maintenance window of two to four hours for a single-axis installation.

The most effective downtime reduction strategy begins before the drive fails. Maintaining a pre-configured spare unit — with drive parameters pre-loaded from the backup file — allows the replacement to proceed without the time-consuming step of parameter entry during an unplanned outage. NINERMAS supplies the MMC-SD-12.0-460-D with pre-shipment functional testing completed, reducing the risk of receiving a non-functional unit during an emergency replacement scenario.

During the migration, the original program logic in the motion controller or PLC is not affected by the drive swap, provided that the controller’s enable output remains de-energized throughout the procedure. Technicians should place the machine in a safe state, isolate the drive’s AC input using the dedicated circuit breaker, and discharge the DC bus capacitors before disconnecting any wiring. Following reconnection, a controlled jog test at reduced speed — typically 10–20% of maximum velocity — should be performed before returning the axis to automatic operation.

For multi-axis systems where the failed drive shares a common DC bus with adjacent axes, the bus must be fully discharged before the replacement drive is installed. Failure to do so risks damage to the new unit’s input rectifier stage. Once the new MMC-SD-12.0-460-D is installed and powered, the drive’s status LEDs and fault register should be checked before enabling the axis. Any active faults — such as feedback loss, overcurrent, or communication timeout — must be resolved before the axis is returned to service.

Retrofit Support FAQ

Q1: Is the MMC-SD-12.0-460-D a direct replacement for other MMC-SD series drives?
The MMC-SD-12.0-460-D is a direct form-fit replacement for other units within the Kollmorgen MMC-SD SmartDrive family with the same voltage rating (460 V). Current rating differences between models must be verified against the motor’s nameplate to ensure the replacement drive is not undersized for the application. Parameter files from the original drive can be loaded directly into the replacement unit using Kollmorgen WorkBench software.

Q2: What commissioning steps are required after installing the replacement drive?
After physical installation and wiring verification, restore the parameter backup file to the new drive. Perform a low-speed jog test to confirm motor rotation direction and feedback signal integrity. Verify that all digital I/O signals — enable, fault reset, and limit switches — operate correctly before enabling the axis in automatic mode. Re-tune velocity and position loop gains if the motor or mechanical load has changed since the original commissioning.

Q3: Does NINERMAS perform pre-shipment testing on the MMC-SD-12.0-460-D?
Yes. All units supplied by NINERMAS undergo pre-shipment functional testing to verify power stage integrity, feedback interface operation, and basic drive response before dispatch. A test report is available upon request. Units are shipped with protective packaging to prevent transit damage to the drive’s power terminals and control board.

Q4: What warranty coverage applies to the MMC-SD-12.0-460-D?
NINERMAS provides a 12-month warranty on the MMC-SD-12.0-460-D from the date of shipment. The warranty covers manufacturing defects and operational failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s specified environmental ratings. For warranty claims or technical support, contact NINERMAS directly.
