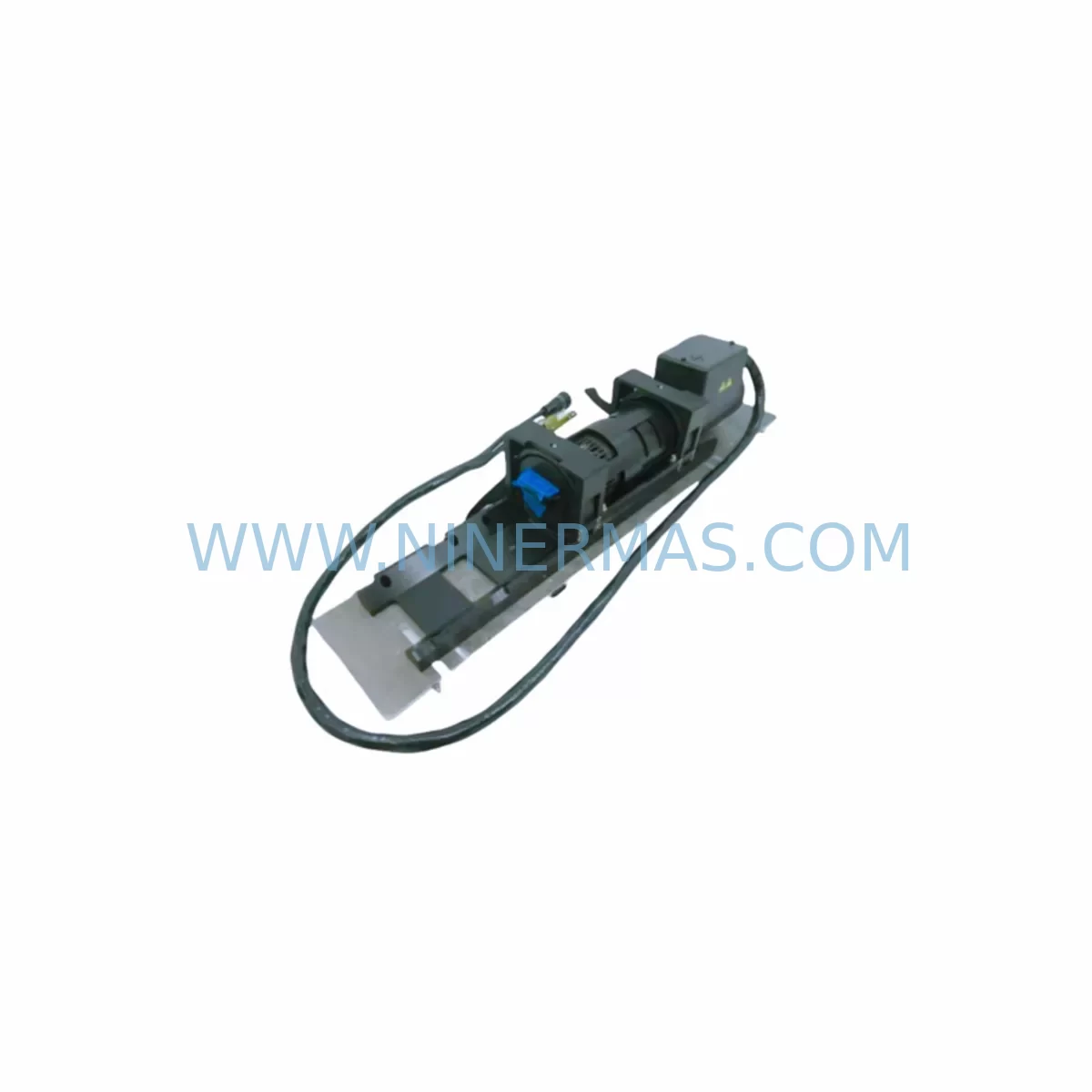

JDS Uniphase 2213-75SLRAMO72 Retrofit-Compatible Servo Motor

JDS Uniphase 2213-75SLRAMO72 Retrofit-Compatible Servo Motor for Legacy Automation Systems

The JDS Uniphase 2213-75SLRAMO72 (also referenced as 2213-75SLRAM072) is a precision servo motor engineered for demanding industrial motion control applications. As legacy automation lines age and OEM support for discontinued servo drives and motors becomes increasingly scarce, the 2213-75SLRAMO72 remains a critical spare part for facilities operating older CNC machining centers, robotic assembly lines, packaging equipment, and multi-axis motion platforms. NINERMAS maintains verified stock of this unit with full functional testing and a 12-month warranty, enabling procurement teams and maintenance engineers to source a reliable replacement without committing to a full system overhaul.

When planning a retrofit or spare-parts replenishment around the JDS Uniphase 2213-75SLRAMO72, engineers must carefully evaluate several interdependent system parameters. The motor’s power supply requirements — including bus voltage, peak current draw, and continuous torque rating — must be matched against the existing servo drive or amplifier in the control cabinet. In many legacy installations, the drive may be a discontinued unit such as an older Indramat HDS or Rexroth DKS series amplifier, and confirming that the replacement motor’s encoder feedback type (resolver, incremental encoder, or absolute encoder) is compatible with the drive’s feedback interface is a mandatory pre-installation step.

Terminal wiring and connector pinout verification is equally critical. The 2213-75SLRAMO72 uses a specific power connector and feedback connector configuration that must be cross-referenced against the machine’s existing cable harness. In many retrofit scenarios, the original cable assembly can be reused if the connector shell and pin assignments match — saving significant rewiring time and reducing the risk of introducing wiring errors during a time-sensitive maintenance window. Where cable replacement is necessary, engineers should document the original routing and shielding practices to maintain EMC compliance within the control cabinet.

Backplane and rack integration is another consideration for systems where the servo motor interfaces with a modular motion controller. In installations using platforms such as a Siemens SINUMERIK 840D or a Fanuc Series 16i/18i CNC controller, the motor parameters — including pole count, rated speed, and encoder resolution — must be entered or confirmed in the controller’s drive configuration. Failure to align these parameters can result in oscillation, fault codes, or unsafe motion behavior during commissioning. NINERMAS recommends that customers request the motor’s nameplate data sheet and parameter file (where available) at the time of order to streamline the re-commissioning process.

For facilities managing a broader control cabinet upgrade, the 2213-75SLRAMO72 is frequently sourced alongside complementary components. Power supply modules — such as 24VDC logic supplies and regenerative DC bus units — are often replaced in the same maintenance cycle to ensure stable power delivery to the servo system. I/O expansion modules, whether discrete digital I/O or analog signal conditioning cards, may also require replacement if the original units have exceeded their service life or are no longer supported by the PLC manufacturer. In multi-axis systems, the servo motor replacement is typically coordinated with inspection of the associated servo drive, feedback cables, motor brake resistor (if fitted), and any signal isolators used to protect the controller’s analog command inputs.

Communication protocol continuity is a key concern during any legacy system retrofit. Older servo systems may rely on analog ±10V velocity or torque command signals, while newer replacement drives may support PROFIBUS-DP, EtherCAT, or PROFINET interfaces. If the 2213-75SLRAMO72 is being integrated into a modernized drive platform, the HMI operator panel — whether a legacy Siemens OP7/OP17 or a more recent Weintek or Pro-face touch panel — must be updated to reflect any changes in axis numbering, drive fault codes, or parameter screen layouts. Ensuring that the HMI program remains synchronized with the updated drive configuration prevents operator confusion and reduces the risk of process errors after restart.

Installation space confirmation is a practical but often overlooked step. The 2213-75SLRAMO72’s frame size, shaft diameter, mounting flange (IEC or NEMA), and overall body length must be verified against the machine’s motor mounting pocket or servo bracket. In tight installations — common in compact machining centers or robotic end-of-arm tooling — even a few millimeters of dimensional difference can require bracket modification or cable rerouting. NINERMAS provides dimensional drawings upon request to support pre-installation planning.

Field commissioning of the replacement motor should follow a structured sequence: mechanical installation and coupling alignment, cable connection and continuity verification, drive parameter entry, low-speed jog test, full-speed and load test, and final documentation of the commissioned parameter set. Where the original machine builder’s commissioning records are unavailable, NINERMAS technical support can assist in identifying typical parameter ranges based on the motor’s rated specifications and the known drive platform in use.

Downtime control is a primary concern for any unplanned servo motor failure. NINERMAS maintains ready stock of the 2213-75SLRAMO72 to support same-day or next-business-day dispatch, minimizing the gap between fault occurrence and motor replacement. Each unit shipped by NINERMAS undergoes outgoing functional testing to verify winding resistance, insulation integrity, encoder signal output, and mechanical rotation — reducing the risk of receiving a non-functional unit during a critical production stoppage. The included 12-month warranty covers manufacturing defects and provides customers with a documented quality assurance baseline for their maintenance records.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the JDS Uniphase 2213-75SLRAMO72 typically involves a coordinated review of the entire servo axis assembly. Beyond the motor itself, maintenance teams should inspect the associated servo drive amplifier for capacitor aging, IGBT condition, and firmware currency. In many legacy installations, the drive may be a discontinued model from a manufacturer such as Indramat, Bosch Rexroth, or Yaskawa, and sourcing a tested spare drive in parallel with the motor replacement is a prudent risk mitigation strategy.

The DC bus power supply feeding the servo drive should be load-tested to confirm it can sustain peak current demand during acceleration cycles. Aging electrolytic capacitors in the DC bus filter are a common failure point in older servo systems and should be replaced proactively during any planned maintenance window. Similarly, the 24VDC control power supply — which powers the drive’s logic board, brake relay, and I/O interface — should be verified for output stability under load.

I/O wiring between the PLC and the servo drive — including enable signals, fault reset lines, and analog command cables — should be inspected for insulation degradation and connector corrosion. Signal isolators or optocoupler interface modules used to protect the PLC’s analog output cards from ground loops should be tested and replaced if response time or isolation resistance has degraded. In systems using a Siemens S7-300 or S7-400 PLC with analog output modules, confirming the output scaling and offset calibration against the drive’s command input specification is a necessary commissioning step.

Where the retrofit includes a migration from an older CNC controller to a modern platform, the machine’s HMI program, PLC ladder logic, and axis parameter files must all be reviewed and updated in parallel. Programming cables and software licenses for the legacy controller — such as a Fanuc FAPT or Siemens STEP 7 programming environment — should be confirmed as available before the maintenance window begins, to avoid delays caused by software access issues during a live retrofit.

Backplane and rack integrity in the control cabinet should also be assessed. Older modular racks — whether Siemens S5 backplanes, Allen-Bradley 1771 I/O racks, or similar legacy platforms — may have connector wear or backplane trace damage that can cause intermittent faults after a motor replacement. Cleaning backplane connectors and verifying module seating torque is a low-cost step that can prevent post-retrofit reliability issues.

Downtime Control During System Migration

Minimizing production downtime during a servo motor replacement requires advance preparation across logistics, documentation, and commissioning planning. The most effective approach is to pre-stage the replacement 2213-75SLRAMO72 unit at the facility before the planned maintenance window, with all associated cables, connectors, and parameter files confirmed and ready. NINERMAS supports this approach by providing dimensional drawings, wiring diagrams (where available), and technical consultation prior to shipment.

Preserving the original PLC and CNC program logic is non-negotiable. Before any hardware change, a full backup of the controller program — including axis parameters, tool offsets, and HMI screen data — must be saved to a verified storage medium. In older systems where the controller uses battery-backed RAM without a modern backup interface, this step requires a dedicated programming session before the motor is disconnected. Losing the program during a motor swap is a recoverable but costly event that can extend downtime from hours to days.

A phased commissioning approach — starting with low-speed jog tests before progressing to full-speed and loaded operation — allows engineers to identify parameter mismatches or mechanical alignment issues before they cause secondary damage. Documenting the final commissioned parameter set and storing it alongside the maintenance record ensures that future replacements can be completed more quickly, with a known-good baseline to reference.

For facilities with multiple identical axes or machines, maintaining a small buffer stock of the 2213-75SLRAMO72 as a critical spare reduces mean time to repair (MTTR) for future failures. NINERMAS offers long-term supply agreements and stock reservation programs to support customers with ongoing spare-parts lifecycle management requirements.

Retrofit Support FAQ

Q1: Is the 2213-75SLRAMO72 a direct drop-in replacement for the 2213-75SLRAM072?
Yes. The 2213-75SLRAMO72 and 2213-75SLRAM072 are the same unit with a minor SKU notation variant. Both designations refer to the same JDS Uniphase 2213 Series servo motor. NINERMAS verifies cross-reference compatibility before shipment and can provide a confirmation document upon request.

Q2: What pre-installation checks are required before fitting the replacement motor?
Prior to installation, confirm the following: (1) encoder feedback type matches the existing drive’s feedback interface; (2) power connector pinout is compatible with the existing cable harness; (3) mounting flange dimensions and shaft diameter match the machine’s motor pocket; (4) drive parameter file is backed up and ready for re-entry after motor swap. NINERMAS can supply dimensional data and wiring reference information to support this process.

Q3: Does NINERMAS perform outgoing functional testing on the 2213-75SLRAMO72 before shipment?
Yes. Every unit shipped by NINERMAS undergoes outgoing inspection covering winding resistance measurement, insulation resistance (Megger) test, encoder signal verification, and mechanical rotation check. A test record is available upon request. All units are covered by a 12-month warranty against manufacturing defects from the date of shipment.

Q4: Can NINERMAS support long-term supply of the 2213-75SLRAMO72 for ongoing spare-parts programs?
Yes. NINERMAS specializes in long-lifecycle spare-parts supply for discontinued and hard-to-source industrial components. Stock reservation, blanket purchase orders, and scheduled delivery programs are available for customers requiring guaranteed supply continuity for critical automation spare parts. Contact our sales team to discuss your specific requirements.
