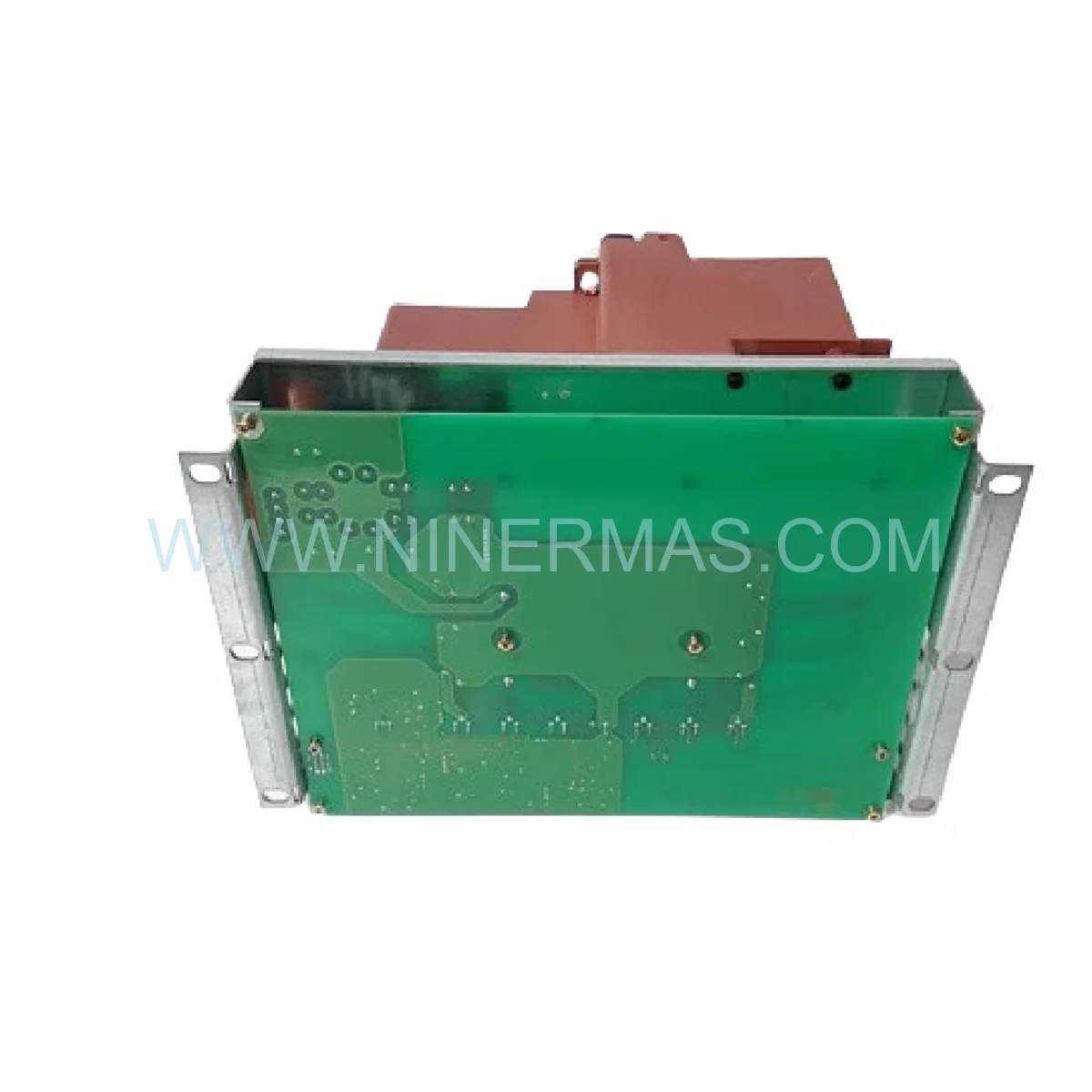

ABB 3BHB004661R0101 KU C711 AE Gate Unit Power Supply | Original & New Spare Parts

ABB 3BHB004661R0101 KU C711 AE Gate Unit Power Supply – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect, the ABB 3BHB004661R0101 Gate Unit Power Supply (KU C711 AE) is not merely a circuit board — it is the nerve center of gate signal delivery within ABB ACS1000 medium voltage drive systems. In any Distributed Control System or Process Control environment where multi-megawatt motor drives are deployed, this component governs the precise switching of IGCT (Integrated Gate-Commutated Thyristor) modules, translating microsecond-level control commands into high-current gate pulses. Without it, the entire drive chain is inoperable.

What distinguishes the ABB 3BHB004661R0101 from generic alternatives is its engineered compatibility with the ACS1000 platform’s DTC (Direct Torque Control) architecture. This unit supersedes three prior revisions — 3BHB003295R0002, 3BHB002433R0001, and 3BHB003295R0001 — while maintaining full retrofit compatibility across all ACS1000 drive generations. For engineers managing Legacy Components in aging installations, this backward compatibility is a decisive advantage that eliminates costly system re-engineering.

Original factory-sealed stock of this part is increasingly scarce in the global supply chain. As ACS1000 installations age and OEM production cycles shift, securing a genuine, tested unit from an authorized source becomes a critical procurement priority — particularly for facilities operating in Petrochemical, Mining, or Marine sectors where unplanned downtime carries six-figure hourly costs.

Key Technical Highlights

Complete Assembly with 7 Integrated Subboards: Each unit includes 7 — 3BHB003688R0101 (KU C711 AE PCB Subboard, 20V) factory-installed and tested as a unified assembly.
Galvanic Isolation Architecture: Fully isolated gate drive channels protect low-voltage control circuits from high-voltage transients in the power stage.
Sub-Microsecond Switching Precision: Gate pulse timing accuracy at nanosecond resolution ensures optimal IGCT performance and minimized switching losses.
Integrated Fault Detection: Desaturation detection and short-circuit protection circuits safeguard IGCT modules from catastrophic failure events.
Redundancy-Ready Design: Compatible with ACS1000 redundant drive configurations for high-availability process applications.
Wide Environmental Tolerance: Operational range -10°C to +50°C; storage -25°C to +70°C; 5-95% RH non-condensing; IEC 60068-2-6 vibration compliant.
Fieldbus & DCS Integration: Seamlessly interfaces with ACS1000 Fieldbus communication modules (PROFIBUS, Modbus, DeviceNet) via the drive’s main control board.
Factory Sealed Condition: Shipped in original ESD-safe packaging with full traceability documentation.

Vertical Industry Applications

The ABB 3BHB004661R0101 is a critical enabler across multiple heavy industries where process continuity is non-negotiable:

Petrochemical & Refining: Deployed in pipeline compressors, gas injection systems, and LNG pump drives. A gate unit failure in this environment can trigger emergency shutdowns costing hundreds of thousands per hour. Stocking this part as a Maintenance Stock item is standard practice at tier-1 refineries globally.

Mining & Mineral Processing: Powers SAG mills, ball mills, and conveyor drives in remote locations where lead times for replacement parts can exceed weeks. Having a Factory Sealed unit on-site eliminates this vulnerability entirely.

Marine & Offshore (FPSO/Thruster Systems): ACS1000 drives are widely used in dynamic positioning thrusters and ballast pump systems aboard FPSOs and drillships. The KU C711 AE gate unit’s vibration resistance and wide temperature tolerance make it suitable for harsh marine environments where DCS Hardware reliability is paramount.

Metals & Steel Processing: Rolling mills and continuous casters demand zero-fault drive operation during production runs. Emergency Repair scenarios in this sector benefit directly from pre-stocked, immediately deployable gate units.

Power Generation & Utilities: Boiler feed pump drives and induced draft fan systems in thermal power plants rely on ACS1000 drives for variable-speed efficiency. The 3BHB004661R0101 is a Critical Part for Industry Safety in these applications, where drive failure can affect grid stability.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every ABB 3BHB004661R0101 unit supplied by NINERMAS COMPANY LIMITED is 100% Original, sourced directly from ABB’s authorized distribution network. We do not supply refurbished, remanufactured, or counterfeit components. Each unit is verified against ABB’s serialized production records before dispatch.

12-Month Comprehensive Warranty: All units carry a full 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Extended warranty options are available upon request.

Emergency Delivery via DHL / FedEx / UPS: For critical plant outages, we offer same-day dispatch with next-flight-out courier options. Our global logistics network ensures delivery to major industrial hubs in Asia, Europe, the Americas, and the Middle East within 24-72 hours. Export documentation, certificates of conformity, and customs clearance support are included as standard.

Factory Sealed Packaging: Units are shipped in original ABB ESD-safe packaging with shock-absorbing foam inserts. International shipments are export-crated per ISPM-15 standards. Full traceability documentation — including ABB batch certificates and test reports — is available upon request.

Buyer’s FAQ — Selection & Sourcing Guide

Q1: How do I verify that a 3BHB004661R0101 unit is genuinely original and not counterfeit?
Authentic ABB units carry a serialized label with a scannable barcode traceable to ABB’s production database. The PCB silkscreen should display the exact type designation “KU C711 AE” and the part number “3BHB004661R0101”. Request a Certificate of Conformity and cross-reference the serial number with ABB’s official records. Counterfeit units typically show inconsistent label fonts, missing varnish on subboard PCBs, or incorrect connector types.

Q2: Is the 3BHB004661R0101 compatible with all ACS1000 drive generations and power ratings?
Yes. The R0101 revision maintains full retrofit compatibility with all ACS1000 drive generations from initial production through current models, covering the standard power range of 315 kW to 5 MW. It directly replaces 3BHB003295R0002, 3BHB002433R0001, 3BHB003295R0001, and 3BHB004661R0001 without any hardware or software modifications to the drive system.

Q3: Where can I obtain the official datasheet and service manual for the KU C711 AE gate unit?
The official ABB datasheet and ACS1000 service manual (including gate unit replacement procedures) are available through ABB’s Library portal or your local ABB service representative. NINERMAS can also provide available technical documentation upon order confirmation. Contact sale@ninermas.com with your drive serial number for targeted documentation support.

Q4: Can individual subboards (3BHB003688R0101) be replaced without replacing the entire gate unit assembly?
Yes. The seven 3BHB003688R0101 subboards within the 3BHB004661R0101 assembly are field-replaceable. ABB’s service manual provides detailed subboard replacement procedures. However, for critical process applications, replacing the complete gate unit assembly is recommended to minimize re-commissioning time and eliminate residual risk from aging components in the remaining subboards.

Q5: What is the typical lead time for emergency orders, and do you support air freight to remote locations?
For in-stock units, same-day dispatch is available for orders confirmed before 14:00 CST. We support air freight via DHL Express, FedEx International Priority, and UPS Worldwide Express to all major global destinations, including remote mining sites, offshore platforms, and island facilities. Estimated transit times range from 24 hours (major hubs) to 72-96 hours (remote locations). Contact us directly for a freight quote.

Q6: Is this part subject to export controls or sanctions restrictions?
The ABB 3BHB004661R0101 is a commercial industrial component manufactured in Switzerland. It is subject to Swiss and EU dual-use export regulations. NINERMAS conducts full export compliance screening on all orders. Buyers are responsible for ensuring compliance with import regulations in their destination country. We provide all necessary export documentation, including commercial invoices, packing lists, and certificates of origin.
