IC695ALG626 — GE RX3i PACSystems 16-Channel HART Analog Input Module | 100% Original Spare Parts

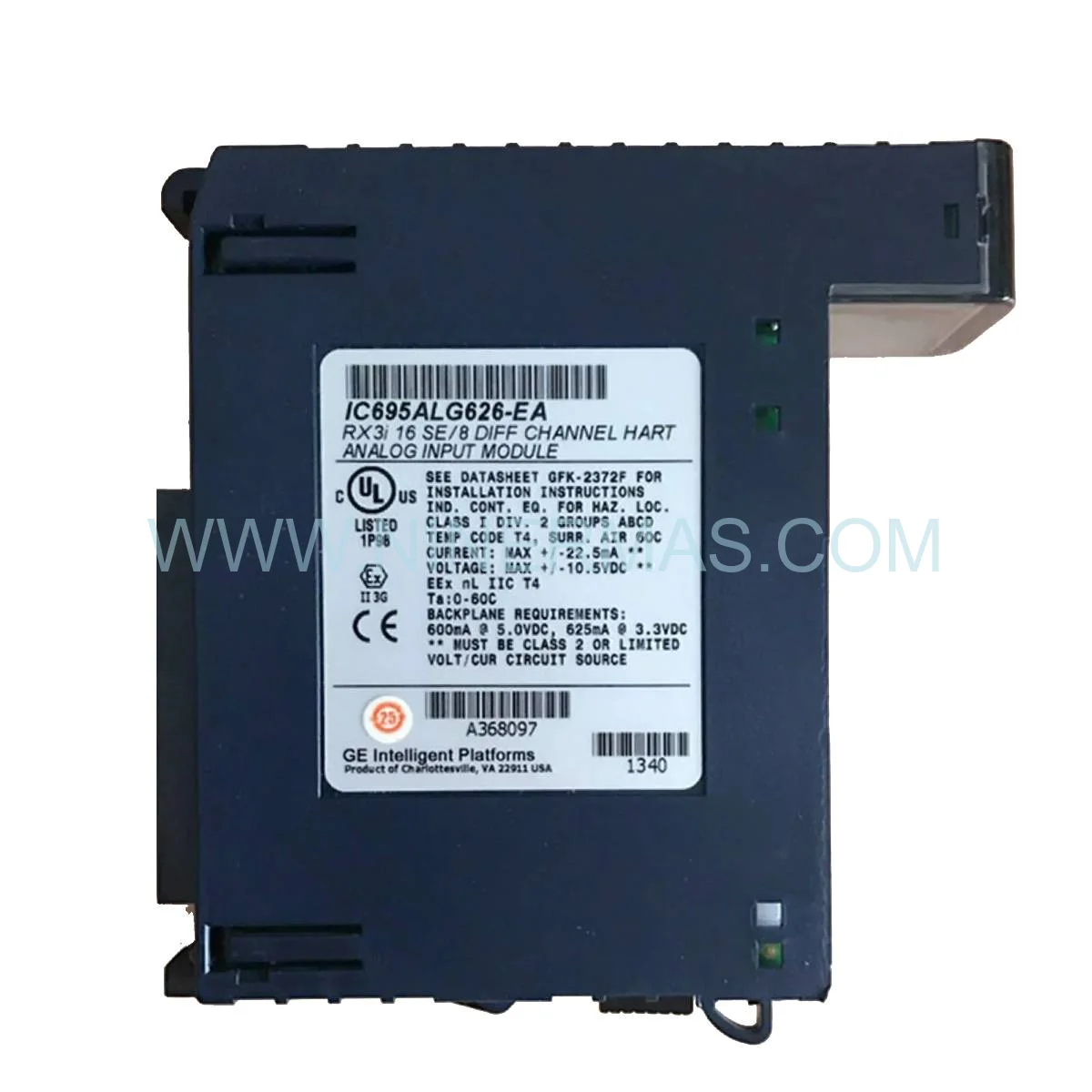

As a procurement manager sourcing critical industrial automation components, you need absolute confidence in both product authenticity and technical fit. The IC695ALG626 is a factory-sealed, 16-channel analog input module engineered for GE Fanuc’s RX3i PACSystems platform. This IC695ALG626 module integrates HART (Highway Addressable Remote Transducer) protocol communication directly into the I/O layer, enabling simultaneous analog measurement and smart device diagnostics — all from a single compact backplane slot. Every unit we supply is 100% Brand New and Factory Sealed, sourced through authorized channels with full traceability documentation.

Industrial facilities running GE PACSystems PLC infrastructure face a persistent challenge: maintaining high-accuracy analog signal integrity while extracting diagnostic intelligence from HART-enabled field transmitters — without adding gateway hardware. The IC695ALG626 resolves this by superimposing HART communication over the standard 4-20mA loop, giving your control system direct access to device health, calibration status, and process variables from smart instruments. It is the preferred Original Spare Parts solution for engineers maintaining or expanding RX3i-based Control Module architectures across Oil & Gas, Power Generation, and Process Manufacturing sectors.

With 16-bit resolution, ±0.1% full-scale accuracy, and 500V channel-to-backplane isolation, this module delivers the measurement precision demanded by Safety Instrumented Systems (SIS) and DCS migration projects. Contact us today for pricing, lead time, and datasheet access.

Typical Application Scenarios

✅ Oil & Gas — Upstream & Midstream Operations: Pipeline pressure monitoring, separator level control, and wellhead flow measurement demand both high accuracy and remote diagnostics. The IC695ALG626 enables HART pass-through to smart transmitters, reducing costly field service visits to remote or hazardous locations while keeping your PLC System fully informed of instrument health.

Power Generation — Thermal & Combined Cycle Plants: Boiler drum level, turbine exhaust temperature, and fuel flow are mission-critical measurements. The module’s robust isolation and configurable update rates (10ms 10s per channel) make it ideal for fast-response control loops in power plant Industrial Automation environments.

✅ Pharmaceutical & Life Sciences — Batch Process Control: FDA-regulated manufacturing requires validated, traceable measurement data. The IC695ALG626’s 16-bit precision and HART diagnostics support 21 CFR Part 11 compliance by providing instrument calibration records directly through the PLC System without manual intervention.

✅ Water & Wastewater Treatment: Integrate pH sensors, turbidity analyzers, dissolved oxygen probes, and flow transmitters into a unified RX3i control architecture. HART communication optimizes calibration scheduling and reduces unplanned downtime at treatment facilities.

✅ Automotive & Heavy Manufacturing: Monitor hydraulic pressures, coolant temperatures, and material flow rates across high-speed production lines. The hot-swap capability of this Spare Parts module minimizes production interruption during maintenance windows.

Core Features & Technical Advantages

• Integrated HART Communication: Superimposed HART protocol on 4-20mA loops — no external gateway required. Access device diagnostics, secondary variables, and calibration data directly through the RX3i backplane.
• 16-Bit Precision Resolution: ±32,768 counts with ±0.1% full-scale accuracy at 25°C — precision-grade measurement for critical process variables in DCS and SIS applications.
• High-Density I/O: 16 single-ended or 8 differential channels in a single backplane slot. Maximize rack density in space-constrained control panels.
• Robust 500V Isolation: Channel-to-backplane isolation protects against ground loops and electrical noise common in heavy industrial environments — a hallmark of Heavy-duty Industrial Automation design.
• Hot-Swappable Architecture: Replace this Control Module without system shutdown. Critical for continuous-process industries where downtime carries significant financial penalties.
• Flexible Input Ranges: Software-selectable ±10V, 0-10V, 0-20mA, and 4-20mA ranges adapt to diverse sensor types without hardware changes.
• Loop Power Supply: Each channel sources up to 30mA, powering two-wire HART transmitters directly — eliminating external loop power supplies.

Technical Specifications & Selection Guide

Selection Guide: Choose the IC695ALG626 when your application requires HART pass-through capability alongside standard analog input. For applications requiring only voltage/current input without HART, consider the IC695ALG608 (8-channel) or IC695ALG616 (16-channel non-HART) variants. Confirm your RX3i CPU firmware version is 6.0 or later to enable full HART functionality.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available: Stocked inventory enables same-day dispatch for orders placed before 3:00 PM (GMT+8). DHL, FedEx, and UPS express options available for global destinations.
• ✅ 1-Year Warranty: Every IC695ALG626 unit is covered by a 12-month warranty against manufacturing defects. Replacement or full refund guaranteed on confirmed defective units.
• ✅ EOL & Legacy System Support: We specialize in sourcing Original Spare Parts for end-of-life GE Fanuc PLC System components. If IC695ALG626 is discontinued or hard to find, our procurement team maintains global supplier networks to fulfill your order.
• ✅ Full Documentation Package: Certificate of Origin, test reports, and manufacturer datasheet provided upon request. Supports your incoming inspection and quality assurance processes.
• ✅ Fast Global Shipping: Serving customers in North America, Europe, Southeast Asia, Middle East, and beyond. Export documentation and customs support included.

FAQ — Frequently Asked Questions

Q1: What is the current price and availability of the IC695ALG626?
A: The IC695ALG626 is currently in stock and available for immediate shipment. Pricing varies based on order quantity and delivery urgency. Contact our sales team at sale@ninermas.com or via the inquiry form for a real-time quote. Volume discounts are available for orders of 5 units or more.

Q2: What is the lead time for the IC695ALG626?
A: For in-stock units, standard lead time is 1-3 business days for domestic shipments and 3-7 business days for international orders via express courier. For large-volume or custom procurement requirements, lead time is typically 2-4 weeks. We support urgent Industrial Automation shutdown and turnaround projects with priority fulfillment.

Q3: Can you provide a Certificate of Origin and datasheet for the IC695ALG626?
A: Yes. As an authorized distributor of Original Spare Parts, we provide the GE Fanuc IC695ALG626 datasheet, Certificate of Origin (COO), and inspection test reports upon request. These documents support your incoming quality control and regulatory compliance requirements for PLC System installations.

Q4: Is this IC695ALG626 unit 100% original and brand new?
A: Absolutely. Every unit we supply is 100% Original and Brand New, factory-sealed in original GE Fanuc packaging. We do not sell refurbished, repaired, or counterfeit components. Authenticity documentation is available for all shipments.

Q5: Is the IC695ALG626 compatible with both HART and standard 4-20mA devices simultaneously?
A: Yes. The module supports simultaneous operation — HART communication is superimposed on the 4-20mA analog signal without degrading measurement accuracy. Standard non-HART transmitters operate normally on the same module alongside HART-enabled smart instruments.

Q6: What programming software is required to configure HART parameters on the IC695ALG626?
A: HART configuration is performed through GE Proficy Machine Edition (PME) software using the HART add-on profile. PME provides full access to HART device diagnostics, secondary process variables, and calibration data within the RX3i Control Module environment.
