IC200ALG630-EC | GE VersaMax Thermocouple Input Module | Original Spare Parts

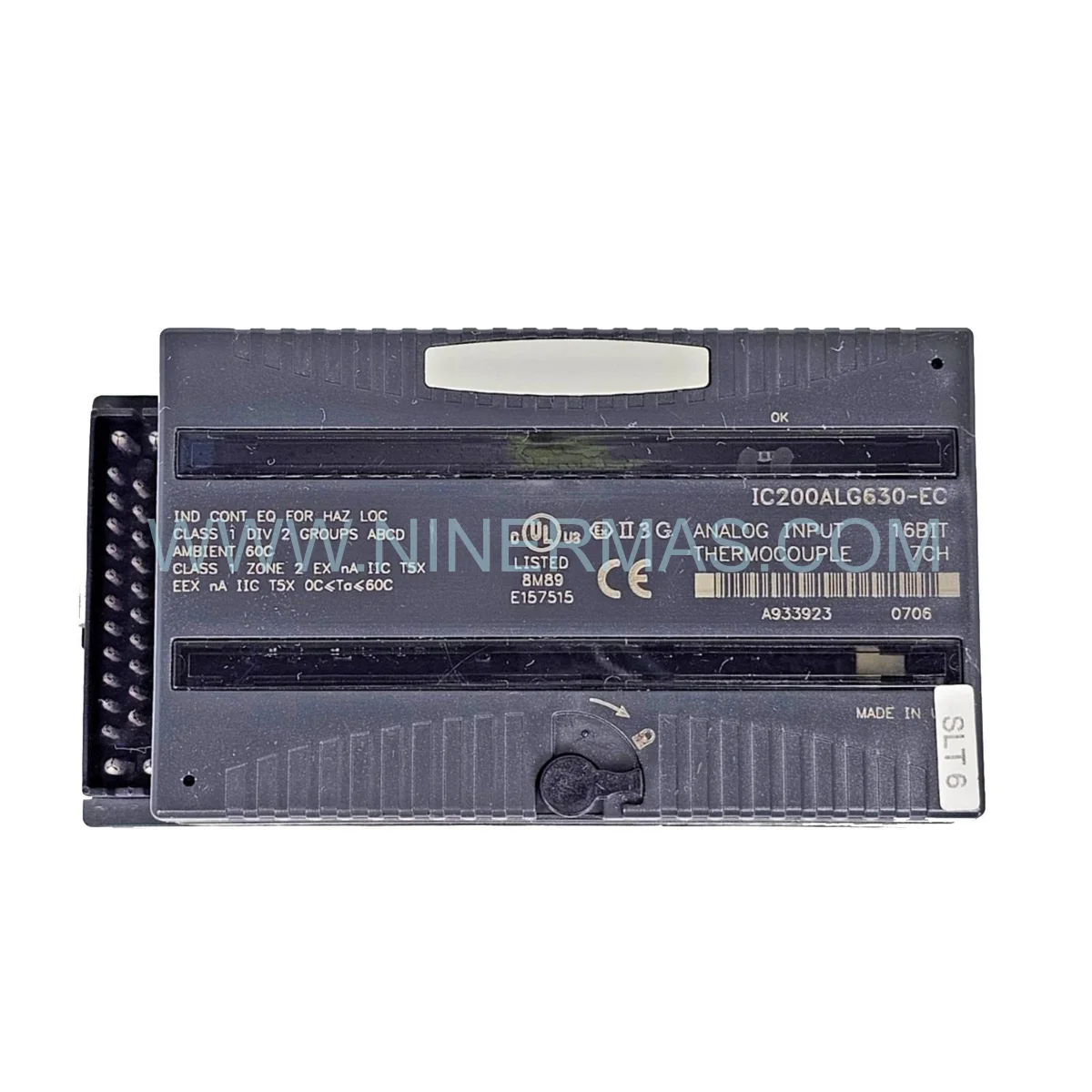

IC200ALG630-EC — GE VersaMax 7-Channel Thermocouple Input Module | Industrial-Grade Spare Parts

As a procurement manager sourcing critical components for process control infrastructure, finding a verified, factory-sealed analog input module is non-negotiable. The IC200ALG630-EC is a 7-channel thermocouple and millivolt analog input module engineered by General Electric for the VersaMax I/O platform — a cornerstone of modern PLC System architectures worldwide. This unit is 100% Brand New and Factory Sealed, sourced directly through authorized distribution channels to guarantee authenticity and full operational integrity upon installation.

Designed to address the precision demands of high-temperature industrial processes, the IC200ALG630-EC delivers 16-bit resolution across seven independent input channels, supporting thermocouple types J, K, T, S, and R, as well as ±100 mV millivolt inputs. Whether you are maintaining an aging Control Module in a legacy DCS environment or expanding a live PLC System, this Original New spare part eliminates the risk of counterfeit components that plague secondary markets. Its compatibility with the GE VersaMax I/O system — mounting on any IC200ACCxxx carrier base — makes it a plug-and-play solution for both greenfield and brownfield Industrial Automation projects.

Backed by a 1-year warranty and rapid global logistics, this module is the trusted choice for engineers who cannot afford downtime. Contact our team today for a fast quotation.

Typical Application Scenarios

The IC200ALG630-EC serves as a precision measurement backbone across multiple heavy industries:

• Oil & Gas: Monitors furnace and pipeline temperatures in upstream and downstream processing, where thermocouple accuracy directly impacts safety and yield. Replaces end-of-life (EOL) legacy modules without system redesign.
• Power Generation: Deployed in turbine inlet temperature monitoring and boiler control loops within coal, gas, and combined-cycle power plants. The module’s 250 V AC field-to-logic isolation protects the Control Module from high-voltage transients.
• Chemical & Petrochemical: Supports reactor temperature profiling in batch and continuous processes, where multi-channel thermocouple input and per-channel linearization are essential for product quality control.
• Pulp & Paper / Food Processing: Used in dryer section temperature management and pasteurization loop control, leveraging the module’s open-wire detection and CJC fault diagnostics to prevent undetected sensor failures.
• Water & Wastewater Treatment: Integrated into SCADA-linked PLC Systems for thermal monitoring of digester and heat exchanger processes, where robust Industrial Automation reliability is mandatory.

Core Features & Technical Advantages

• 7 Independent Input Channels — Simultaneous thermocouple (J, K, T, S, R) and ±100 mV millivolt measurement, selectable per channel for maximum flexibility in mixed-sensor environments.
• 16-Bit Resolution — Delivers ±0.5°C typical accuracy for thermocouple inputs and ±0.05% FSR for millivolt signals, meeting the precision requirements of critical process control loops.
• Robust Isolation Architecture — 250 V AC continuous and 1500 V AC (1-minute) field-to-logic isolation protects the PLC System backplane from industrial electrical noise and surge events.
• Precision Cold Junction Compensation (CJC) — Software-selectable local or remote CJC with ±1°C accuracy eliminates ambient temperature drift errors common in heavy-duty plant environments.
• Heavy-Duty Diagnostics Suite — Real-time detection of open-wire, overrange, underrange, CJC fault, and module fault conditions with upscale/downscale alarm outputs for fail-safe operation.
• Low Power Consumption — Draws only 125 mA at +5 V DC (0.625 W max) from the backplane, minimizing thermal load in densely populated I/O racks.
• Standards Compliant — Certified to IEC 61131-2, CE, UL, and CSA, ensuring global regulatory acceptance for Industrial Automation deployments.

Technical Specifications & Selection Guide

Selection Guide: Choose the IC200ALG630-EC when your application requires simultaneous multi-channel thermocouple measurement with per-channel type configuration, high isolation, and native integration into the GE VersaMax PLC System. For pure analog voltage/current input requirements, consider the IC200ALG230 or IC200ALG260 variants within the same VersaMax I/O family.

Logistics & Professional Service

• ✅ 2-Day Express Shipping Available — Air freight options to major global hubs including North America, Europe, Southeast Asia, and the Middle East. Emergency same-day dispatch supported for critical plant shutdowns.
• ✅ 1-Year Warranty — Every IC200ALG630-EC unit ships with a full 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
• ✅ EOL & Legacy System Support — Specializing in end-of-life (EOL) GE VersaMax Spare Parts, we maintain buffer stock of discontinued Control Module variants to support aging Industrial Automation infrastructure without costly system upgrades.
• ✅ Full Documentation Package — Datasheet, installation manual, and certificate of conformance available upon request. Country of origin documentation provided for customs clearance.
• 100% Original and Brand New — Each unit undergoes pre-shipment inspection. No refurbished, remarked, or counterfeit components. E-E-A-T compliant sourcing with full traceability.

FAQ — Frequently Asked Questions

Q1: What is the price of the IC200ALG630-EC and do you offer volume discounts?
Pricing for the IC200ALG630-EC is competitive and varies based on order quantity, delivery urgency, and destination. We offer tiered volume discounts for procurement orders of 5 units or more. Contact sale@ninermas.com with your required quantity and delivery timeline for a formal quotation within 24 hours. All prices are quoted FOB or CIF depending on your preference.

Q2: Is this module 100% original from General Electric?
Yes. Every IC200ALG630-EC we supply is 100% Original and Brand New, sourced through verified distribution channels. We provide a certificate of conformance and, upon request, original manufacturer packaging photos for pre-purchase verification. We do not deal in refurbished or remarked components.

Q3: Can you provide the official Datasheet for the IC200ALG630-EC?
Absolutely. The GE VersaMax IC200ALG630-EC datasheet (GFK-1504 series documentation) is available upon request. It covers all functional specifications, wiring diagrams, channel configuration parameters, and diagnostic register maps. Email sale@ninermas.com to receive the datasheet immediately.

Q4: What is the lead time for the IC200ALG630-EC?
For in-stock units, standard lead time is 2-5 business days for international shipments. Express 2-day air freight is available for urgent plant maintenance requirements. For large-volume orders or special configurations, lead time is confirmed at the time of quotation. We maintain safety stock of key GE VersaMax Spare Parts to support emergency procurement scenarios.

Q5: Is the IC200ALG630-EC compatible with all VersaMax carrier bases?
Yes. The IC200ALG630-EC is designed to mount on any GE VersaMax IC200ACCxxx series carrier base and is fully compatible with VersaMax CPU and NIU backplane configurations. It integrates natively into existing GE PLC System architectures without firmware modifications.

Q6: Do you support export to countries with strict import regulations?
Yes. We provide full export documentation including commercial invoice, packing list, certificate of origin, and HS code classification (8537.10) to facilitate smooth customs clearance in regulated markets including the EU, India, Brazil, and the Middle East.
