Honeywell 8C-TDODB1 51307151-175 Service-Ready Spare Part

Honeywell 8C-TDODB1 51307151-175 Service-Ready Spare Part: Minimising Downtime Risk in TDC 3000 Control Systems

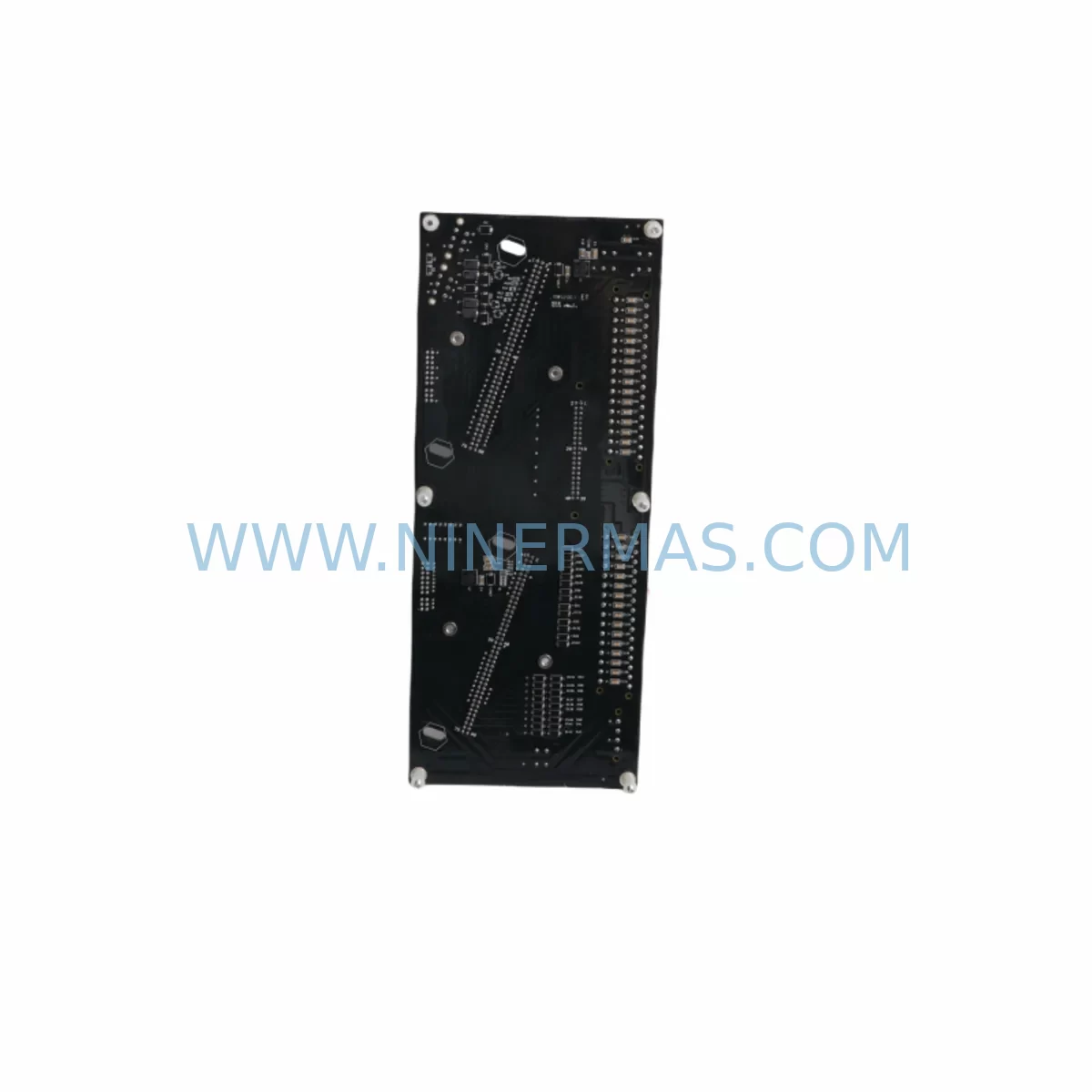

The Honeywell 8C-TDODB1 (P/N 51307151-175) is a Digital Output Board designed for use within the Honeywell TDC 3000 Distributed Control System — one of the most widely deployed DCS platforms in refining, petrochemical, power generation, and continuous process manufacturing. As legacy TDC 3000 infrastructure ages beyond its original design life, the availability of verified, service-ready spare parts like the 8C-TDODB1 becomes a critical factor in plant reliability strategy.

NINERMAS supplies this module as an original spare, pre-tested prior to shipment, and backed by a 12-month warranty. Whether you are responding to an unplanned fault, executing a scheduled annual turnaround, or building a strategic buffer stock for long-term system continuity, the 8C-TDODB1 is available for immediate dispatch with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a digital output fault is traced to the 8C-TDODB1 board, experienced maintenance engineers know that the fault rarely exists in isolation. The TDC 3000 architecture distributes I/O across a tightly coupled backplane and field wiring infrastructure, meaning that a failed DO board may be symptomatic of upstream or downstream stress on adjacent components.

During any replacement or inspection event involving the 8C-TDODB1, it is sound practice to simultaneously audit the following associated components:

• Honeywell 8C-TAIX11 Analog Input Module — shares the same IOP backplane slot architecture; cross-check for intermittent signal faults during the same maintenance window.
• Honeywell FTA (Field Termination Assembly) for DO circuits — the FTA wiring block is the most common point of contact degradation in aging TDC 3000 cabinets; inspect terminal torque and insulation integrity.
• TDC 3000 IOP Backplane / Card Cage — inspect backplane connector pins for oxidation or mechanical wear, particularly in high-vibration or high-humidity environments.
• Honeywell 51304485-100 Power Supply Module — verify that the 24 VDC rail supplying the DO board is within tolerance; voltage sag is a leading cause of spurious output trips.
• Honeywell 8C-PAONA1 Analog Output Module — if the control loop includes both discrete and analog outputs, inspect the AO module for drift or calibration deviation during the same outage.
• Relay Output Modules and Interposing Relays — downstream interposing relays driven by the 8C-TDODB1 outputs should be tested for coil resistance and contact integrity; relay failure can mask a healthy DO board.
• Fuse Blocks and Circuit Protection (e.g., Phoenix Contact or Weidmüller terminal fuse holders) — check all fuses on the DO output circuits; a blown fuse on a field circuit can simulate a board fault.
• Honeywell UCN / LCN Communication Cables — inspect coaxial or fibre UCN/LCN trunk cables for physical damage, especially where cables pass through cable trays near heat sources.
• Honeywell GUS / US (Universal Station / Global User Station) HMI — after DO board replacement, verify that the operator station correctly reflects output status; a stale display may indicate a communication or configuration issue rather than a hardware fault.
• Signal Isolators and Barriers on DO Circuits — in hazardous area installations, Zener barriers or galvanic isolators in the DO signal path should be inspected for degradation, particularly if the plant operates in Zone 1 or Zone 2 classified areas.

Proactive inspection of these components during a planned 8C-TDODB1 replacement significantly reduces the probability of a secondary unplanned outage within the same maintenance cycle — a key consideration for plants operating on extended turnaround intervals of 2–4 years.

Site Replacement Workflow

Replacing the Honeywell 8C-TDODB1 51307151-175 in a live TDC 3000 system requires a structured approach to minimise control disruption and ensure full system restoration. The following workflow reflects best practice for maintenance engineers executing a field replacement:

1. Pre-Replacement Verification: Confirm the fault is isolated to the 8C-TDODB1 by reviewing the TDC 3000 system alarm log and performing a point-by-point output status check via the operator station. Document all active output states before proceeding.
2. Compatibility Confirmation: Verify that the replacement 8C-TDODB1 (P/N 51307151-175) matches the firmware revision and hardware revision of the installed unit. NINERMAS provides full part number and revision documentation with each shipment.
3. Safe State Preparation: Place affected control loops in manual mode at the operator station. Notify operations of the planned output interruption. Confirm that any interlock or safety function driven by the affected DO channels is bypassed or held in a safe state per site MOC procedures.
4. Physical Replacement: Power down the card cage slot if hot-swap is not supported in the installed configuration. Remove the faulty 8C-TDODB1 by releasing the card ejector levers. Insert the replacement board, ensuring full backplane connector engagement. Restore power to the slot.
5. Post-Replacement Functional Test: Force each output channel from the operator station and verify field device response. Confirm that all output status indications on the GUS/US display are correct. Check for any new system alarms generated during the restoration sequence.
6. Return to Automatic: Return all affected control loops to automatic mode. Monitor for 15–30 minutes to confirm stable operation. Update the maintenance record with the replacement date, part number, and technician details.

This structured approach is compatible with both planned turnaround replacements and emergency fault recovery scenarios, and is designed to minimise mean time to restore (MTTR) for TDC 3000 digital output faults.

Spare Parts Support FAQ

Q1: How long is the warranty on the Honeywell 8C-TDODB1 51307151-175 supplied by NINERMAS?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to dispatch to verify output channel functionality and backplane interface integrity.

Q2: Can NINERMAS support long-term or scheduled supply of the 8C-TDODB1 for multi-year maintenance programmes?
Yes. NINERMAS supports long-term spare parts programmes for TDC 3000 and other legacy DCS platforms. We can reserve stock, provide scheduled delivery against annual maintenance plans, and issue framework agreements for multi-unit procurement. Contact sale@ninermas.com to discuss your site’s specific requirements.

Q3: How is compatibility with my installed TDC 3000 system verified before shipment?
NINERMAS verifies compatibility based on the full part number (8C-TDODB1) and reference number (51307151-175) provided by the customer. We cross-reference against Honeywell TDC 3000 hardware revision records and can provide documentation confirming the hardware and firmware revision of the unit prior to shipment. Customers are advised to confirm the installed revision from their existing unit’s label before ordering.

Q4: What is the typical lead time, and what pre-shipment testing is performed?
In-stock units are available for same-day or next-business-day dispatch. Each unit undergoes functional output testing prior to shipment. NINERMAS provides a test report and packing list with each order. For urgent plant recovery situations, expedited shipping options are available — contact us directly at +0086 187 5021 5667 for emergency supply coordination.
