Honeywell 8C-PAON01 51454357-175 Service-Ready Spare Part

Honeywell 8C-PAON01 51454357-175 Service-Ready Spare Part for Industrial Maintenance

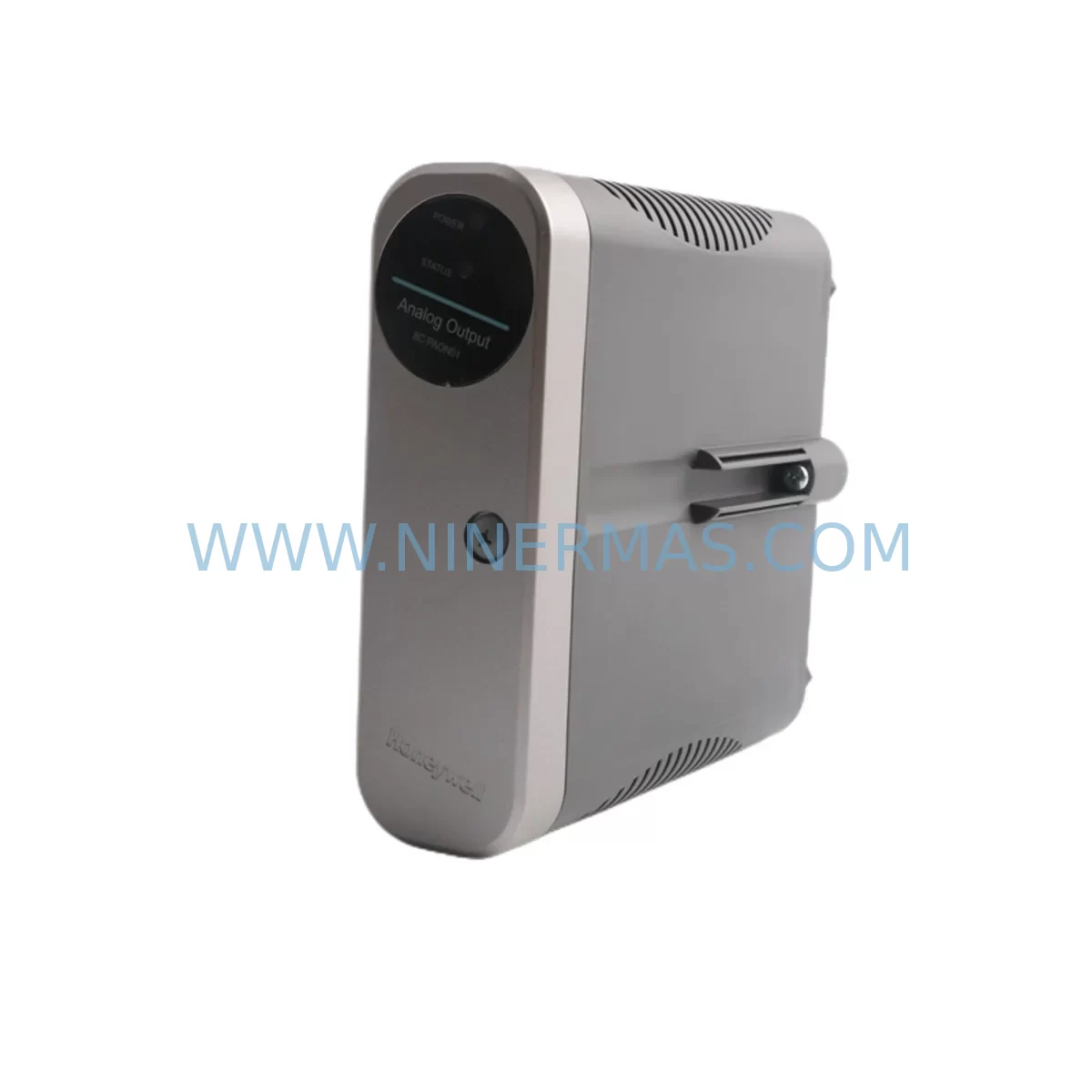

The Honeywell 8C-PAON01 (Part No. 51454357-175) is a ruggedized analog output module designed for demanding industrial automation environments. As a critical component within the Honeywell Experion PKS and C300 controller series, this module delivers precision analog signal output for process control loops, valve positioners, and field instrumentation. Maintaining a verified spare of the 8C-PAON01 in your on-site inventory is a proven strategy for minimizing unplanned downtime and accelerating fault recovery in continuous process industries including oil & gas, petrochemical, power generation, and advanced manufacturing.

At NINERMAS, every 8C-PAON01 51454357-175 unit is sourced from authorized supply channels, inspected prior to dispatch, and shipped with a 12-month warranty. Our global logistics network supports urgent spare part requirements, ensuring that maintenance engineers and procurement teams can restore production continuity without extended lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault or signal anomaly traced to the 8C-PAON01 analog output module, the replacement workflow rarely ends with the module alone. A thorough site inspection and preventive replacement strategy should encompass the full signal chain and associated cabinet components to prevent repeat failures and ensure long-term system stability.

Begin by verifying the integrity of the C300 Controller module itself – the 8C-PAON01 communicates directly over the C300 backplane, and a degraded controller can cause cascading output faults that mimic module failure. Simultaneously, inspect the IOTA (I/O Termination Assembly) for the affected slot; corroded terminals or damaged field wiring connections on the IOTA are a common root cause of analog output drift and should be replaced as a paired unit with the module where possible.

Field wiring connected to the 8C-PAON01’s 4-20 mA output loops should be tested for insulation resistance and loop continuity. Faulty field junction boxes, deteriorated shielded instrumentation cables, or failed loop-powered transmitters can all generate fault conditions that are incorrectly attributed to the output module. Ensure that signal isolators or galvanic isolation barriers installed between the module and field devices are within specification, as these components protect the module from ground loops and transient surges.

Within the control cabinet, inspect the 24 VDC power supply module supplying field-side power to the I/O rack. Voltage sag or ripple on the field power bus is a leading cause of premature analog output module failure. If the cabinet houses a redundant power supply pair, verify that the automatic changeover relay and associated diode ORing module are functioning correctly. Check terminal blocks and DIN rail-mounted fuse holders for signs of overheating or loose connections, particularly on high-density I/O marshalling panels.

For sites running Honeywell Experion PKS with FTE (Fault Tolerant Ethernet) network infrastructure, confirm that the FTE switch modules and associated fiber or copper patch cables serving the I/O cabinet are operating without packet loss. Communication errors at the network layer can cause the C300 to report spurious module faults. Additionally, review the Series C I/O backplane for physical damage, and confirm that all module locking levers are fully engaged to ensure proper backplane connector seating.

Procurement engineers should consider stocking a minimum of one spare 8C-PAON01 51454357-175 per control system cluster, alongside complementary spares such as the 8C-TAOX12 analog output IOTA and relevant C300 controller modules, to support rapid swap-out during planned or emergency maintenance windows. A well-structured spare parts inventory aligned to your system’s bill of materials significantly reduces mean time to repair (MTTR) and supports long-term asset life extension for legacy Experion PKS installations.

Site Replacement Workflow

Step 1 – Preparation and Safety Isolation: Before removing the 8C-PAON01, place the affected control loops in manual mode at the operator workstation (Experion Station or HMI). Notify the process control team and document the current output values for all 8 channels. Isolate field-side power to the IOTA if required by your site LOTO procedure.

Step 2 – Module Removal: Disengage the module locking lever on the C300 I/O rack. Slide the 8C-PAON01 straight out from the backplane slot. Avoid touching the backplane connector pins. Place the removed module in an ESD-safe bag for return or failure analysis.

Step 3 – Inspection and Cleaning: Inspect the backplane slot and IOTA terminal connections for contamination, corrosion, or physical damage. Clean with approved electronics-grade contact cleaner if necessary. Verify that the replacement 8C-PAON01 51454357-175 firmware revision is compatible with your C300 controller version.

Step 4 – Module Installation: Insert the replacement 8C-PAON01 into the correct backplane slot. Engage the locking lever fully. Restore field-side power. The C300 controller will automatically detect and configure the new module; allow up to 60 seconds for initialization and self-test to complete.

Step 5 – Verification and Return to Auto: Confirm that all 8 output channels report healthy status in Experion Control Builder or the system diagnostic display. Verify output signal values at the field device using a calibrated loop calibrator. Once all channels are confirmed operational, return control loops to automatic mode and document the replacement in your CMMS.

Spare Parts Support FAQ

Q1: Is the Honeywell 8C-PAON01 51454357-175 compatible with all Experion PKS C300 controller revisions?
The 8C-PAON01 is designed for use within the Honeywell Experion PKS Series C I/O architecture and is compatible with C300 controller revisions commonly deployed in process industry DCS installations. For sites running older C200 or newer C300E controllers, compatibility should be verified against the Honeywell Experion PKS I/O compatibility matrix. NINERMAS technical support can assist with compatibility confirmation prior to order placement.

Q2: What pre-shipment testing does NINERMAS perform on the 8C-PAON01?
Every 8C-PAON01 51454357-175 unit dispatched by NINERMAS undergoes visual inspection, connector integrity verification, and functional testing where test equipment is available. Units are packed in ESD-safe packaging with desiccant to prevent moisture ingress during transit. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How should the 8C-PAON01 be managed within a long-term spare parts inventory strategy?
For critical process control systems, industry best practice recommends maintaining at least one cold spare per I/O rack cluster, with rotation on a 3-5 year cycle to prevent storage-related degradation. The 8C-PAON01 should be stored in a climate-controlled environment (15-30 degrees C, less than 70% RH, non-condensing) in its original ESD packaging. Annual inventory audits should verify that spare modules remain within their recommended storage life and that firmware versions remain compatible with the live system.

Q4: Can NINERMAS support long-term or repeat supply of the 8C-PAON01 for multi-site maintenance programs?
Yes. NINERMAS maintains established sourcing relationships to support repeat and bulk procurement of Honeywell Experion PKS spare parts including the 8C-PAON01 51454357-175. We offer flexible order quantities, consolidated shipment options, and dedicated account support for maintenance contractors and end-user procurement teams managing multi-site DCS maintenance programs. Contact our team to discuss framework agreements and lead time commitments.
