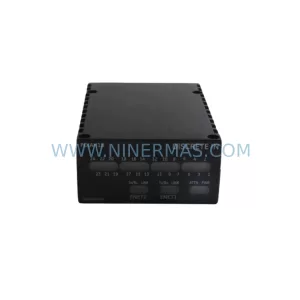

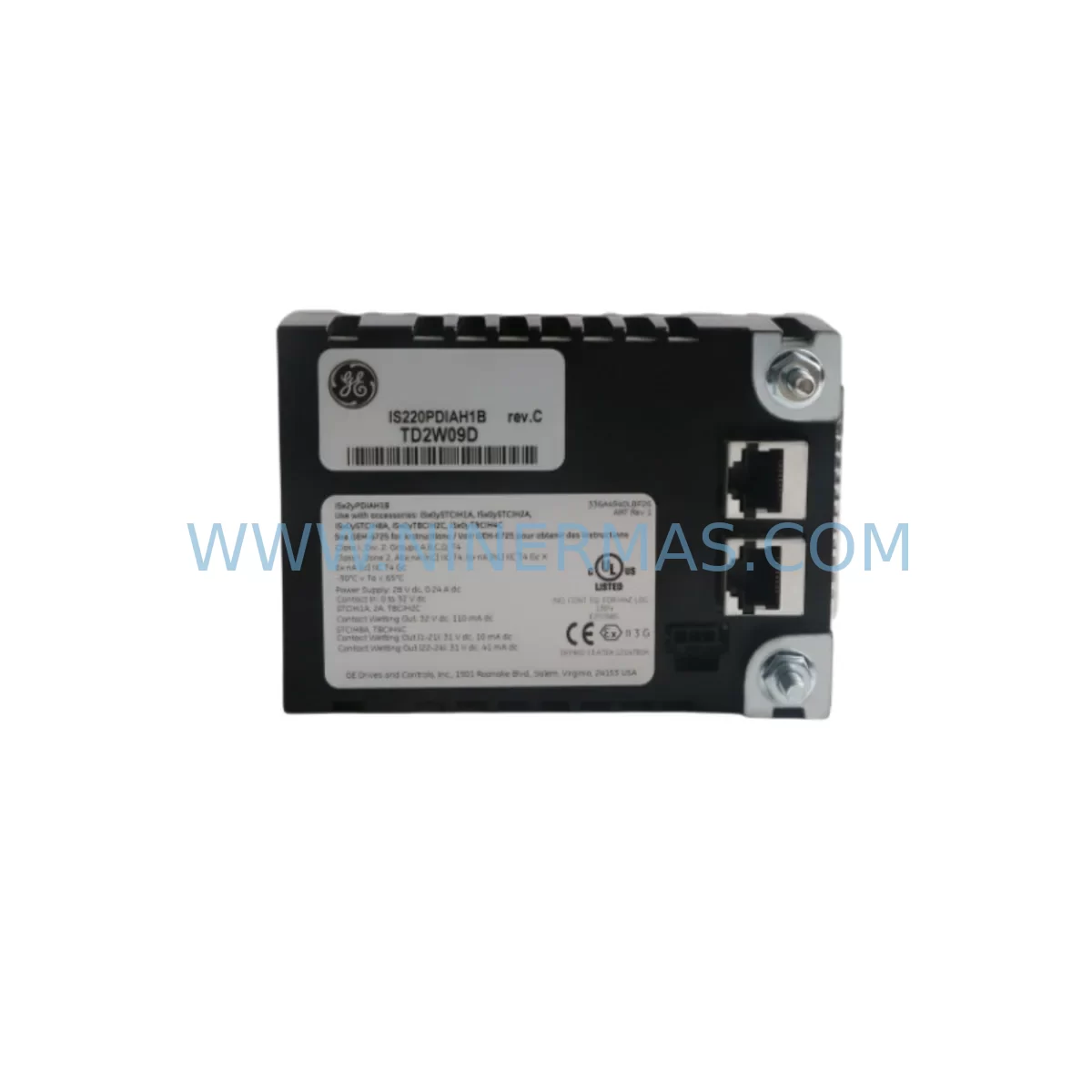

GE IS220PDIAH1B Retrofit-Compatible DI Module for Mark VI

GE IS220PDIAH1B Retrofit-Compatible Digital Input Module for Mark VI Legacy Systems

The GE IS220PDIAH1B is a digital input (DI) module designed for the GE Mark VI Turbine Control System, one of the most widely deployed control platforms in power generation, oil & gas, and heavy industrial environments. As the Mark VI platform approaches end-of-life support milestones, plant engineers and reliability teams are actively seeking verified retrofit-compatible replacements that allow continued operation without a full DCS migration. The IS220PDIAH1B addresses this need directly — providing a functionally equivalent, pre-tested drop-in module that preserves existing I/O wiring, backplane connections, and program logic without requiring re-engineering of the control cabinet.

NINERMAS maintains in-stock inventory of the IS220PDIAH1B to support unplanned outages, scheduled turnarounds, and long-term spare parts programs. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty, ensuring your procurement team can commit to lifecycle extension plans with confidence.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IS220PDIAH1B within an operating Mark VI control system requires a structured approach that accounts for the interdependencies between I/O modules, power distribution, communication links, and the supervisory control layer. Before initiating a swap, the maintenance team should audit the IS200 series rack configuration to confirm available slot positions and verify that the IS200EPSMG power supply module is delivering stable +28 VDC to the I/O pack rail. Insufficient power headroom is a common cause of post-replacement instability, particularly in racks that have been expanded with additional I/O packs over time.

Terminal wiring documentation should be reviewed against the original IS220PDIAH1B field wiring diagram. Each digital input channel connects through a dedicated terminal block, and the common reference (COM) must be correctly tied to the field device ground to prevent false signal states. In legacy installations, terminal block corrosion or loose ferrules are frequently discovered during this review — addressing these issues during the planned replacement window avoids secondary faults after commissioning.

The IS220PDIAH1B communicates with the Mark VI controller over the IONet protocol, which is managed by the IS215UCVEH2A or IS215UCVEH2B VME controller card. Before removing the existing module, confirm that the IONet node address assigned to the IS220PDIAH1B slot is documented in the ToolboxST configuration. If the replacement module is installed in the same physical slot, the address is preserved automatically and no logic re-download is required. If the slot position changes, the ToolboxST project must be updated and a controlled download performed during a maintenance window.

For plants running redundant Mark VI configurations (TMR — Triple Modular Redundancy), the IS220PDIAH1B may be installed in R, S, and T racks simultaneously. In this case, the replacement sequence must follow the TMR voting logic: replace one module at a time, verify signal agreement across all three channels using the Mark VI diagnostic display, and only proceed to the next module after confirming healthy voting status. The IS215VCMIH2B communication module and IS200TREGH1B terminal board are commonly involved in TMR DI configurations and should be inspected for contact wear during the same maintenance event.

HMI integration — whether through GE Cimplicity, iFIX, or a third-party SCADA platform — is not affected by a transparent IS220PDIAH1B replacement. The digital input tags mapped to this module retain their addresses, and no screen modifications are required. However, if the plant is simultaneously migrating from a legacy HMI to a modern SCADA platform, this replacement window provides an opportunity to validate tag mapping and confirm that all DI signals are correctly reflected in the new operator interface before the cutover.

For sites planning a broader migration from Mark VI to Mark VIe, the IS220PDIAH1B can serve as a bridging component during the phased transition. The Mark VIe platform uses IS420 series I/O packs, and signal migration typically involves installing IS420YDOAS1B analog output or IS420UCSCH1A controller modules in parallel with the existing Mark VI rack, allowing engineers to validate the new control logic against live process signals before decommissioning the legacy system. Maintaining a healthy stock of IS220PDIAH1B modules during this transition period ensures that the legacy Mark VI system remains operational and does not become the critical path for the migration schedule.

Downtime Control During System Migration

Minimizing unplanned downtime during a Mark VI digital input module replacement begins with pre-staging the IS220PDIAH1B before the maintenance window opens. NINERMAS ships from in-stock inventory with standard lead times of 3–7 business days, and expedited shipping is available for emergency outage support. Having the replacement module on-site and bench-verified before the planned outage eliminates the most common source of extended downtime: waiting for parts.

The replacement procedure for the IS220PDIAH1B is designed to be completed within a single shift. The module is hot-swap capable in non-TMR configurations, meaning the Mark VI controller continues to execute the turbine control program while the module is being exchanged. Field engineers should confirm hot-swap eligibility in the ToolboxST I/O configuration before proceeding, as certain I/O pack types require a controlled shutdown of the associated I/O pack power rail.

Original program logic is fully preserved during a transparent module replacement. The ToolboxST application running on the Mark VI controller does not require re-download unless the module address or I/O pack type changes. This is a critical advantage over full system migrations, where program conversion, logic validation, and operator retraining can extend the migration timeline by weeks or months. By maintaining the IS220PDIAH1B as a like-for-like replacement, the plant retains its existing control logic, alarm setpoints, permissive sequences, and trip functions without modification.

Post-replacement commissioning should include a channel-by-channel verification of all digital input signals using the Mark VI diagnostic display or ToolboxST online monitoring. Each DI channel should be exercised through its full operating range — open and closed contact states — to confirm correct signal reception and proper mapping to the control logic. Any discrepancies should be resolved before returning the turbine or process unit to service. NINERMAS provides technical support during commissioning for customers who require assistance with diagnostic interpretation or ToolboxST configuration review.

Retrofit Support FAQ

Q1: Is the IS220PDIAH1B a direct drop-in replacement for the IS220PDIAH1A?
Yes. The IS220PDIAH1B is the current revision of the IS220PDIAH1A and is fully backward compatible. The module installs in the same backplane slot, uses the same terminal wiring, and requires no changes to the ToolboxST configuration when replacing an IS220PDIAH1A in the same slot position.

Q2: What pre-shipment testing is performed on the IS220PDIAH1B?
Each IS220PDIAH1B unit is functionally tested prior to shipment. Testing includes power-on verification, channel-by-channel digital input signal simulation, and backplane communication confirmation. A test report is available on request. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can the IS220PDIAH1B be installed without shutting down the Mark VI controller?
In standard (non-TMR) Mark VI configurations, the IS220PDIAH1B supports hot-swap replacement. The Mark VI controller continues to execute the control program during the module exchange. For TMR configurations, a controlled single-channel replacement sequence is required to maintain voting integrity. Confirm hot-swap eligibility in ToolboxST before proceeding.

Q4: What is the lead time and inventory availability?
NINERMAS maintains in-stock inventory of the IS220PDIAH1B to support both planned maintenance and emergency outage requirements. Standard lead time is 3–7 business days. Expedited shipping is available for critical outage situations. Contact our team to confirm current stock levels and arrange priority dispatch.
