GE IC694MDL645D Service-Ready Spare Part for Industrial Maintenance

GE IC694MDL645D Service-Ready Spare Part for Industrial Maintenance

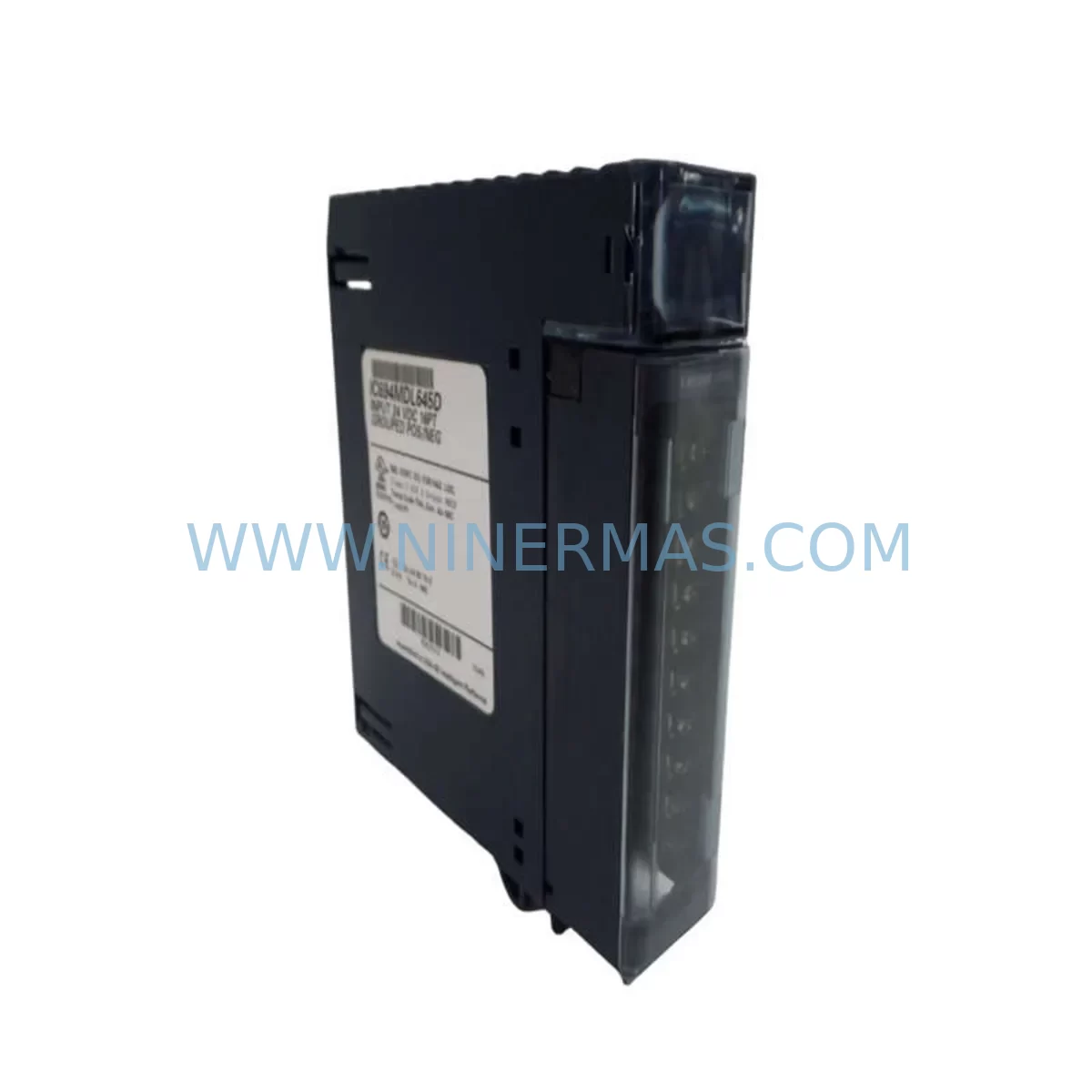

The GE IC694MDL645D is a ruggedized 32-point discrete input module engineered for the GE Fanuc Series 90-30 PLC platform. Rated for harsh industrial environments, this module delivers reliable 24 VDC field-side signal acquisition across demanding applications including automotive assembly, chemical processing, water treatment, and heavy manufacturing. When a discrete input module fails or degrades, the downstream impact is immediate — production lines halt, fault diagnostics become unreliable, and maintenance windows extend. Stocking a verified, service-ready IC694MDL645D spare eliminates that risk and restores system integrity within a single shift.

At NINERMAS, every IC694MDL645D unit is sourced from authorized supply chains, inspected against OEM electrical specifications, and dispatched with a 12-month warranty. Our long-term spare parts program ensures continuous availability for legacy Series 90-30 systems — even as OEM production winds down — supporting your lifecycle extension strategy and procurement risk control.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A discrete input module failure rarely occurs in isolation. When the IC694MDL645D is flagged during a fault diagnostic or routine control cabinet inspection, experienced maintenance engineers treat it as a trigger to audit the surrounding electrical circuit and PLC rack. The following components should be evaluated concurrently to prevent repeat downtime and ensure a complete restoration of system integrity.

Begin with the IC694PWR321 or IC694PWR330 power supply module seated in the same rack. A degraded power supply delivering marginal 5 VDC backplane voltage is a common root cause of intermittent input read errors that are misdiagnosed as module failure. Verify output voltage under load before condemning the input module itself.

Next, inspect the IC694CHS392 or IC694CHS398 backplane chassis. Connector pin corrosion, cracked slot guides, or backplane trace damage — particularly in high-vibration environments — can cause sporadic I/O faults that follow the module slot rather than the module itself. Swapping the IC694MDL645D into a known-good slot during diagnostics is standard practice.

Field wiring termination blocks and terminal strips connected to the 40-pin I/O connector should be inspected for loose crimps, oxidized contacts, and insulation breakdown. In harsh environments, terminal block degradation is a leading cause of false input states. Replace any suspect terminal assemblies as part of the same maintenance event.

If the system uses a IC694MDL654 or IC694MDL660 discrete output module in the same control loop, verify its output driver integrity. A shorted output driving a field device can back-feed voltage into the input circuit, stressing the IC694MDL645D beyond its rated input threshold and accelerating failure.

For systems with IC694ALG220 or IC694ALG232 analog input modules sharing the same rack, confirm that analog signal ground references are properly isolated. Ground loops between analog and discrete circuits are a known source of noise-induced input faults in mixed-signal Series 90-30 racks.

Communication health should also be verified. The IC694CMM302 or IC694CMM321 communications module handles Ethernet or serial data exchange with SCADA and HMI systems. A communication module fault can mask I/O scan errors or generate false fault logs that complicate root-cause analysis. Confirm communication module status LEDs and network connectivity before closing the maintenance record.

Where the system interfaces with an HMI panel — such as a QuickPanel or third-party operator terminal — verify that the HMI tag database correctly maps to the IC694MDL645D input addresses post-replacement. Address remapping errors after module swap are a common source of post-maintenance production incidents.

Finally, review the IC694ACC300 hand-held programmer or programming software backup to confirm that the I/O configuration table reflects the correct module type and slot assignment. An outdated configuration file loaded after a module replacement can cause the CPU to report a hardware mismatch fault and refuse to enter RUN mode.

Maintaining a minimum stock of two IC694MDL645D units per production line — alongside matched spares for the power supply, backplane, and communications module — is the recommended inventory posture for facilities operating legacy Series 90-30 systems beyond OEM support lifecycle.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the IC694MDL645D, document the current I/O map, record all input point LED states, and capture a screenshot or printout of the PLC fault table. This baseline is essential for post-replacement validation.

Step 2 — Safe isolation: Place the CPU in STOP mode via the programming terminal or keyswitch. De-energize field-side 24 VDC supply to the module’s input circuit. Do not rely solely on the CPU STOP state — field voltage must be independently isolated to protect personnel and the replacement module.

Step 3 — Module extraction: Disconnect the 40-pin field wiring connector. Release the module locking tab and slide the IC694MDL645D out of the backplane slot. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit.

Step 4 — Replacement insertion: Align the new IC694MDL645D with the backplane slot guides and seat firmly until the locking tab engages. Reconnect the 40-pin field wiring connector, verifying wire-to-terminal correspondence against the documented I/O map.

Step 5 — Power-up and validation: Restore field-side 24 VDC supply. Return the CPU to RUN mode. Verify that all 32 input point LEDs reflect correct field device states. Confirm no new fault codes appear in the PLC fault table. Perform a functional test of each input point by actuating the corresponding field device and observing the HMI or programming terminal response.

Step 6 — Documentation and stock replenishment: Log the replacement event in the maintenance management system with the module serial number, slot location, fault description, and post-replacement test results. Immediately initiate a purchase order to replenish the consumed spare, maintaining your minimum stock level.

This workflow minimizes mean time to repair (MTTR), ensures system compatibility is preserved, and supports audit-ready maintenance documentation — critical for ISO 9001 and IEC 62443 compliance environments.

Spare Parts Support FAQ

Q1: Is the IC694MDL645D still available as a new original spare part?
Yes. NINERMAS maintains long-term inventory of the IC694MDL645D sourced from authorized distribution channels. As GE Fanuc Series 90-30 approaches end-of-life support, securing multi-unit stock through a committed spare parts program is strongly recommended. Contact our team to discuss annual blanket orders and reserved inventory arrangements that protect your production continuity.

Q2: How do I verify compatibility before installation?
The IC694MDL645D is compatible with all standard and ruggedized Series 90-30 backplane chassis variants, including 5-slot, 10-slot, and 12-slot configurations. Confirm your CPU firmware revision supports the module type code — this is visible in the I/O configuration table of your programming software (Proficy Machine Edition or Logicmaster 90). NINERMAS technical support can assist with compatibility verification prior to shipment.

Q3: What pre-shipment testing does NINERMAS perform on spare modules?
Every IC694MDL645D unit undergoes electrical continuity testing, optical isolation verification, and LED function check before dispatch. Units are packaged in anti-static ESD bags with protective foam inserts. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and electrical failure under normal operating conditions.

Q4: What is the recommended spare parts stocking strategy for Series 90-30 systems?
For facilities operating three or more Series 90-30 racks, NINERMAS recommends maintaining a minimum of two IC694MDL645D units on-site, supplemented by at least one spare power supply module and one spare CPU. For critical production lines with no redundancy, a hot-standby spare stored in the control room is best practice. Our long-term supply program offers price-locked annual contracts with guaranteed lead times, eliminating procurement risk as the module approaches market scarcity.
