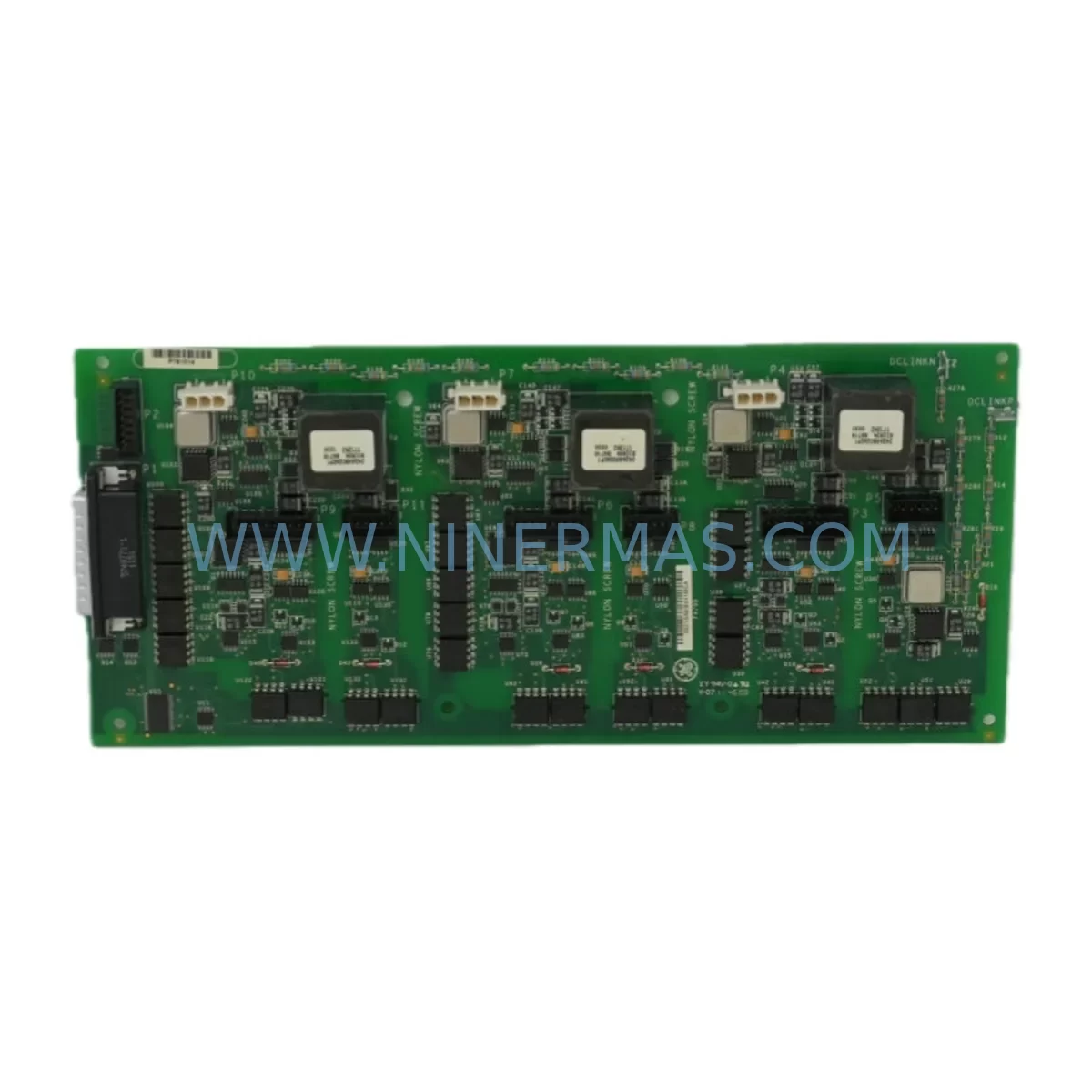

GE IS2100WETBH1B Retrofit-Compatible Control Module

GE IS2100WETBH1B Retrofit-Compatible Control Module: Legacy System Compatibility & Smooth Upgrade Path

The GE IS2100WETBH1B is a ruggedized control module engineered for demanding industrial environments and is widely deployed as a retrofit-compatible replacement within GE Mark V turbine control systems and related legacy automation platforms. As original equipment manufacturers discontinue support for aging control architectures, the IS2100WETBH1B has become a critical component for facilities seeking to extend the operational life of their existing control infrastructure without committing to a full system overhaul. Whether you are managing a gas turbine control panel, a legacy DCS cabinet, or a hybrid PLC-based control system, this module provides the compatibility, reliability, and field-proven performance required for mission-critical retrofit projects.

When planning a retrofit around the IS2100WETBH1B, engineers and maintenance teams must carefully evaluate several key parameters before committing to installation. Power supply capacity is the first checkpoint — the existing backplane or rack must be able to deliver stable DC voltage within the module’s specified operating range. Facilities running older GE Mark V racks should verify that the power supply module, such as the IS200EPSMG1A or equivalent, can sustain the additional load introduced by the replacement module without causing voltage sag or tripping protective circuits.

Terminal wiring compatibility is the next critical consideration. The IS2100WETBH1B uses a defined I/O terminal layout, and technicians must cross-reference the original wiring diagrams against the replacement module’s pinout to confirm signal mapping. In many legacy installations, field wiring was terminated on marshalling panels connected to the original I/O modules via ribbon cables or direct terminal blocks. Any mismatch in signal polarity, grounding scheme, or shielding practice can introduce noise or cause erratic behavior in the control loop. It is strongly recommended to perform a point-to-point continuity check before energizing the replacement module.

Backplane interface and module addressing must also be confirmed. The IS2100WETBH1B is designed to seat into a specific slot within the GE Mark V rack assembly. Slot addressing, which determines how the controller identifies and communicates with the module, must be configured to match the original module’s address. Failure to set the correct module address will result in the controller failing to recognize the replacement, generating fault codes, and potentially triggering a system shutdown. Technicians should document the original slot configuration before removal and replicate it exactly during installation.

Program compatibility is another area that requires careful attention. The application logic running on the Mark V controller — including ladder logic, function block diagrams, and sequence of events programming — must be verified against the I/O map of the IS2100WETBH1B. In cases where the original module supported specific diagnostic or status bits that are referenced in the control program, the replacement module must provide equivalent signal outputs. If discrepancies exist, the application program may require minor modifications, which should be tested in a simulation environment before being deployed to the live system.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the IS2100WETBH1B requires a structured approach that accounts for the full scope of the control system architecture. In a typical GE Mark V installation, the control system consists of multiple racks housing a combination of processor modules, I/O modules, power supply modules, and communication modules. The IS2100WETBH1B typically operates alongside components such as the IS200VCRCH1B voter card, the IS200TREGH1B terminal board, and the IS200BICLH1B contact input module. Each of these components plays a role in the overall control loop, and the retrofit plan must account for the interaction between the replacement module and its neighbors in the rack.

Communication protocol migration is a common challenge in legacy system retrofits. Many older GE Mark V installations rely on ARCNET or proprietary serial communication links to exchange data between the controller and remote I/O panels, HMI workstations, and historian servers. When replacing a module that participates in this communication chain, technicians must verify that the IS2100WETBH1B supports the same communication parameters — baud rate, node address, and message format — as the original module. In some cases, a communication interface module such as the IS200ICBDH1A may need to be reconfigured or replaced to maintain data integrity across the network.

I/O expansion requirements should also be assessed during the retrofit planning phase. If the original control system was operating near its I/O capacity, the retrofit presents an opportunity to evaluate whether additional I/O modules — such as analog input modules or digital output modules from the IS200 series — should be added to the rack to support future process improvements. This is particularly relevant in facilities that are simultaneously upgrading their field instrumentation or adding new measurement points to the process.

HMI screen compatibility is often overlooked during module-level retrofits. The operator interface screens that display process variables, alarm states, and control outputs are typically configured with tag names and addresses that correspond to specific module slots and I/O points. When the IS2100WETBH1B is installed as a replacement, the HMI configuration must be reviewed to ensure that all referenced tags remain valid. In systems using GE Cimplicity or similar SCADA platforms, this may require updating the I/O server configuration and performing a full tag validation before returning the system to service.

Signal isolation is another consideration in environments with high electrical noise, such as those found near large motors, variable frequency drives, or high-voltage switchgear. Installing signal isolators between the field wiring and the IS2100WETBH1B’s input terminals can significantly improve signal quality and reduce the risk of spurious trips or erroneous readings. DIN-rail mounted signal conditioners are commonly used in these applications and can be installed within the existing control cabinet without requiring significant modifications to the panel layout.

Programming cables and software tools are required for any configuration changes to the Mark V controller following the module replacement. The GE Mark V Toolbox software, accessed via a dedicated programming cable connected to the controller’s serial port, is the standard tool for verifying module configuration, downloading updated application programs, and performing diagnostic checks. Technicians should ensure that the programming cable and software version are compatible with the specific Mark V controller revision installed at the facility.

Downtime Control During System Migration

Minimizing downtime during a module-level retrofit is a primary concern for any facility operating continuous processes. The IS2100WETBH1B retrofit can typically be completed within a planned maintenance window if the preparation work is thorough. The key to a fast, low-risk swap is pre-staging: the replacement module should be bench-tested and configured before the maintenance window begins, so that the actual installation is limited to physical removal, insertion, and verification steps.

Protecting the original application program logic is essential. Before removing the existing module, a full backup of the controller program should be taken using the Mark V Toolbox software and stored on a secure, offline medium. This backup serves as the recovery baseline in the event that the retrofit encounters unexpected compatibility issues. In facilities with redundant control systems, the retrofit can often be performed on one controller while the redundant controller maintains process control, further reducing the risk of unplanned process interruption.

Field control continuity can be maintained during the module swap by placing the affected control loops in manual mode at the DCS or HMI level before beginning the physical replacement. Operators should be briefed on the expected duration of the maintenance window and the manual control procedures for the affected loops. Clear communication between the maintenance team and the control room is critical to ensuring that any unexpected issues are identified and addressed quickly.

Post-installation commissioning should follow a structured checklist that includes power-up verification, module status LED check, communication link confirmation, I/O point verification against the field wiring schedule, and a functional test of each control loop served by the IS2100WETBH1B. Any discrepancies identified during commissioning should be documented and resolved before the system is returned to automatic control. The 12-month warranty provided with the IS2100WETBH1B covers manufacturing defects and ensures that any module-level failures identified during the commissioning period will be addressed without additional cost to the facility.

Retrofit Support FAQ

Q: Is the IS2100WETBH1B a direct drop-in replacement for the original module in a GE Mark V rack?
A: The IS2100WETBH1B is designed as a retrofit-compatible replacement for legacy IS2100 series modules within GE Mark V control systems. While it is physically and electrically compatible with the standard Mark V rack, customers should verify slot addressing, I/O terminal mapping, and communication parameters against their specific system configuration before installation. Our technical team can assist with compatibility verification prior to shipment.

Q: What commissioning steps are required after installing the IS2100WETBH1B?
A: After physical installation, the commissioning process includes power-up verification, module status confirmation via the Mark V Toolbox software, communication link validation, point-to-point I/O verification against the field wiring schedule, and a functional test of all control loops served by the module. Customers should also verify HMI tag mapping and confirm that all alarm and status signals are correctly displayed on the operator interface.

Q: Can the IS2100WETBH1B be used in systems with different communication protocols, such as Modbus or Profibus?
A: The IS2100WETBH1B is natively compatible with the GE Mark V ARCNET and serial communication architecture. Integration with Modbus or Profibus networks typically requires an additional communication gateway or interface module. Please contact our technical team to discuss protocol migration requirements specific to your installation.

Q: What warranty and stock availability does NINERMAS offer for the IS2100WETBH1B?
A: NINERMAS maintains ready stock of the IS2100WETBH1B and offers a 12-month warranty covering manufacturing defects from the date of shipment. Each unit undergoes functional testing prior to dispatch to ensure it meets operational specifications. For urgent retrofit requirements, expedited shipping options are available. Contact us at sale@ninermas.com or +0086 187 5021 5667 for current stock levels and lead times.
