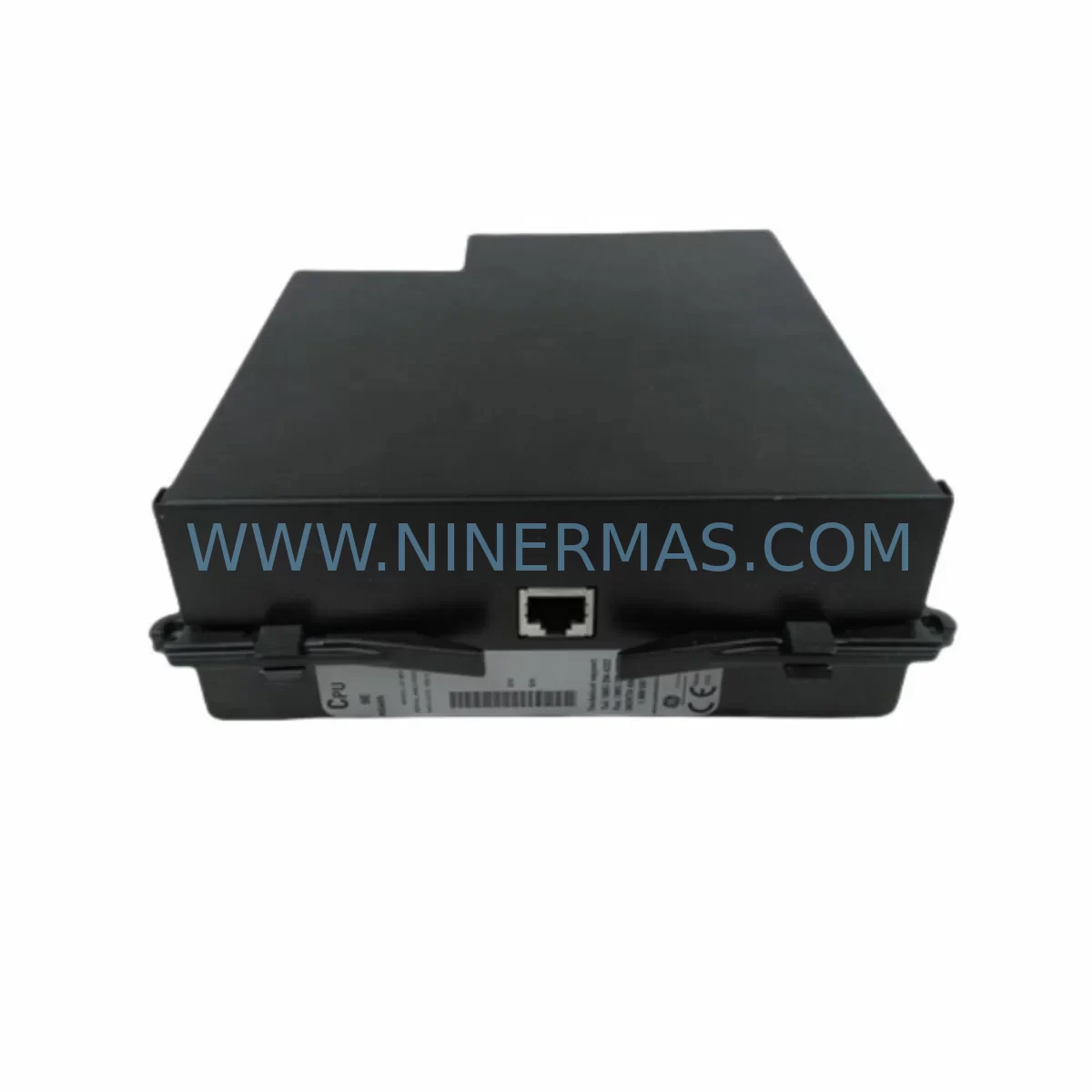

GE IS200TSVOH1B Retrofit-Compatible Servo Driver for Legacy Systems

GE IS200TSVOH1B Retrofit-Compatible Servo Driver for Legacy Systems

The GE IS200TSVOH1B is a servo driver module designed for the Mark VI Speedtronic turbine control platform — one of GE’s most widely deployed gas turbine and steam turbine control systems across power generation, oil & gas, and heavy industrial facilities. As the Mark VI platform approaches end-of-life and spare parts become increasingly scarce, the IS200TSVOH1B has become a critical component in retrofit projects, legacy system upgrades, and emergency spare part sourcing programs worldwide.

NINERMAS specializes in supplying tested, verified IS200TSVOH1B modules with full retrofit support documentation, helping engineering teams execute smooth control system migrations with minimal downtime and maximum compatibility assurance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a Mark VI Speedtronic system requires careful pre-engineering to avoid unexpected failures during commissioning. The IS200TSVOH1B servo driver interfaces directly with the turbine’s hydraulic servo valve system, making it one of the most safety-critical modules in the control cabinet. Before initiating a replacement, engineering teams must confirm the power supply capacity of the existing IS200EPBAG1A power entry module, as adding or swapping servo driver cards can alter the total current draw on the 28 VDC bus.

Terminal wiring to the servo actuator must be verified against the original loop drawing. The IS200TSVOH1B uses a differential current output to drive the servo valve, and any wiring reversal or ground loop issue will cause immediate servo fault alarms in the Mark VI controller. Engineers should also inspect the IS200VMEH1B VME interface module and the IS200DSPXH1B digital signal processor card, as these modules work in close coordination with the servo driver to execute the turbine’s speed and load control algorithms.

For sites migrating from an older Mark V system, the communication architecture changes significantly. The Mark V relied on ARCNET-based communication between the , , and controllers, while the Mark VI uses IONet — GE’s proprietary Ethernet-based I/O network. This protocol migration requires the installation of an IS200IOCIH1A I/O controller interface card and reconfiguration of all I/O module addresses within ToolboxST. The IS200TSVOH1B is natively compatible with the Mark VI IONet architecture and does not require any protocol conversion hardware when used within a standard Mark VI panel.

I/O expansion during retrofit is another common requirement. Many aging turbine control panels were originally configured with minimal analog I/O, and modern emissions monitoring, vibration analysis, and condition monitoring systems require additional input channels. The IS200AIAAH1A analog input module and IS200AIAAH2A extended analog input module are frequently added during Mark VI retrofit projects to accommodate these new signal requirements. Proper module addressing within ToolboxST must be completed before the new I/O modules are brought online, and the application program must be updated to map the new signals to the appropriate control logic blocks.

HMI integration is another critical step. Many legacy turbine control rooms use older GE Cimplicity or iFIX SCADA screens that were built for the Mark V’s data structure. When migrating to Mark VI with the IS200TSVOH1B and associated modules, the HMI tag database must be rebuilt to reflect the new IONet signal names and addresses. This process is often underestimated in project planning and can extend commissioning timelines if not addressed early. NINERMAS recommends requesting the ToolboxST configuration backup from the original system integrator before beginning any hardware replacement.

Physical installation space must also be confirmed. The IS200TSVOH1B occupies a standard Mark VI card slot, but adjacent modules such as the IS200TRLYH1B relay output module or IS200TTURH1B turbine trip relay module must have adequate clearance for airflow and cable routing. In older control cabinets, cable bundles from legacy wiring can obstruct card insertion, requiring partial rewiring of the terminal block area before the new module can be seated properly.

Downtime Control During System Migration

Minimizing turbine downtime during a Mark VI servo driver replacement is achievable with proper pre-staging and a disciplined cutover procedure. NINERMAS ships all IS200TSVOH1B modules with a functional test certificate confirming that the module has been bench-tested under simulated servo loop conditions prior to shipment. This pre-shipment testing significantly reduces the risk of receiving a defective module and eliminates the need for on-site incoming inspection testing.

Before the planned outage window, the engineering team should export the complete ToolboxST configuration from the running Mark VI system and verify that the servo loop tuning parameters — including proportional gain, integral time, and derivative gain — are documented and available for re-entry after the module swap. The IS200TSVOH1B retains no onboard configuration memory; all servo parameters are stored in the Mark VI controller and downloaded to the module at startup. This means a module swap does not require re-tuning if the controller configuration is intact.

During the outage, the replacement sequence should follow GE’s recommended card removal procedure: de-energize the servo output, remove the faceplate connector, extract the card, insert the new IS200TSVOH1B, reconnect the faceplate, and perform a controlled power-up sequence through ToolboxST. The entire physical swap can typically be completed in under 30 minutes by an experienced technician. Post-installation, the servo loop should be verified in manual control mode before returning the turbine to automatic speed control, ensuring that the valve response matches the expected stroke and that no servo fault alarms are present in the Mark VI diagnostic display.

For sites where continuous operation is required, a hot-standby spare strategy using a pre-configured IS200TSVOH1B module stored in the control room is strongly recommended. NINERMAS maintains in-stock inventory of IS200TSVOH1B modules to support emergency same-week shipment requirements, reducing the risk of extended outages caused by long lead times from the original equipment manufacturer.

Retrofit Support FAQ

Q: Is the IS200TSVOH1B a direct drop-in replacement for the IS200TSVOH1A?
A: Yes. The IS200TSVOH1B is the direct hardware revision successor to the IS200TSVOH1A and is fully backward compatible in terms of slot assignment, wiring, and ToolboxST configuration. No wiring changes are required, though servo loop tuning parameters should be verified after installation.

Q: Does NINERMAS provide a functional test certificate with each IS200TSVOH1B shipment?
A: Yes. Every IS200TSVOH1B module shipped by NINERMAS includes a functional test certificate confirming that the module has been tested under simulated operating conditions. The 12-month warranty begins from the date of shipment and covers manufacturing defects and functional failures under normal operating conditions.

Q: Can the IS200TSVOH1B be used in a Mark V system with an adapter?
A: No. The IS200TSVOH1B is designed exclusively for the Mark VI Speedtronic platform and is not compatible with the Mark V’s ARCNET-based architecture or its VME backplane variant. Sites migrating from Mark V to Mark VI will need to replace the full controller and I/O infrastructure, of which the IS200TSVOH1B is one component.

Q: What is the typical lead time and stock availability for the IS200TSVOH1B?
A: NINERMAS maintains in-stock inventory of IS200TSVOH1B modules to support urgent retrofit and emergency replacement requirements. Standard shipment is available within the same week for in-stock units. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and arrange expedited shipment.
