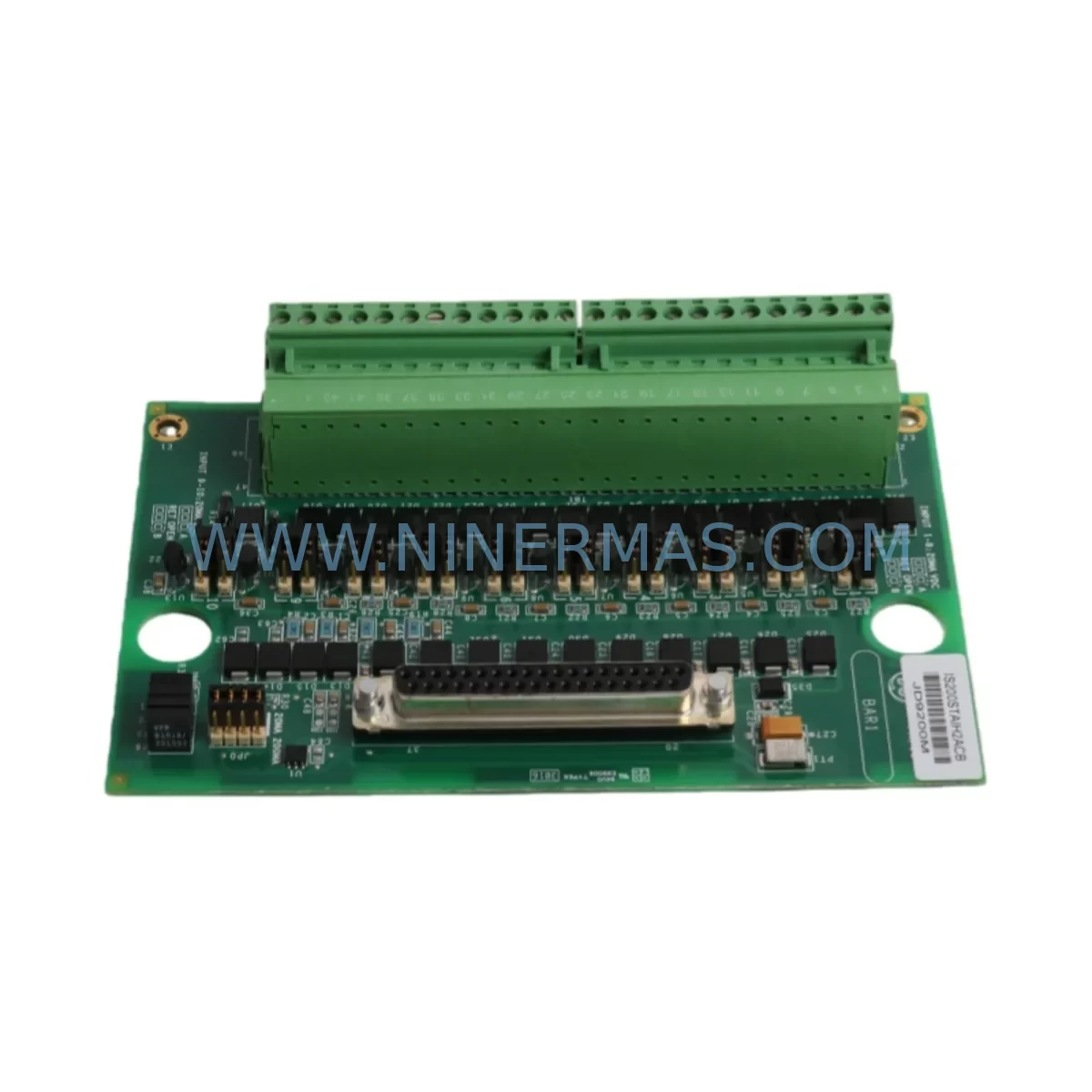

GE IS200STAIH2ACB Retrofit-Compatible Analog Input Board

GE IS200STAIH2ACB Retrofit-Compatible Analog Input Terminal Board for Legacy Systems

The GE IS200STAIH2ACB (also referenced as IS230STAIH2A) is a high-integrity Analog Input Terminal Board designed for the GE Mark VIe turbine control platform. As industrial facilities worldwide face the challenge of maintaining aging distributed control systems, this terminal board serves as a critical retrofit-compatible component that enables smooth migration from legacy Mark V and Mark VI architectures to the more capable Mark VIe environment — without requiring a full control system overhaul.

Whether you are managing a gas turbine, steam turbine, or combined-cycle power plant, the IS200STAIH2ACB provides the analog signal conditioning and terminal interface necessary to maintain continuous, reliable control loop integrity during and after system upgrades. Its compatibility with the IS230STAIH2A form factor makes it a preferred choice for engineers planning phased retrofits where minimizing downtime and preserving existing wiring infrastructure are top priorities.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the IS200STAIH2ACB into an existing turbine control cabinet requires a structured approach that addresses every layer of the control architecture. Before beginning the replacement process, engineers must confirm the available power supply capacity within the Mark VIe I/O rack — the IS200EPSCG1A power supply module must be verified to deliver adequate current for the updated I/O configuration. Insufficient power headroom is one of the most common causes of unexpected module faults during retrofit commissioning.

Terminal wiring is the next critical checkpoint. The IS200STAIH2ACB uses a screw-type field terminal arrangement that is generally compatible with existing IS230STAIH2A wiring harnesses, but engineers should inspect each conductor for insulation integrity, confirm shield grounding continuity, and verify that wire ferrules meet the terminal torque specifications. Where signal cables run through high-EMI zones near variable frequency drives or large motor starters, additional shielded conduit or signal isolation may be required.

Backplane slot assignment must be confirmed against the existing ToolboxST configuration file before the new board is installed. The IS200IOCIG1A I/O controller interface module manages the IONet communication link between the terminal board and the Mark VIe controller, and any mismatch in slot addressing will result in loss of signal visibility at the HMI. Engineers should export and archive the current ToolboxST project before making any hardware changes.

For facilities running GE Mark VI VCMI communication interface modules or older Mark V TCCA/TCDA processor boards in adjacent control cabinets, the IS200STAIH2ACB retrofit may also require updating the IONet switch configuration — particularly if the IS200EACFG1A Ethernet adapter is being used to bridge legacy and modern network segments. Confirm that all IONet switch ports are operating at the correct speed and duplex settings before energizing the new board.

HMI screen validation is an often-overlooked step in analog input board replacements. After the IS200STAIH2ACB is installed and the ToolboxST configuration is downloaded, operators should verify that all associated analog tags — including process temperature, pressure, flow, and vibration signals — are displaying correctly on the GE Cimplicity HMI or third-party SCADA system. Any signal offset or scaling error should be corrected in the ToolboxST I/O calibration table before returning the unit to automatic control.

Where the retrofit involves migrating from a Mark V TCEA analog input board to the IS200STAIH2ACB in a Mark VIe rack, engineers must also account for differences in signal conditioning circuitry. The Mark VIe platform performs analog-to-digital conversion at the I/O pack level using modules such as the IS200AAIAH1A analog input pack, which interfaces directly with the IS200STAIH2ACB terminal board. Confirming the correct I/O pack variant and its firmware revision is essential to achieving accurate signal representation across the full input range.

Finally, installation space confirmation is mandatory. The IS200STAIH2ACB occupies a standard Mark VIe terminal board slot, but engineers should physically verify rack clearance, cable management space, and cooling airflow before finalizing the retrofit plan. All NINERMAS-supplied IS200STAIH2ACB boards are shipped after full functional testing and are accompanied by a test report confirming analog channel accuracy and communication link integrity.

Downtime Control During System Migration

Minimizing unplanned downtime during an IS200STAIH2ACB retrofit requires a disciplined pre-outage preparation process. The most effective strategy is to complete all ToolboxST configuration changes, IONet address assignments, and HMI tag mapping updates in an offline simulation environment before the scheduled maintenance window begins. This allows the control engineering team to identify and resolve compatibility issues without consuming valuable outage time.

During the physical swap, the original IS230STAIH2A terminal board should be removed only after all field wiring has been photographed and labeled. Reusing the existing wiring harness — where conductor condition permits — significantly reduces reconnection time and eliminates the risk of miswiring. Once the IS200STAIH2ACB is seated in the rack and field terminals are secured, the I/O pack should be powered up in diagnostic mode to confirm all analog channels are reading within expected ranges before the ToolboxST configuration download is initiated.

For critical turbine control applications where even a brief loss of analog input signals could trigger a protective trip, a staged cutover approach is recommended: bring the new board online in parallel with the existing signal path using a signal splitter or loop-powered isolator, verify signal fidelity, then transfer control to the new board with a single switchover action. This approach is particularly valuable in power generation facilities where an unplanned trip carries significant financial and operational consequences.

Post-retrofit, a 72-hour monitoring period is recommended during which all analog input channels are trended and compared against pre-retrofit baseline values. Any drift or noise increase should be investigated before the unit is returned to fully automatic operation. NINERMAS maintains in-stock inventory of IS200STAIH2ACB boards to support rapid deployment in emergency replacement scenarios, with same-day shipping available for confirmed orders.

Retrofit Support FAQ

Q1: Is the IS200STAIH2ACB a direct replacement for the IS230STAIH2A?
In most Mark VIe control configurations, the IS200STAIH2ACB is a form-fit-function compatible replacement for the IS230STAIH2A. However, engineers should verify the specific I/O pack variant, ToolboxST software version, and rack slot assignment before installation to confirm full compatibility in their specific application.

Q2: What pre-shipment testing is performed on each board?
Every IS200STAIH2ACB supplied by NINERMAS undergoes full functional testing prior to shipment, including analog channel accuracy verification, terminal continuity checks, and communication interface validation. A test report is available upon request and accompanies each unit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. NINERMAS provides technical support throughout the warranty period to assist with commissioning and troubleshooting.

Q4: Can NINERMAS support long-term supply for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated inventory of GE Mark VIe components including the IS200STAIH2ACB to support planned maintenance, emergency replacement, and multi-unit retrofit programs. Long-term supply agreements are available for facilities managing large fleets of Mark VIe-controlled turbines.
