GE IS230SNAIH4A IS200STAIH2ACB Safety-Reliable I/O for Critical Control

GE IS230SNAIH4A IS200STAIH2ACB Safety-Reliable I/O Module for Critical Control Sites

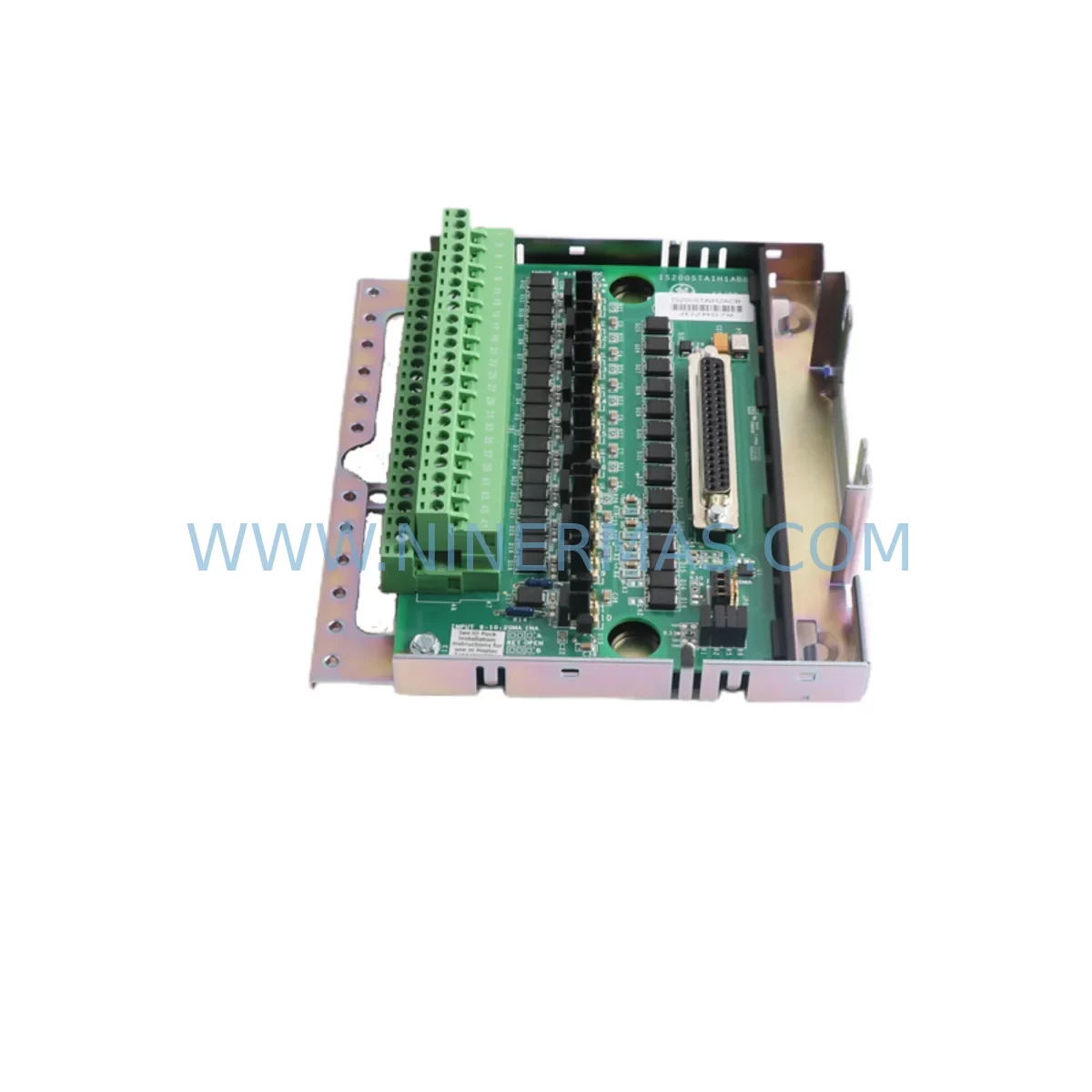

The GE IS230SNAIH4A and its companion board IS200STAIH2ACB form a proven, safety-critical analog input assembly within the GE Mark VIe distributed control system platform. Engineered for continuous production environments where control interruption is not an option, this module delivers exceptional signal integrity, robust EMI immunity, and long-term field reliability across the harshest industrial conditions — from petrochemical refineries and thermal power plants to mining operations, water treatment facilities, and metallurgical processing lines.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a modern safety-instrumented control cabinet, the IS230SNAIH4A / IS200STAIH2ACB analog input assembly sits at the heart of the measurement and interlock chain. Signal drift and channel failure in analog input modules are among the leading causes of spurious trips and unplanned shutdowns in continuous process plants. By delivering stable, high-accuracy readings across all 16 channels — even under significant electromagnetic interference from variable frequency drives, high-voltage bus bars, and adjacent relay panels — this module directly reduces the risk of false process alarms and missed safety responses.

Within the same Mark VIe control cabinet, the IS200STCIH2A terminal board provides the field wiring interface, ensuring clean signal conditioning before data reaches the I/O pack. The IS230SNAIH4A I/O pack communicates over the redundant IONet Ethernet backbone, where companion modules such as the IS230SRLYH1A relay output module and IS230SVPAH1A servo valve position module share the same high-availability network. Power integrity is maintained by the IS200EPCTG1A power converter module, which conditions incoming DC supply and protects downstream I/O packs from voltage sags, surges, and ripple — a critical safeguard in sites with unstable utility feeds or large motor starts.

For applications requiring hardwired safety interlock loops, the IS230SNAIH4A analog readings feed directly into the Mark VIe controller — typically an IS215UCVEH2A or IS215UCVEH2AE VME controller card — where safety logic executes at deterministic scan rates. The IS200SHVMH1A high-voltage measurement module and IS200SRTDH1A RTD input module are frequently deployed alongside the SNAIH4A in the same I/O rack to cover temperature and voltage monitoring loops within the same safety architecture. Communication to the plant DCS or historian is handled via the IS230SNAIH4A‘s IONet connection, eliminating the need for additional protocol converters and reducing potential communication failure points in the safety chain.

Surge and transient events — common in petrochemical plants during lightning storms or large load switching — are mitigated by the module’s built-in channel-level transient suppression, complemented at the cabinet level by external surge protection devices on field cable entries. This layered protection strategy, combining the IS230SNAIH4A’s internal protection with cabinet-level surge arrestors and the stable power conditioning of the IS200EPCTG1A, ensures that analog measurement continuity is maintained even during severe electrical disturbances.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous distillation columns, catalytic crackers, and compressor trains, the IS230SNAIH4A monitors critical process variables — pressure, temperature, flow — feeding safety interlock systems that prevent overpressure events and runaway reactions. Its high channel count and signal accuracy make it ideal for dense measurement loops in HAZOP-critical areas.

Thermal Power Generation: Turbine control systems demand microsecond-level response and zero tolerance for signal dropout. Deployed in GE Mark VIe turbine control panels, this module monitors exhaust temperatures, vibration transducer outputs, and lube oil pressure — all essential parameters for turbine protection and load management.

Mining & Mineral Processing: High dust concentrations, mechanical vibration from crushers and conveyors, and wide ambient temperature swings challenge conventional I/O hardware. The IS230SNAIH4A’s robust construction and sealed I/O pack design maintain measurement integrity in these demanding environments, supporting safe operation of hoists, conveyors, and processing equipment.

Water & Wastewater Treatment: In pump stations, filtration plants, and chemical dosing systems, reliable analog input is essential for flow control and chemical feed safety. The module’s humidity tolerance and corrosion-resistant design support long-term deployment in wet, chemically aggressive environments.

Metallurgy & Steel: Electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference. The IS230SNAIH4A’s IEC 61000-4 compliant EMI immunity ensures that analog measurements remain stable and accurate even in close proximity to high-power electrical equipment.

Port & Marine: Shipboard and port crane control systems require compact, vibration-resistant I/O hardware capable of operating in salt-air environments. The Mark VIe platform’s proven marine heritage makes the IS230SNAIH4A a trusted choice for critical load control and safety monitoring in these applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the IS230SNAIH4A or IS200STAIH2ACB fails due to a verified manufacturing issue within 12 months of shipment, NINERMAS will provide a replacement unit or full repair at no additional cost. Warranty claims are processed promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every IS230SNAIH4A / IS200STAIH2ACB assembly undergoes functional verification testing prior to shipment, including power-on self-test, channel-level analog signal verification, and communication interface checks. Units are inspected for physical integrity and packed in anti-static, shock-protected packaging to ensure they arrive in field-ready condition.

Q3: Is this module compatible with existing GE Mark VIe systems?
Yes. The IS230SNAIH4A is a standard GE Mark VIe I/O pack designed for direct plug-in replacement within any Mark VIe I/O rack using the IS200STAIH2ACB terminal board. No firmware modification or system reconfiguration is required for like-for-like replacement. Compatibility with Mark VIe controller versions should be confirmed against your site’s ToolboxST configuration.

Q4: Can long-term spare parts supply be guaranteed?
NINERMAS maintains dedicated inventory of IS230SNAIH4A and IS200STAIH2ACB units to support ongoing spare parts programs for power generation, petrochemical, and process industry customers. We support both emergency single-unit orders and long-term blanket supply agreements, ensuring your maintenance team always has access to critical replacement stock without extended lead times.
