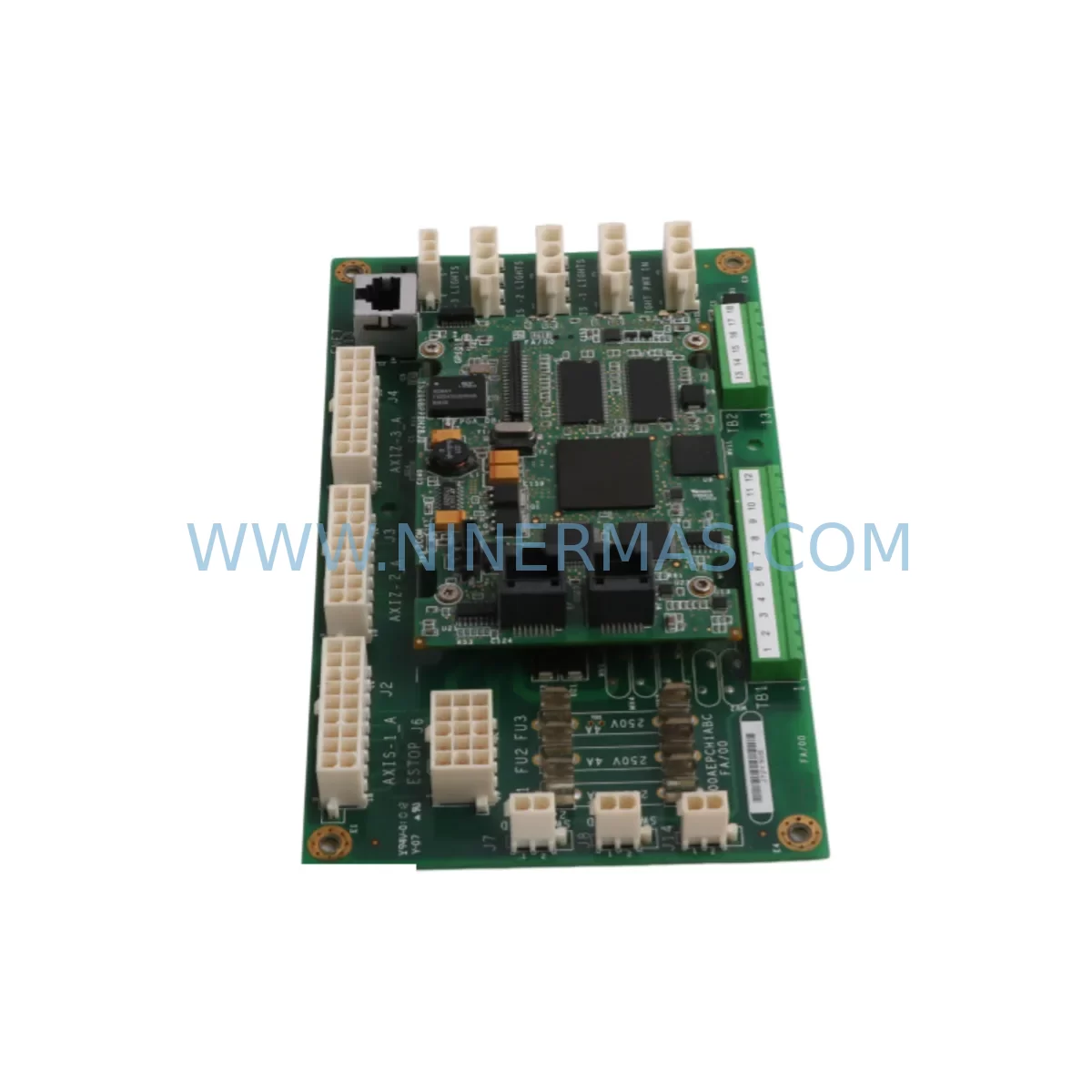

The GE IS200AEPCH1ABC and IS200BPPBH2BJD are original, service-ready spare parts engineered for the GE Speedtronic Mark VI turbine control platform — one of the most widely deployed distributed control architectures in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. The IS200AEPCH1ABC functions as the Analog and Event Processor Channel board, responsible for acquiring analog input signals, processing event sequences, and delivering conditioned data to the Mark VI controller core. The IS200BPPBH2BJD serves as the Bridge Processor board, managing high-speed data exchange between the processor backbone and peripheral I/O modules across the control cabinet backplane.

When either of these boards fails or degrades, the consequences extend far beyond a single module. Turbine trips, unplanned shutdowns, and extended outages are the direct operational risk. Sourcing a verified, original replacement — tested, inspected, and backed by a 12-month warranty — is the fastest path to restoring full system availability. NINERMAS maintains ready stock of both the IS200AEPCH1ABC and IS200BPPBH2BJD to support emergency replacement, planned overhaul cycles, and long-term spare parts inventory programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IS200AEPCH1ABC or IS200BPPBH2BJD in a live Mark VI control cabinet is rarely an isolated task. Experienced maintenance engineers understand that a board-level failure in the analog processor or bridge processor channel is often a symptom of broader stress across the control system. A structured inspection of the surrounding electrical environment is essential before and after any module swap.

Begin with the power supply rail. The IS200EPSMG1AED power supply module feeds the backplane voltage that both the IS200AEPCH1ABC and IS200BPPBH2BJD depend on. A degraded or intermittently failing power supply can cause repeated board failures and should be tested and replaced proactively during any planned outage. Similarly, the IS200TRPGH2BDB Triple Modular Redundancy Processor board — which operates in parallel with the analog processor channel — should be inspected for firmware version alignment and communication health to ensure voting logic integrity is maintained after the replacement.

On the I/O side, the IS200ERIOH1AAA Emergency I/O board and IS200VTURH1BEF Turbine Control board are directly upstream and downstream of the signal chain that the IS200AEPCH1ABC processes. Any wiring degradation, loose terminal connections, or signal drift on these boards can mask the root cause of an analog processor fault. During annual overhaul cycles, maintenance teams should include the IS200TSVCH1ABD Servo Controller in the inspection checklist, as servo feedback loops interact closely with the analog channel data processed by the IS200AEPCH1ABC.

For communication integrity, the IS200TBCIH1CBC Communication Interface board manages the data pathways that the IS200BPPBH2BJD bridge processor relies on for backplane arbitration. A degraded communication board can generate intermittent bridge processor faults that are difficult to isolate without a systematic cabinet inspection. Alongside this, the IS200BICLH1AEF Bridge Interface Controller should be verified for firmware compatibility whenever the IS200BPPBH2BJD is replaced, as mismatched firmware versions between bridge and interface boards are a known source of post-replacement instability.

Signal isolation is another critical consideration. The IS200SPROH1AAA Protection Module handles protective relay logic that interfaces with the analog processor channel. During fault isolation procedures, maintenance engineers should verify that signal isolators and fuse protection on the 24 VDC field wiring circuits are intact, as blown fuses or failed isolators can generate false analog processor fault codes. Terminal blocks and field wiring connectors should be inspected for corrosion, especially in humid or coastal plant environments where the Mark VI cabinet may be exposed to elevated moisture levels.

For facilities managing aging Mark VI installations, building a structured spare parts inventory that includes both the IS200AEPCH1ABC and IS200BPPBH2BJD — alongside the IS200EMCSG1ABA Emergency Control board — is a proven strategy for reducing mean time to repair (MTTR) and extending the operational life of legacy turbine control systems beyond their original design horizon.

Site Replacement Workflow

Replacing the IS200AEPCH1ABC or IS200BPPBH2BJD on-site follows a structured sequence designed to minimize turbine downtime and ensure system compatibility is maintained throughout the process.

Step 1 — Pre-Replacement Verification: Confirm the exact part number and revision level of the installed board against the replacement unit. Both the IS200AEPCH1ABC and IS200BPPBH2BJD carry revision suffixes (e.g., H1ABC, H2BJD) that indicate hardware revision levels. Mismatched revisions may require firmware updates or configuration adjustments in the Mark VI toolbox software before the replacement board will be recognized by the controller.

Step 2 — Safe Isolation: Follow the plant’s lockout/tagout (LOTO) procedure for the affected control cabinet. For TMR (Triple Modular Redundant) Mark VI systems, it may be possible to replace a single channel board while the remaining two channels maintain turbine control — consult the site-specific Mark VI maintenance manual before proceeding with a hot-swap.

Step 3 — Board Removal and Installation: Remove the failed board by releasing the card ejector levers and sliding the board clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before installing the replacement IS200AEPCH1ABC or IS200BPPBH2BJD. Seat the replacement board firmly and verify the ejector levers are fully engaged.

Step 4 — Post-Installation Commissioning: Power up the cabinet and monitor the Mark VI diagnostic display for board recognition and fault clearance. Use the GE Toolbox software to verify that the replacement board is communicating correctly with the controller core and that all analog input channels are reading within expected ranges. Document the replacement in the plant maintenance management system (CMMS) and update the spare parts inventory record.

Step 5 — Functional Test: Perform a functional test of the turbine control system under supervised conditions before returning the unit to full automatic operation. Verify that all protective relay functions, servo feedback loops, and communication pathways are operating normally.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the IS200AEPCH1ABC and IS200BPPBH2BJD?
Both boards are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes full functional testing prior to shipment. If a board fails within the warranty period, NINERMAS will provide a replacement or repair at no additional cost. Contact sale@ninermas.com to initiate a warranty claim.

Q2: How do I verify compatibility before ordering?
Compatibility is determined by the Mark VI system configuration, the specific turbine control application, and the hardware revision level of the installed boards. Provide your existing board part number (including the full suffix, e.g., IS200AEPCH1ABC or IS200BPPBH2BJD), your Mark VI system ID, and the turbine OEM model to our technical team. We will confirm compatibility and advise on any firmware or configuration requirements before shipment.

Q3: Can NINERMAS support long-term supply for end-of-life GE Mark VI components?
Yes. NINERMAS specializes in long-term supply of original spare parts for legacy and end-of-life industrial control systems, including the GE Speedtronic Mark VI platform. We maintain ongoing stock of the IS200AEPCH1ABC, IS200BPPBH2BJD, and a broad range of associated Mark VI boards and modules. For facilities with multi-year maintenance contracts or annual overhaul programs, we offer reserved inventory arrangements to guarantee supply continuity.

Q4: What is the recommended spare parts inventory strategy for Mark VI turbine control systems?
Industry best practice for critical turbine control systems is to maintain a minimum of one spare unit for each board type installed in the control cabinet, with higher quantities for boards that have historically shown elevated failure rates or that are no longer available through the OEM. For the IS200AEPCH1ABC and IS200BPPBH2BJD, we recommend holding at least one spare of each per turbine unit, stored in anti-static packaging in a climate-controlled environment. Annual inventory audits should verify that spare boards are within their storage life and have not been exposed to humidity or electrostatic discharge events.
