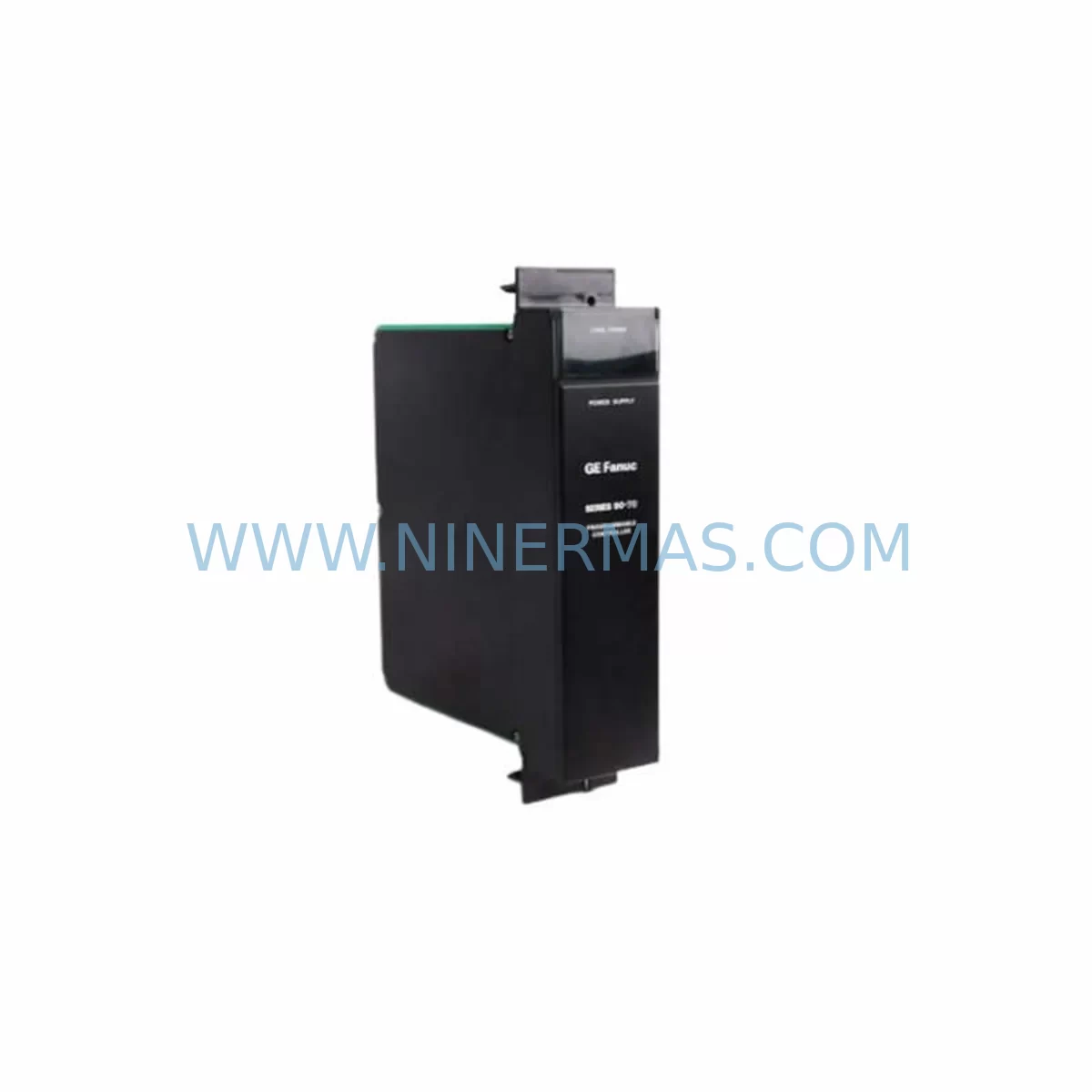

The GE IC697PWR724 is a high-reliability power supply module designed for the GE Series 90-70 PLC platform — one of the most widely deployed programmable logic controller families in heavy process industries, including oil & gas, petrochemical, power generation, pulp & paper, and water treatment. As aging Series 90-70 systems continue to operate well beyond their original design life, maintaining a qualified stock of the IC697PWR724 is a critical element of any responsible spare parts strategy.

This module provides regulated DC power to the Series 90-70 backplane, supplying logic power to CPU modules such as the IC697CPU772 and IC697CPU781, as well as I/O modules, communication modules, and specialty function cards installed across the rack. A failure of the power supply is a single point of failure for the entire rack — making the IC697PWR724 one of the highest-priority line replaceable units (LRUs) in any Series 90-70 maintenance program.

Each IC697PWR724 unit supplied by NINERMAS is sourced from verified industrial channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. We maintain forward stock to support rapid dispatch for both planned annual overhauls and unplanned emergency shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies the IC697PWR724 as a replacement candidate — whether during a scheduled outage, a predictive maintenance inspection, or an unplanned trip event — the power supply module should never be evaluated in isolation. The Series 90-70 rack is an integrated system, and a power supply failure or degradation event often coincides with stress on adjacent components.

Before or alongside replacing the IC697PWR724, engineers should inspect and consider stocking the following associated components:

CPU and Backplane Integrity: The IC697CPU772 and IC697CPU781 CPU modules share the same backplane power rails as the power supply. If the IC697PWR724 has experienced an overvoltage or undervoltage event, the CPU module’s internal power regulation circuitry may have been stressed. A functional check of the CPU — including memory battery status and program integrity — is recommended after any power supply replacement.

I/O Module Verification: Discrete and analog I/O modules such as the IC697MDL340 (discrete input) and IC697ALG440 (analog input) draw logic power directly from the backplane. Following a power supply fault, I/O modules should be checked for correct channel operation and calibration drift, particularly on analog signal conditioning circuits.

Communication and Network Modules: Series 90-70 systems frequently use communication modules such as the IC697CMM742 (Ethernet interface) or IC697BEM731 (Genius Bus Controller) for plant network integration. These modules are sensitive to power transients and should be verified for correct link status and communication integrity after a power event.

Backplane and Rack Assembly: The IC697CHS790 16-slot rack backplane carries all inter-module power and data signals. Inspect the backplane connector pins and module card guides for signs of arcing, discoloration, or mechanical damage — particularly in high-vibration or high-humidity environments.

Field Power and Terminal Wiring: The 24 VDC field power rail supplied by the IC697PWR724 feeds field devices through terminal blocks and marshalling panels. Inspect field wiring terminations, fuse blocks, and DIN-rail mounted terminal strips for signs of overheating or loose connections that may have contributed to the power supply fault.

Signal Isolation and Protection: In mixed-signal environments, signal isolators and surge protection devices installed on analog input loops should be inspected. Devices such as loop-powered signal isolators and transient voltage suppressors (TVS) on I/O field wiring protect both the I/O modules and the power supply from field-side disturbances.

Fusing and Circuit Protection: Review the AC input fusing for the IC697PWR724 and any downstream DC distribution fuses. Blown or degraded fuses are a leading indicator of intermittent overload conditions that will shorten power supply service life if not addressed at the source.

Maintaining a consolidated spare parts kit — including the IC697PWR724, at least one CPU module, representative I/O cards, and communication modules — is the most effective strategy for minimizing mean time to repair (MTTR) on Series 90-70 systems operating in critical process applications.

Site Replacement Workflow

Replacing the IC697PWR724 in a live Series 90-70 installation follows a structured sequence to minimize downtime and ensure system integrity:

1. Pre-Replacement Verification: Confirm the replacement IC697PWR724 part number matches the installed unit exactly. The Series 90-70 platform uses multiple power supply variants; substituting an incorrect model may result in insufficient current capacity for the installed I/O complement. Verify the rack slot count and total module current draw against the IC697PWR724 rated output capacity before installation.

2. Controlled Shutdown: Where process conditions permit, initiate a controlled PLC stop and place the process in a safe state before removing the power supply. For systems where a hot-swap or live replacement is required, consult the GE Series 90-70 Hardware Reference Manual for rack power sequencing requirements.

3. Module Removal and Inspection: Slide the IC697PWR724 out of the rack and inspect the module connector, backplane connector, and module housing for physical damage. Retain the failed module for failure analysis if root cause investigation is required.

4. Replacement Installation: Insert the new IC697PWR724 into the power supply slot, ensuring full connector engagement. Restore AC input power and verify LED status indicators: AC OK and DC OK LEDs should illuminate green within seconds of power application.

5. System Restart and Verification: Restore the CPU to RUN mode and verify all I/O modules return to normal scan status. Check communication module link status and confirm HMI or SCADA system data integrity. Log the replacement event in the plant maintenance management system (CMMS) with the new module serial number and installation date.

This workflow applies equally to planned annual maintenance replacements and emergency breakdown recovery scenarios. NINERMAS recommends maintaining at least one IC697PWR724 on-site as a hot spare to support same-shift replacement capability.

Spare Parts Support FAQ

Q1: Is the IC697PWR724 still available as a new or service-ready spare part?
Yes. Although GE has transitioned the Series 90-70 platform to end-of-life status, NINERMAS maintains forward stock of the IC697PWR724 sourced from verified industrial supply channels. Each unit is functionally tested prior to shipment and supplied with a 12-month warranty. We support both single-unit emergency orders and bulk procurement for long-term spare parts programs.

Q2: How do I confirm compatibility between the IC697PWR724 and my existing Series 90-70 rack configuration?
Compatibility is determined by rack model and total module current draw. The IC697PWR724 is compatible with standard Series 90-70 racks including the IC697CHS750, IC697CHS782, and IC697CHS790. To confirm suitability for your specific configuration, provide your rack model number and installed module list to our technical team at sale@ninermas.com. We will verify current budget and confirm fit before order confirmation.

Q3: What testing is performed on IC697PWR724 units before shipment?
Every IC697PWR724 unit dispatched by NINERMAS undergoes a pre-shipment functional power-on test. This test verifies AC input acceptance, DC output voltage regulation on all rails, LED indicator operation, and absence of fault conditions under load. Test records are available upon request for quality-critical procurement programs. Units are packaged in anti-static protective packaging with physical protection for transit.

Q4: Can NINERMAS support a long-term supply agreement for IC697PWR724 and other Series 90-70 spare parts?
Yes. NINERMAS offers long-term spare parts supply programs for customers operating aging Series 90-70 installations. These programs include reserved stock allocation, priority dispatch for emergency orders, and consolidated procurement for multi-site maintenance programs. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss a tailored supply arrangement for your facility’s spare parts lifecycle requirements.
