GE IC697PWR710 Service-Ready Spare Part for Industrial Maintenance

GE IC697PWR710 Service-Ready Spare Part for Industrial Maintenance

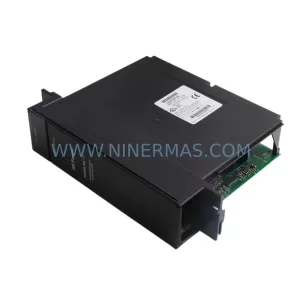

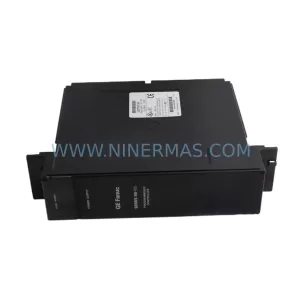

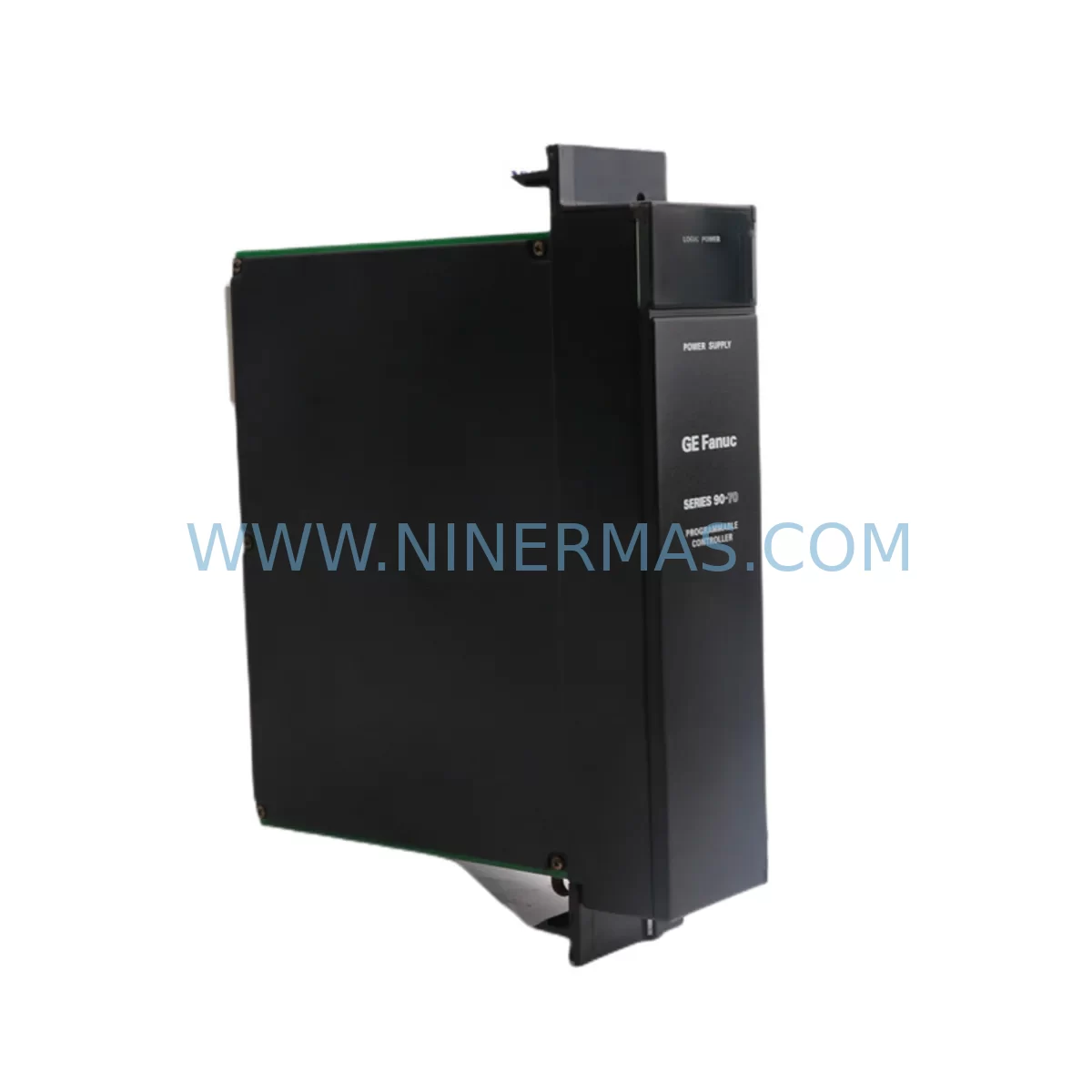

The GE IC697PWR710 is a ruggedized DC power supply module designed for the GE Fanuc Series 90-70 PLC platform — one of the most widely deployed programmable logic controller families in heavy industrial, process control, and manufacturing automation environments. As production lines age and OEM support windows close, maintaining a verified stock of the IC697PWR710 becomes a critical element of any proactive maintenance strategy. Unplanned downtime caused by power supply failure can cascade across an entire control cabinet, affecting I/O racks, communication modules, and HMI systems simultaneously. Sourcing a service-ready, tested replacement unit before failure occurs is the most cost-effective approach to protecting continuous operation.

NINERMAS supplies the IC697PWR710 as an original spare part, fully tested prior to shipment, backed by a 12-month warranty, and available for long-term procurement agreements. Whether you are a maintenance engineer responding to an emergency shutdown or a procurement engineer building a strategic spare parts inventory, this unit ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the IC697PWR710 is identified as a failure point during routine control cabinet inspection or fault diagnostics, experienced maintenance engineers know that the power supply is rarely the only component that requires attention. A thorough site assessment during a planned or emergency replacement should include inspection of the following associated components within the same Series 90-70 control system.

The IC697CHS750 or IC697CHS790 baseplate rack should be inspected for backplane connector wear, corrosion, or physical damage — a degraded rack can cause intermittent power faults that mimic power supply failure. The IC697CPU772 or IC697CPU781 CPU module should be checked for firmware integrity and battery backup status; a power interruption event may have corrupted program memory or reset the real-time clock. IC697MDL340 and IC697MDL341 discrete I/O modules in the same rack should be verified for proper field wiring continuity and blown fuse indicators, as voltage transients during a power supply failure can damage I/O field circuits.

Communication continuity must also be confirmed. The IC697CMM742 Ethernet interface module or IC697BEM731 Genius Bus Controller, if installed, should be checked for link status and re-initialized if necessary after power restoration. For systems using IC697PCM711 or IC697PCM712 coprocessor modules, verify that shared memory and task scheduling have resumed correctly after the power event.

On the field side, terminal blocks and DIN rail-mounted relay modules connected to the 24 VDC distribution bus should be inspected for signs of overload or contact welding. Signal isolators and surge protection devices on analog input channels are frequently overlooked but are often the first components to absorb damage from power transients. Replacing the IC697PWR710 without checking these upstream and downstream components risks repeat failures within a short maintenance cycle.

For facilities running GE Cimplicity or iFIX SCADA/HMI systems connected to the Series 90-70 network, confirm that the HMI communication driver has re-established its connection and that alarm history has been preserved. Procurement engineers should consider stocking at least one spare IC697PWR710 per control cabinet as part of a minimum viable spare parts list, alongside a spare CPU module and at least one representative I/O module for each type in use.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the failed IC697PWR710, document the current rack configuration, slot assignments, and any active fault codes displayed on the CPU or HMI. Photograph the wiring and terminal connections on the power supply input terminals.

Step 2 — Safe Isolation: De-energize the control cabinet following site lockout/tagout (LOTO) procedures. Verify zero voltage at the DC input terminals of the power supply using a calibrated multimeter before proceeding.

Step 3 — Module Removal: Release the IC697PWR710 from the rack using the module locking tabs. Disconnect the DC input wiring from the terminal block, noting polarity markings. Remove the module from the baseplate slot.

Step 4 — Replacement Installation: Insert the new IC697PWR710 into the same rack slot. Reconnect DC input wiring per the original polarity documentation. Verify that the module is fully seated on the backplane connector.

Step 5 — Power-Up and Verification: Re-energize the cabinet and observe the power supply status LED. Confirm that the CPU module enters RUN mode and that all I/O modules report healthy status. Re-establish HMI and SCADA communication links if required.

Step 6 — Documentation: Record the replacement in the site maintenance log, including the date, replaced part number, and technician name. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels.

This workflow minimizes mean time to repair (MTTR) and ensures system compatibility is maintained without requiring PLC reprogramming or rack reconfiguration, as the IC697PWR710 is a direct drop-in replacement for the same slot position.

Spare Parts Support FAQ

Q1: Is the IC697PWR710 still available as a new or original spare part?
A: Yes. NINERMAS maintains stock of the IC697PWR710 as an original spare part. While GE Fanuc has transitioned the Series 90-70 platform to legacy support status, demand for service-ready replacement units remains strong across installed base sites globally. We support long-term supply agreements for facilities that require guaranteed availability over multi-year maintenance cycles.

Q2: How is the IC697PWR710 tested before shipment?
A: Every unit undergoes pre-shipment functional testing to verify DC input acceptance, backplane power output, and status indicator operation. Units that do not pass testing are not shipped. A 12-month warranty is provided on all units, covering defects in materials and workmanship under normal operating conditions.

Q3: Can the IC697PWR710 replace older Series 90-70 power supply variants?
A: The IC697PWR710 is compatible with the full range of Series 90-70 baseplates, including the IC697CHS750, IC697CHS782, and IC697CHS790. It is a direct replacement for units of the same part number and is compatible with all Series 90-70 CPU modules. For cross-compatibility with adjacent power supply models in the IC697PWR series, please contact our technical team to confirm slot and input voltage compatibility before ordering.

Q4: What is the recommended spare parts stocking strategy for Series 90-70 systems?
A: For facilities with multiple Series 90-70 control cabinets, we recommend maintaining a minimum of one IC697PWR710 per cabinet in on-site inventory, with a secondary buffer stock held at a regional warehouse or through a blanket purchase order with NINERMAS. Annual review of spare parts consumption and system criticality should drive reorder decisions. For high-criticality production lines, consider stocking spare CPU modules and representative I/O modules alongside the power supply to enable full cabinet recovery within a single maintenance shift.
