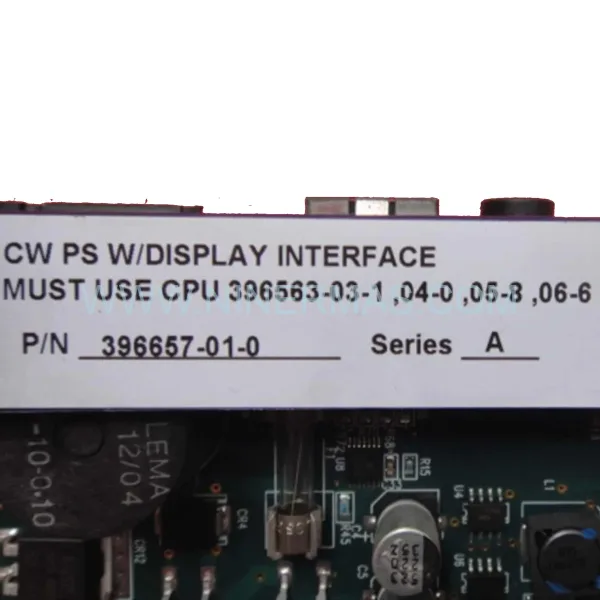

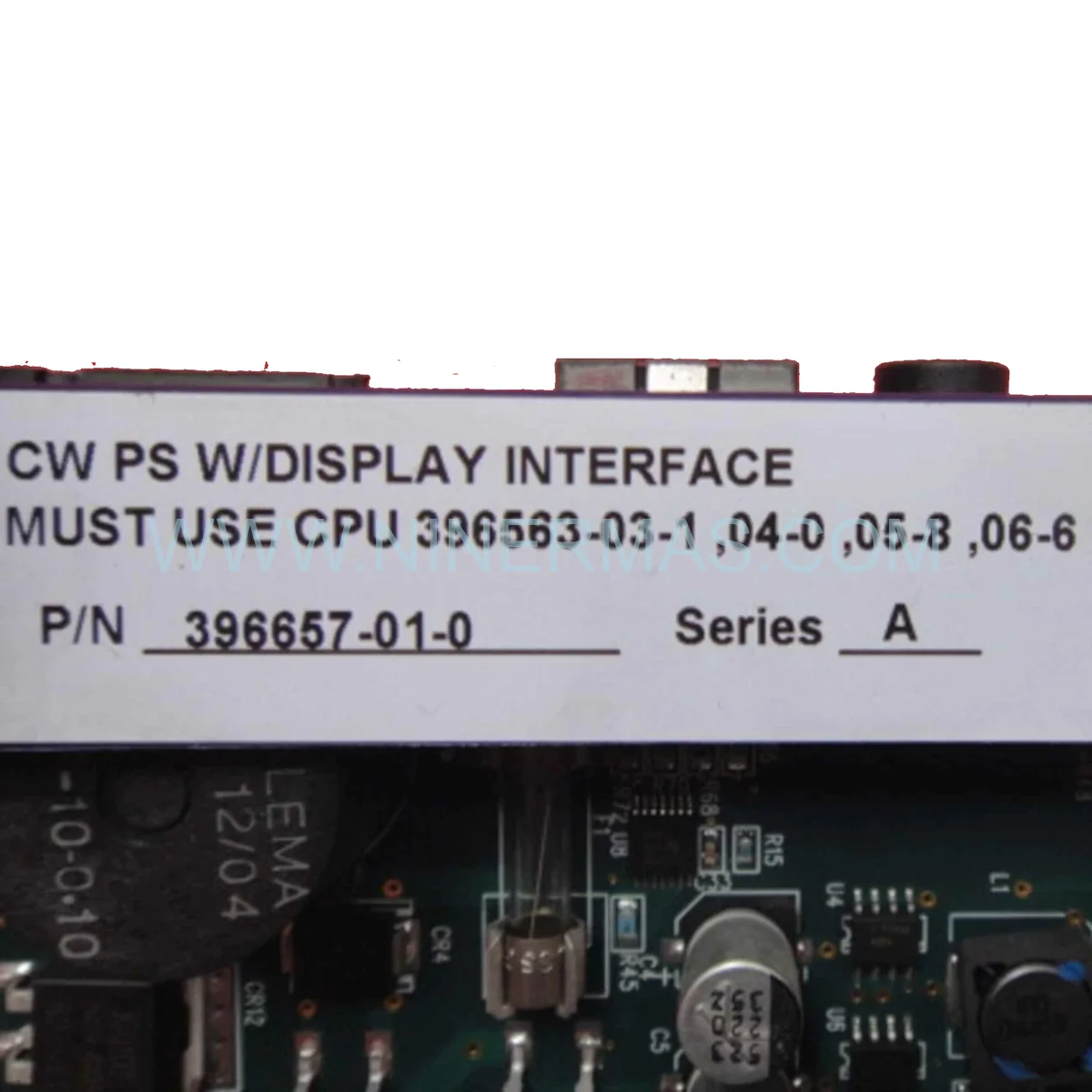

Emerson 396657-01-0 ControlWave Micro PSSM

Emerson ControlWave Micro Power Supply/Sequencer Module 396657-01-0 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing distributed SCADA infrastructure, the Emerson 396657-01-0 stands as a foundational element in sustaining system availability across remote terminal unit (RTU) deployments. The 396657-01-0 performs DC-to-DC power conversion, delivering regulated +3.3 Vdc and +5 Vdc rails across the ControlWave Micro backplane — a function that directly determines uptime in mission-critical process automation environments. Its integrated watchdog circuitry continuously validates CPU health and communication integrity, triggering external alarm outputs the moment anomalies are detected, enabling proactive intervention before production impact occurs.

Engineered for operational excellence in harsh industrial conditions, the 396657-01-0 carries a Class I, Division 2 (Groups A ) UL listing, making it suitable for deployment in hydrocarbon-rich atmospheres, chemical processing zones, and electrically noisy environments where VFDs and high-power switchgear generate significant EMI. Its wide input voltage acceptance (+10.7 to +30 Vdc) accommodates both 12V battery-backed solar installations and 24V industrial DC bus systems without hardware modification — a critical advantage during field installation where power source variability is common. Technicians must configure jumpers JP2, JP4, and JP5 prior to module insertion to match the nominal supply voltage; incorrect jumper settings are the leading cause of false power-fail alarms in the field.

As a process optimization strategy, maintaining at least one 396657-01-0 as a certified spare in your regional parts inventory is strongly recommended. End-of-life (EOL) procurement cycles for legacy RTU components can extend 8-16 weeks through standard channels. Stocking this module as a critical spare eliminates that risk, ensuring seamless integration and zero-delay restoration when a field unit requires replacement — a cornerstone of any robust system integration and operational excellence program.

Key Operational Features

Redundant Power Rail Architecture: Simultaneous +3.3 Vdc (main backplane) and +5 Vdc (auxiliary sequencer) outputs ensure high availability across all installed I/O modules.
1200 ms Good Power Detection: Filters transient voltage spikes while responding decisively to sustained anomalies — reducing nuisance trips in utility substation environments.
Triple-Level Jumper-Configurable Voltage Monitoring: JP2, JP4, JP5 independently set power-fail, shutdown, and field voltage thresholds for 12V or 24V nominal systems.
Watchdog MOSFET Output (TB2): Solid-state alarm output drives SCADA digital inputs, beacon lights, or annunciator panels upon CPU lockup or communication failure detection.
Run / Remote / Local Keyed Mode Switch: Physical operational mode selector prevents unintended remote commands during on-site maintenance — a critical safety interlock for field technicians.
Eight Front-Panel LED Diagnostics: Real-time status indicators for watchdog state, CPU idle margin, power quality, and sequencer condition — enabling rapid fault isolation without laptop connectivity.
Seamless Integration with ControlWave Micro Ecosystem: Slot #1 mandatory installation ensures plug-and-play compatibility with all 3-, 4-, and 8-slot base housing configurations and all associated I/O modules.

Maintenance & Performance Benchmarks

The 396657-01-0 is architected to support scalable industrial network deployments ranging from single-node remote pump stations to multi-drop pipeline SCADA networks spanning hundreds of kilometers. In small-scale installations (3-slot base housing), the module manages power distribution for up to three I/O modules simultaneously, with sufficient watchdog overhead for local HMI and serial communication modules. In expanded configurations using the 8-slot base housing, the PSSM maintains stable +3.3 Vdc regulation across full backplane load — a performance benchmark validated across oil & gas, water/wastewater, and utility automation sectors.

Preventive maintenance intervals for this module class are typically 36-60 months in climate-controlled enclosures, and 18-36 months in outdoor or thermally cycled installations. The 3A slow-blow fuse (F1, 5-20 mm) is the primary consumable component; maintaining a minimum of three spare fuses per installation site is standard SRE practice. Firmware compatibility is managed at the ControlWave Micro CPU level — the PSSM itself contains no field-upgradeable firmware, eliminating version management complexity from the maintenance workflow.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 396657-01-0 unit dispatched from our inventory is supplied in Original Factory Packaging, complete with Emerson part labeling and revision documentation. For in-stock units, same-day dispatch is available for orders confirmed before 14:00 (GMT+8), with worldwide express logistics via DHL, FedEx, and UPS — typical transit times of 3-7 business days to North America, Europe, and Southeast Asia.

We specialize in global supply of EOL and legacy automation components. As Emerson continues to evolve its ControlWave product line, the 396657-01-0 remains a critical spare for installed base systems that cannot be economically migrated to newer platforms. Our sourcing network maintains verified stock across multiple regional warehouses, ensuring supply continuity for long-term maintenance contracts and emergency breakdown scenarios alike. All units undergo pre-shipment functional verification and are accompanied by a certificate of conformance upon request.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the 396657-01-0?
Power down the ControlWave Micro base housing completely before insertion. Configure jumpers JP2, JP4, and JP5 to match your DC supply voltage (12V or 24V nominal) before installing the module into Slot #1. Secure the module locking lever, connect TB1 (DC power input) and TB2 (watchdog output) terminal blocks, then restore power. Verify LED status sequence on power-up: IDLE LED should illuminate within 5 seconds of stable power application.

Q2: Does the 396657-01-0 contain field-upgradeable firmware?
No. The PSSM contains no user-accessible firmware. All firmware management for the ControlWave Micro system is handled at the CPU/communication module level. This eliminates version compatibility concerns for the power supply module itself and simplifies spare parts management across multi-site installations.

Q3: What fuse specification must be used for replacement?
Only 3A slow-blow (time-delay) fuses in 5-20 mm format are approved for F1 replacement. Fast-blow fuses will cause nuisance trips during module startup inrush current. Using non-specified fuses voids the module warranty and may compromise hazardous location certification.

Q4: How does the warranty process work for this module?
All units carry a 1-year warranty from date of shipment. In the event of a confirmed hardware defect, contact sale@ninermas.com with your order reference and fault description. We will arrange advance replacement shipment for critical applications to minimize downtime, followed by return of the defective unit for evaluation.

Q5: Is the 396657-01-0 compatible with ControlWave Express or ControlWave Designer platforms?
The 396657-01-0 is designed specifically for the ControlWave Micro base housing platform. It is not cross-compatible with ControlWave Express or ControlWave Mega base housings, which use different PSSM form factors and backplane connector configurations. Always verify the base housing model number before ordering.
