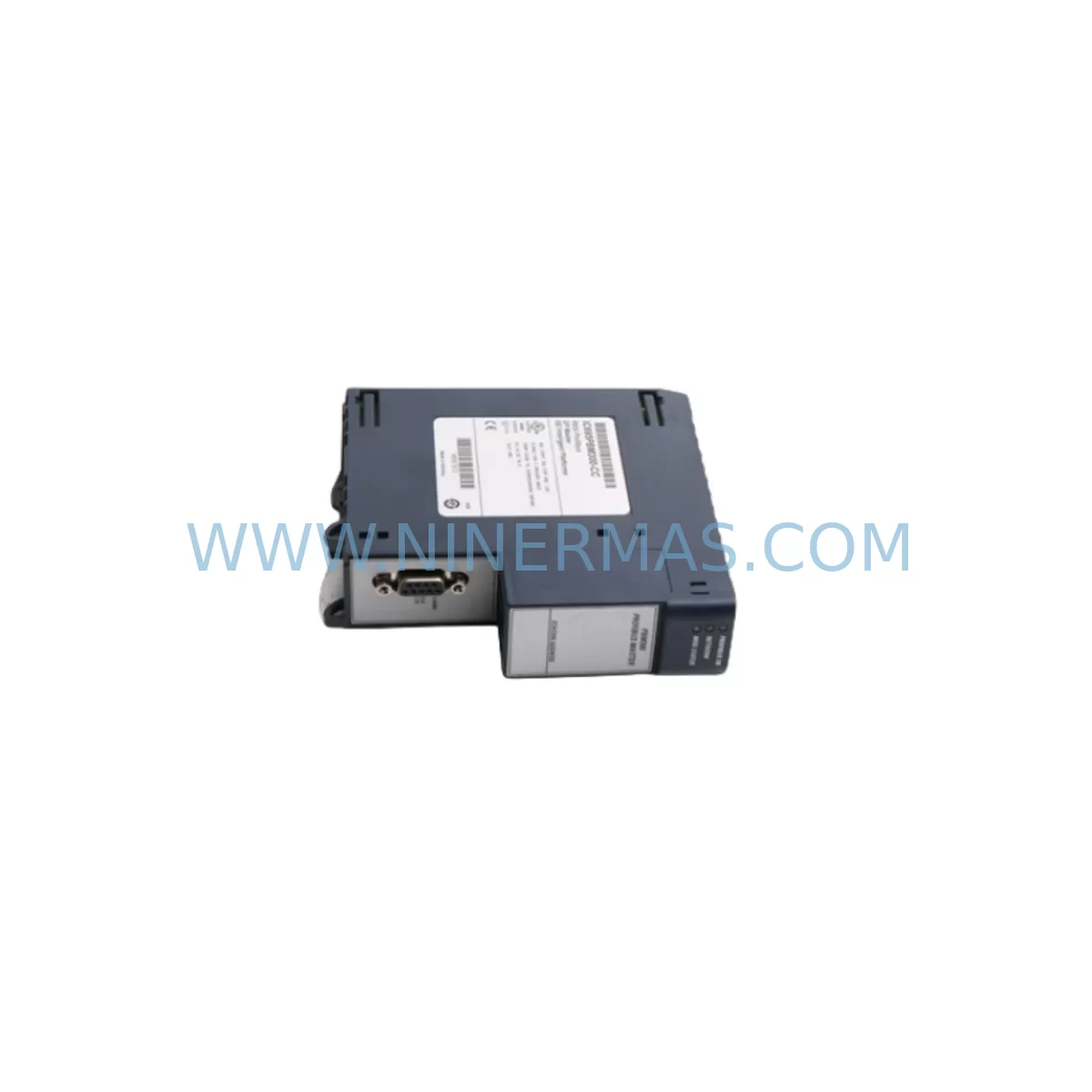

The GE IC695PBM300-CC is a ruggedized PROFIBUS DP Master Module designed for the GE PACSystems RX3i platform, engineered to operate reliably in harsh industrial environments including high-vibration, wide-temperature, and electrically noisy plant floors. As a critical communication backbone component, this module manages PROFIBUS DP network master functions — polling slave devices, managing token passing, and ensuring deterministic data exchange between the PLC backplane and field instrumentation.

For maintenance engineers managing aging automation infrastructure, the IC695PBM300-CC represents a high-priority spare. PROFIBUS master failures cause immediate loss of communication with all downstream slave devices — drives, valve positioners, remote I/O stations, and field transmitters — resulting in unplanned production shutdowns. Stocking a verified, original replacement module is the single most effective measure to minimize mean time to repair (MTTR) in PROFIBUS-dependent control architectures.

This listing covers the -CC ruggedized variant, which incorporates conformal coating on the PCB assembly for enhanced resistance to humidity, condensation, and airborne contaminants. It is the preferred specification for food processing, chemical, offshore, and heavy manufacturing environments where standard commercial-grade modules are inadequate.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IC695PBM300-CC in a live PACSystems RX3i cabinet, a disciplined maintenance approach requires inspecting the entire PROFIBUS segment and associated power infrastructure simultaneously. A module swap performed in isolation — without verifying adjacent components — risks repeat failures and extended downtime.

Power and Backplane Integrity: Before seating the replacement module, verify the RX3i power supply module (such as the IC695PSA040 or IC695PSD040) is delivering stable 5 VDC and 3.3 VDC rails to the backplane. A degraded power supply is a common root cause of communication module failures that goes undetected until a replacement module also fails. Inspect the IC695CHS012 or IC695CHS016 backplane for bent connector pins, corrosion, or mechanical damage at the module slot.

PROFIBUS Network Cabling and Termination: Inspect the PROFIBUS DP cable (Type A, shielded twisted pair) connected to the DB9 port of the IC695PBM300-CC. Verify that bus termination resistors are active only at the two physical ends of the PROFIBUS segment. Incorrect termination — a frequent field error — causes reflections that degrade communication reliability across all slave devices. Check the PROFIBUS DP connector plugs (90° or 35° type) for pin corrosion and cable strain relief integrity.

CPU and Communications Modules: Confirm the RX3i CPU module — typically an IC695CPE305, IC695CPE310, or IC695CPU320 — has current firmware compatible with the IC695PBM300-CC GSD file version. Mismatched firmware between the CPU and the PROFIBUS master module is a known source of configuration faults after module replacement. If the system also uses an IC695ETM001 Ethernet module for SRTP or Modbus TCP communications, verify its status is unaffected by the backplane power interruption during the swap.

Remote I/O and Slave Device Verification: After restoring power, use Proficy Machine Edition diagnostics to scan the PROFIBUS network and confirm all slave devices — including GE VersaMax remote I/O stations (IC200GBI001 or similar), variable frequency drives with PROFIBUS DP adapters, and field transmitters — are responding with correct diagnostic status. Any slave showing a “Not Reachable” or “Parameterization Error” state requires individual investigation before returning the line to production.

Signal Isolation and Protection: For installations in electrically noisy environments, inspect signal isolators on analog I/O loops connected to PROFIBUS slave transmitters. Surge protection devices on the PROFIBUS cable entry point should also be checked for degradation. Fuse integrity on the 24 VDC field power distribution feeding PROFIBUS slave devices should be verified as part of the same maintenance window.

HMI and SCADA Connectivity: If the plant uses a GE iFIX or Wonderware SCADA system communicating with the RX3i via OPC or direct Ethernet, confirm that the HMI data tags associated with PROFIBUS slave I/O are updating correctly after the module replacement. Stale or frozen HMI values after a module swap indicate a communication path issue that must be resolved before operator handover.

Site Replacement Workflow

Step 1 — Pre-Replacement Documentation: Export the current PROFIBUS master configuration from Proficy Machine Edition, including the GSD-based slave parameterization for all connected devices. Save the project backup to a secure location. Note the current firmware revision of the IC695PBM300-CC being replaced (visible in PME hardware configuration).

Step 2 — Controlled Power-Down: The IC695PBM300-CC does not support hot-swap. Coordinate with operations to place the affected control loop in manual or safe state. Power down the RX3i rack in a controlled sequence — disable field outputs before removing backplane power to prevent actuator transients.

Step 3 — Module Removal and Inspection: Remove the faulty IC695PBM300-CC by releasing the module latch and sliding it from the backplane slot. Inspect the backplane connector for damage. Retain the faulty module for failure analysis if required by your maintenance management system.

Step 4 — Replacement Module Installation: Seat the new IC695PBM300-CC firmly into the same backplane slot. Reconnect the PROFIBUS DP cable to the DB9 port. Verify cable termination status before restoring power.

Step 5 — Configuration Download and Verification: Restore power to the RX3i rack. Using Proficy Machine Edition, download the saved hardware configuration to the CPU. Perform a PROFIBUS network scan to confirm all slaves are online. Verify I/O data exchange is active and correct before releasing the system to automatic operation.

Step 6 — Post-Replacement Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System) with the new module serial number, installation date, and post-replacement test results. Update your spare parts inventory to trigger reorder of a replacement IC695PBM300-CC to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the IC695PBM300-CC a direct drop-in replacement for the IC695PBM300 (non-CC variant)?
Functionally, yes — the -CC suffix denotes conformal coating only and does not affect the module’s electrical or communication specifications. The IC695PBM300-CC is fully compatible with the same backplane slots, GSD files, and Proficy Machine Edition configurations as the standard IC695PBM300. It is the preferred replacement in harsh environments and is an acceptable upgrade in standard environments.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every IC695PBM300-CC shipped by NINERMAS undergoes functional verification prior to dispatch, including backplane interface continuity checks and PROFIBUS port integrity testing. The 12-month warranty covers manufacturing defects and module failure under normal operating conditions. Warranty claims are supported with direct technical assistance from our engineering team.

Q3: How do you manage long-term supply for end-of-life GE PACSystems modules?
NINERMAS maintains a dedicated inventory of legacy GE PACSystems RX3i components sourced through authorized distribution and verified surplus channels. For critical spare parts such as the IC695PBM300-CC, we recommend customers establish a blanket purchase agreement or consignment stock arrangement to ensure availability during extended lead-time periods. Contact our team to discuss long-term supply contracts.

Q4: Can you ship the IC695PBM300-CC internationally with export compliance documentation?
Yes. NINERMAS ships globally with full export documentation including commercial invoice, packing list, and certificate of origin. For customers requiring EAR (Export Administration Regulations) or CE compliance documentation, please specify at the time of order. Standard lead time for in-stock units is 3–5 business days; expedited shipment is available upon request.
