GE IC695PBM300LT Service-Ready Spare Part for Industrial Maintenance

GE IC695PBM300LT Service-Ready Spare Part for Industrial Maintenance

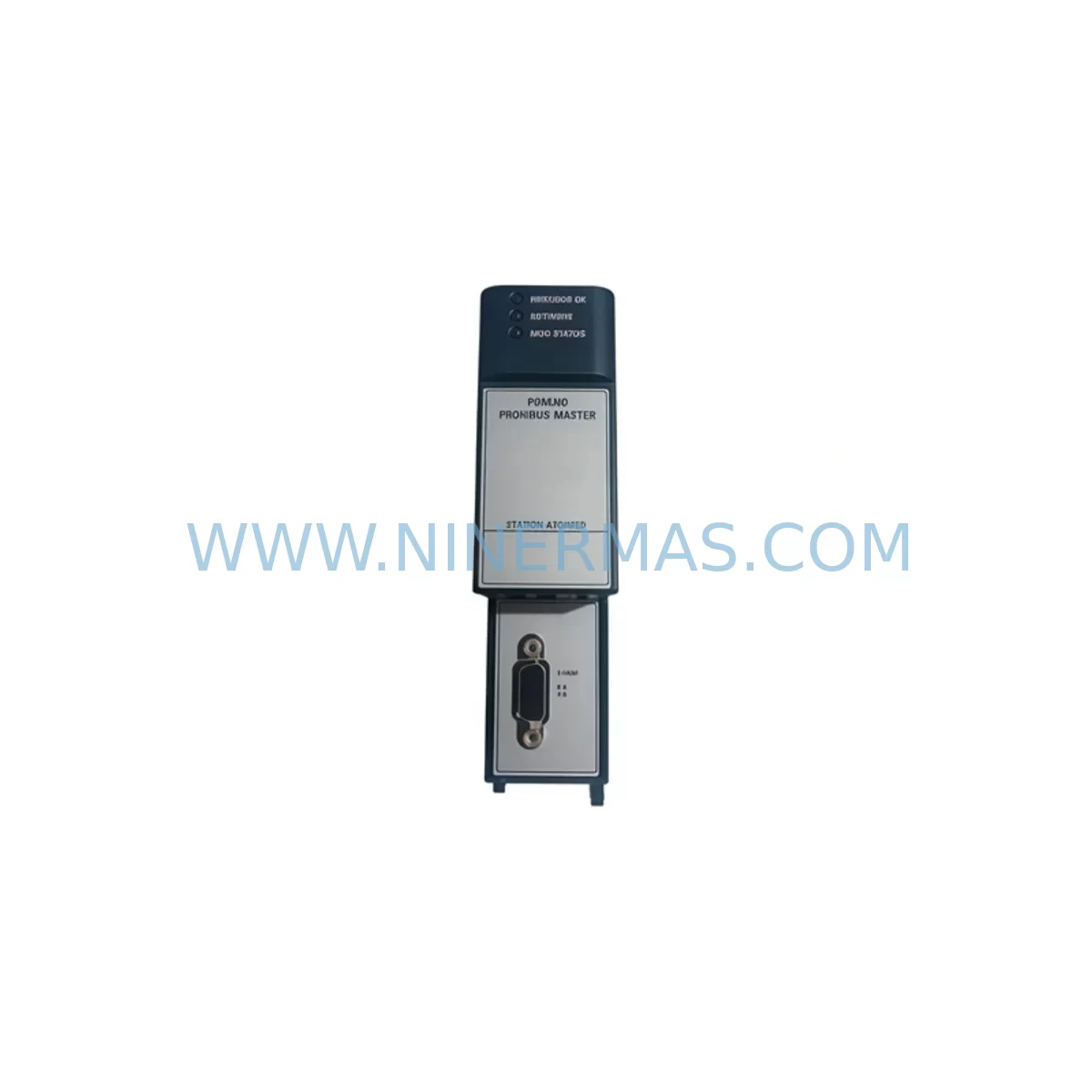

The GE IC695PBM300LT is an original PROFIBUS DP Master Module designed for the GE PACSystems RX3i platform — one of the most widely deployed programmable automation controller (PAC) architectures in process and discrete manufacturing environments. When a PROFIBUS master module fails or reaches end-of-life, the downstream impact is immediate: field devices go silent, I/O data stops flowing, and production lines halt. Sourcing a verified, service-ready IC695PBM300LT replacement is the fastest path to restoring system integrity and resuming normal operations.

At NINERMAS, every IC695PBM300LT unit is inspected, function-tested, and shipped with a 12-month warranty. Whether you are responding to an unplanned breakdown, building a critical spare inventory, or executing a scheduled annual overhaul, this module is stocked and ready for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IC695PBM300LT is rarely an isolated task. A PROFIBUS master module sits at the heart of a distributed I/O network, and any maintenance event affecting it should trigger a broader inspection of the surrounding control cabinet and field wiring. Maintenance engineers should simultaneously verify the condition of the RX3i backplane — typically an IC695CHS007 or IC695CHS016 — since backplane connector wear or oxidation can cause intermittent communication faults that mimic a failed master module.

The RX3i CPU module (such as the IC695CPE310 or IC695CPE330) should be checked for firmware compatibility with the replacement IC695PBM300LT, as mismatched firmware versions between the CPU and the PROFIBUS master can prevent the module from initializing correctly after installation. Proficy Machine Edition project files should be backed up before any module swap.

On the power side, the RX3i power supply module — commonly the IC695PSA040 or IC695PSD040 — should be load-tested to confirm it can sustain the full backplane current draw after the new module is seated. A degraded power supply is a frequent hidden cause of post-replacement instability. Inspect the 24 VDC field power rail and terminal blocks feeding PROFIBUS field devices, as loose or corroded terminals at the DB9 PROFIBUS connector can introduce noise that disrupts DP communication even with a healthy master module.

For sites running mixed PROFIBUS and PROFINET architectures, the IC695ETM001 Ethernet module and any managed industrial switches in the network segment should be inspected for firmware currency and port health. If the control system also includes analog or digital I/O modules such as the IC695ALG600 or IC695MDL654, verify that their GSD (General Station Description) files are correctly loaded in the PROFIBUS master configuration — a common oversight during emergency replacements that causes slave devices to remain in data exchange failure state.

Procurement engineers building a critical spare inventory for PACSystems RX3i installations should consider stocking the IC695PBM300LT alongside the IC695CPE310 CPU, IC695PSA040 power supply, and at least one spare backplane. For facilities with high PROFIBUS slave counts, a spare IC695PBM300LT per control cabinet is a widely adopted best practice that reduces mean time to repair (MTTR) from days to under two hours.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s part number (IC695PBM300LT) and firmware revision using Proficy Machine Edition. Export the current hardware configuration and PROFIBUS master parameters as a backup. Notify operations of the planned maintenance window.

Step 2 — Safe De-energization: Follow site LOTO (Lockout/Tagout) procedures. Remove the IC695PBM300LT from its backplane slot by releasing the module locking tabs. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit.

Step 3 — Module Installation: Seat the new IC695PBM300LT firmly into the same backplane slot. Re-energize the rack and observe the module status LEDs — the OK LED should illuminate solid green within 30 seconds of power-up as the CPU performs hardware discovery.

Step 4 — Configuration Download: Using Proficy Machine Edition, download the previously backed-up hardware configuration to the CPU. Verify that all PROFIBUS DP slaves enter Data Exchange (DX) state. Check the PROFIBUS diagnostic buffer for any slave configuration mismatches.

Step 5 — Functional Validation: Cycle the controlled process through a test sequence to confirm all field I/O signals are responding correctly. Document the replacement in the site maintenance log, including the new module serial number and firmware version.

This workflow is compatible with all PACSystems RX3i CPU variants and supports hot-standby redundancy configurations where the IC695PBM300LT is used in a redundant PROFIBUS master topology.

Spare Parts Support FAQ

Q1: Is the IC695PBM300LT compatible with all PACSystems RX3i CPU modules?
Yes. The IC695PBM300LT is compatible with all RX3i CPU modules including the CPE302, CPE305, CPE310, CPE330, and CPE400, provided the Proficy Machine Edition project is configured for the correct module type. Always verify firmware compatibility between the CPU and the PROFIBUS master module before installation.

Q2: What does the 12-month warranty cover, and how is it validated?
Every IC695PBM300LT shipped by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. A test report is available upon request. Warranty claims are processed directly through NINERMAS with a typical response time of 24–48 business hours.

Q3: Can the IC695PBM300LT replace older GE Series 90-30 PROFIBUS modules?
No direct drop-in replacement is possible between the Series 90-30 and RX3i platforms due to different backplane architectures. However, NINERMAS can advise on migration paths and supply both IC695PBM300LT (RX3i) and legacy Series 90-30 PROFIBUS modules to support phased system upgrades or parallel operation during transition periods.

Q4: How quickly can the IC695PBM300LT be shipped, and is long-term supply guaranteed?
The IC695PBM300LT is maintained in stock at NINERMAS and ships within 1–3 business days of order confirmation. For customers requiring guaranteed long-term supply — particularly for aging PACSystems RX3i installations approaching end-of-life — NINERMAS offers blanket purchase agreements and reserved inventory programs to ensure continuity of spare parts availability over multi-year maintenance horizons.
