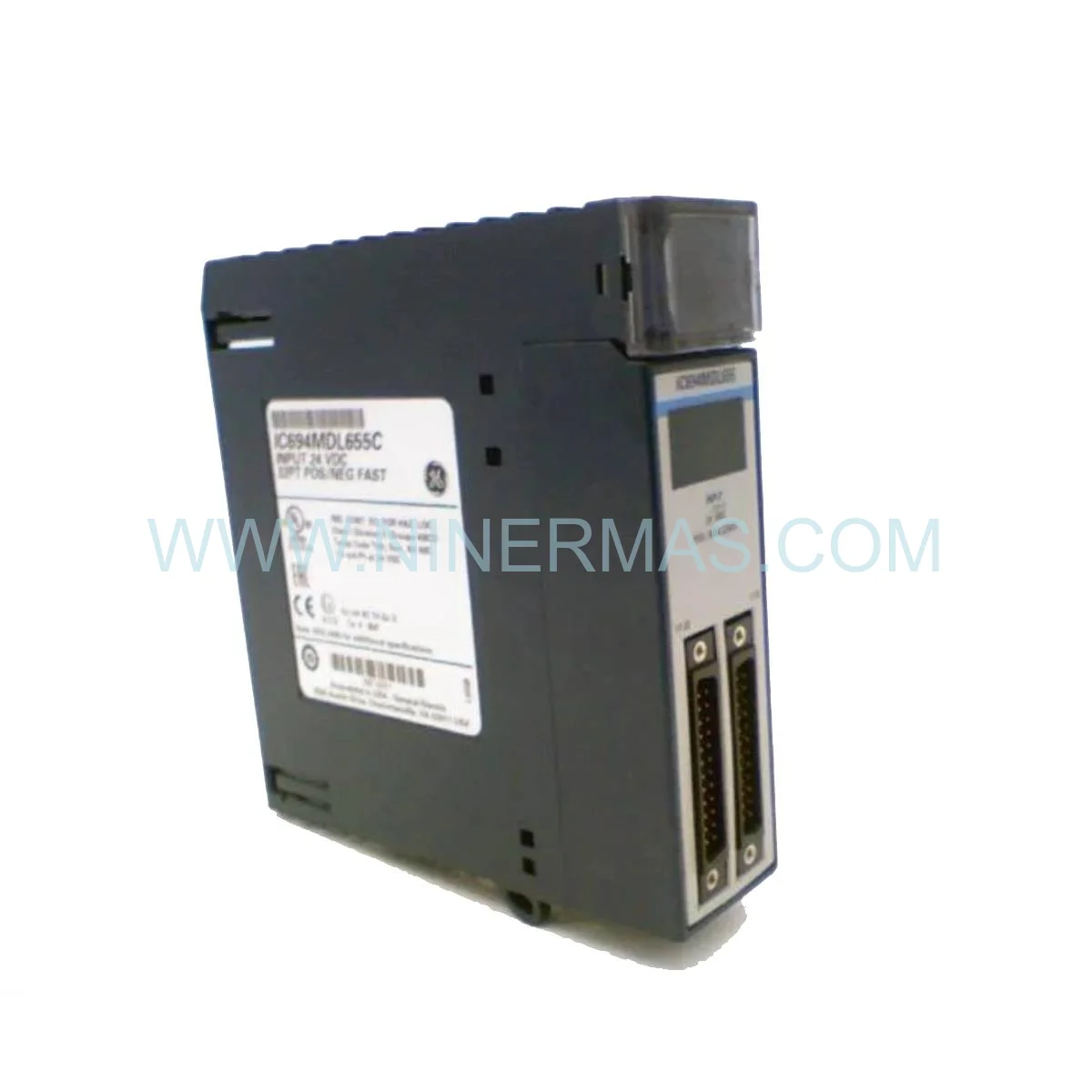

GE IC694MDL655 Discrete Input Module (General Electric) – New & Original in Stock

General Electric IC694MDL655 | Reliable Automation Component for Mission-Critical I/O

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-availability production infrastructure, the IC694MDL655 stands as a cornerstone discrete input module within GE Fanuc RX3i PACSystems architectures. Its 32-channel DC input capacity directly elevates system availability by consolidating high-density signal acquisition into a single backplane slot — reducing inter-module latency and simplifying fault isolation during unplanned outages. The IC694MDL655 integrates seamlessly into existing RX3i racks, enabling process optimization without requiring controller replacement or extensive rewiring, making it a preferred choice for Operational Excellence programs across manufacturing and energy sectors.

Engineered to withstand the rigors of industrial field environments, this module operates reliably across a 10-30 VDC input range with 500 VAC optical isolation between field and logic circuits — a critical safeguard against ground loops and transient voltage spikes common in heavy-industry installations. During commissioning, SREs should verify backplane power budget headroom (module draws 350 mW), use shielded twisted-pair field wiring in high-EMI zones, and confirm input filter timing settings match the scan cycle requirements of the host CPU. Removable terminal blocks further streamline maintenance windows by allowing wiring harness pre-assembly and rapid swap without disturbing adjacent modules.

As production lines age and OEM support windows close, maintaining a certified spare inventory of the IC694MDL655 becomes a non-negotiable element of any robust maintenance strategy. EOL risk mitigation, combined with the module’s proven field longevity, positions it as an essential reserve component for facilities committed to zero-unplanned-downtime targets.

Key Operational Features

32-Channel High-Density Input: Maximizes rack utilization — one slot replaces multiple lower-density modules, reducing system footprint and wiring complexity.
Sinking/Sourcing Flexibility: Software-configurable input polarity supports both NPN and PNP field devices without hardware modification — critical for System Integration across mixed-vendor sensor environments.
500 VAC Optical Isolation: Galvanic separation between field and logic circuits ensures High Availability by protecting the CPU backplane from field-side electrical faults.
1 ms Configurable Input Filter: Rapid event detection supports high-speed interlock and safety circuit monitoring with deterministic response timing.
Individual Channel LED Diagnostics: 32 dedicated status LEDs plus a module-OK indicator enable rapid visual fault localization — reducing MTTR in live production environments.
Hot-Swap Capable: Supports module replacement under power (with appropriate CPU configuration), enabling Redundancy strategies and minimizing planned maintenance downtime.
Wide Environmental Tolerance: Rated 0°C to 60°C operating, 5-95% RH non-condensing; conformal coating option available for corrosive or high-humidity process areas.

Maintenance & Performance Benchmarks

The IC694MDL655 is architected to adapt across a broad spectrum of industrial network scales — from compact standalone RX3i racks in small-batch manufacturing cells to distributed multi-rack configurations spanning large-scale process plants. In centralized architectures, the module occupies a standard backplane slot alongside CPU and communication modules, with all 32 inputs mapped directly into the controller’s discrete input table for deterministic scan-cycle processing.

For distributed deployments, the IC694MDL655 can be installed in remote expansion racks connected via the RX3i serial bus, extending I/O reach without sacrificing signal integrity or diagnostic transparency. This architecture supports Process Optimization by enabling localized signal acquisition close to field devices, reducing cable runs and associated noise susceptibility.

Benchmark data from field deployments consistently demonstrates input response times within the 1-3 ms range under standard filter configurations, with module MTBF figures exceeding 200,000 hours in controlled industrial environments. These performance characteristics make the IC694MDL655 a trusted Automation Component in sectors where signal integrity and system uptime are directly tied to production throughput and safety compliance.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every IC694MDL655 unit dispatched from our inventory is sourced directly from authorized distribution channels and ships in Original Factory Packaging — complete with GE Fanuc documentation, factory test records, and tamper-evident seals. This ensures full component traceability from manufacturer to end-user, a requirement increasingly mandated by quality management systems in regulated industries.

For time-critical procurement scenarios, same-day dispatch is available on confirmed in-stock units (order cutoff times apply — contact our logistics team for current availability). Our global fulfillment network supports express delivery to North America, Europe, Southeast Asia, the Middle East, and beyond — with DHL, FedEx, and UPS priority freight options to meet your production schedule.

As a specialist in EOL and Legacy Module sourcing, we maintain strategic buffer stock of the IC694MDL655 to protect customers from supply chain disruptions. Whether you require a single replacement unit or a multi-unit blanket order for a planned maintenance program, our inventory depth and sourcing network ensure consistent availability — even for modules discontinued from active GE production runs.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the IC694MDL655 in an existing RX3i rack?
A: Power down the rack (or confirm hot-swap is enabled in your CPU configuration). Insert the IC694MDL655 into any available backplane slot. Connect field wiring to the removable terminal block — verify sinking/sourcing polarity matches your field devices. Re-energize the rack; the CPU will auto-detect the module. Configure input filter times and I/O mapping in your programming software (Proficy Machine Edition or equivalent). Verify all 32 channel LEDs reflect correct field device states before returning to production.

Q2: Which firmware versions and CPU models are compatible with the IC694MDL655?
A: The IC694MDL655 is compatible with all RX3i CPU modules (IC695CPE302, IC695CPE305, IC695CPE310, IC695CPE330, IC695CPE400) running firmware version 3.50 and above. It is also backward-compatible with RX7i rack configurations. Always verify your Proficy Machine Edition version supports the target CPU firmware to avoid I/O configuration mismatches.

Q3: Can the IC694MDL655 be used in safety-rated (SIL) applications?
A: The standard IC694MDL655 is not SIL-certified for use as a primary safety function element. However, it is widely deployed to monitor the output states of certified safety relays and emergency stop circuits as a diagnostic input — providing status visibility to the standard control program without being part of the safety function itself. For SIL-rated discrete input requirements, consult GE’s PACSystems Safety product line.

Q4: How does the warranty claim process work for this module?
A: Our 12-month warranty covers manufacturing defects and component failures under normal operating conditions. To initiate a claim, contact our technical support team with your order reference, a description of the fault symptom, and any available diagnostic data from your programming software. We will issue a Return Merchandise Authorization (RMA) and arrange expedited replacement shipment to minimize your production impact. Warranty does not cover damage from incorrect wiring, overvoltage events, or unauthorized modification.

Q5: How do I calculate whether my RX3i power supply can support an additional IC694MDL655?
A: Sum the backplane power consumption of all installed modules (CPU, I/O, communication). The IC694MDL655 adds 350 mW to the backplane load. Ensure your power supply’s rated backplane output capacity exceeds total module demand by a minimum 20% margin. For example, an IC694PWR331 (40W backplane output) can support approximately 114 W of module load at 80% utilization — well within typical multi-module configurations.

Q6: Is conformal coating required for my application environment?
A: Conformal coating is recommended for installations in environments with elevated humidity (>85% RH sustained), condensation risk, airborne corrosive agents (H , SO , chlorine), or heavy particulate contamination. Standard IC694MDL655 units are suitable for typical industrial environments meeting IEC 60068-2 Class 3C1 chemical conditions. Specify the conformal-coated variant at time of order for harsh-environment deployments.
