GE Fanuc IC694ALG222 Spare Part for Industrial Maintenance

GE Fanuc IC694ALG222 Spare Part for Industrial Maintenance

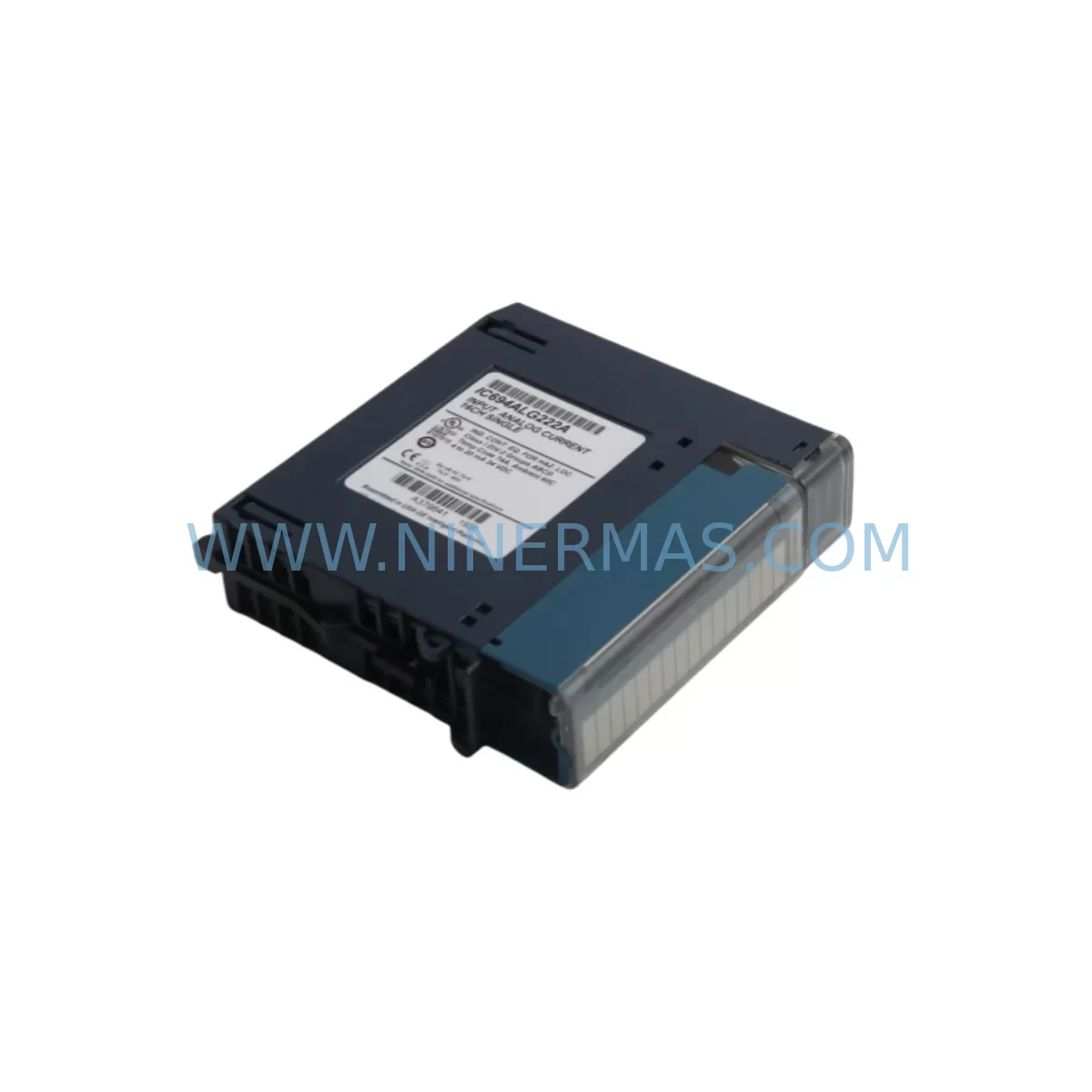

The GE Fanuc IC694ALG222 is a 16-channel analog input module designed for the Series 90-30 PLC platform, one of the most widely deployed programmable logic controller families in discrete and process manufacturing environments. As production lines age and OEM support windows close, maintaining a verified, service-ready stock of the IC694ALG222 becomes a critical element of any industrial maintenance strategy. Whether you are managing a food processing facility, an automotive assembly line, a water treatment plant, or a chemical process unit, the IC694ALG222 remains a cornerstone analog signal acquisition component that directly impacts process visibility and control loop integrity.

At NINERMAS, every IC694ALG222 unit is sourced from verified supply channels, inspected prior to dispatch, and shipped with a 12-month replacement warranty. Our inventory is maintained to support both emergency breakdown orders and planned annual maintenance procurement cycles, ensuring your engineering and purchasing teams can rely on consistent availability without lead-time surprises.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Series 90-30 system experiences an analog input fault, the root cause is rarely isolated to the IC694ALG222 module alone. A disciplined maintenance engineer will treat the module replacement as an opportunity to audit the entire analog signal chain and associated control cabinet components. During scheduled downtime or emergency intervention, the following components should be inspected or replaced alongside the IC694ALG222:

Begin with the Series 90-30 CPU module — units such as the IC693CPU374 or IC694CPU310 — to confirm firmware compatibility and verify that the CPU is correctly reading the analog data table after module swap. Next, inspect the baseplate or rack (e.g., IC694CHS392 or IC694CHS398) for backplane connector wear, bent pins, or corrosion that could cause intermittent analog channel faults even after a module replacement.

The IC694ALG222 relies on clean, stable field wiring. Inspect all terminal blocks and field wiring connectors for loose terminations, oxidation, or insulation breakdown — particularly in high-vibration or high-humidity environments. If the system uses signal isolators or signal conditioners between field transmitters and the PLC input, verify that these devices are within calibration and that their output ranges match the configured input range of the IC694ALG222.

For process loops running 4–20 mA signals, check the loop power supply — typically a dedicated 24 VDC instrument power supply such as the IC693PWR321 or a third-party DIN-rail unit — for output voltage stability and ripple. A degraded power supply is a common hidden cause of analog drift and erratic readings that are mistakenly attributed to the input module itself.

If the cabinet includes a GE Series 90-30 analog output module such as the IC694ALG390 or IC694ALG392 on the same baseplate, inspect those modules as well, since shared backplane power issues can affect both input and output analog modules simultaneously. Similarly, review any discrete I/O modules (e.g., IC694MDL340 or IC694MDL654) installed in adjacent slots for signs of thermal stress or connector fatigue.

For systems with Genius Bus or Ethernet communications modules (such as the IC693CMM321 or IC694ETM001), confirm that network communication is stable after the module replacement and that no address conflicts or configuration mismatches have been introduced. Finally, if the system interfaces with an HMI or SCADA station, verify that analog tag scaling and engineering unit conversions are correctly mapped to the replacement module’s channel configuration before returning the line to production.

Site Replacement Workflow

Replacing the IC694ALG222 in a live Series 90-30 system requires a structured approach to minimize downtime and avoid configuration errors. Follow this recommended workflow:

Step 1 – Pre-Replacement Verification: Before powering down, document the current module configuration using the GE Proficy Machine Edition (ME) programming software. Export the hardware configuration and note the channel-by-channel input range settings, scaling parameters, and alarm setpoints stored in the CPU data table. This documentation is essential if the replacement module requires re-configuration.

Step 2 – Safe Power-Down: Place the CPU in STOP mode, then remove power from the baseplate. For systems with a hot-standby redundancy configuration, ensure the redundant CPU has assumed control before removing power from the primary rack.

Step 3 – Module Removal and Inspection: Remove the IC694ALG222 by releasing the module locking tabs and sliding it out of the baseplate slot. Inspect the backplane connector on both the module and the baseplate for damage. Clean the slot with dry compressed air if contamination is present.

Step 4 – Replacement Module Installation: Insert the new IC694ALG222 into the same slot. The Series 90-30 platform supports slot-based auto-configuration for analog modules, meaning the CPU will recognize the replacement module upon power-up without requiring manual slot reassignment — provided the hardware configuration in the CPU matches the physical slot position.

Step 5 – Power-Up and Verification: Restore power and place the CPU in RUN mode. Monitor the analog input data table in Proficy ME or the connected HMI to confirm that all 16 channels are reading within expected engineering unit ranges. Compare live readings against known process values or calibrated signal sources to validate accuracy before releasing the system to production.

Step 6 – Documentation and Spare Stock Update: Record the replacement in your maintenance management system (CMMS), update your spare parts inventory, and initiate a reorder for the consumed IC694ALG222 unit to maintain your minimum stock level.

Spare Parts Support FAQ

Q1: Is the IC694ALG222 still available as a new original part, or only as refurbished?
NINERMAS maintains stock of IC694ALG222 in multiple conditions — new original (factory-sealed), new surplus (unused, original packaging), and tested refurbished (fully inspected and function-tested). Each unit is clearly labeled with its condition grade prior to shipment. If you require a specific condition for your maintenance records or quality management system, please specify at the time of inquiry.

Q2: How do I verify compatibility before installing the replacement module?
The IC694ALG222 is compatible with all standard Series 90-30 baseplates that support I/O modules, including the IC694CHS392 (10-slot) and IC694CHS398 (12-slot). Compatibility is determined by the baseplate series and the CPU firmware version. We recommend confirming your CPU model and firmware revision with our technical team before ordering if you are unsure. NINERMAS provides pre-shipment compatibility verification as part of our standard order process.

Q3: What testing is performed before shipment?
Every IC694ALG222 unit dispatched by NINERMAS undergoes a pre-shipment functional inspection that includes visual inspection of the PCB and connector, power-on self-test verification, and channel-level analog signal testing where test equipment is available. Units that do not pass inspection are not shipped. A test report can be provided upon request for quality-critical procurement.

Q4: What does the 12-month warranty cover, and how is a warranty claim handled?
NINERMAS provides a 12-month replacement warranty on all IC694ALG222 units from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, contact our support team at sale@ninermas.com with your order number and a description of the fault. We will arrange a replacement dispatch or credit, subject to inspection of the returned unit. The warranty does not cover damage caused by incorrect installation, overvoltage, or physical mishandling.
