GE Fanuc IC694ALG223 Retrofit-Compatible Analog Input Module

GE Fanuc IC694ALG223 Retrofit-Compatible Analog Input Module for Legacy Series 90-30 Systems

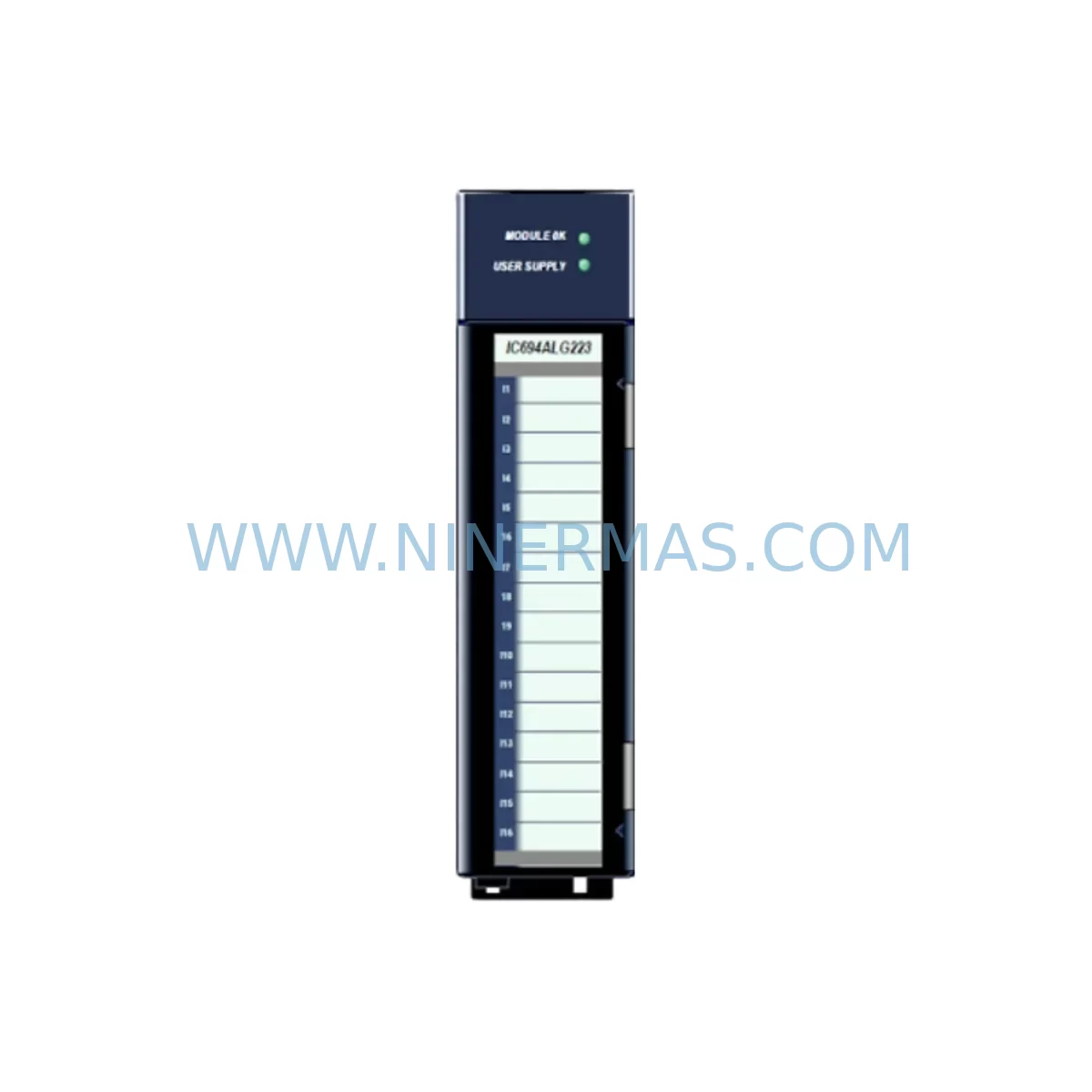

The GE Fanuc IC694ALG223 is a 16-channel analog input module designed for the Series 90-30 PLC platform — one of the most widely deployed programmable logic controller families in industrial automation history. As GE Fanuc (now Emerson Automation Solutions) has progressively discontinued legacy Series 90-30 hardware, the IC694ALG223 has become a critical spare part for facilities operating aging control systems across manufacturing, oil & gas, water treatment, and process automation environments. NINERMAS maintains verified stock of the IC694ALG223 to support retrofit projects, emergency replacements, and long-term spare parts programs with a 12-month warranty on every unit shipped.

Each IC694ALG223 provides 16 single-ended or 8 differential analog input channels, accepting voltage and current signals (0–10 VDC, ±10 VDC, 4–20 mA) with 12-bit resolution. The module occupies a single slot in the IC694 baseplate (IC694CHS392, IC694CHS398, or IC694CHS399) and communicates with the CPU — such as the IC693CPU374, IC694CPU310, or IC694CPU315 — via the Series 90-30 backplane bus. Before installation, engineers must confirm available slot count on the existing rack, verify that the CPU firmware revision supports the module’s configuration block, and check that the power supply (IC694PWR321 or IC694PWR330) has sufficient current budget to accommodate the additional analog I/O load.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IC694ALG223 in an operational plant requires a structured approach that accounts for both hardware compatibility and software configuration. The first step is to pull the existing hardware configuration from the CPU using Proficy Machine Edition and confirm that the slot assignment, module catalog number, and I/O reference addresses match the replacement unit. In many legacy installations, the IC694ALG223 is configured alongside discrete I/O modules such as the IC694MDL645 (32-point 24 VDC input) or IC694MDL754 (32-point relay output), sharing the same IC694CHS392 baseplate. Engineers should document the full rack layout before removing any module.

Terminal wiring is one of the most time-sensitive steps in an analog module replacement. The IC694ALG223 uses a removable screw terminal block on the field side, which means the entire wiring harness can be unplugged from the failed module and transferred directly to the replacement unit — significantly reducing downtime. However, technicians must verify that the terminal block is fully seated and that shield drain wires are properly grounded to the module’s chassis ground lug to prevent noise pickup on sensitive 4–20 mA loops from field transmitters.

For facilities that also need to upgrade their communication infrastructure, the IC694CMM321 (Series 90-30 Ethernet Interface) or IC694CMM302 (Serial Communications Module) may be involved in the same retrofit window. If the control system communicates with an HMI — such as a GE iFIX or Wonderware InTouch station — the analog tag addresses must be verified in the SCADA database after the module swap to ensure that engineering unit scaling and alarm limits remain intact. Any change to the I/O reference address in the hardware configuration will require a program download and a full HMI tag audit.

When the retrofit scope extends beyond a single module replacement to a full control cabinet upgrade, additional components commonly addressed in the same project include the IC694PWR330 power supply (for higher current capacity), the IC694BEM321 bus expansion module (to add a remote I/O rack), and signal isolators or loop-powered barriers on the field wiring side to protect the new module inputs from ground loops or voltage transients. Programming cables such as the IC690ACC901 serial cable or a USB-to-serial adapter with Proficy Machine Edition are essential for on-site configuration and verification.

Downtime Control During System Migration

Minimizing production downtime during an IC694ALG223 replacement begins with pre-staging the replacement module and verifying its configuration offline before the maintenance window opens. Using Proficy Machine Edition, engineers can create an offline hardware configuration that mirrors the live system, confirm the module’s catalog number and firmware compatibility, and pre-load the configuration to a laptop ready for on-site download. This eliminates the need for any configuration changes during the live swap and reduces the module replacement to a physical swap-and-verify operation.

During the maintenance window, the recommended sequence is: (1) place the CPU in STOP mode and record all current analog input values from the HMI for post-restart verification; (2) remove the terminal block from the failed IC694ALG223 and transfer it to the replacement unit; (3) seat the new module in the correct rack slot and confirm the backplane connector is fully engaged; (4) power up the rack and observe the module’s status LED — a solid green LED indicates normal operation; (5) place the CPU back in RUN mode and verify all 16 analog channels are reading within expected engineering unit ranges on the HMI. The entire process, when pre-staged correctly, typically takes 15–30 minutes of actual downtime.

For systems where even brief downtime is unacceptable, a hot-standby CPU configuration using the IC694CPU374 with redundancy modules can be considered as part of a broader system modernization plan. NINERMAS can support multi-phase retrofit projects by providing staged delivery of spare modules — including the IC694ALG223 and associated rack components — aligned with planned maintenance windows to keep critical production lines running without interruption.

Retrofit Support FAQ

Q1: Is the IC694ALG223 a direct drop-in replacement for a failed analog input module in my Series 90-30 rack?
Yes. The IC694ALG223 is slot-compatible with all IC694 baseplates (IC694CHS392, IC694CHS398, IC694CHS399). The removable terminal block transfers directly from the old module, preserving all field wiring. The only required step is confirming the hardware configuration in Proficy Machine Edition matches the replacement module’s catalog number and slot position before downloading to the CPU.

Q2: Can I use the IC694ALG223 with both voltage and current input signals on the same module?
Yes. Each channel group on the IC694ALG223 can be independently configured for voltage (0–10 VDC or ±10 VDC) or current (4–20 mA) input via the hardware configuration in Proficy Machine Edition. No hardware jumpers are required — all signal type selection is software-configured. Verify that field transmitters are wired to the correct terminal positions as defined in the IC694ALG223 User’s Manual (GFK-0898).

Q3: What testing and quality checks does NINERMAS perform before shipping the IC694ALG223?
Every IC694ALG223 unit shipped by NINERMAS undergoes functional verification including backplane communication check, channel-level analog signal accuracy test across the full input range, and visual inspection for connector and terminal block integrity. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping is available for emergency replacement orders.

Q4: What is the migration path if I want to upgrade from Series 90-30 to a modern PACSystems platform?
The recommended migration path from Series 90-30 to PACSystems RX3i involves replacing the IC694 rack and CPU with the IC695CHS012 rack and IC695CPU315 controller, and substituting the IC694ALG223 with the IC695ALG608 (8-channel universal analog input module). The ladder logic program can be converted using Proficy Machine Edition’s import tools, though analog scaling blocks and I/O reference addresses will require manual review. NINERMAS recommends maintaining a stock of IC694ALG223 modules as bridge spares during the transition period to support any rollback scenario.
