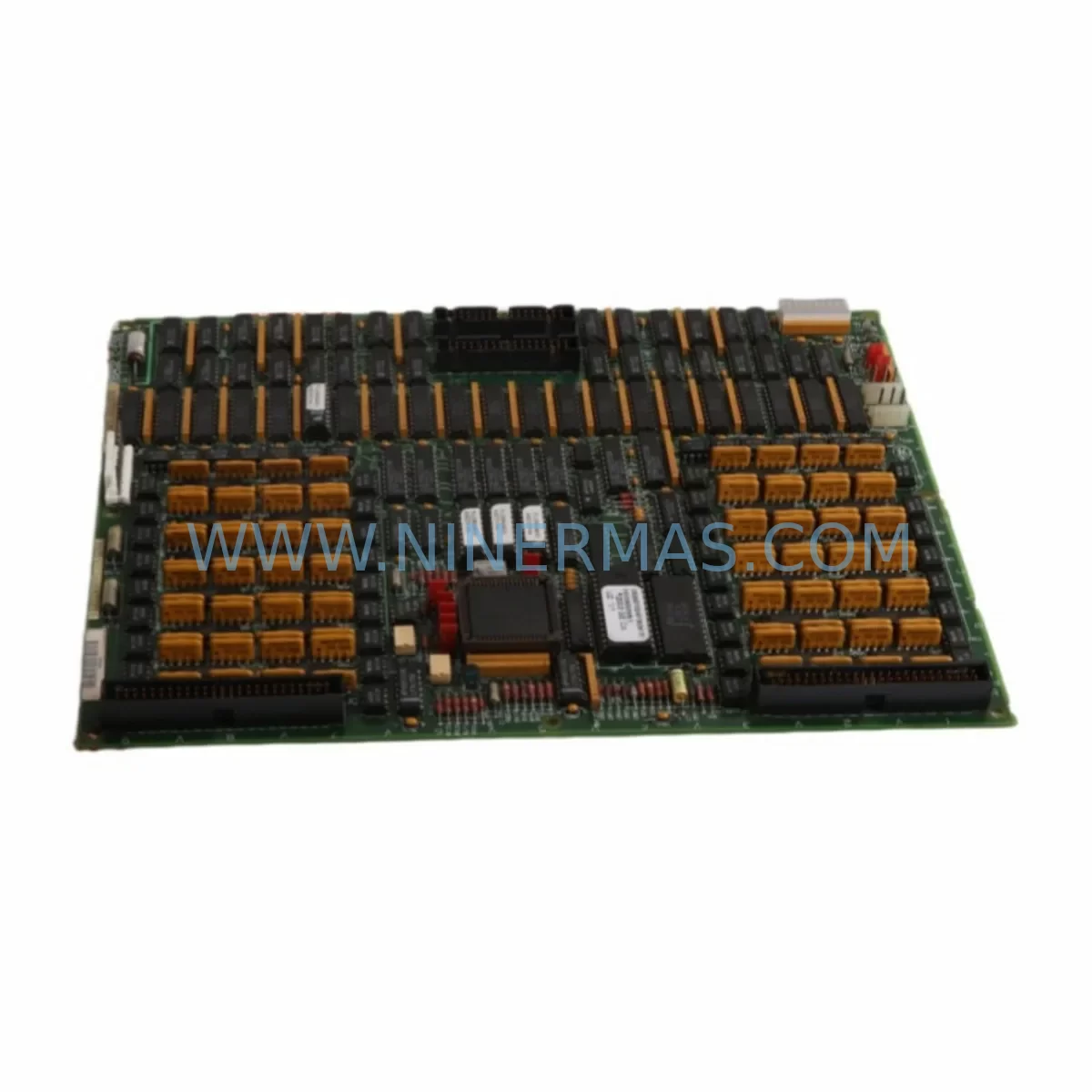

The GE DS215TCCAG1BZZ01A is an original Common Analog I/O Board designed for the GE Mark V Turbine Control System — one of the most widely deployed control platforms in power generation, oil & gas, and heavy industrial environments. When this board fails or degrades, the consequences are immediate: unplanned turbine trips, loss of analog signal integrity, and extended downtime that can cost thousands of dollars per hour. Stocking a verified, service-ready replacement is not optional — it is a core element of any responsible maintenance strategy.

At NINERMAS, every DS215TCCAG1BZZ01A unit is sourced, inspected, and dispatched with full traceability. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building out your critical spare parts inventory, this board ships tested and ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The DS215TCCAG1BZZ01A sits at the heart of the Mark V analog signal chain. When planning a replacement or conducting a scheduled inspection, maintenance engineers should treat this board as part of a broader system health review — not an isolated component swap.

Begin by verifying the integrity of the Mark V backplane (DS200TCQAG1B or equivalent) that hosts the TCCA board. A damaged backplane connector or corroded bus can cause recurring analog faults even after a board replacement. Simultaneously, inspect the TCPS power supply module (DS200TCPSG1A) that feeds the analog circuits — voltage ripple or dropout on the ±15 VDC rails is a leading cause of premature I/O board failure.

On the signal side, check all analog input terminal blocks and field wiring connected to the TCCA. Loose terminations, moisture ingress, or shielding breaks on 4–20 mA loops will generate the same fault signatures as a failed board, leading to misdiagnosis and unnecessary replacements. If the system uses signal isolators or signal conditioners between field instruments and the Mark V I/O, these should be tested for drift and replaced on a 3–5 year cycle.

For TMR (Triple Modular Redundant) configurations, the DS200TCEAG1B voter card and associated DS215TCDAG1B diagnostic boards should be inspected in parallel. A single degraded TCCA in a TMR rack can mask itself until a second board fails, at which point the system loses redundancy and trips. Proactive replacement of all three TCCA boards during a major overhaul is strongly recommended.

Communication health should also be verified. The DS200TCQCG1B IONET communication board and the Mark V HMI interface (CIMPLICITY or equivalent) rely on accurate analog data from the TCCA. If analog values appear frozen or erratic on the operator station, the fault may originate in the TCCA, the IONET board, or the fiber optic links between them — all three should be checked before condemning any single component.

Finally, review the condition of fuse blocks and surge protection devices on the analog input circuits. A single transient event — lightning strike, motor start surge, or welding arc — can damage multiple I/O boards simultaneously. Replacing the DS215TCCAG1BZZ01A without addressing the root cause of the transient will result in repeat failures. Ensure that transient voltage suppressors (TVS) and analog input fuses are intact and within specification before commissioning the replacement board.

For procurement engineers, maintaining a minimum stock of one spare DS215TCCAG1BZZ01A per Mark V system — alongside spares for the TCPS power supply, IONET board, and at least one voter card — provides a defensible baseline for turbine availability targets above 95%.

Site Replacement Workflow

Step 1 — Fault Confirmation: Before pulling the DS215TCCAG1BZZ01A, confirm the fault via the Mark V diagnostic display or CIMPLICITY alarm log. Record the specific analog channel(s) reporting faults and cross-reference with field instrument readings to rule out wiring or sensor issues.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. The Mark V allows hot-swap of I/O boards in some configurations, but this must be confirmed against your specific system revision and site safety policy. When in doubt, take the system to a safe state before board removal.

Step 3 — Board Removal and Inspection: Remove the faulty DS215TCCAG1BZZ01A and inspect the backplane connector for bent pins, corrosion, or debris. Clean the connector with appropriate contact cleaner before installing the replacement.

Step 4 — Replacement Installation: Insert the new DS215TCCAG1BZZ01A firmly into the TCCA slot. Verify that the board revision (G1BZZ01A) matches the system’s expected configuration. In some Mark V revisions, firmware or jumper settings on the board must match the slot assignment — consult the GE Mark V Application Manual (GEH-6195) for your specific configuration.

Step 5 — Functional Verification: Power up the system and verify that all analog channels on the replaced board return to normal status. Perform a loop check on critical analog inputs (e.g., exhaust thermocouples, compressor inlet pressure, fuel flow) before returning the turbine to service.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System) with the board serial number, installation date, and post-replacement test results. This data supports warranty claims and future failure analysis.

Spare Parts Support FAQ

Q1: Is the DS215TCCAG1BZZ01A compatible with both TMR and Simplex Mark V configurations?
Yes. The DS215TCCAG1BZZ01A is the Common Analog I/O Board used across Mark V TMR and Simplex turbine control panels. However, the number of boards per rack differs — TMR systems use three TCCA boards per redundant group. Always verify the board revision suffix against your system’s bill of materials before ordering.

Q2: What testing is performed before shipment?
Every DS215TCCAG1BZZ01A dispatched by NINERMAS undergoes functional verification including power-on self-test, analog channel continuity checks, and visual inspection for component damage, corrosion, or counterfeit indicators. Units that do not pass are not shipped. A 12-month warranty covers all dispatched units against manufacturing defects and functional failure under normal operating conditions.

Q3: How should I manage long-term spare parts inventory for aging Mark V systems?
GE Mark V systems are widely installed but no longer in active production, making spare parts availability a growing concern. We recommend a tiered inventory strategy: maintain at least one DS215TCCAG1BZZ01A on-site per system, with a secondary stock at your regional warehouse. For sites with multiple Mark V units, a shared pool of 2–3 boards reduces per-unit carrying cost while maintaining coverage. NINERMAS offers long-term supply agreements to support multi-year maintenance contracts.

Q4: Can the DS215TCCAG1BZZ01A be used to replace older or superseded TCCA board revisions?
In most cases, yes — the G1BZZ01A revision is a later production variant and is backward compatible with earlier TCCA revisions in the same slot. However, compatibility must be confirmed against your specific Mark V system revision and software version. Contact our technical team with your system serial number and current board revision for a definitive compatibility assessment before ordering.
