Mitsubishi AY81 Retrofit-Compatible Digital Output Module

Mitsubishi AY81 Retrofit-Compatible Digital Output Module: Legacy System Compatibility & Smooth Upgrade

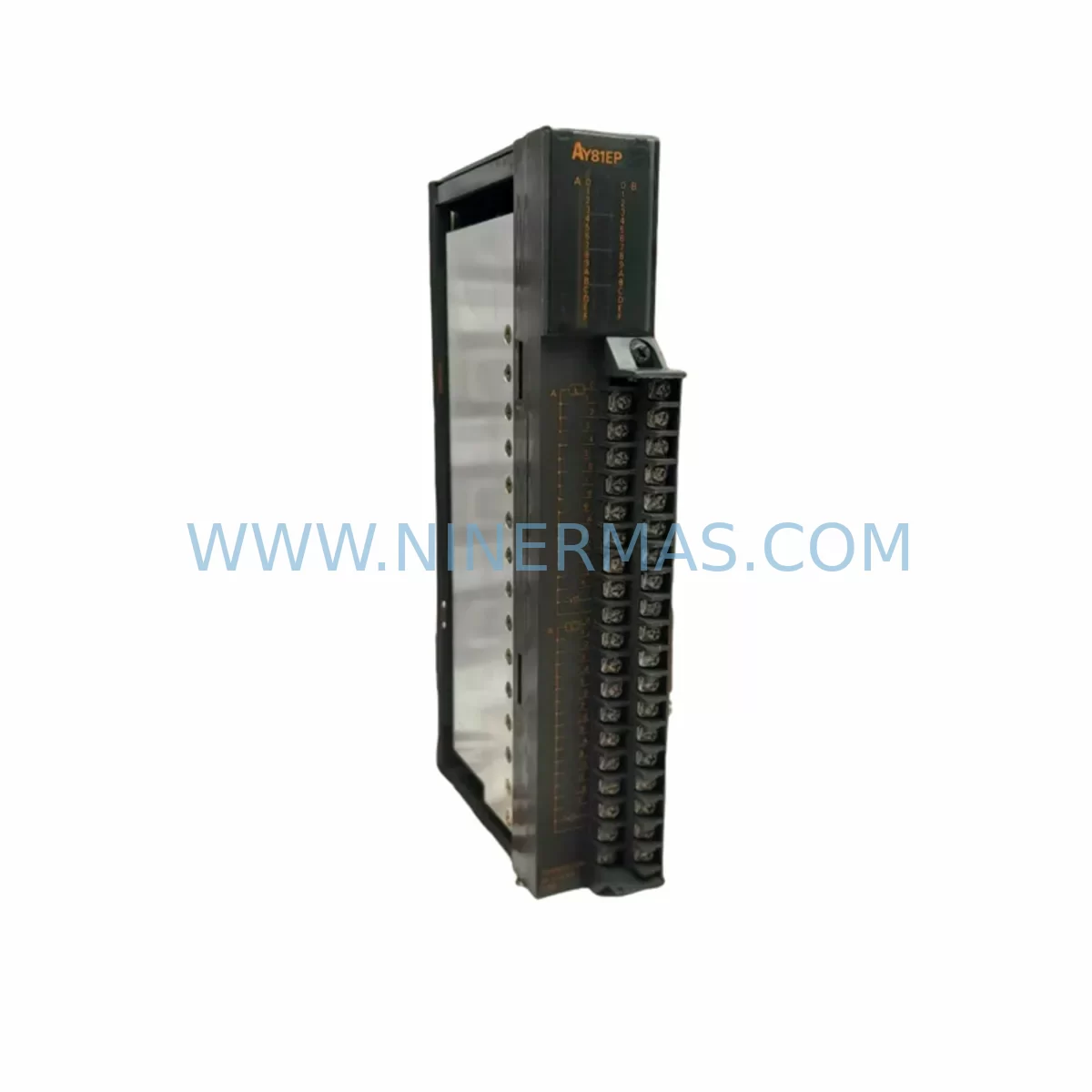

The Mitsubishi AY81 is a transistor-type digital output module designed for the MELSEC-A Series programmable logic controller platform — one of Mitsubishi Electric’s most widely deployed legacy control architectures across discrete manufacturing, process automation, and infrastructure industries. As the MELSEC-A Series has reached end-of-life status, the AY81 has become a critical spare part for maintenance engineers managing aging control panels, retrofit projects, and phased system migrations. NINERMAS maintains verified stock of the AY81 to support customers who require immediate replacement, planned upgrade cycles, or long-term spare parts inventory for production continuity.

The AY81 provides 32-point transistor output (sink type) with a rated load voltage of 12–24 VDC and a maximum load current of 0.1 A per point. It mounts directly into the MELSEC-A Series base unit — including the A1S series slim-line rack and the standard A-series backplane — and communicates via the A-bus backplane interface. For engineers managing legacy lines, the AY81 is a direct drop-in replacement that requires no firmware changes, no I/O address remapping, and no modification to existing GX Developer or MELSEC Medoc ladder programs, provided the replacement module is installed in the same slot position.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the AY81, the scope of work typically extends well beyond the output module itself. A complete assessment of the control cabinet is essential before any module swap. Engineers should begin by auditing the A1S61 or A1S65B base unit to confirm available slot count and backplane integrity. The PS-A power supply module — commonly the A1S61P or A1S62P — must be evaluated for remaining load capacity, particularly when additional I/O modules such as the AX80 (32-point DC input) or AX40Y80C (combined I/O) are being added to the rack during the same maintenance window.

Terminal wiring is a frequent source of delay during AY81 replacement. The module uses a 40-pin connector with field wiring terminated at the A6CON1 or A6CON2 connector block. Before removal, photograph or document all terminal assignments. If the existing connector block shows signs of wear or heat damage, replacement with a new A6CON1 is strongly recommended to prevent intermittent output faults after reinstallation. Wiring polarity for sink-type transistor outputs must be confirmed against the field device datasheet — particularly for solenoid valves, relay coils, and indicator lamps that may have been wired for source-type output modules.

For sites where the MELSEC-A CPU — such as the A1SCPU, A2SCPU, or A3NCPU — is also approaching end-of-life, a phased migration strategy is advisable. In Phase 1, the AY81 is replaced on a like-for-like basis to restore immediate production capability. In Phase 2, the control platform is migrated to the MELSEC-Q series using a QA1S65B or QA1S68B A/Q conversion base unit, which allows Q-series CPU modules such as the Q03UDECPU to operate with existing A-series I/O modules — including the AY81 — during the transition period. This approach eliminates the need for a full I/O rewire and allows the ladder program to be converted incrementally using GX Works2’s A-series import function.

Communication infrastructure must also be reviewed. Sites using MELSEC-NET/B or MELSEC-NET/10 for inter-PLC communication will need to assess whether the A1SJ71AP23Q or A1SJ71BR11 network modules remain functional. If the migration path leads to CC-Link or Ethernet/IP, a communication module upgrade — such as the QJ61BT11N for CC-Link or QJ71E71-100 for Ethernet — will be required alongside the CPU change. HMI panels running on GOT900 or GOT1000 series displays connected via the A-CPU direct link will need screen project updates if the CPU type changes, as tag addresses and device types may shift between A-series and Q-series memory maps.

Signal isolation should be considered for output channels driving long cable runs or inductive loads. Installing a signal isolator or relay output terminal block between the AY81 and field devices can protect the module from voltage spikes and extend service life — a practical measure when the goal is to maximize the operational lifespan of the existing A-series platform before full migration.

Downtime Control During System Migration

Minimizing production downtime during an AY81 replacement or broader MELSEC-A migration requires disciplined pre-work. Before the maintenance window opens, the complete ladder program should be backed up from the A-series CPU using GX Developer, with the .GPJ project file stored on at least two separate media. If the CPU battery — typically a Q6BAT or A6BAT — is low, it should be replaced before the backup to prevent program loss during power cycling.

A module swap on a like-for-like AY81 basis can typically be completed within 15–30 minutes if the replacement unit is pre-staged, the connector block is pre-wired, and the slot address is confirmed. The CPU does not require re-programming; the existing I/O parameters and output assignments are retained in the CPU memory. After reinstallation, a forced output test using GX Developer’s device monitor function should be performed to verify each output point before returning the line to production.

For broader migrations involving CPU or base unit changes, a parallel-run strategy — where the new Q-series platform is commissioned alongside the existing A-series system before cutover — significantly reduces risk. The QA1S65B conversion base enables this approach by allowing the Q-series CPU to read A-series I/O in real time, giving engineers the opportunity to validate the converted program against live field signals before the final switchover. Cutover can then be executed during a planned short stop, with the A-series system held in a safe state and the Q-series system brought online in a controlled sequence.

All units supplied by NINERMAS are tested for output continuity and insulation resistance prior to shipment. Each AY81 is covered by a 12-month warranty from the date of delivery, supporting both emergency replacement and planned maintenance scenarios.

Retrofit Support FAQ

Q1: Is the AY81 a direct drop-in replacement for a failed unit in an existing MELSEC-A rack?
Yes. The AY81 is a direct slot-compatible replacement for any existing AY81 installed in an A1S or standard A-series base unit. No program changes are required provided the module is installed in the same slot position. Output wiring connects via the A6CON1 or A6CON2 40-pin connector, which can be transferred directly from the failed module.

Q2: Can the AY81 be used during a phased migration to the MELSEC-Q series?
Yes. Using a QA1S65B or QA1S68B A/Q conversion base unit, the AY81 can operate under a Q-series CPU during the migration period. This allows the existing I/O wiring to remain intact while the control program is converted and validated, significantly reducing migration risk and downtime.

Q3: What pre-shipment testing is performed on AY81 units?
All AY81 units supplied by NINERMAS undergo output point continuity testing and insulation resistance verification before dispatch. Units are packaged in anti-static protective packaging and shipped with a test record. A 12-month warranty is provided from the date of delivery.

Q4: What is the typical lead time and stock availability for the AY81?
NINERMAS maintains ready stock of the AY81 to support both emergency and planned procurement. Standard orders are processed and dispatched within 1–3 business days. For bulk or long-term supply agreements covering multi-site maintenance programs, please contact our sales team to discuss inventory reservation and pricing.
