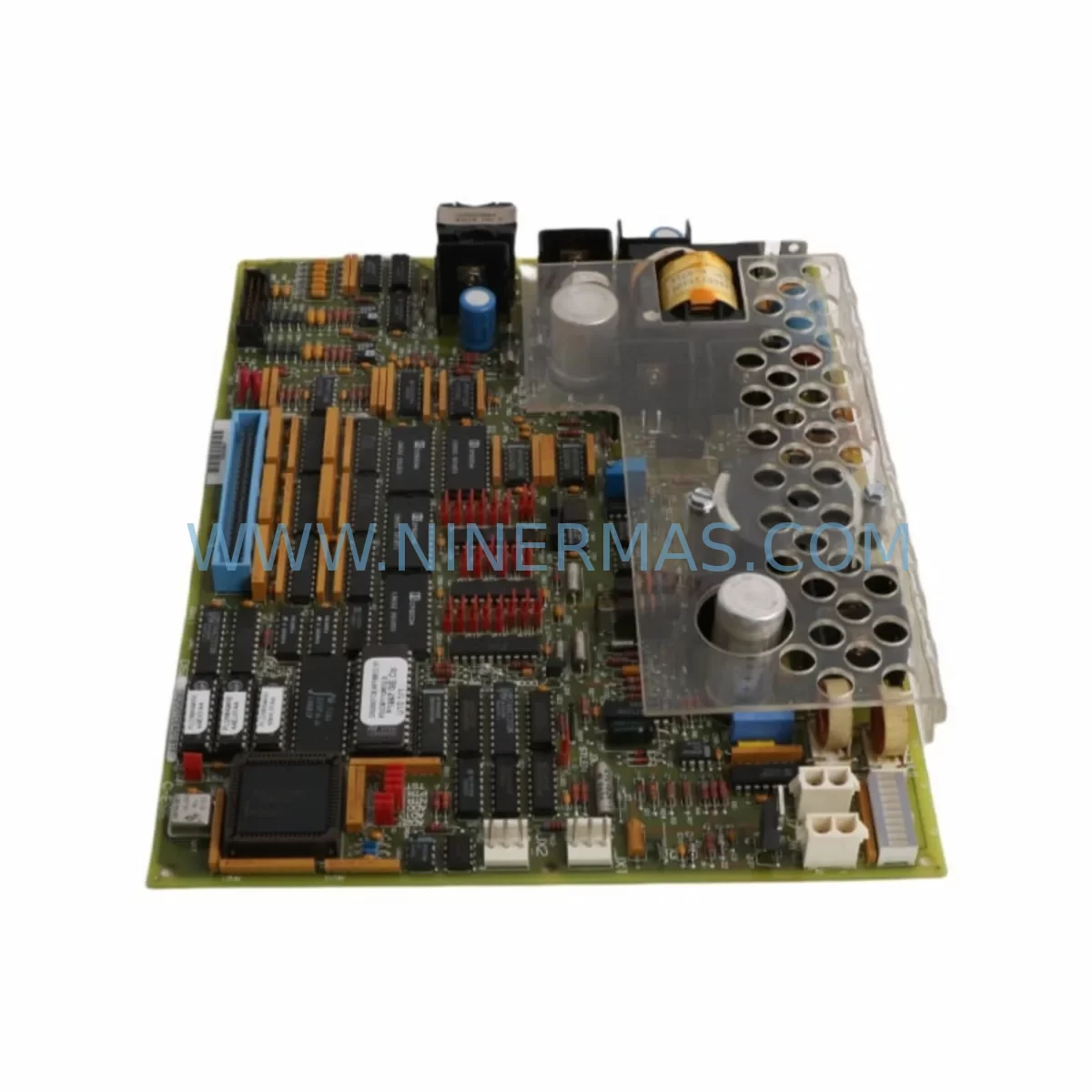

GE DS200TCEAG1BSF Safety-Reliable Overspeed Module

GE DS200TCEAG1BSF Safety-Reliable Overspeed Module for Critical Control Sites

The GE DS200TCEAG1BSF is a turbine control emergency overspeed protection module engineered for the most demanding critical industrial environments. Designed as part of GE’s Mark V and DS200 turbine control platform, this module plays a central role in safeguarding rotating machinery against catastrophic overspeed events — one of the most dangerous failure modes in power generation, petrochemical, and heavy industrial operations.

In continuous production environments where unplanned shutdowns carry enormous financial and safety consequences, the DS200TCEAG1BSF delivers the reliable, deterministic response required by critical interlock and emergency shutdown (ESD) systems. Its hardened design addresses the real-world challenges of high electromagnetic interference (EMI), voltage transients, vibration, dust ingress, humidity, and elevated ambient temperatures — conditions routinely encountered in turbine control cabinets at power plants, refineries, and offshore platforms.

Unlike general-purpose I/O modules, the DS200TCEAG1BSF is purpose-built for speed-sensing and overspeed trip logic. It continuously monitors turbine shaft speed signals and initiates a protective trip output within milliseconds when speed exceeds the programmed threshold. This rapid response capability is essential for protecting high-value assets such as steam turbines, gas turbines, and compressor trains, where a delayed trip can result in catastrophic mechanical failure, personnel injury, and extended unplanned downtime.

When integrating or replacing this module in an existing Mark V control system, engineers must verify compatibility with the DS200TCQAG1B turbine control board and confirm that the backplane slot assignment and module address configuration match the original system layout. The DS200TCEAG1BSF interfaces directly with the Mark V’s TCCA core processor card, and any replacement must preserve the existing speed pickup wiring — typically magnetic or proximity-type sensors — without modification to the field terminal block assignments.

Power supply integrity is equally critical in safety-sensitive applications. The module draws regulated DC power from the Mark V power distribution system, and it is strongly recommended to verify the output stability of the DS200PCCAG1A power supply module before commissioning a replacement DS200TCEAG1BSF. Voltage sags or ripple on the DC bus can cause nuisance trips or, worse, delayed protective response — both unacceptable outcomes in a critical control environment.

Communication between the DS200TCEAG1BSF and the Mark V controller relies on the system’s internal IONet or serial data highway. During replacement, technicians should confirm that the DS200SDCIG2A serial data communication interface card is functioning correctly and that no address conflicts exist on the control network. A communication fault on this link can mask a genuine overspeed condition, defeating the purpose of the protection system entirely.

For facilities operating Mark VI or Mark VIe upgrades alongside legacy Mark V hardware, the DS200TCEAG1BSF can serve as a bridging component during phased migration. In these scenarios, it is common to find the module operating in parallel with newer IS200TCEAG1A or IS200ESELH1A emergency overspeed boards, allowing engineers to validate trip setpoints and response times across both platforms before full cutover.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Reducing risk in a turbine control cabinet begins with understanding the interdependencies between protection modules, power systems, and communication infrastructure. The DS200TCEAG1BSF does not operate in isolation — its reliable performance depends on the health of every component in the control chain.

Start with the power supply. A degraded DS200PCCAG1A power conditioning module can introduce voltage instability that compromises the overspeed module’s internal logic. Always measure DC bus voltage under load before and after installing a replacement DS200TCEAG1BSF. If the power supply shows signs of capacitor aging or output drift, replace it concurrently to avoid a repeat failure.

Next, inspect the backplane and rack assembly. The Mark V rack — often a DS200RACK or equivalent chassis — must be free of corrosion, bent connector pins, and cracked PCB traces at the slot interface. A poor backplane connection is one of the most common causes of intermittent module faults in aging turbine control systems, and it is frequently overlooked during routine maintenance.

The DS200TCQAG1B turbine control board, which coordinates trip logic across multiple protection channels, should be inspected for firmware version compatibility with the replacement DS200TCEAG1BSF. In some Mark V configurations, a firmware mismatch between the TCQA and TCEA boards can result in false trip signals or failure to trip — both critical safety failures.

Signal integrity from the speed pickup sensors is another key risk factor. Shielded cabling between the proximity probes and the DS200TCEAG1BSF terminal block must be intact and properly grounded. In high-vibration environments such as compressor stations or marine turbine rooms, cable chafing and connector loosening are common failure modes. A DS200SDCIG2A serial data card fault can further mask speed signal anomalies, making periodic communication diagnostics essential.

For facilities with HMI systems based on GE’s Cimplicity or third-party SCADA platforms, verify that the overspeed trip alarm tag is correctly mapped after module replacement. An incorrectly configured alarm point can prevent operators from receiving timely notification of a protective trip, increasing the risk of delayed response during an actual overspeed event.

Where signal isolation is required between the speed pickup circuit and the control system, a dedicated signal isolator or IS200ESELH1A emergency overspeed electronics board may be used in conjunction with the DS200TCEAG1BSF to provide an additional layer of protection against ground loops and common-mode noise — particularly important in petrochemical plants with extensive grounding networks.

Critical Industrial Safety Applications

The DS200TCEAG1BSF is deployed across a wide range of critical industrial sectors where turbine overspeed protection is a non-negotiable safety requirement:

Power Generation: In coal-fired, gas-fired, and combined-cycle power plants, steam and gas turbines operate at speeds where an uncontrolled overspeed event can destroy the turbine rotor within seconds. The DS200TCEAG1BSF provides the first line of electronic defense, triggering the emergency trip valve before mechanical overspeed devices engage.

Petrochemical and Refining: Compressor trains and process gas turbines in refineries and LNG facilities operate in environments with explosive atmospheres, high ambient temperatures, and aggressive chemical exposure. The module’s hardened design and deterministic trip response make it suitable for these demanding applications, where a control failure can trigger a plant-wide emergency shutdown.

Mining and Minerals Processing: Large ventilation fans, hoisting systems, and grinding mill drives in underground and surface mining operations rely on overspeed protection to prevent mechanical runaway. The DS200TCEAG1BSF’s robust construction handles the high vibration and dust levels typical of mining environments.

Water and Wastewater Treatment: High-speed pump turbines and blower drives in water treatment facilities require reliable overspeed protection to prevent equipment damage and service interruption. Continuous operation requirements in these facilities make fast, reliable spare part availability — such as that offered by NINERMAS — essential for minimizing downtime.

Metallurgy and Steel Production: Rolling mill drives, blast furnace blowers, and converter gas recovery turbines in steel plants operate under extreme thermal and mechanical stress. The DS200TCEAG1BSF’s ability to maintain reliable trip response under high-temperature and high-EMI conditions makes it well-suited to these environments.

Port and Marine Applications: Ship propulsion turbines and port crane drives require overspeed protection that can withstand salt air, humidity, and continuous vibration. The module’s sealed construction and industrial-grade component selection support reliable operation in marine and coastal industrial environments.

Safety and Quality FAQ

Q1: Does the DS200TCEAG1BSF come with a warranty?
Yes. Every DS200TCEAG1BSF supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects and module failure under normal operating conditions. Our team provides full after-sales technical support throughout the warranty period.

Q2: How is the module tested before shipment?
Each DS200TCEAG1BSF unit undergoes a comprehensive pre-shipment functional test, including power-on verification, speed signal input simulation, trip output response testing, and communication interface checks. Only modules that pass all test criteria are released for shipment. Test records are available upon request.

Q3: Is this module compatible with all Mark V turbine control configurations?
The DS200TCEAG1BSF is designed for GE Mark V and DS200 series turbine control systems. Compatibility depends on the specific Mark V panel configuration, firmware version, and backplane slot assignment. NINERMAS technical staff can assist with compatibility verification based on your panel serial number and existing module list. Contact us at sale@ninermas.com before ordering if you have configuration-specific questions.

Q4: Can NINERMAS guarantee long-term supply of this module?
Yes. NINERMAS maintains dedicated inventory of DS200TCEAG1BSF and related Mark V / DS200 series modules to support long-term spare part programs for facilities with aging turbine control systems. We source from verified supply channels and can provide scheduled delivery agreements for customers with ongoing replacement requirements. Contact our team to discuss inventory reservation and supply continuity options.
